PULS Power Supply
- PULS is a company exclusively dedicated to the design, development, production, and sales of DIN-Rail power products. This singular focus on the needs and requirements of the Industrial DC power market allows PULS to set new standards for efficiency and service lifetimes while becoming the global market leader. The broad product offering from PULS enables users to select the right product for their application requirements. All PULS products are manufactured in two state-of-the-art production facilities that are wholly owned and operated by PULS.
Part Number
Manufacturer
Description
Unit Price
In Stock
QS10.241
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 240W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 93.5%
Operating Temperature : 0°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
Series : DIMENSION Q (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 240W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 93.5%
Operating Temperature : 0°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
0
148 in stock

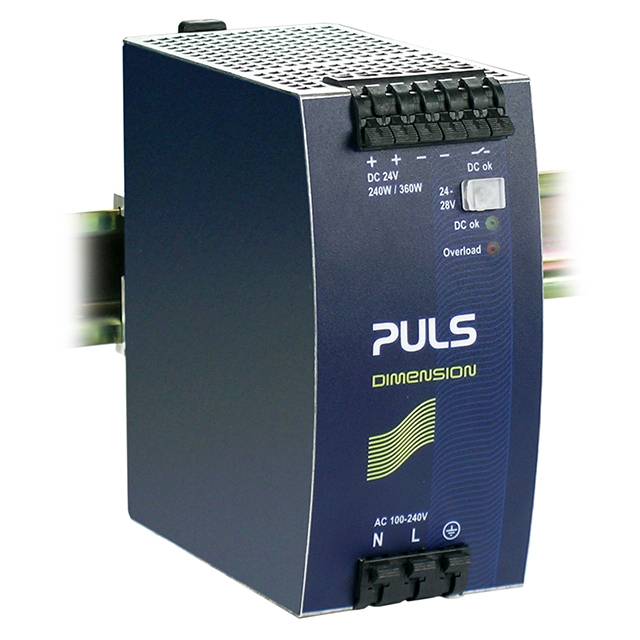

QS10.241-A1
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 240W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 93.5%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
Series : DIMENSION Q (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 240W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 93.5%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
0
100 in stock

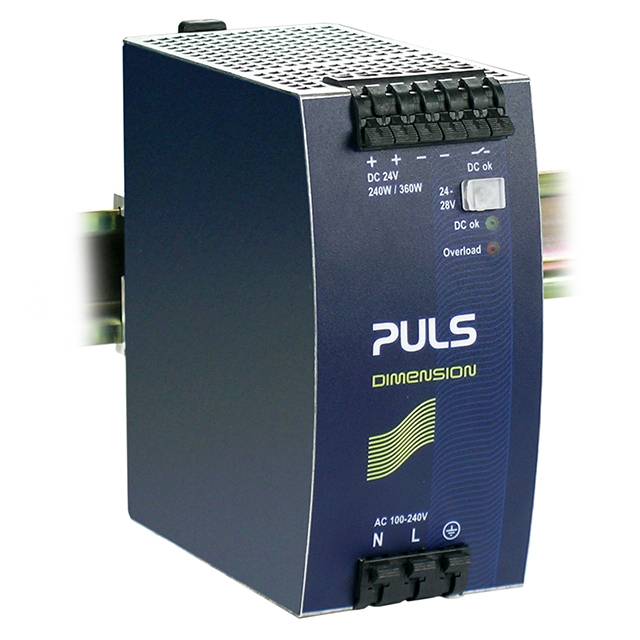

QS10.241-C1
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (240W)
Part Status : Active
Type : Enclosed, Conformal Coated
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 240W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 93.5%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Conformal Coating, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
Series : DIMENSION Q (240W)
Part Status : Active
Type : Enclosed, Conformal Coated
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 240W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 93.5%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Conformal Coating, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
0
4 in stock

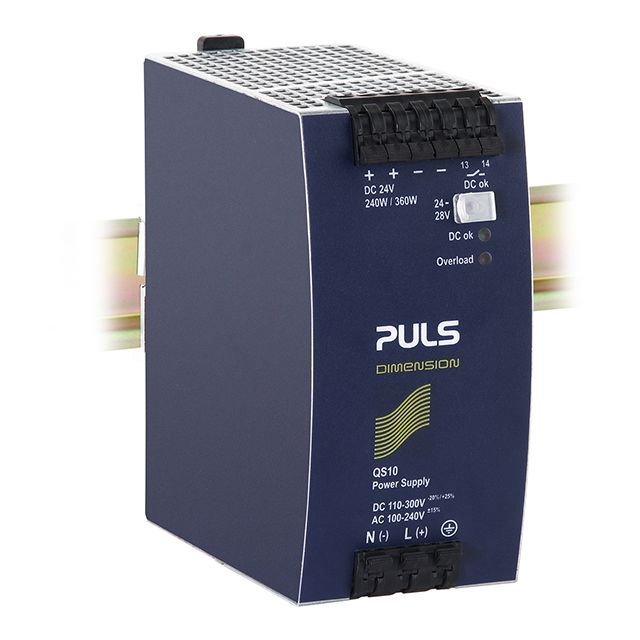

QS10.241-D1
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 240W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 93.5%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
Series : DIMENSION Q (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 240W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 93.5%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
0
100 in stock

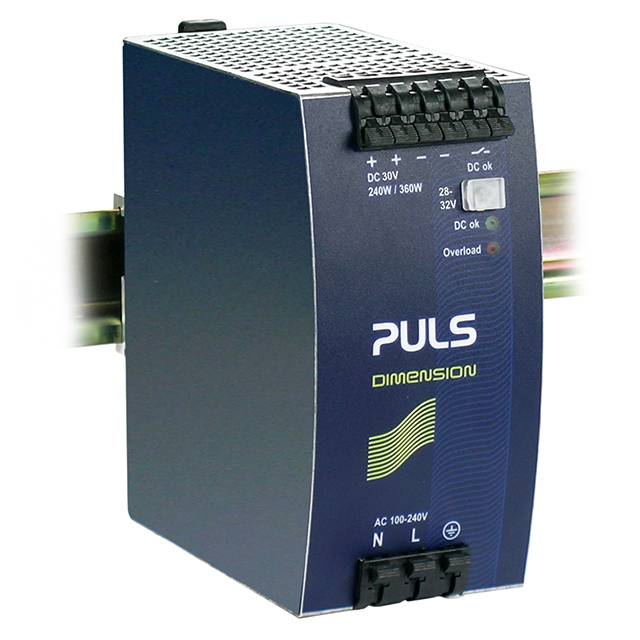

QS10.301
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 30V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 8A
Power (Watts) : 240W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 93.5%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
Series : DIMENSION Q (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 30V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 8A
Power (Watts) : 240W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 93.5%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
0
4 in stock

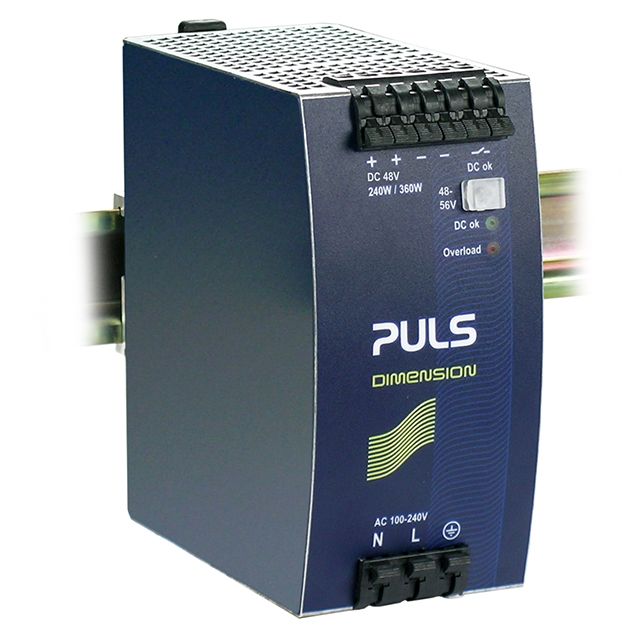

QS10.481
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 240W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 92%
Operating Temperature : 0°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
Series : DIMENSION Q (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 240W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 92%
Operating Temperature : 0°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
0
56 in stock

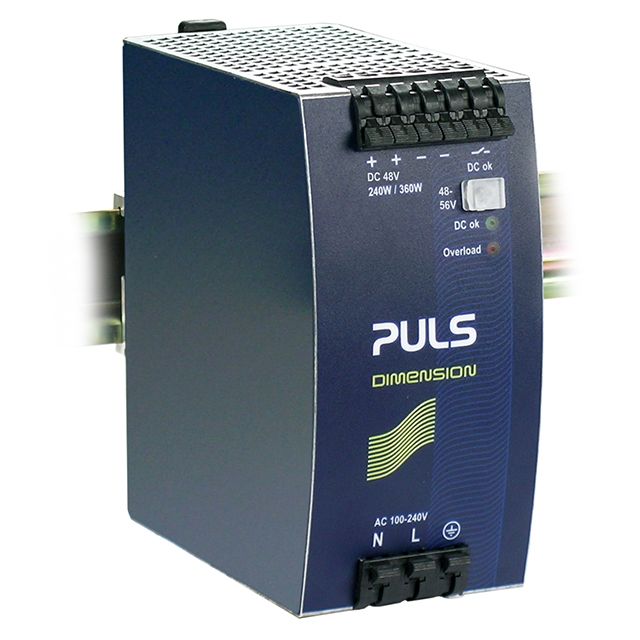

QS10.481-A1
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 240W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 92%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
Series : DIMENSION Q (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 240W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 92%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
0
100 in stock

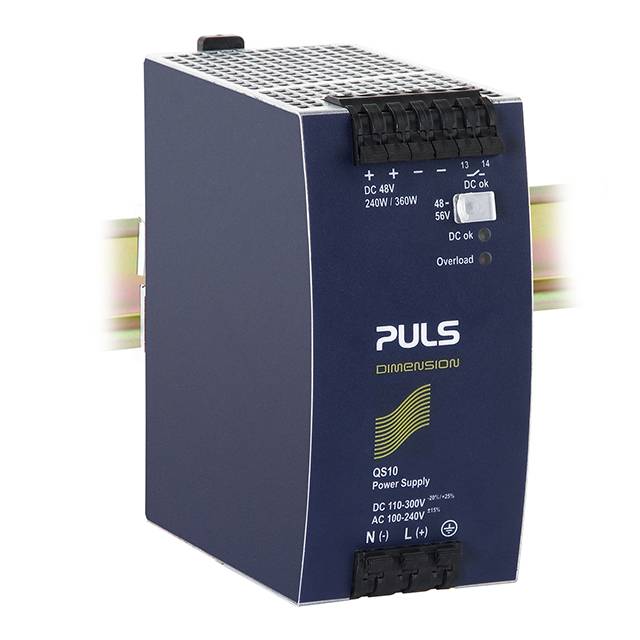

QS10.481-D1
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 240W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 92%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
Series : DIMENSION Q (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 240W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 92%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
0
100 in stock

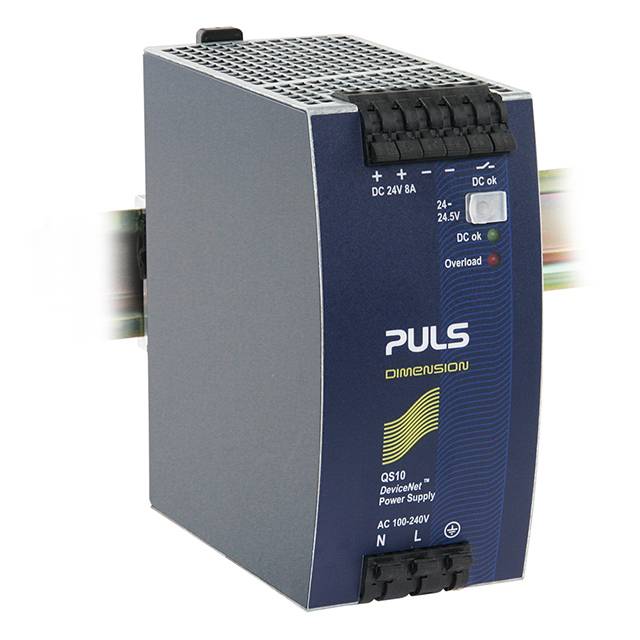

QS10.DNET
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (192W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 8A
Power (Watts) : 192W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 92.7%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
Series : DIMENSION Q (192W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 8A
Power (Watts) : 192W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 92.7%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm)
0
100 in stock

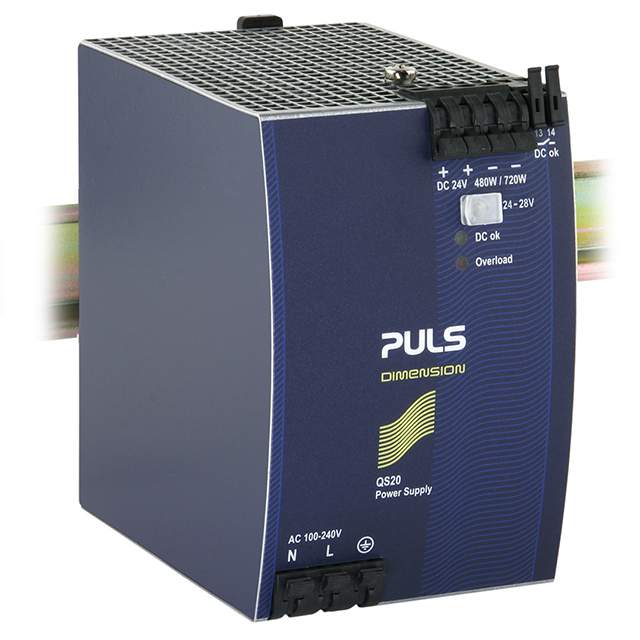

QS20.241
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (480W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : 480W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 93.9%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm)
Series : DIMENSION Q (480W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : 480W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 93.9%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm)
0
75 in stock

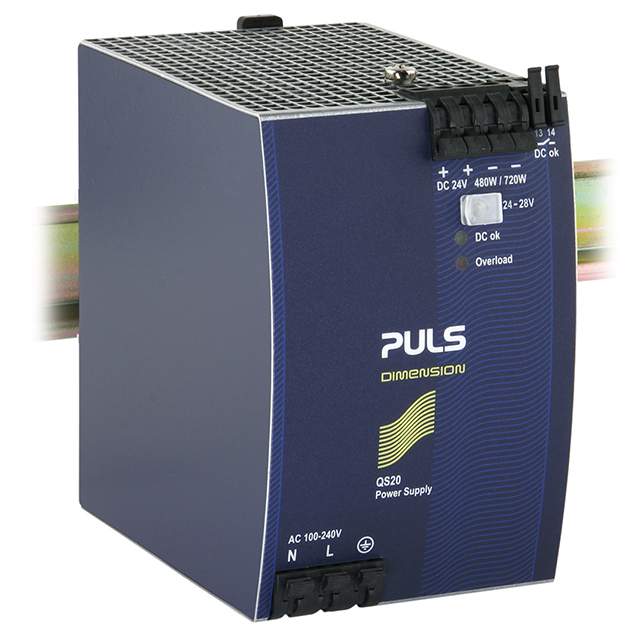

QS20.241-A1
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (480W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : 480W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 93.9%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm)
Series : DIMENSION Q (480W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : 480W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 93.9%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm)
0
100 in stock

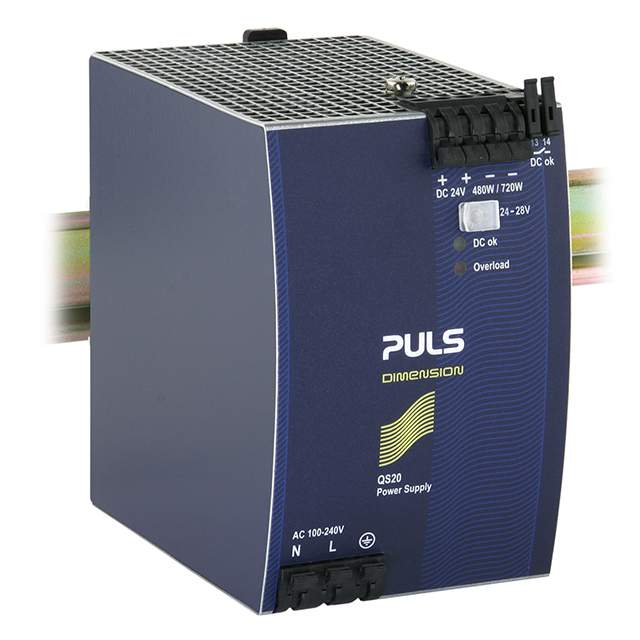

QS20.241-C1
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (480W)
Part Status : Active
Type : Enclosed, Conformal Coated
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : 480W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 93.9%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Conformal Coating, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm)
Series : DIMENSION Q (480W)
Part Status : Active
Type : Enclosed, Conformal Coated
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : 480W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 93.9%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Conformal Coating, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm)
0
56 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
