Powerex, Inc.

- Powerex turns ideas into cost-effective products and is a leading supplier of discrete, modular and integrated high power semiconductor solutions, supporting many markets, including: AC and DC Motor Controls, Aircraft, Alternative Energy (WIND, Photovoltaic), Communications, Electrical, Industrial Heating, Medical Power Supplies, Transportation, UPS, Vehicles, and Welding.


Part Number

Manufacturer

Description

Unit Price

In Stock

CM400DU-12F

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : Trench
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 400A
Power - Max : 960W
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 110nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

CM400DU-12H

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 400A
Power - Max : 1130W
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 35.2nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

CM400DU-12NFH

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 400A
Power - Max : 960W
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 110nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

CM400DU-24F

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 1100W
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 400A
Current - Collector Cutoff (Max) : 2mA
Input Capacitance (Cies) @ Vce : 160nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

CM400DU-24H

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 2100W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 400A
Current - Collector Cutoff (Max) : 2mA
Input Capacitance (Cies) @ Vce : 60nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

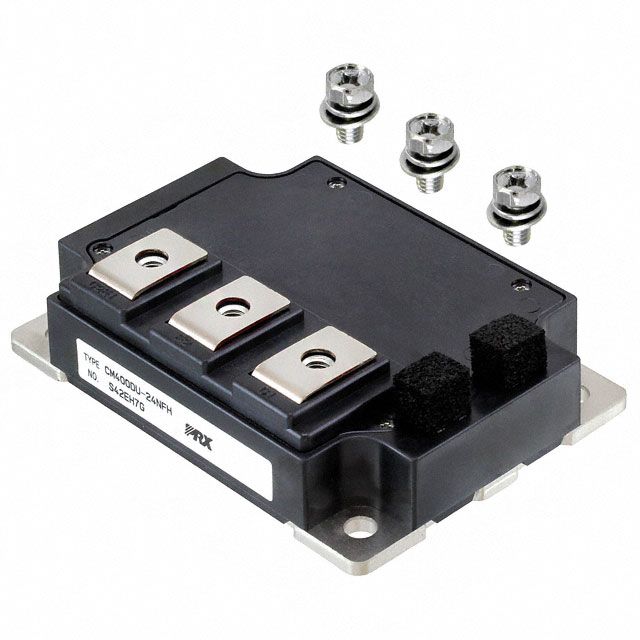

CM400DU-24NFH

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 1040W
Vce(on) (Max) @ Vge, Ic : 6.5V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 63nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

CM400DU-34KA

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 400A
Power - Max : 1950W
Vce(on) (Max) @ Vge, Ic : 4.1V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 57nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

CM400DU-5F

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Active
IGBT Type : Trench
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 250V
Current - Collector (Ic) (Max) : 400A
Power - Max : 890W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 10V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 110nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

CM400DX-12A

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 400A
Power - Max : 1340W
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 50nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

CM400DY-12H

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 400A
Power - Max : 1500W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 40nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

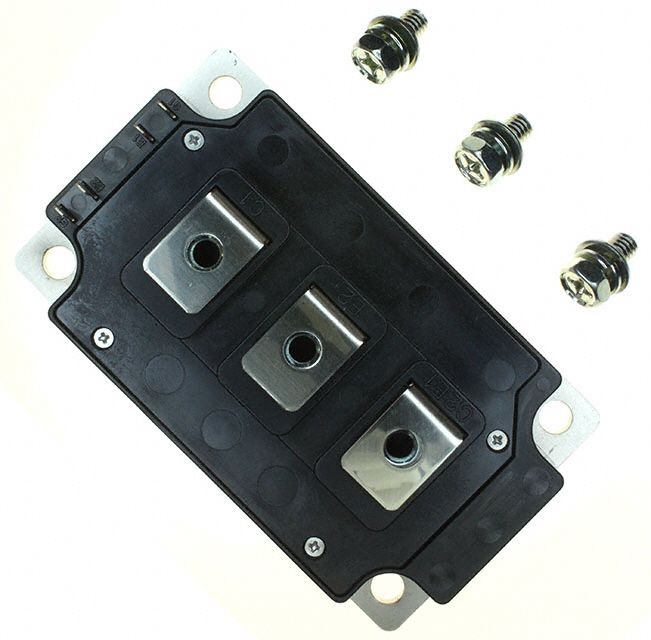

CM400DY-12NF

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 400A
Power - Max : 1130W
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 60nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

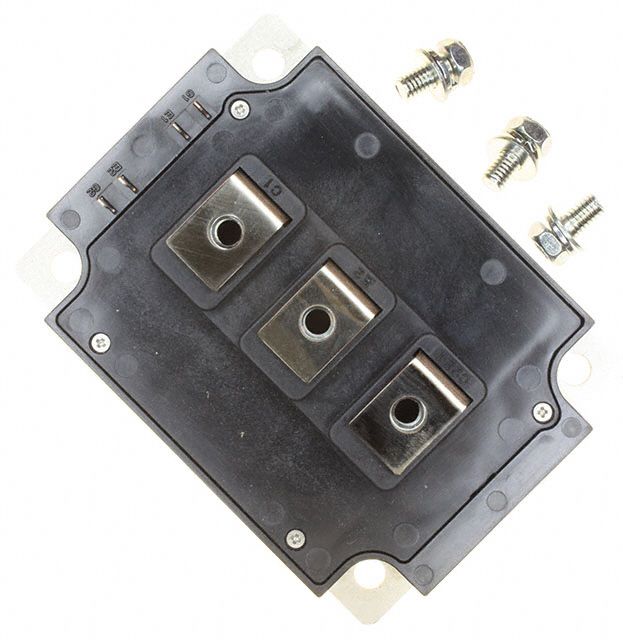

CM400DY-24A

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 2710W
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 70nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock
