Portescap
- Portescap is a motion control business group. Portescap specializes in advanced servo and step drive technologies to develop the highest performance and most cost-effective motion control solutions available. Portescap products include: Electromagnetic Brakes and Clutches, High Performance Servo and Step Motors, Encoders and Resolvers, Miniature Servo and Step Motors, and High Precision Gearboxes.
Portescap is unique among miniature motor manufacturers with their escap® brand precision ironless DC and brushless DC motors, and DMM disc magnet step motors. Our products are used successfully around the world in thousands of applications from medical devices to scientific instruments to factory automation equipment.
We also provide motion control solutions to a broad spectrum of industrial and commercial markets.
Part Number
Manufacturer
Description
Unit Price
In Stock

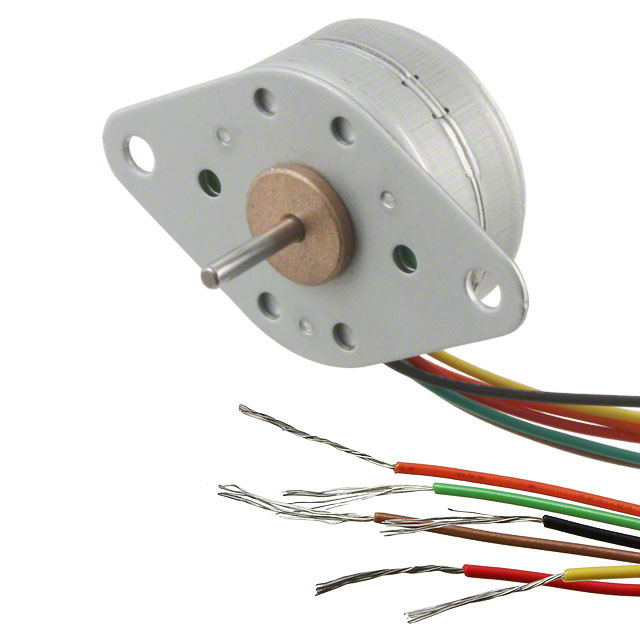

Portescap
Manufacturer : Portescap
Series : 26M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 260mA
Steps per Revolution : 24
Step Angle : 15°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 1.35 / 9.5
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.370" (34.90mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 19.6 Ohms
Features : Round Shaft
0
247 in stock

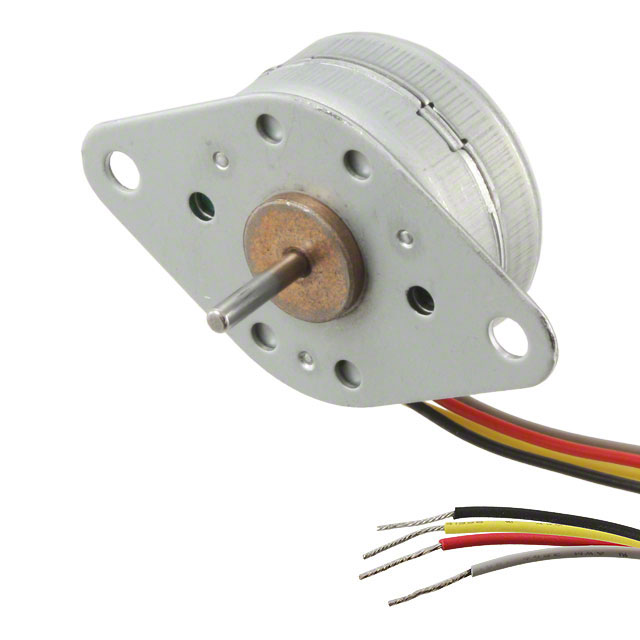

Portescap
Manufacturer : Portescap
Series : 26M
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 250mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 1.5 / 10.6
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.370" (34.90mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 19.8 Ohms
Features : Round Shaft
0
231 in stock

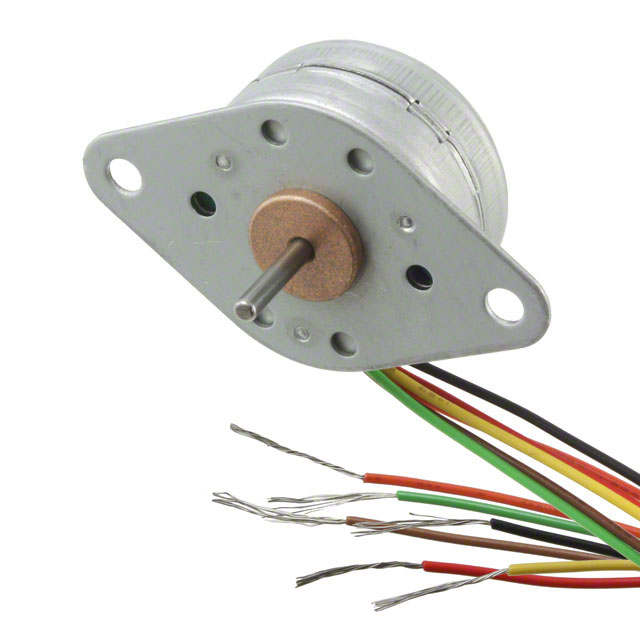

Portescap
Manufacturer : Portescap
Series : 26M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 110mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 1.3 / 9.2
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.370" (34.90mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 110 Ohms
Features : Round Shaft
0
210 in stock
Portescap
Manufacturer : Portescap
Series : 26M-V
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 110mA
Steps per Revolution : 1440
Step Angle : 0.25°
Accuracy : -
Torque - Holding (oz-in / mNm) : 1.3 / 9.2
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.125" (3.18mm)
Length - Shaft and Bearing : 0.432" (10.97mm)
Mounting Hole Spacing : 1.180" (29.87mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 110 Ohms
Features : Round Shaft
0
391 in stock

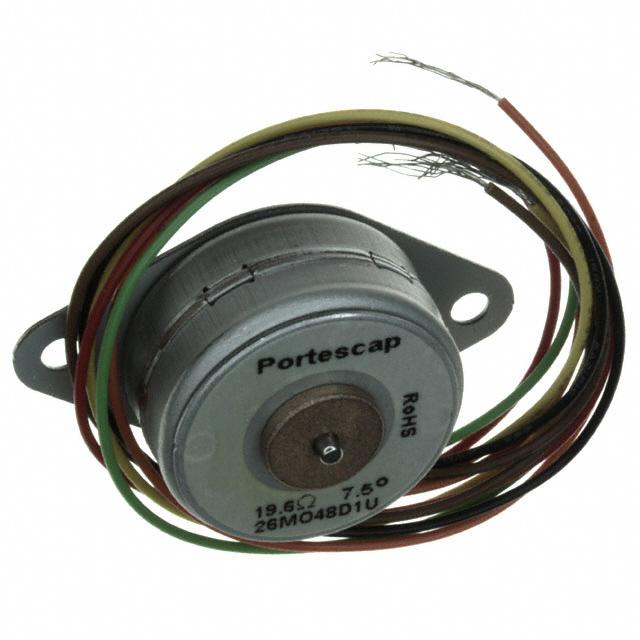

Portescap
Manufacturer : Portescap
Series : 26M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 260mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 1.6 / 11.3
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.370" (34.90mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 19.6 Ohms
Features : Round Shaft
0
52 in stock

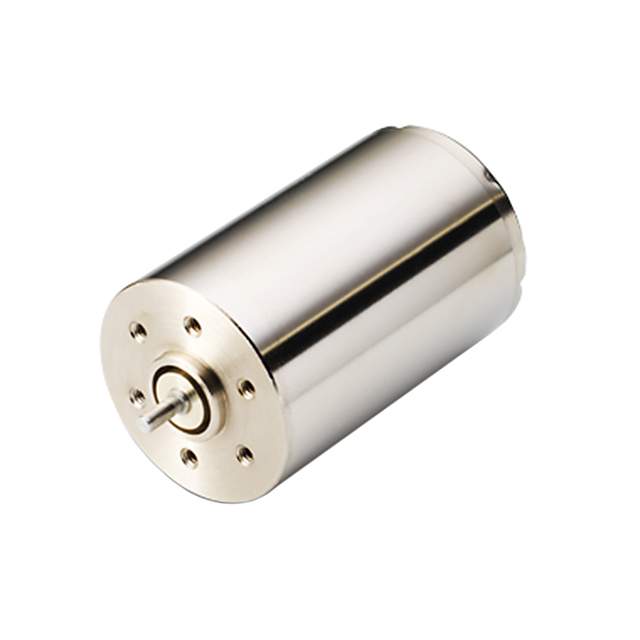

Portescap
Manufacturer : Portescap
Series : 26N58
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 24VDC
RPM : 8000 RPM
Torque - Rated (oz-in / mNm) : 1.89 / 13.3
Power - Rated : 5.7W
Encoder Type : -
Size / Dimension : Round - 1.024" Dia (26.00mm)
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.492" (12.50mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
57 in stock
Portescap
Manufacturer : Portescap
Series : 30GT2R82
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 35VDC
RPM : 10000 RPM
Torque - Rated (oz-in / mNm) : 119.95 / 847
Power - Rated : 82W
Encoder Type : -
Size / Dimension : Round - 1.181" Dia (30.00mm)
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.492" (12.50mm)
Mounting Hole Spacing : 0.787" (20.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
50 in stock

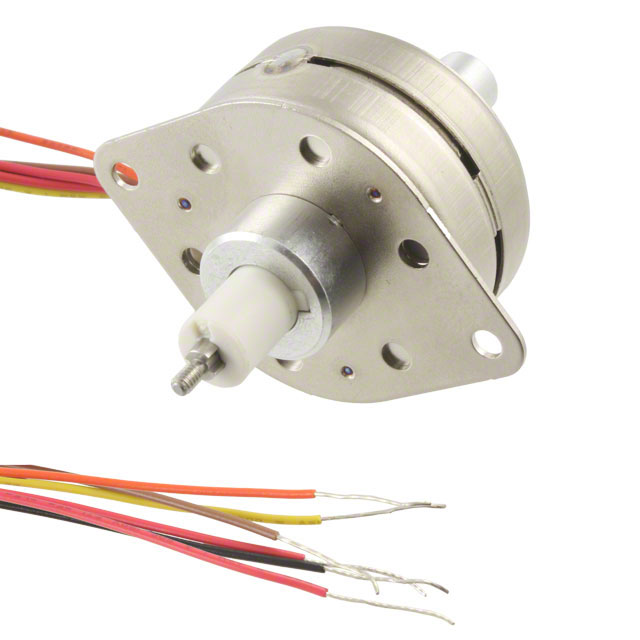

Portescap
Manufacturer : Portescap
Series : 35DBM-K
Part Status : Active
Type : Permanent Magnet Linear Actuator
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 210mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 1.420" Dia (35.94mm)
NEMA Frame Size : -
Diameter - Shaft : 0.138" (3.51mm)
Length - Shaft and Bearing : 1.600" (40.56mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 58 Ohms
Features : Round Shaft
0
179 in stock

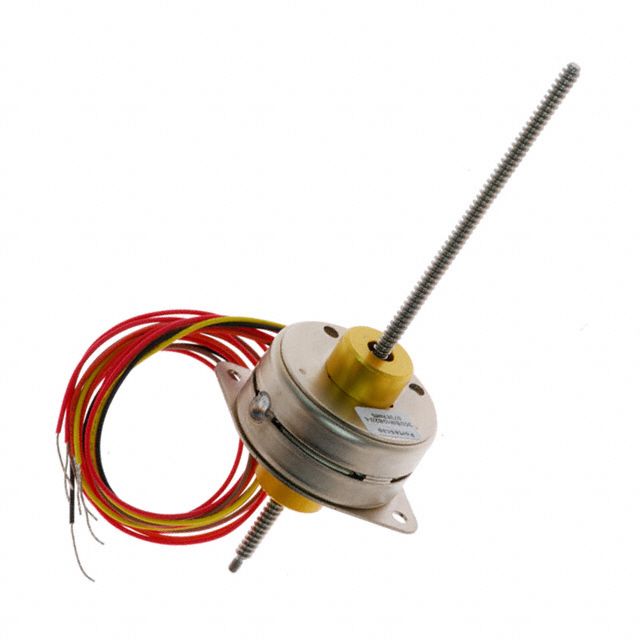

Portescap
Manufacturer : Portescap
Series : 35DBM-L
Part Status : Active
Type : Permanent Magnet Linear Actuator
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 210mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 1.420" Dia (35.94mm)
NEMA Frame Size : -
Diameter - Shaft : 0.138" (3.51mm)
Length - Shaft and Bearing : 1.600" (40.56mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 58 Ohms
Features : Threaded Shaft
0
34 in stock

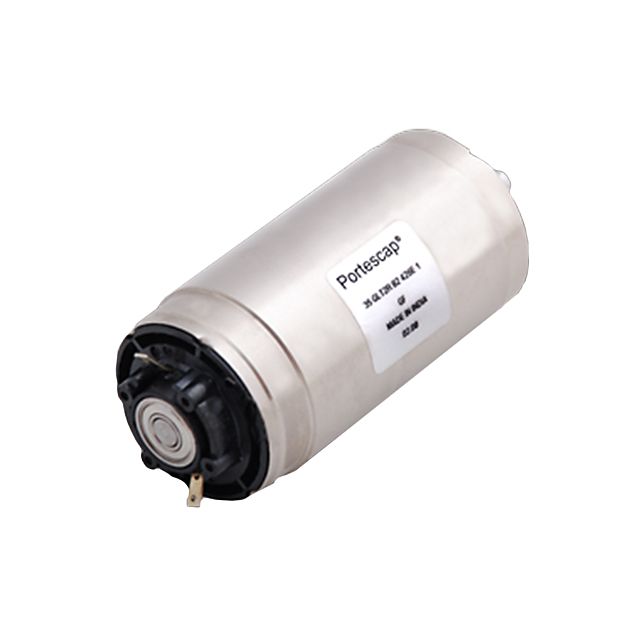

Portescap
Manufacturer : Portescap
Series : 35GLT2R82
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 24VDC
RPM : 10000 RPM
Torque - Rated (oz-in / mNm) : 18.7 / 132
Power - Rated : 124W
Encoder Type : -
Size / Dimension : Round - 1.378" Dia (35.00mm)
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.492" (12.50mm)
Mounting Hole Spacing : 0.866" (22.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
49 in stock
Portescap
Manufacturer : Portescap
Series : 35L
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 450mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 4 / 28
Size / Dimension : Round - 1.420" Dia (35.94mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 11 Ohms
Features : Round Shaft
0
120 in stock

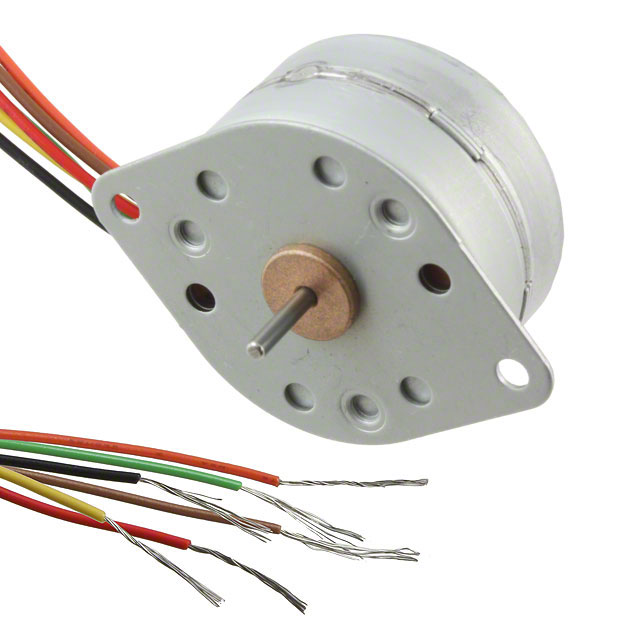

Portescap
Manufacturer : Portescap
Series : 35L
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 450mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 3.5 / 25
Size / Dimension : Round - 1.420" Dia (35.94mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 11 Ohms
Features : Round Shaft
0
232 in stock
