- Panasonic Industrial Devices Sales Company of America is the industrial components and electronic devices division of Panasonic Corporation of North America. Panasonic Industrial Devices Sales Company of America provides key components that power the home appliances, consumer electronics, computers, communications, and commercial and healthcare products used by millions of people each day. Our wide offering of high-quality industrial products, global manufacturing, and advanced research and development facilities as well as our commitment to customer service make us a preferred vendor to the world's most famous original equipment manufacturers of high-tech electronic products. From the smallest resistor to the highest technology wireless communications modules, Panasonic offers it all! Choosing Panasonic means more than selecting a name you know and trust. It means choosing the best quality components the industry can offer.

Part Number
Manufacturer
Description
Unit Price
In Stock

13FM28T 13FM28T

Panasonic
Manufacturer : Panasonic Industrial Automation Sales
Series : -
Part Status : Obsolete
Type : -
Magnification Range : -
0
100 in stock

16SEF1000M  16SEF1000M

Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : OS-CON™, SEF
Part Status : Active
Type : Polymer
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 85mA @ 120Hz
Ripple Current @ High Frequency : 1.7A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
46 in stock

16SEF180M  16SEF180M

Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : OS-CON™, SEF
Part Status : Active
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 22 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 52mA @ 120Hz
Ripple Current @ High Frequency : 1.04A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
500 in stock

16SEF270M  16SEF270M

Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : OS-CON™, SEF
Part Status : Active
Type : Polymer
Capacitance : 270µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 22 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 52mA @ 120Hz
Ripple Current @ High Frequency : 1.04A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
200 in stock

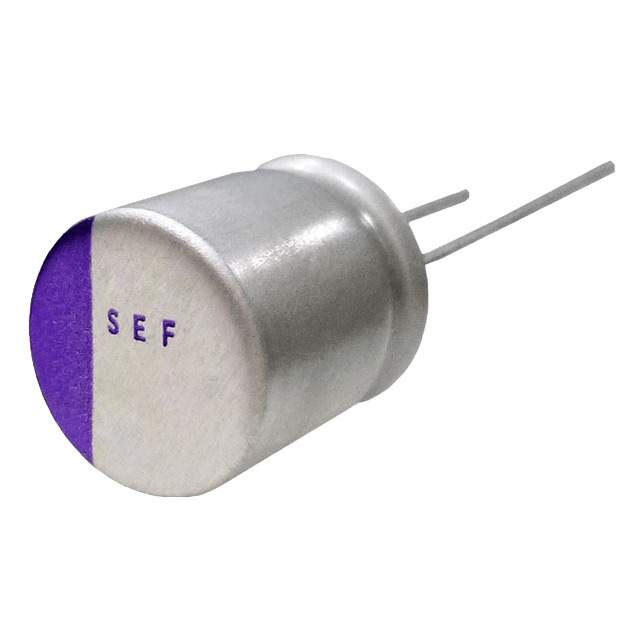

16SEF560M  16SEF560M

Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : OS-CON™, SEF
Part Status : Active
Type : Polymer
Capacitance : 560µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 14 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 78mA @ 120Hz
Ripple Current @ High Frequency : 1.56A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
100 in stock

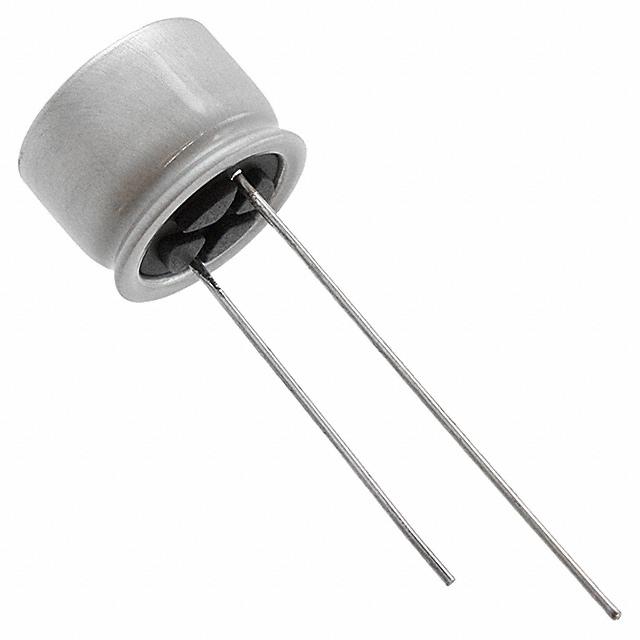

16SEP150M  16SEP150M

Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : OS-CON™, SEP
Part Status : Active
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 151mA @ 120Hz
Ripple Current @ High Frequency : 3.02A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
2 in stock

16SEP150M+T  16SEP150M+T

Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SEP
Part Status : Active
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 151mA @ 120Hz
Ripple Current @ High Frequency : 3.02A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
5376 in stock

16SEP180M  16SEP180M

Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : OS-CON™, SEP
Part Status : Active
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 20 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 182mA @ 120Hz
Ripple Current @ High Frequency : 3.64A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
393 in stock

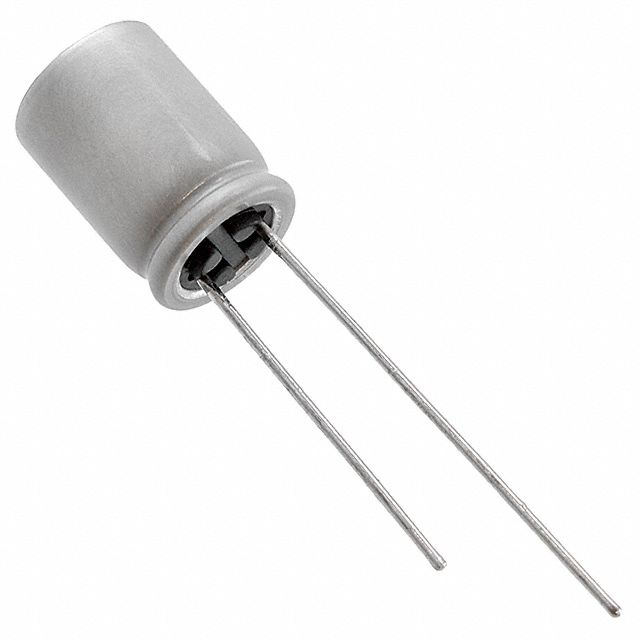

16SEP180M+TSS  16SEP180M+TSS

Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SEP
Part Status : Active
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 20 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 182mA @ 120Hz
Ripple Current @ High Frequency : 3.64A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
3103 in stock

16SEP330M  16SEP330M

Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : OS-CON™, SEP
Part Status : Active
Type : Polymer
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 16 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 236mA @ 120Hz
Ripple Current @ High Frequency : 4.72A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
1557 in stock

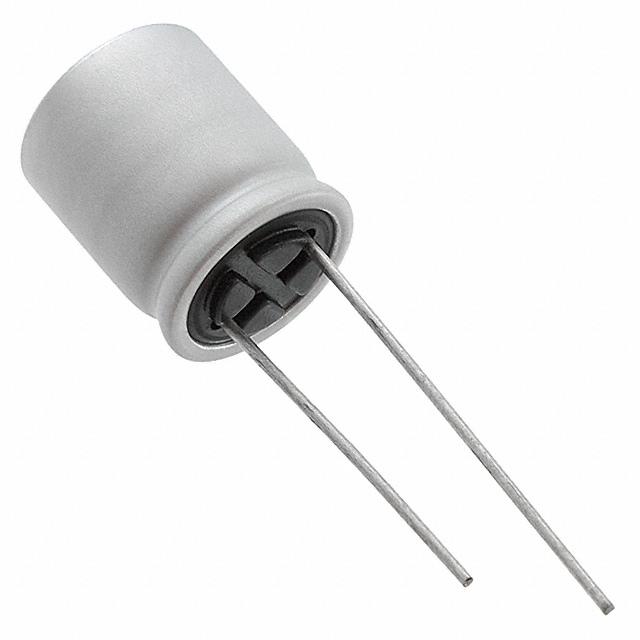

16SEP330M+T  16SEP330M+T

Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SEP
Part Status : Active
Type : Polymer
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 16 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 236mA @ 120Hz
Ripple Current @ High Frequency : 4.72A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
1633 in stock

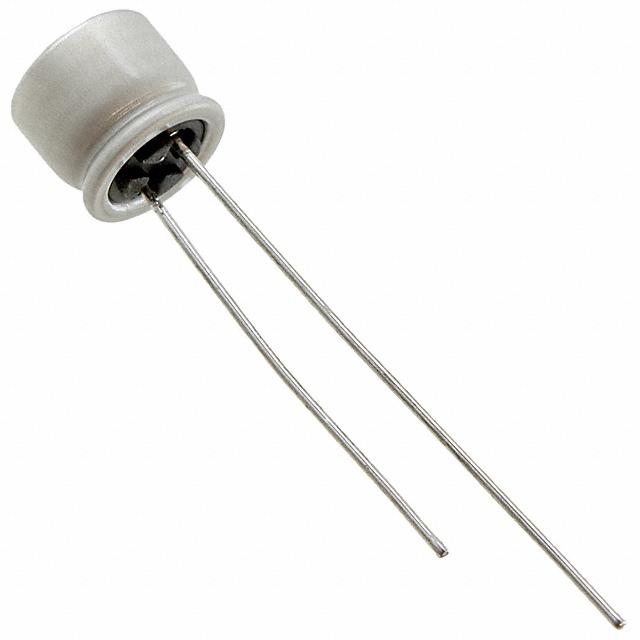

16SEP39M  16SEP39M

Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : OS-CON™, SEP
Part Status : Active
Type : Polymer
Capacitance : 39µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 50 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 81mA @ 120Hz
Ripple Current @ High Frequency : 1.62A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
561 in stock
