Panasonic
- Panasonic Industrial Devices Sales Company of America is the industrial components and electronic devices division of Panasonic Corporation of North America. Panasonic Industrial Devices Sales Company of America provides key components that power the home appliances, consumer electronics, computers, communications, and commercial and healthcare products used by millions of people each day. Our wide offering of high-quality industrial products, global manufacturing, and advanced research and development facilities as well as our commitment to customer service make us a preferred vendor to the world's most famous original equipment manufacturers of high-tech electronic products. From the smallest resistor to the highest technology wireless communications modules, Panasonic offers it all! Choosing Panasonic means more than selecting a name you know and trust. It means choosing the best quality components the industry can offer.
Part Number
Manufacturer
Description
Unit Price
In Stock

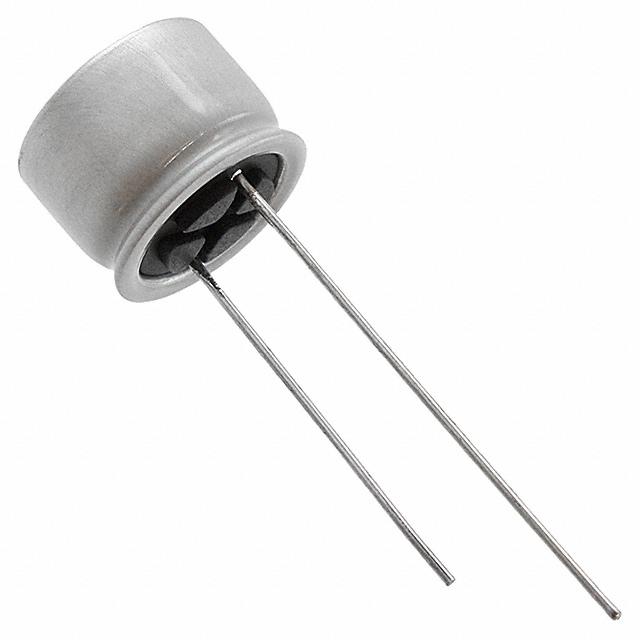

Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SEP
Part Status : Active
Type : Polymer
Capacitance : 270µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 185mA @ 120Hz
Ripple Current @ High Frequency : 3.7A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
841 in stock

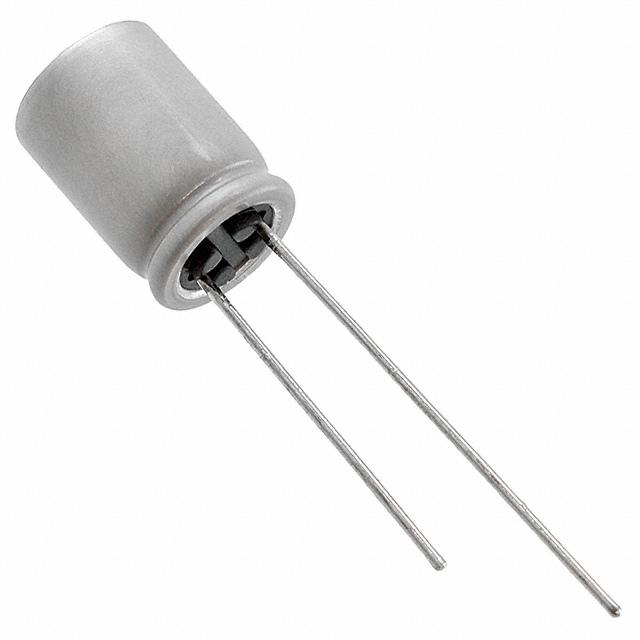

Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : OS-CON™, SEP
Part Status : Active
Type : Polymer
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 17 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 197.5mA @ 120Hz
Ripple Current @ High Frequency : 3.95A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
85 in stock
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SEP
Part Status : Active
Type : Polymer
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 17 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 197.5mA @ 120Hz
Ripple Current @ High Frequency : 3.95A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
806 in stock

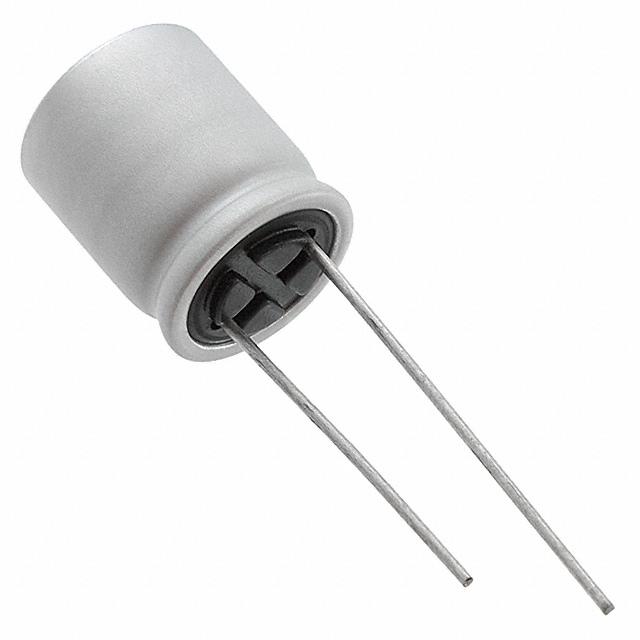

Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : OS-CON™, SEP
Part Status : Active
Type : Polymer
Capacitance : 560µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 13 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 261.5mA @ 120Hz
Ripple Current @ High Frequency : 5.23A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
396 in stock
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SEP
Part Status : Active
Type : Polymer
Capacitance : 560µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 13 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 261.5mA @ 120Hz
Ripple Current @ High Frequency : 5.23A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
457 in stock

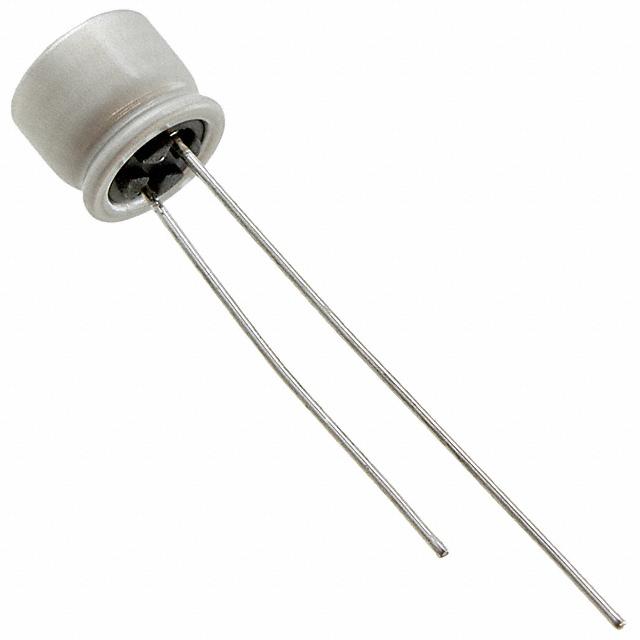

Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : OS-CON™, SEP
Part Status : Active
Type : Polymer
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 45 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 85mA @ 120Hz
Ripple Current @ High Frequency : 1.7A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
215 in stock
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SEP
Part Status : Active
Type : Polymer
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 45 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 85mA @ 120Hz
Ripple Current @ High Frequency : 1.7A @ 100kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
5557 in stock

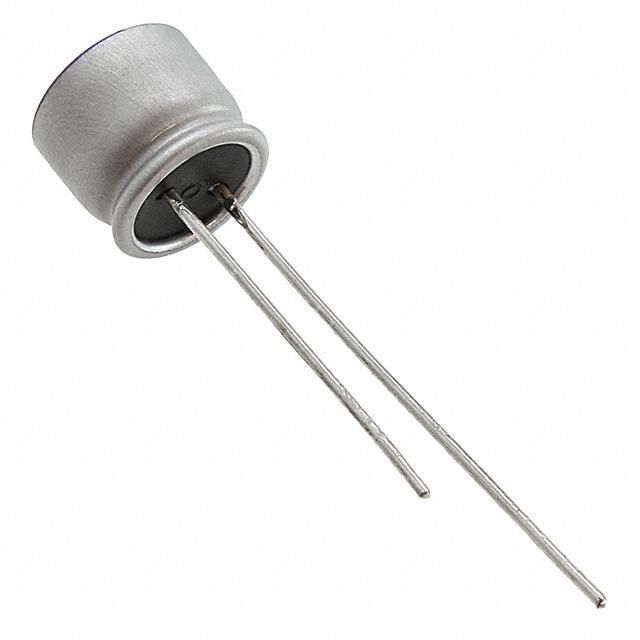

Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Alternate Packaging
Series : OS-CON™, SEPC
Part Status : Active
Type : Polymer
Capacitance : 270µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 22 mOhm
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 161mA @ 120Hz
Ripple Current @ High Frequency : 3.22A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
759 in stock
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : OS-CON™, SEQP
Part Status : Active
Type : Polymer
Capacitance : 120µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 35 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 128mA @ 120Hz
Ripple Current @ High Frequency : 2.56A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
810 in stock

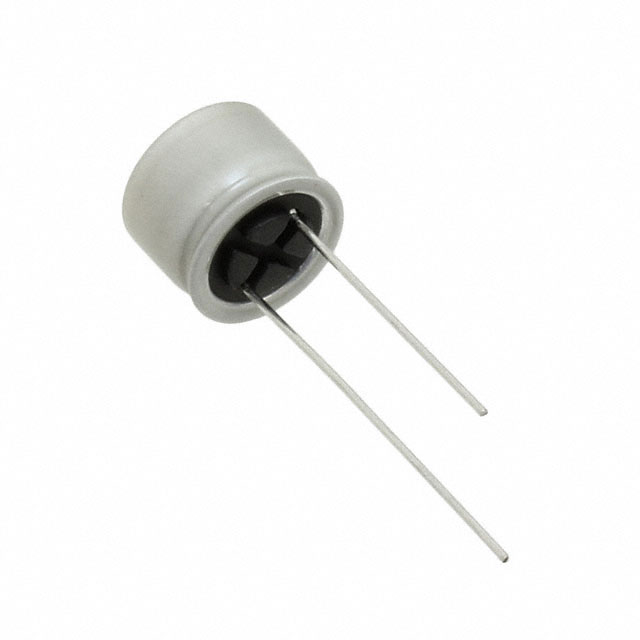

Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : OS-CON™, SEQP
Part Status : Active
Type : Polymer
Capacitance : 270µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 58.5mA @ 120Hz
Ripple Current @ High Frequency : 1.17A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
834 in stock
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Series : OS-CON™, SEQP
Part Status : Active
Type : Polymer
Capacitance : 270µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 58.5mA @ 120Hz
Ripple Current @ High Frequency : 1.17A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
2403 in stock
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : OS-CON™, SEQP
Part Status : Active
Type : Polymer
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 17 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 197.5mA @ 120Hz
Ripple Current @ High Frequency : 3.95A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
796 in stock
