Nichicon

- For over 60 years, Nichicon has strived to be a “valuable supplier for our customers” by balancing advanced technology, strict quality control measures, and superior service. We are continuously researching and implementing innovative technologies to directly benefit our customers while offering the widest selection of aluminum electrolytic capacitors in the industry. We also offer the broadest array of conductive polymer capacitors worldwide.

In the competitive marketplace of electronics, Nichicon’s “zero-defect” philosophy ensures our components can endure diverse applications. We pride ourselves in the variety of capacitors offered including surface mount, snap-in, through-hole, and screw terminal. Additionally, our company upholds the strictest environmental standards including manufacturing only RoHS and REACH compliant components.


Part Number

Manufacturer

Description

Unit Price

In Stock

EEC2E306HQA415

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EEC
Part Status : Active
Capacitance : 30µF
Tolerance : -5%, +10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 2.283" L x 1.024" W (58.00mm x 26.00mm)
Height - Seated (Max) : 1.614" (41.00mm)
Termination : Quick Connect, Disconnect
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -

90 in stock

EEC2E405HQA401

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EEC
Part Status : Active
Capacitance : 4µF
Tolerance : -5%, +10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.457" L x 0.453" W (37.00mm x 11.50mm)
Height - Seated (Max) : 1.024" (26.00mm)
Termination : Quick Connect, Disconnect
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -

138 in stock

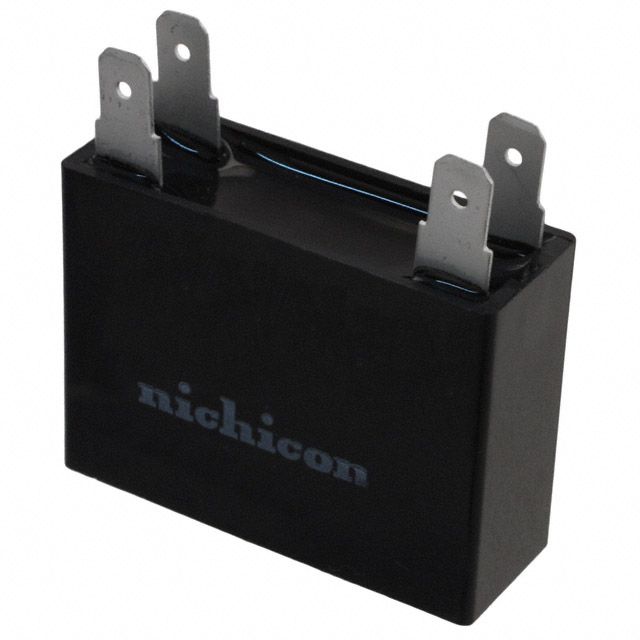

EEC2E505HQA402

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EEC
Part Status : Active
Capacitance : 5µF
Tolerance : -5%, +10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.457" L x 0.531" W (37.00mm x 13.50mm)
Height - Seated (Max) : 1.102" (28.00mm)
Termination : Quick Connect, Disconnect
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -

100 in stock

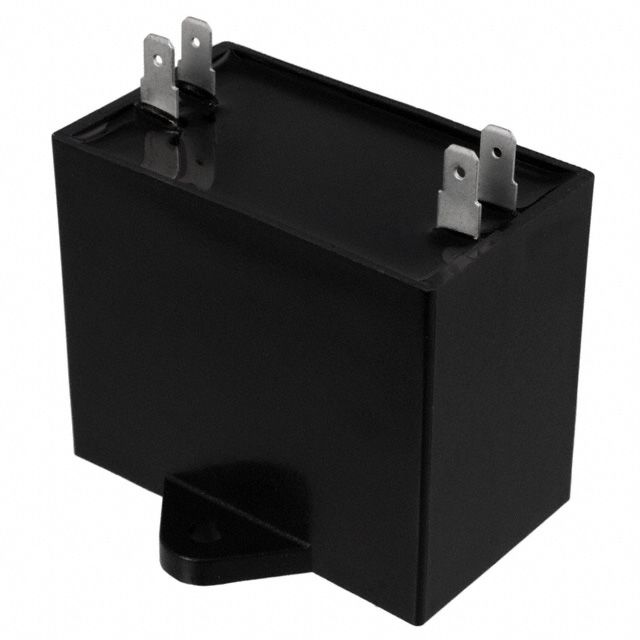

EEC2E506HQA431

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EEC
Part Status : Active
Capacitance : 50µF
Tolerance : -5%, +10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 2.283" L x 1.339" W (58.00mm x 34.00mm)
Height - Seated (Max) : 1.969" (50.00mm)
Termination : Quick Connect, Disconnect
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -

53 in stock

EEC2E605HQA402

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EEC
Part Status : Active
Capacitance : 6µF
Tolerance : -5%, +10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.457" L x 0.531" W (37.00mm x 13.50mm)
Height - Seated (Max) : 1.102" (28.00mm)
Termination : Quick Connect, Disconnect
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -

8 in stock

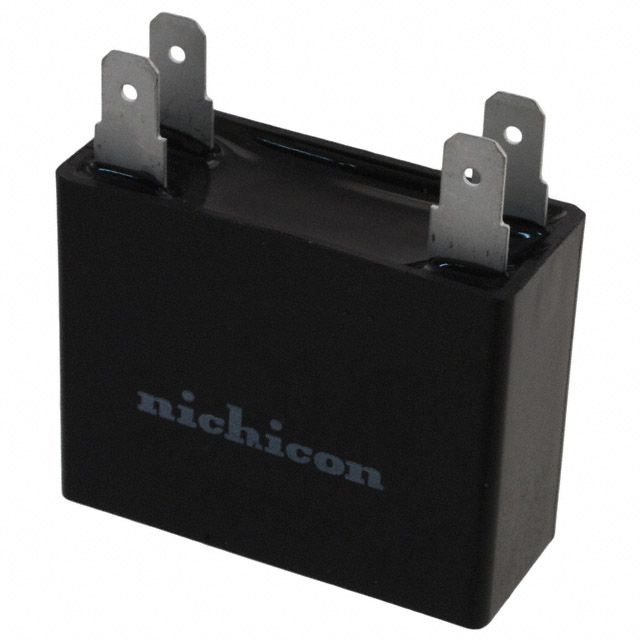

EEC2E705HQA403

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EEC
Part Status : Active
Capacitance : 7µF
Tolerance : -5%, +10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.457" L x 0.610" W (37.00mm x 15.50mm)
Height - Seated (Max) : 1.181" (30.00mm)
Termination : Quick Connect, Disconnect
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -

61 in stock

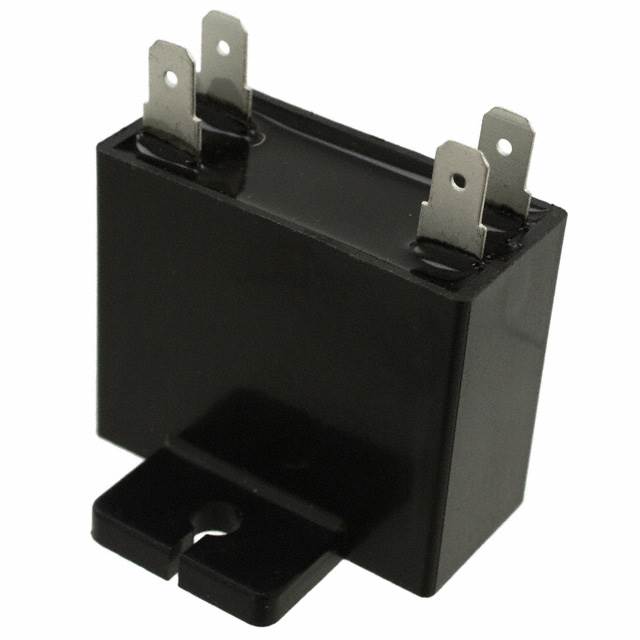

EEC2E805HQA404

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EEC
Part Status : Active
Capacitance : 8µF
Tolerance : -5%, +10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.457" L x 0.689" W (37.00mm x 17.50mm)
Height - Seated (Max) : 1.260" (32.00mm)
Termination : Quick Connect, Disconnect
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -

78 in stock

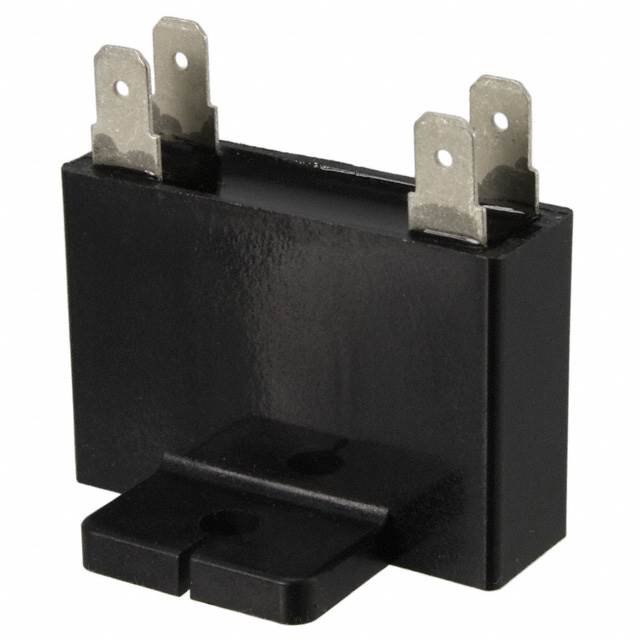

EEC2G105HQA401

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EEC
Part Status : Active
Capacitance : 1µF
Tolerance : -5%, +10%
Voltage Rating - AC : 400V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.457" L x 0.453" W (37.00mm x 11.50mm)
Height - Seated (Max) : 1.024" (26.00mm)
Termination : Quick Connect, Disconnect
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -

12 in stock

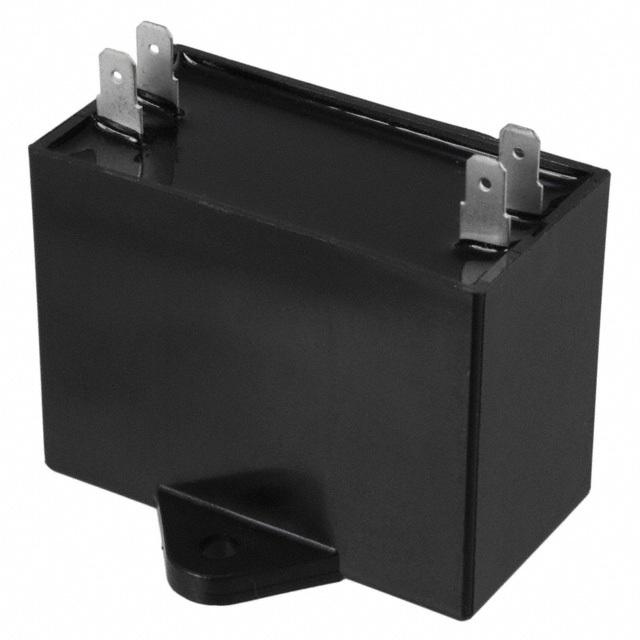

EEC2G106HQA415

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EEC
Part Status : Active
Capacitance : 10µF
Tolerance : -5%, +10%
Voltage Rating - AC : 400V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 2.283" L x 1.024" W (58.00mm x 26.00mm)
Height - Seated (Max) : 1.614" (41.00mm)
Termination : Quick Connect, Disconnect
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -

82 in stock

EEC2G126HQA415

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EEC
Part Status : Active
Capacitance : 12µF
Tolerance : -5%, +10%
Voltage Rating - AC : 400V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 2.283" L x 1.024" W (58.00mm x 26.00mm)
Height - Seated (Max) : 1.614" (41.00mm)
Termination : Quick Connect, Disconnect
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -

33 in stock

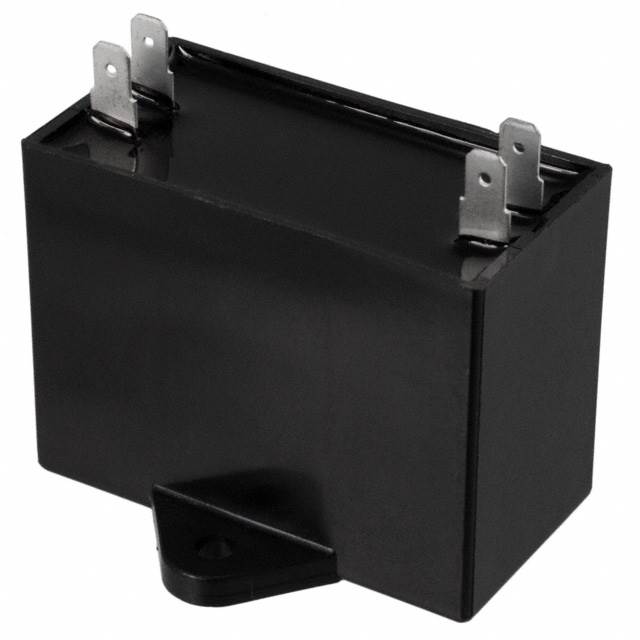

EEC2G156HQA416

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EEC
Part Status : Active
Capacitance : 15µF
Tolerance : -5%, +10%
Voltage Rating - AC : 400V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 2.283" L x 1.181" W (58.00mm x 30.00mm)
Height - Seated (Max) : 1.772" (45.00mm)
Termination : Quick Connect, Disconnect
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -

51 in stock

EEC2G205HQA402

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EEC
Part Status : Active
Capacitance : 2µF
Tolerance : -5%, +10%
Voltage Rating - AC : 400V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.457" L x 0.531" W (37.00mm x 13.50mm)
Height - Seated (Max) : 1.102" (28.00mm)
Termination : Quick Connect, Disconnect
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -

179 in stock
