Newhaven Display, Intl.
- Newhaven Display provides the North American marketplace with cost effective high quality display devices ranging from LCD to VFD. In addition to our vast standard part offerings, we develop custom designs for all industries. We pride ourselves on first-rate customer support and development assistance.
All products are stocked at our Elgin, Illinois USA warehouse. Marketing is done through a nationwide network of independent sales representatives and stocking distributors. All displays are manufactured at our partner factories located in Mainland China and Taiwan locations. These are state-of-the-art facilities with over 12 years of experience with QS-9000, ISO-9001 and ISO-14001 certifications.
Part Number
Manufacturer
Description
Unit Price
In Stock

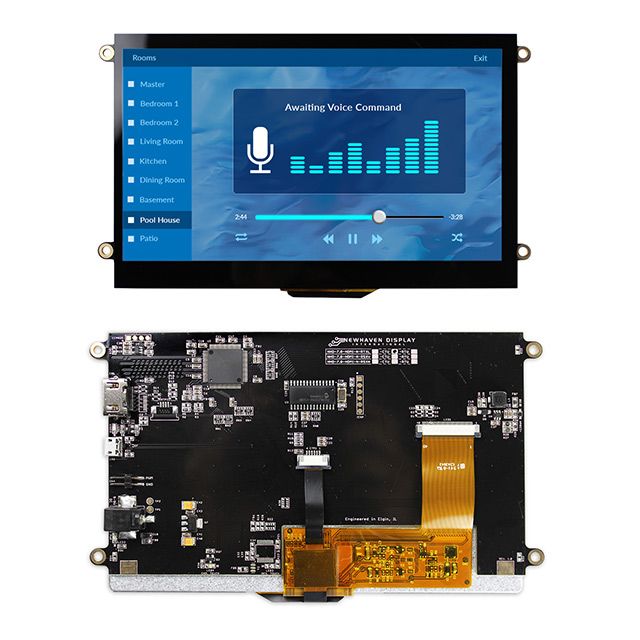

Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Display Type : TFT - Color
Display Mode : Transmissive
Touchscreen : Capacitive
Diagonal Screen Size : 7" (177.80mm)
Viewing Area : 156.70mm W x 86.85mm H
Backlight : LED - White
Dot Pixels : 800 x 480
Interface : HDMI, USB
Graphics Color : Red, Green, Blue (RGB)
Background Color : -
0
50 in stock

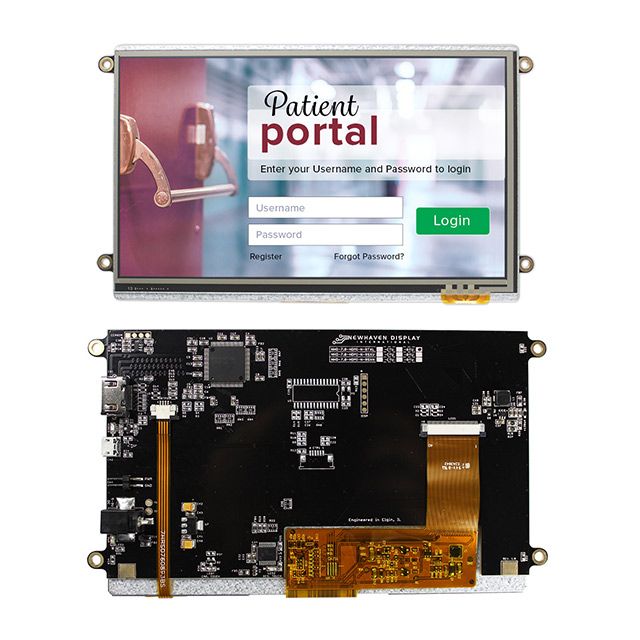

Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Display Type : TFT - Color
Display Mode : Transmissive
Touchscreen : Resistive
Diagonal Screen Size : 7" (177.80mm)
Viewing Area : 156.70mm W x 88.50mm H
Backlight : LED - White
Dot Pixels : 800 x 480
Interface : HDMI, USB
Graphics Color : Red, Green, Blue (RGB)
Background Color : -
0
89 in stock

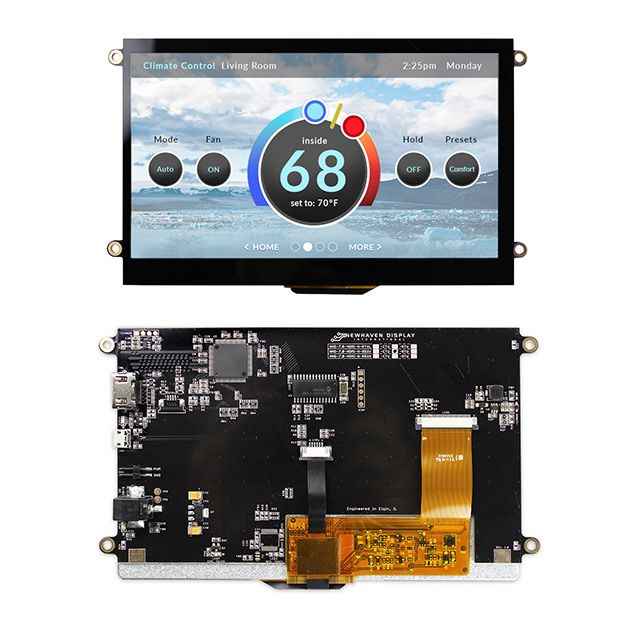

Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Display Type : TFT - Color
Display Mode : Transmissive
Touchscreen : Non-Touch
Diagonal Screen Size : 7" (177.80mm)
Viewing Area : 156.70mm W x 89.10mm H
Backlight : LED - White
Dot Pixels : 800 x 480
Interface : HDMI
Graphics Color : Red, Green, Blue (RGB)
Background Color : -
0
62 in stock
Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Display Type : TFT - Color
Display Mode : Transmissive
Touchscreen : Capacitive
Diagonal Screen Size : 7" (177.80mm)
Viewing Area : 156.70mm W x 86.85mm H
Backlight : LED - White
Dot Pixels : 800 x 480
Interface : HDMI, USB
Graphics Color : Red, Green, Blue (RGB)
Background Color : -
0
91 in stock
Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Display Type : TFT - Color
Display Mode : Transmissive
Touchscreen : Resistive
Diagonal Screen Size : 7" (177.80mm)
Viewing Area : 156.70mm W x 88.50mm H
Backlight : LED - White
Dot Pixels : 800 x 480
Interface : HDMI, USB
Graphics Color : Red, Green, Blue (RGB)
Background Color : -
0
94 in stock

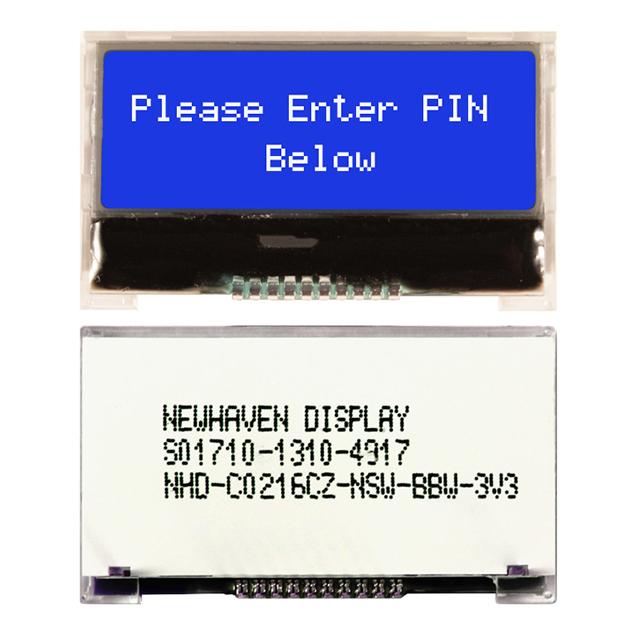

Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 4.68mm H x 2.21mm W
Outline L x W x H : 49.70mm x 25.30mm x 2.10mm
Viewing Area : 45.70mm L x 14.30mm W
Backlight : Without Backlight
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.41mm W x 0.55mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Gray
0
2190 in stock

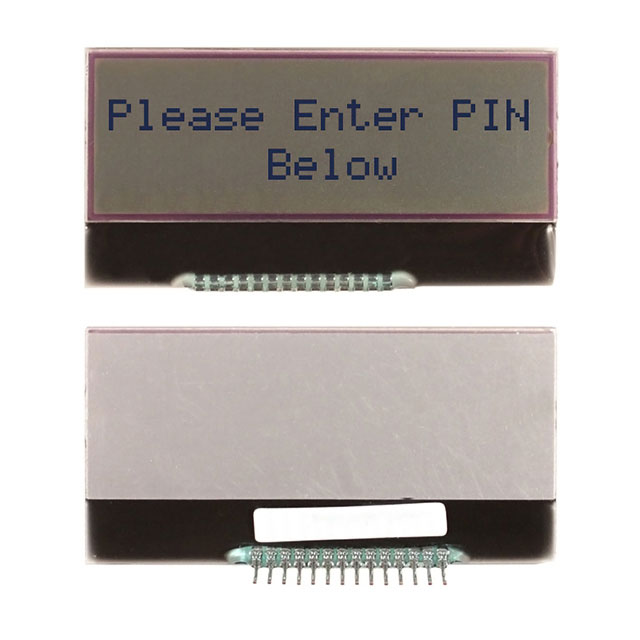

Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 4.68mm H x 2.21mm W
Outline L x W x H : 54.70mm x 25.30mm x 2.00mm
Viewing Area : 45.70mm L x 14.30mm W
Backlight : LED - White
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.41mm W x 0.55mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Gray
0
877 in stock

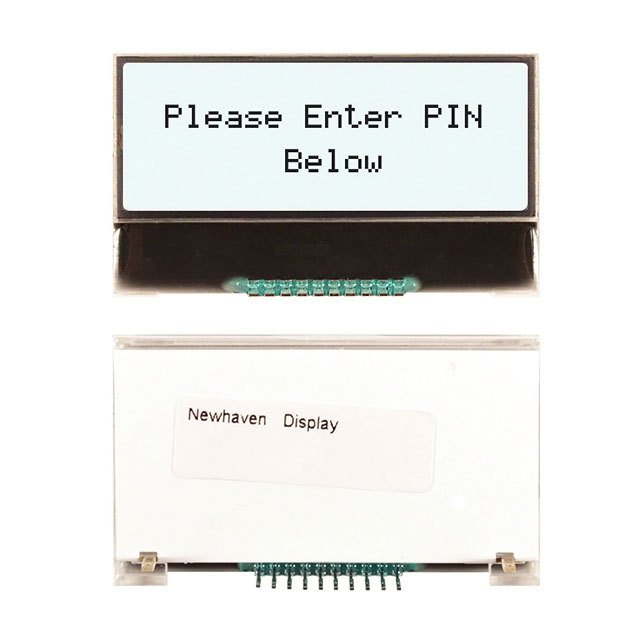

Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : FSTN - Film Super-Twisted Nematic
Display Mode : Transflective
Character Size : 4.68mm H x 2.21mm W
Outline L x W x H : 56.80mm x 26.20mm x 5.50mm
Viewing Area : 45.70mm L x 14.30mm W
Backlight : LED - White
Voltage - Supply : 2.7 V ~ 3.3 V
Dot Size : 0.41mm W x 0.55mm H
Interface : I²C
Operating Temperature : -20°C ~ 70°C
Text Color : Black
Background Color : White
0
10067 in stock

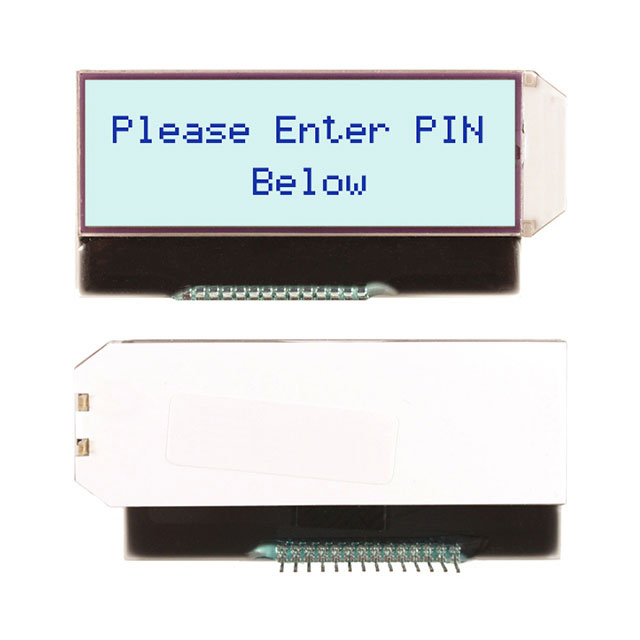

Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 4.68mm H x 2.21mm W
Outline L x W x H : 56.00mm x 25.30mm x 5.50mm
Viewing Area : 45.70mm L x 14.30mm W
Backlight : LED - White
Voltage - Supply : 2.7 V ~ 5.5 V
Dot Size : 0.41mm W x 0.55mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : White
0
116 in stock
Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : FSTN - Film Super-Twisted Nematic
Display Mode : Transflective
Character Size : 4.13mm H x 1.82mm W
Outline L x W x H : 41.40mm x 24.30mm x 4.00mm
Viewing Area : 37.60mm L x 12.80mm W
Backlight : LED - White
Voltage - Supply : 2.7 V ~ 4.5 V
Dot Size : 0.34mm W x 0.49mm H
Interface : Serial
Operating Temperature : -20°C ~ 70°C
Text Color : Black
Background Color : White
0
4128 in stock
Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transmissive
Character Size : 4.13mm H x 1.82mm W
Outline L x W x H : 41.40mm x 24.30mm x 4.00mm
Viewing Area : 37.60mm L x 12.80mm W
Backlight : LED - White
Voltage - Supply : 2.7 V ~ 4.5 V
Dot Size : 0.34mm W x 0.49mm H
Interface : Serial
Operating Temperature : -20°C ~ 70°C
Text Color : White
Background Color : Blue
0
2706 in stock

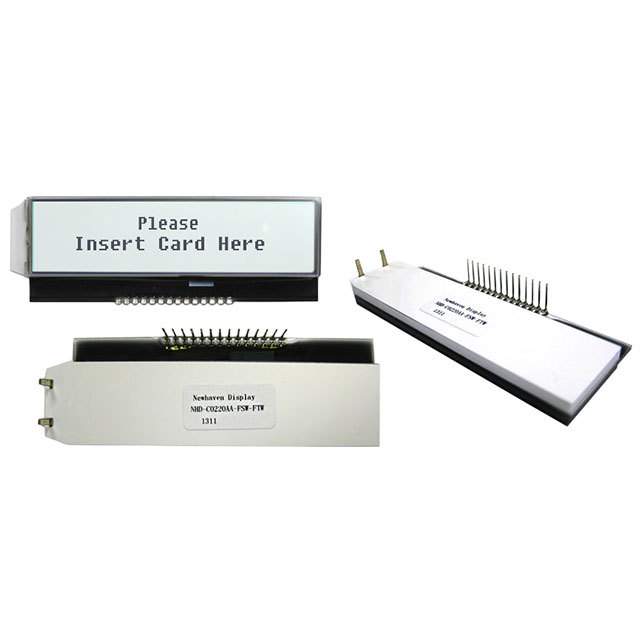

Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 40
Display Format : 20 x 2
Character Format : 5 x 8 Dots
Display Type : FSTN - Film Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.55mm H x 2.45mm W
Outline L x W x H : 70.30mm x 25.00mm x 6.10mm
Viewing Area : 61.00mm L x 15.10mm W
Backlight : LED - White
Voltage - Supply : 3.2 V ~ 3.4 V
Dot Size : 0.45mm W x 0.65mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Black
Background Color : White
0
2093 in stock
