- As a leading global supplier of electronic interconnects, Molex is focused on designing and developing innovative solutions critical to products that touch virtually every walk of life. Our portfolio is among the world’s largest with over 100,000 products, including everything from electrical and fiber optic interconnect solutions to switches and application tooling.
Molex serves customers in a variety of industries, including the telecom, datacom, computer / peripheral, automotive, premise wiring, industrial, consumer, medical and military markets. And because we have the highest levels of R&D investment in our industry, Molex is known for providing a continuous flow of innovation in areas such as high-speed signal integrity, miniaturization, higher power delivery, optical signal transmission and sealed harsh-environment connectivity.
For over 70 years, our focus has been on providing advanced products that meet tomorrow’s needs, today.
Part Number
Manufacturer
Description
Unit Price
In Stock

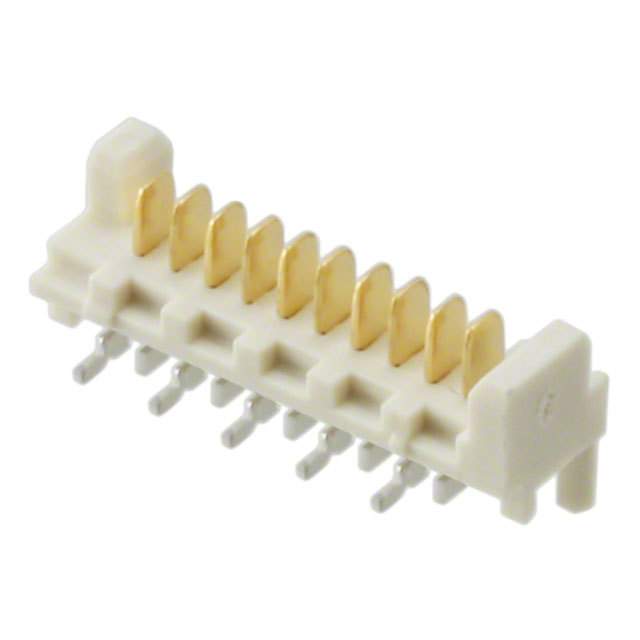

Affinity Medical Technologies - a Molex company
Manufacturer : Molex Connector Corporation
Packaging : Tube
Series : Picoflex PF-50 90814
Part Status : Active
Connector Type : Header
Contact Type : Male Blade
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 2 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.085" (2.15mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.161" (4.10mm)
Contact Shape : Rectangular
Contact Finish - Mating : Palladium-Nickel
Contact Finish Thickness - Mating : 24.0µin (0.61µm)
Contact Finish - Post : Tin
Contact Material : Cartridge Brass
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
0
3381 in stock

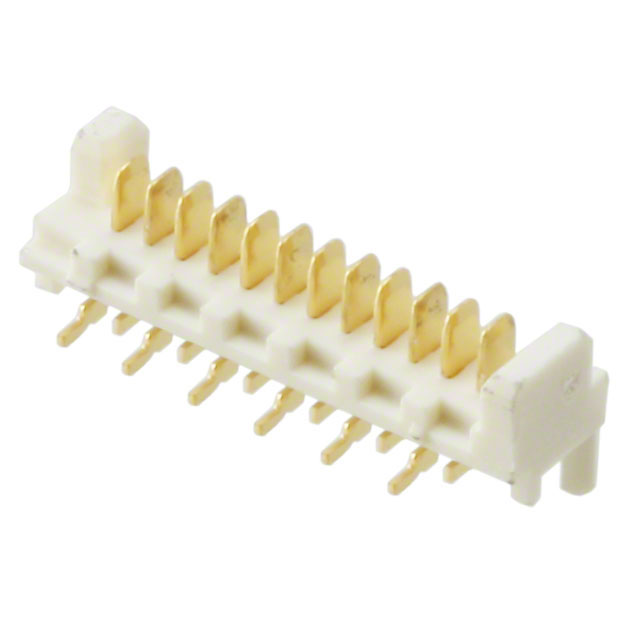

Affinity Medical Technologies - a Molex company
Manufacturer : Molex Connector Corporation
Packaging : Tube
Series : Picoflex PF-50 90814
Part Status : Active
Connector Type : Header
Contact Type : Male Blade
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 12
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 2 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.085" (2.15mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.161" (4.10mm)
Contact Shape : Rectangular
Contact Finish - Mating : Palladium-Nickel
Contact Finish Thickness - Mating : 24.0µin (0.61µm)
Contact Finish - Post : Tin
Contact Material : Cartridge Brass
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
0
21 in stock
Affinity Medical Technologies - a Molex company
Manufacturer : Molex Connector Corporation
Packaging : Tube
Series : Picoflex PF-50 90814
Part Status : Active
Connector Type : Header
Contact Type : Male Blade
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 14
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 2 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.085" (2.15mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.161" (4.10mm)
Contact Shape : Rectangular
Contact Finish - Mating : Palladium-Nickel
Contact Finish Thickness - Mating : 24.0µin (0.61µm)
Contact Finish - Post : Tin
Contact Material : Cartridge Brass
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
0
2890 in stock

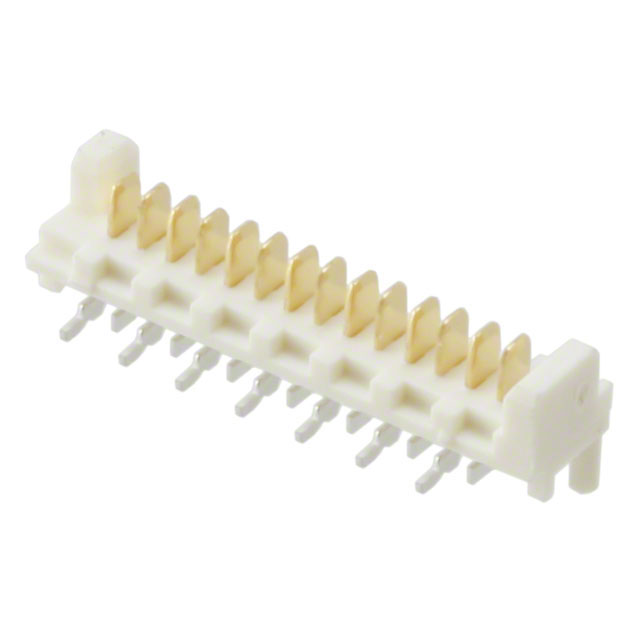

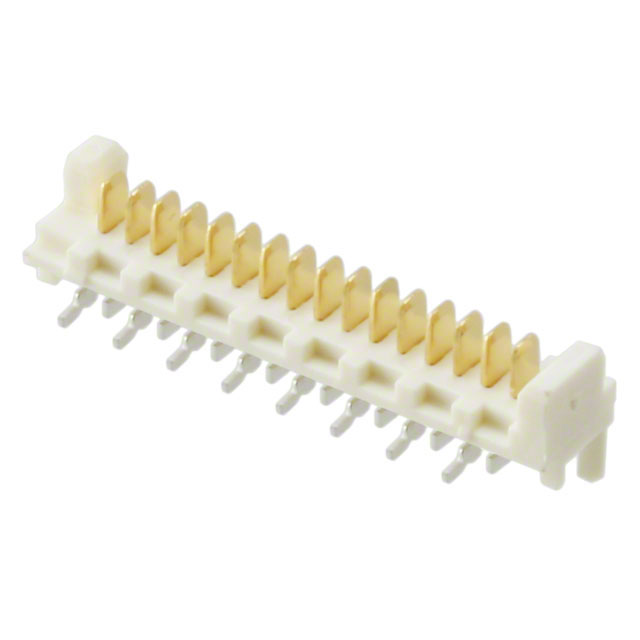

Affinity Medical Technologies - a Molex company
Manufacturer : Molex Connector Corporation
Packaging : Tube
Series : Picoflex PF-50 90814
Part Status : Active
Connector Type : Header
Contact Type : Male Blade
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 16
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 2 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.085" (2.15mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.161" (4.10mm)
Contact Shape : Rectangular
Contact Finish - Mating : Palladium-Nickel
Contact Finish Thickness - Mating : 24.0µin (0.61µm)
Contact Finish - Post : Tin
Contact Material : Cartridge Brass
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
0
41 in stock

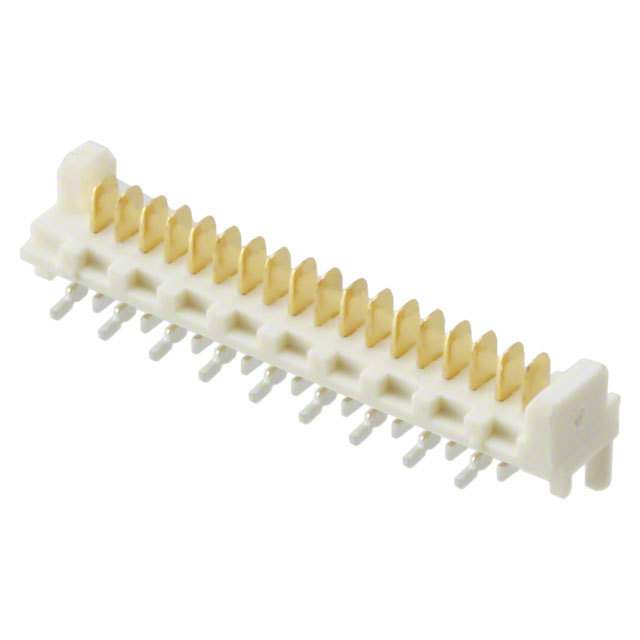

Affinity Medical Technologies - a Molex company
Manufacturer : Molex Connector Corporation
Packaging : Tube
Series : Picoflex PF-50 90814
Part Status : Active
Connector Type : Header
Contact Type : Male Blade
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 18
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 2 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.085" (2.15mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.161" (4.10mm)
Contact Shape : Rectangular
Contact Finish - Mating : Palladium-Nickel
Contact Finish Thickness - Mating : 24.0µin (0.61µm)
Contact Finish - Post : Tin
Contact Material : Cartridge Brass
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
0
75 in stock
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : MXMag 93826
Part Status : Active
Connector Type : RJ45
Number of Ports : 2
Number of Rows : 1
Applications : 10/100/1000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.555" (14.10mm)
LED Color : Green, Yellow - Green, Yellow
Number of Cores per Jack : 8
Shielding : Shielded, EMI Finger
Features : Board Guide
Tab Direction : Up
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : 0°C ~ 70°C
0
504 in stock
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : MXMag 93828
Part Status : Active
Connector Type : RJ45
Number of Ports : 2
Number of Rows : 1
Applications : 10/100 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.555" (14.10mm)
LED Color : Green, Yellow - Green, Yellow
Number of Cores per Jack : 8
Shielding : Shielded, EMI Finger
Features : Board Guide
Tab Direction : Up
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : 0°C ~ 70°C
0
504 in stock

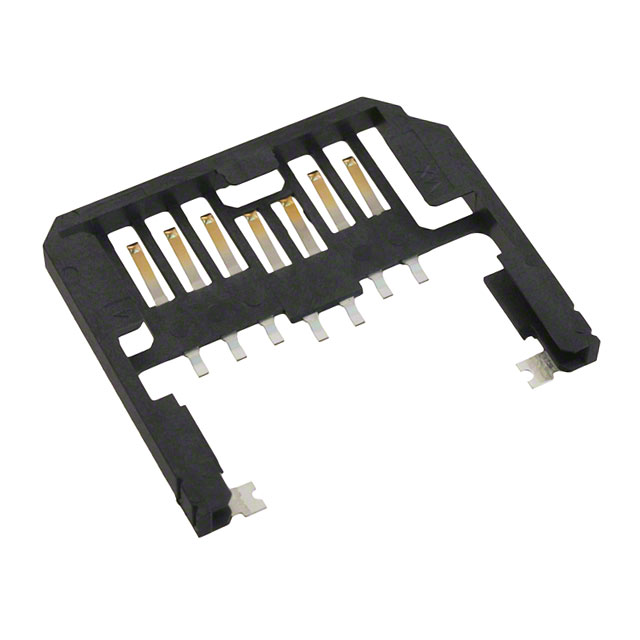

Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tape & Reel (TR)
Series : 94352
Part Status : Obsolete
Card Type : MMC (Multimedia)
Number of Positions : 7
Connector Type : Connector
Insertion, Removal Method : Push In, Pull Out
Ejector Side : -
Mounting Type : Surface Mount, Right Angle
Features : Card Guides
Height Above Board : 0.094" (2.40mm)
Mounting Feature : Reverse - Bottom
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
100 in stock

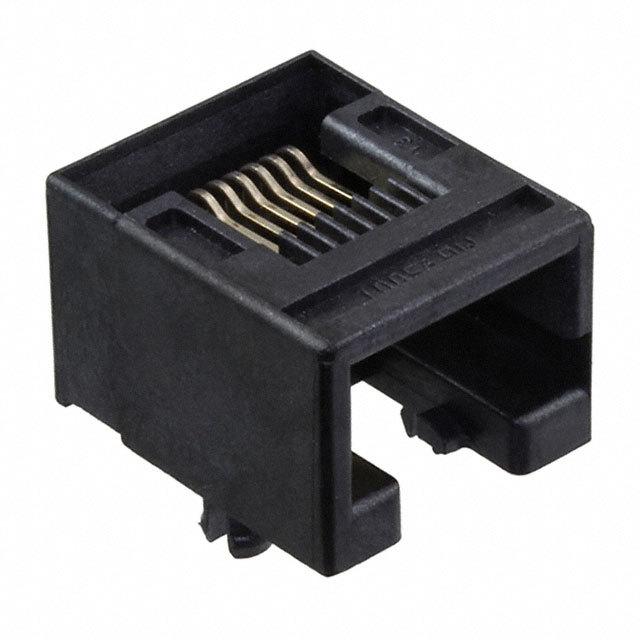

Affinity Medical Technologies - a Molex company
Manufacturer : Molex Connector Corporation
Packaging : Tube
Series : 95501
Part Status : Active
Connector Type : Jack
Number of Positions/Contacts : 8p8c (RJ45, Ethernet)
Number of Ports : 1
Number of Rows : 1
Mounting Type : Surface Mount
Orientation : 90° Angle (Right)
Termination : Solder
Shielding : Unshielded
Ratings : Cat3
Features : Board Lock, Keyed
LED Color : Does Not Contain LED
Ingress Protection : -
Tab Direction : Down
Contact Material : Copper Alloy
Contact Finish : Gold
0
4015 in stock

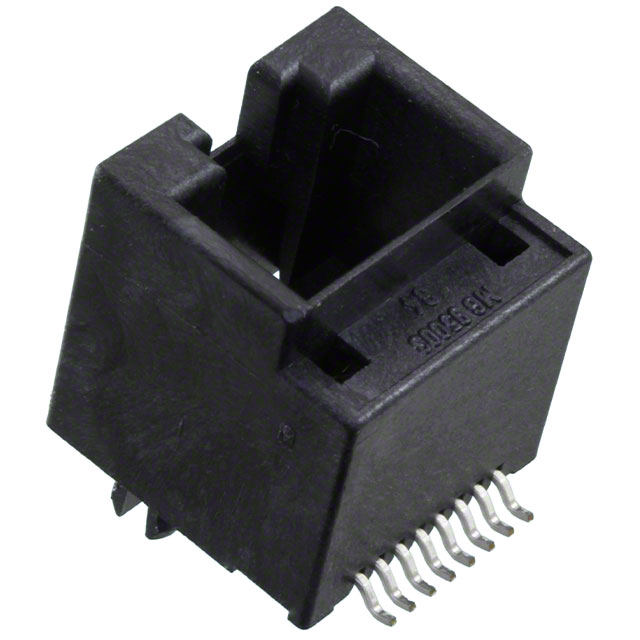

Affinity Medical Technologies - a Molex company
Manufacturer : Molex Connector Corporation
Packaging : Tube
Series : 95503
Part Status : Active
Connector Type : Jack
Number of Positions/Contacts : 8p8c (RJ45, Ethernet)
Number of Ports : 1
Number of Rows : 1
Mounting Type : Surface Mount
Orientation : Vertical
Termination : Solder
Shielding : Unshielded
Ratings : Cat3
Features : Board Lock
LED Color : Does Not Contain LED
Ingress Protection : -
Tab Direction : User Selectable
Contact Material : Copper Alloy
Contact Finish : Gold
0
4492 in stock

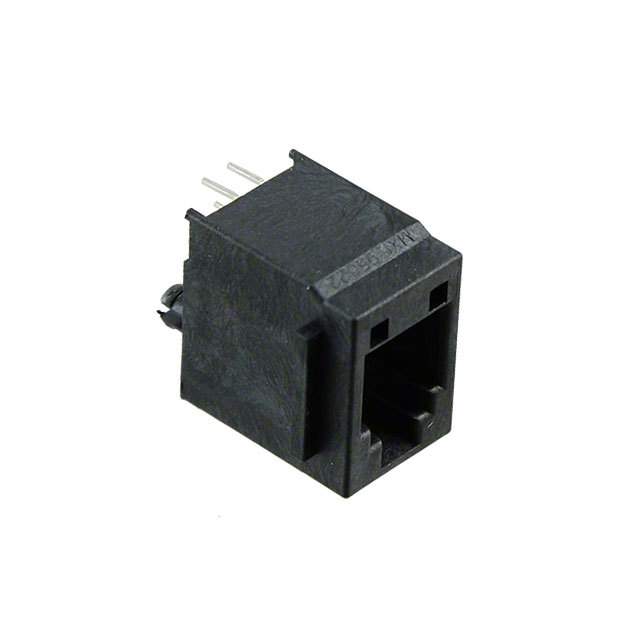

Affinity Medical Technologies - a Molex company
Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : 95522
Part Status : Active
Connector Type : Jack
Number of Positions/Contacts : 4p4c (RJ9, RJ10, RJ22)
Number of Ports : 1
Number of Rows : 1
Mounting Type : Through Hole
Orientation : Vertical
Termination : Solder
Shielding : Unshielded
Ratings : Cat3
Features : Board Lock, Panel Stops
LED Color : Does Not Contain LED
Ingress Protection : -
Tab Direction : User Selectable
Contact Material : Copper Alloy
Contact Finish : Gold
0
2907 in stock
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Series : *
Part Status : Obsolete
Accessory Type : -
Color : -
Features : -
For Use With/Related Products : -
Material : -
Shell Size - Insert : -
0
100 in stock
