Mill-Max Mfg. Corp.
- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.
Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.
Part Number
Manufacturer
Description
Unit Price
In Stock

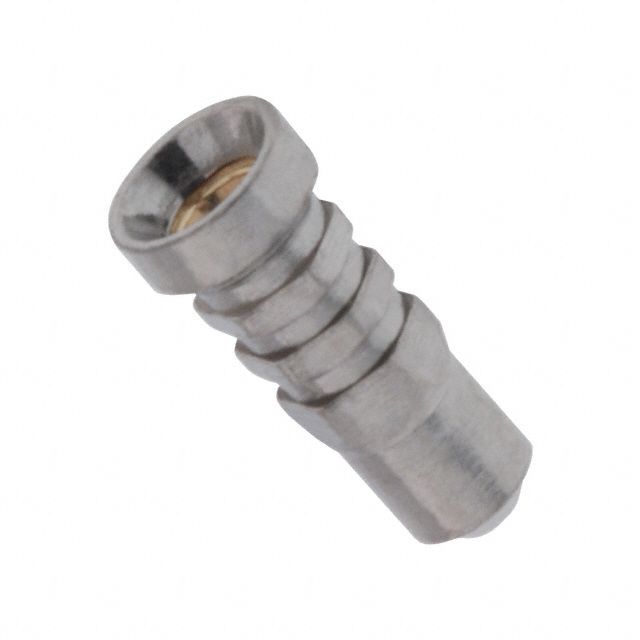

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 252
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
11480 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 252
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
27330 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 252
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
2000 in stock

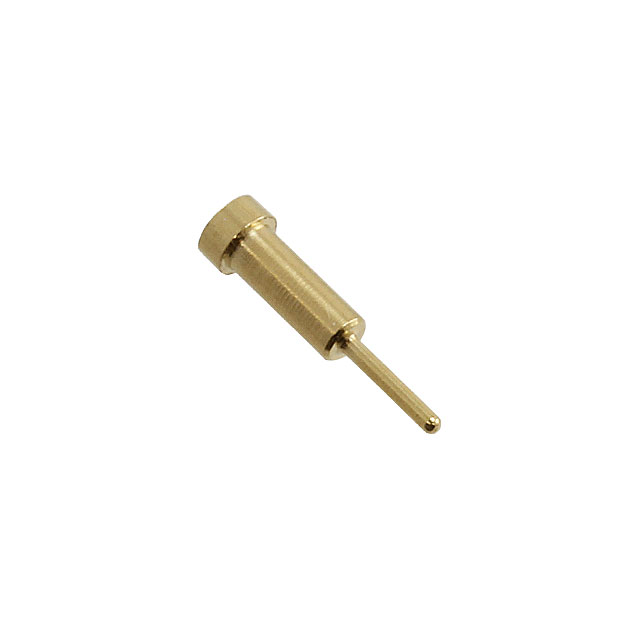

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 255
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.297" (7.54mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.022" (0.56mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : 0.020" (0.51mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
10196 in stock

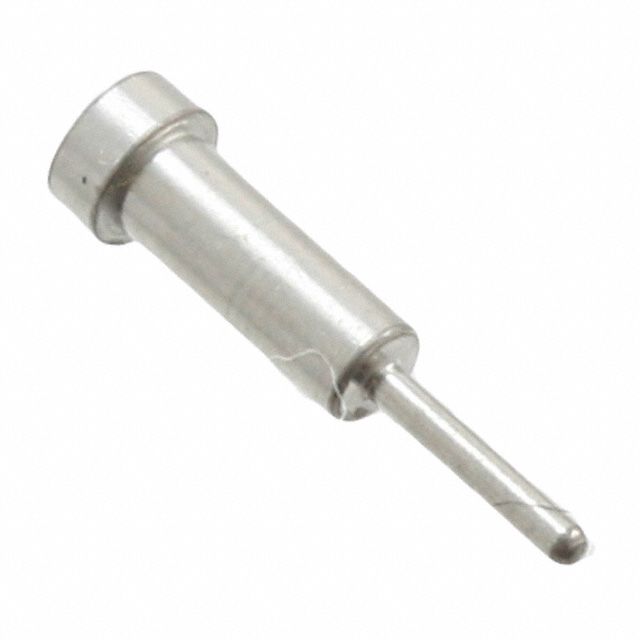

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0255
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.297" (7.54mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.022" (0.56mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : 0.020" (0.51mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
1000 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 255
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.297" (7.54mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.022" (0.56mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : 0.020" (0.51mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 100.0µin (2.54µm)
0
1423 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0257
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.266" (6.76mm)
Length - Below Flange : -
Length - Overall : 0.297" (7.54mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.059" (1.50mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
990 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0257
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.266" (6.76mm)
Length - Below Flange : -
Length - Overall : 0.297" (7.54mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.059" (1.50mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)
0
12500 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0257
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.266" (6.76mm)
Length - Below Flange : -
Length - Overall : 0.297" (7.54mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.059" (1.50mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)
0
995 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0259
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.053" (1.35mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.142" (3.61mm)
Length - Below Flange : -
Length - Overall : 0.173" (4.39mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.059" (1.50mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
4004 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0265
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Slotted
Pin Size - Above Flange : 0.072" (1.83mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.260" (6.60mm)
Length - Overall : 0.417" (10.59mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
1000 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0270
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Slotted
Pin Size - Above Flange : 0.072" (1.83mm) Dia
Pin Size - Below Flange : 0.018" (0.46mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.259" (6.58mm)
Length - Overall : 0.416" (10.57mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
5085 in stock
