Microsemi
- Microsemi Corporation (Nasdaq: MSCC) offers a comprehensive portfolio of semiconductor and system solutions for aerospace & defense, communications, data center and industrial markets. products include high-performance and radiation-hardened analog mixed-signal integrated circuits, fpgas, socs and asics; power management products; timing and synchronization devices and precise time solutions, setting the world’s standard for time; voice processing devices; RF solutions; discrete components; enterprise storage and communication solutions, security technologies and scalable anti-tamper products; Ethernet solutions; Power-over-Ethernet ICs and midspans; as well as custom design capabilities and services. Microsemi is headquartered in Aliso Viejo, Calif., and has approximately 4,800 employees globally.
Part Number
Manufacturer
Description
Unit Price
In Stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 64V
Voltage - Breakdown (Min) : 71.3V
Voltage - Clamping (Max) @ Ipp : 103V
Current - Peak Pulse (10/1000µs) : 14.6A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : DO-13
Supplier Device Package : DO-13
0
100 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Discontinued at
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 2A
Voltage - Forward (Vf) (Max) @ If : 1.5V @ 37.7A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 30ns
Current - Reverse Leakage @ Vr : 10µA @ 100V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : A, Axial
Supplier Device Package : -
Operating Temperature - Junction : -65°C ~ 155°C
0
93 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 5.7V
Voltage - Breakdown (Min) : 7.13V
Voltage - Clamping (Max) @ Ipp : 11.2V
Current - Peak Pulse (10/1000µs) : 44.6A
Power - Peak Pulse : 500W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : SQ-MELF, B
Supplier Device Package : B, SQ-MELF
0
87 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Discontinued at
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 8.4V
Voltage - Breakdown (Min) : 10.45V
Voltage - Clamping (Max) @ Ipp : 15.6V
Current - Peak Pulse (10/1000µs) : 32A
Power - Peak Pulse : 500W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : B, Axial
Supplier Device Package : Axial
0
27 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 27.4V
Voltage - Breakdown (Min) : 34.2V
Voltage - Clamping (Max) @ Ipp : 49.9V
Current - Peak Pulse (10/1000µs) : 10A
Power - Peak Pulse : 500W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : B, Axial
Supplier Device Package : Axial
0
381 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 38.8V
Voltage - Breakdown (Min) : 48.5V
Voltage - Clamping (Max) @ Ipp : 70.1V
Current - Peak Pulse (10/1000µs) : 7.1A
Power - Peak Pulse : 500W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : B, Axial
Supplier Device Package : Axial
0
54 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 32.7V
Voltage - Breakdown (Min) : 40.9V
Voltage - Clamping (Max) @ Ipp : 59.1V
Current - Peak Pulse (10/1000µs) : 25.4A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : B, Axial
Supplier Device Package : Axial
0
311 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Discontinued at
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 98.8V
Voltage - Breakdown (Min) : 123.5V
Voltage - Clamping (Max) @ Ipp : 178.8V
Current - Peak Pulse (10/1000µs) : 8.4A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : B, Axial
Supplier Device Package : Axial
0
167 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Discontinued at
Voltage - Zener (Nom) (Vz) : 9.1V
Tolerance : ±5%
Power - Max : 500mW
Impedance (Max) (Zzt) : 500 Ohms
Current - Reverse Leakage @ Vr : 1µA @ 7V
Voltage - Forward (Vf) (Max) @ If : 1.4V @ 1A
Operating Temperature : -65°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : SQ-MELF, B
Supplier Device Package : B, SQ-MELF
0
86 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 11V
Tolerance : ±5%
Power - Max : 500mW
Impedance (Max) (Zzt) : 7 Ohms
Current - Reverse Leakage @ Vr : 1µA @ 8.5V
Voltage - Forward (Vf) (Max) @ If : 1.4V @ 1A
Operating Temperature : -65°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : SQ-MELF, B
Supplier Device Package : B, SQ-MELF
0
105 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Discontinued at
Voltage - Zener (Nom) (Vz) : 30V
Tolerance : ±5%
Power - Max : 500mW
Impedance (Max) (Zzt) : 500 Ohms
Current - Reverse Leakage @ Vr : 50nA @ 23V
Voltage - Forward (Vf) (Max) @ If : 1.4V @ 1A
Operating Temperature : -65°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : SQ-MELF, B
Supplier Device Package : B, SQ-MELF
0
41 in stock

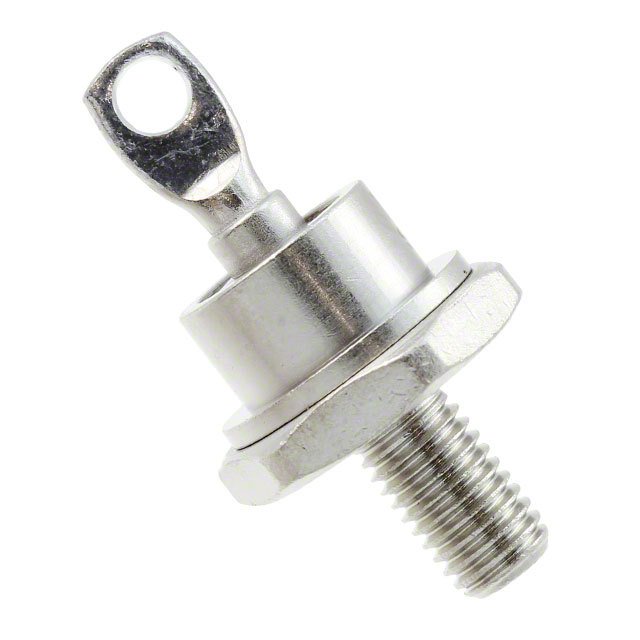

Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) : 54A
Voltage - Forward (Vf) (Max) @ If : 820mV @ 120A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 45V
Capacitance @ Vr, F : 3000pF @ 5V, 1MHz
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-5
Operating Temperature - Junction : -55°C ~ 175°C
0
63 in stock
