Micro Commercial Components (MCC)
- Founded in 1998, Micro Commercial Components Corp. (MCC) is a supplier of high-quality discrete semiconductors to the consumer markets. MCC's products include diodes, rectifiers, transistors, MOSFETs, voltage regulators and protection devices.
Part Number
Manufacturer
Description
Unit Price
In Stock
1N4004GP-TP
Micro Commercial Components (MCC)
Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 2µs
Current - Reverse Leakage @ Vr : 5µA @ 400V
Capacitance @ Vr, F : 15pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -55°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 2µs
Current - Reverse Leakage @ Vr : 5µA @ 400V
Capacitance @ Vr, F : 15pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -55°C ~ 150°C
0
5562 in stock
1N4004-TP
Micro Commercial Components (MCC)
Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 2µs
Current - Reverse Leakage @ Vr : 5µA @ 400V
Capacitance @ Vr, F : 15pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -55°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 2µs
Current - Reverse Leakage @ Vr : 5µA @ 400V
Capacitance @ Vr, F : 15pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -55°C ~ 150°C
0
670102 in stock

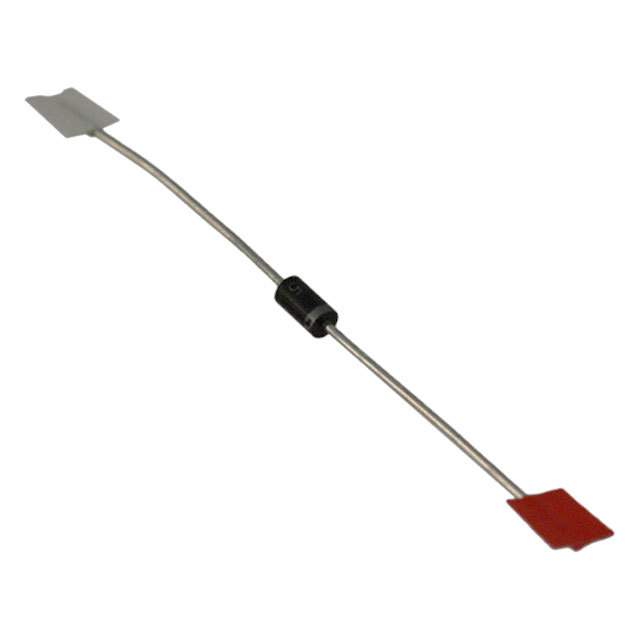

1N4005-TP
Micro Commercial Components (MCC)
Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 2µs
Current - Reverse Leakage @ Vr : 5µA @ 600V
Capacitance @ Vr, F : 15pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -55°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 2µs
Current - Reverse Leakage @ Vr : 5µA @ 600V
Capacitance @ Vr, F : 15pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -55°C ~ 150°C
0
12286 in stock
1N4006-TP
Micro Commercial Components (MCC)
Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 800V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 2µs
Current - Reverse Leakage @ Vr : 5µA @ 800V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -55°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 800V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 2µs
Current - Reverse Leakage @ Vr : 5µA @ 800V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -55°C ~ 150°C
0
100 in stock
1N4007GP-TP
Micro Commercial Components (MCC)
Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 2µs
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : 15pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -55°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 2µs
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : 15pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -55°C ~ 150°C
0
6955 in stock
1N4007-TP
Micro Commercial Components (MCC)
Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 2µs
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : 15pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -55°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 2µs
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : 15pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -55°C ~ 150°C
0
846820 in stock

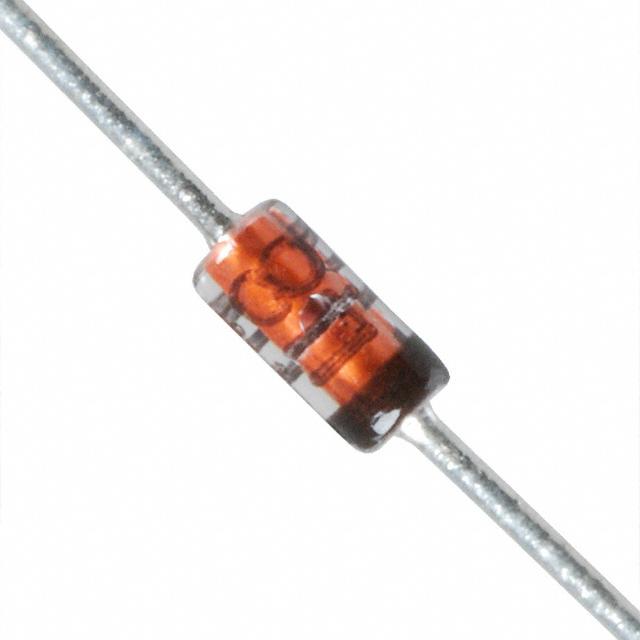

1N4148-TP
Micro Commercial Components (MCC)
Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) : 150mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 10mA
Speed : Small Signal =
4ns
5µA @ 75V
4pF @ 0V, 1MHz
Through Hole
DO-204AH, DO-35, Axial
DO-35
-65°C ~ 175°C
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 5µA @ 75V
Capacitance @ Vr, F : 4pF @ 0V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AH, DO-35, Axial
Supplier Device Package : DO-35
Operating Temperature - Junction : -65°C ~ 175°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) : 150mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 10mA
Speed : Small Signal =
4ns
5µA @ 75V
4pF @ 0V, 1MHz
Through Hole
DO-204AH, DO-35, Axial
DO-35
-65°C ~ 175°C
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 5µA @ 75V
Capacitance @ Vr, F : 4pF @ 0V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AH, DO-35, Axial
Supplier Device Package : DO-35
Operating Temperature - Junction : -65°C ~ 175°C
0
456243 in stock

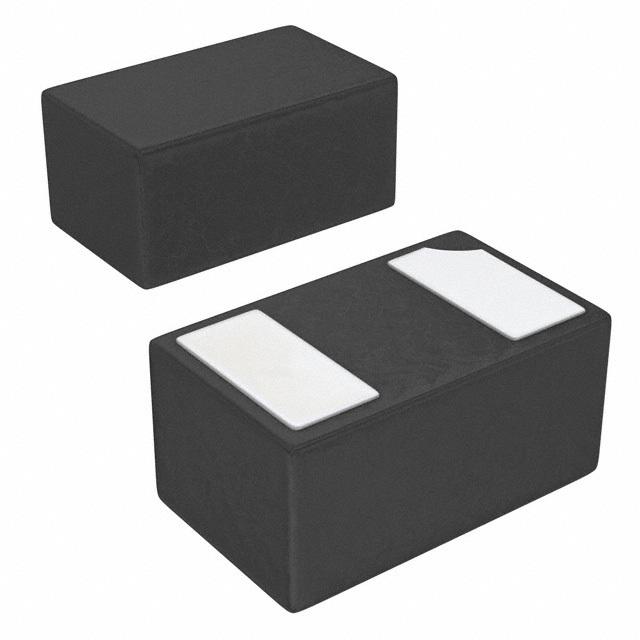

1N4148WL2-TP
Micro Commercial Components (MCC)
Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 150mA
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 100mA
Speed : Small Signal =
4ns
5µA @ 75V
1.5pF @ 0V, 1MHz
Surface Mount
0402 (1006 Metric)
DFN1006-2
-65°C ~ 150°C
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 5µA @ 75V
Capacitance @ Vr, F : 1.5pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : 0402 (1006 Metric)
Supplier Device Package : DFN1006-2
Operating Temperature - Junction : -65°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 150mA
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 100mA
Speed : Small Signal =
4ns
5µA @ 75V
1.5pF @ 0V, 1MHz
Surface Mount
0402 (1006 Metric)
DFN1006-2
-65°C ~ 150°C
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 5µA @ 75V
Capacitance @ Vr, F : 1.5pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : 0402 (1006 Metric)
Supplier Device Package : DFN1006-2
Operating Temperature - Junction : -65°C ~ 150°C
0
64239 in stock

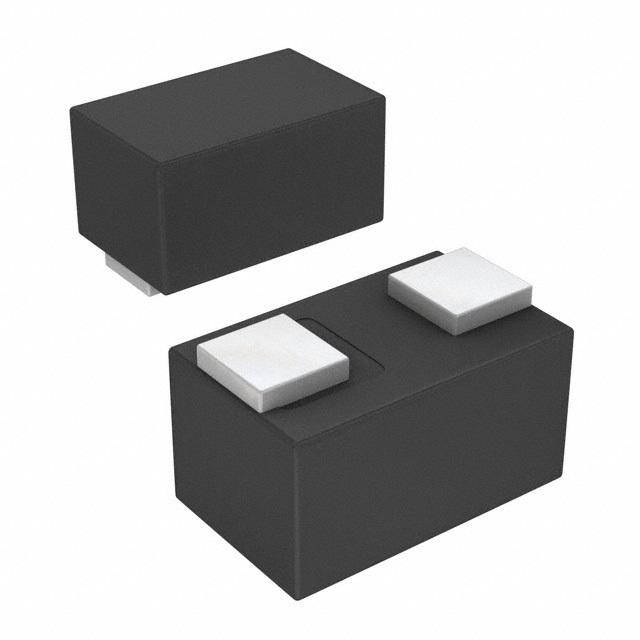

1N4148WLP-TP
Micro Commercial Components (MCC)
Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 80V
Current - Average Rectified (Io) : 100mA
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 100mA
Speed : Small Signal =
4ns
100nA @ 80V
-
Surface Mount
SOD-882
SOD-882
-65°C ~ 150°C
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 100nA @ 80V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : SOD-882
Supplier Device Package : SOD-882
Operating Temperature - Junction : -65°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 80V
Current - Average Rectified (Io) : 100mA
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 100mA
Speed : Small Signal =
4ns
100nA @ 80V
-
Surface Mount
SOD-882
SOD-882
-65°C ~ 150°C
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 100nA @ 80V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : SOD-882
Supplier Device Package : SOD-882
Operating Temperature - Junction : -65°C ~ 150°C
0
17989 in stock
1N4148W-TP
Micro Commercial Components (MCC)
Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 150mA
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 150mA
Speed : Small Signal =
4ns
1µA @ 75V
2pF @ 0V, 1MHz
Surface Mount
SOD-123
SOD-123
-65°C ~ 150°C
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 1µA @ 75V
Capacitance @ Vr, F : 2pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123
Supplier Device Package : SOD-123
Operating Temperature - Junction : -65°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 150mA
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 150mA
Speed : Small Signal =
4ns
1µA @ 75V
2pF @ 0V, 1MHz
Surface Mount
SOD-123
SOD-123
-65°C ~ 150°C
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 1µA @ 75V
Capacitance @ Vr, F : 2pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123
Supplier Device Package : SOD-123
Operating Temperature - Junction : -65°C ~ 150°C
0
504423 in stock

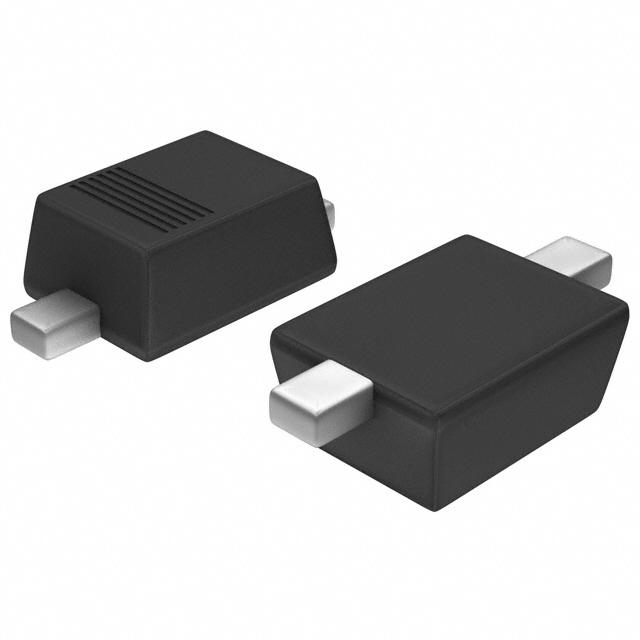

1N4148WXL-TP
Micro Commercial Components (MCC)
Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 150mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 50mA
Speed : Small Signal =
4ns
5µA @ 75V
-
Surface Mount
SC-90, SOD-323F
SOD-323FL
-55°C ~ 150°C
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 5µA @ 75V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : SC-90, SOD-323F
Supplier Device Package : SOD-323FL
Operating Temperature - Junction : -55°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 150mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 50mA
Speed : Small Signal =
4ns
5µA @ 75V
-
Surface Mount
SC-90, SOD-323F
SOD-323FL
-55°C ~ 150°C
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 5µA @ 75V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : SC-90, SOD-323F
Supplier Device Package : SOD-323FL
Operating Temperature - Junction : -55°C ~ 150°C
0
4250 in stock
1N4148WX-TP
Micro Commercial Components (MCC)
Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) : 150mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 50mA
Speed : Small Signal =
4ns
5µA @ 75V
-
Surface Mount
SC-76, SOD-323
SOD-323
-55°C ~ 150°C
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 5µA @ 75V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : SC-76, SOD-323
Supplier Device Package : SOD-323
Operating Temperature - Junction : -55°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) : 150mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 50mA
Speed : Small Signal =
4ns
5µA @ 75V
-
Surface Mount
SC-76, SOD-323
SOD-323
-55°C ~ 150°C
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 5µA @ 75V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : SC-76, SOD-323
Supplier Device Package : SOD-323
Operating Temperature - Junction : -55°C ~ 150°C
0
1459300 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
