Micro Commercial Components (MCC)

- Founded in 1998, Micro Commercial Components Corp. (MCC) is a supplier of high-quality discrete semiconductors to the consumer markets. MCC's products include diodes, rectifiers, transistors, MOSFETs, voltage regulators and protection devices.


Part Number

Manufacturer

Description

Unit Price

In Stock

Picture of SR5200-TP

SR5200-TP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 5A
Voltage - Forward (Vf) (Max) @ If : 950mV @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 200V
Capacitance @ Vr, F : 400pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-201AD, Axial
Supplier Device Package : DO-201AD
Operating Temperature - Junction : -65°C ~ 150°C

0

2729 in stock

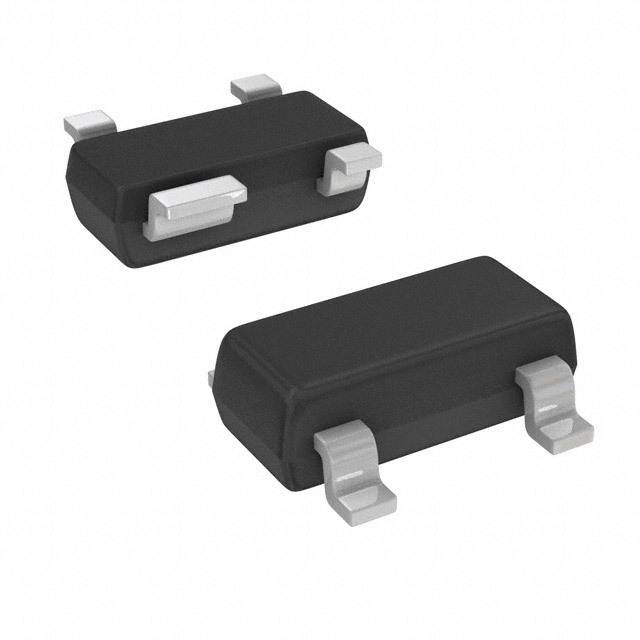

Picture of SR70-TP

SR70-TP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Steering (Rail to Rail)
Unidirectional Channels : 2
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 70V (Max)
Voltage - Breakdown (Min) : 85V
Voltage - Clamping (Max) @ Ipp : 7V
Current - Peak Pulse (10/1000µs) : 24A (8/20µs)
Power - Peak Pulse : -
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 5pF @ 1MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-253-4, TO-253AA
Supplier Device Package : SOT-143

0

4100 in stock

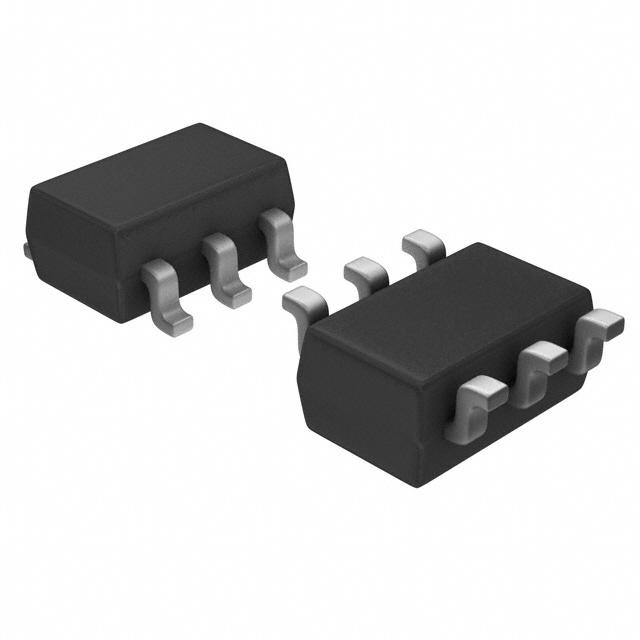

Picture of SRV05-4L-TP

SRV05-4L-TP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Steering (Rail to Rail)
Unidirectional Channels : 4
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 5V (Max)
Voltage - Breakdown (Min) : 6V
Voltage - Clamping (Max) @ Ipp : 17.5V
Current - Peak Pulse (10/1000µs) : 12A (8/20µs)
Power - Peak Pulse : 350W
Power Line Protection : Yes
Applications : General Purpose
Capacitance @ Frequency : 1.5pF @ 1MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6L

0

100 in stock

Picture of SS110E-TP

SS110E-TP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 850mV @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Capacitance @ Vr, F : 30pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMAE
Operating Temperature - Junction : -55°C ~ 150°C

0

29300 in stock

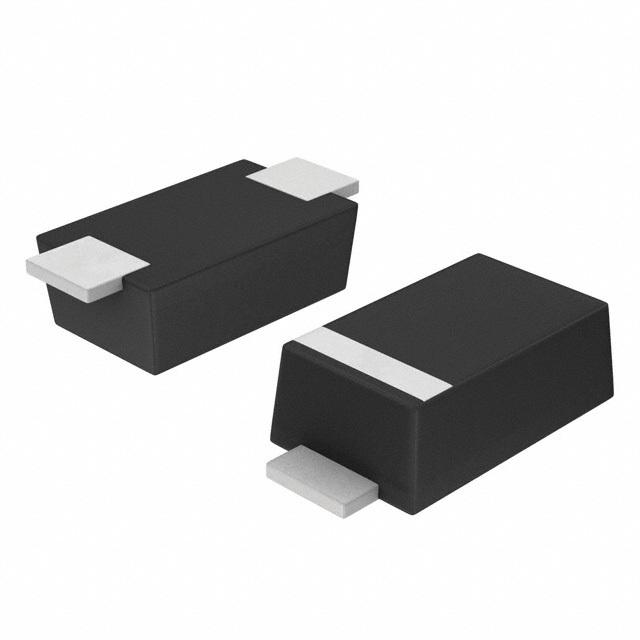

Picture of SS110FL-TP

SS110FL-TP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 850mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Capacitance @ Vr, F : 110pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-221AC, SMA Flat Leads
Supplier Device Package : DO-221AC (SMA-FL)
Operating Temperature - Junction : -55°C ~ 150°C

0

9581 in stock

Picture of SS110-LTP

SS110-LTP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 850mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Capacitance @ Vr, F : 30pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
Operating Temperature - Junction : -55°C ~ 150°C

0

9360 in stock

Picture of SS110-TP

SS110-TP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 850mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Capacitance @ Vr, F : 30pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
Operating Temperature - Junction : -55°C ~ 125°C

0

190303 in stock

Picture of SS1150-LTP

SS1150-LTP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 900mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 50µA @ 150V
Capacitance @ Vr, F : 110pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
Operating Temperature - Junction : -50°C ~ 150°C

0

100 in stock

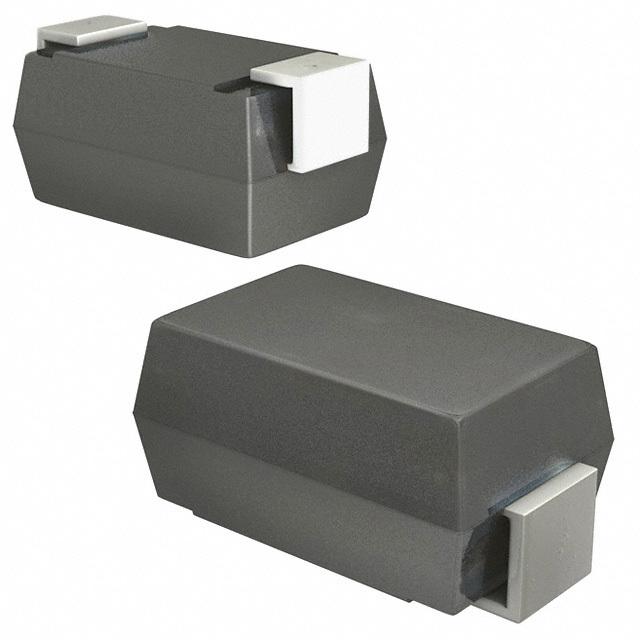

Picture of SS1200-LTP

SS1200-LTP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 920mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 50µA @ 200V
Capacitance @ Vr, F : 110pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
Operating Temperature - Junction : -50°C ~ 150°C

0

9578 in stock

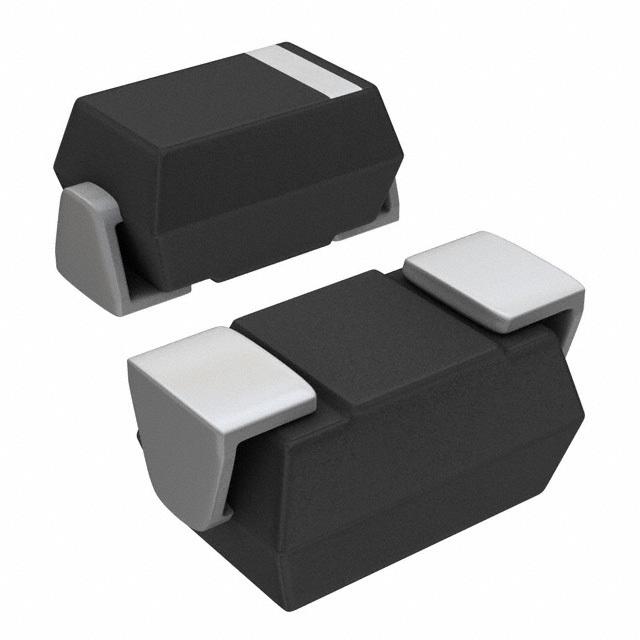

Picture of SS12E-TP

SS12E-TP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 20V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 600mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 20V
Capacitance @ Vr, F : 110pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMAE
Operating Temperature - Junction : -55°C ~ 150°C

0

6157 in stock

Picture of SS12-LTP

SS12-LTP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 20V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 500mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 20V
Capacitance @ Vr, F : 110pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
Operating Temperature - Junction : -55°C ~ 150°C

0

4975 in stock

Picture of SS13-LTP

SS13-LTP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 500mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 30V
Capacitance @ Vr, F : 110pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
Operating Temperature - Junction : -55°C ~ 150°C

0

6344 in stock
