Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock
Mechatronics
Manufacturer : Mechatronics Fan Group

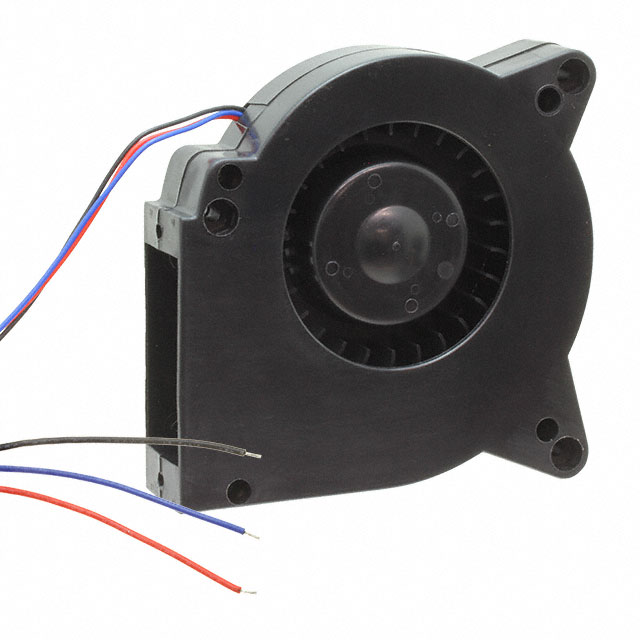

Series : B1232
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.450 in H2O (112.1 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : PWM Control
Noise : 46.0 dB(A)
Power (Watts) : -
RPM : 2400 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.706 lb (320.24g)
0
5 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group

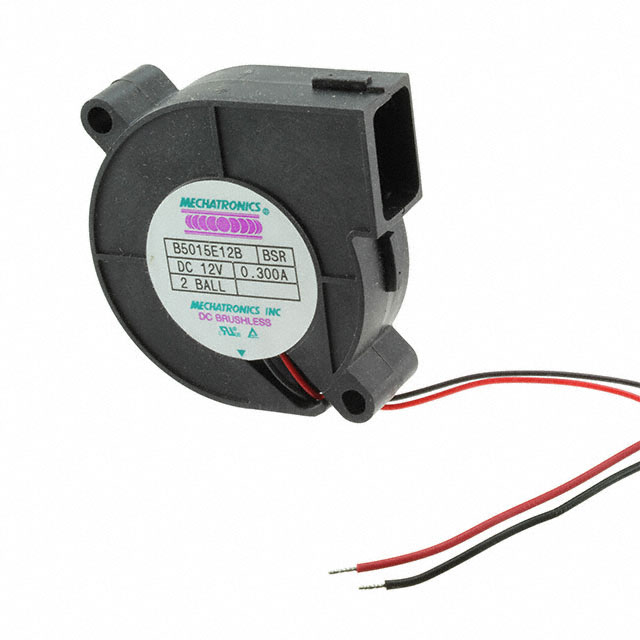

Series : B5015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 51mm L x 51mm H
Width : 15.00mm
Air Flow : 5.0 CFM (0.140m鲁/min)
Static Pressure : 0.880 in H2O (219.2 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 45.0 dB(A)
Power (Watts) : -
RPM : 6500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.062 lb (28.12g)
0
272 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : B5015
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square/Rounded - 51mm L x 51mm H
Width : 15.00mm
Air Flow : 5.0 CFM (0.140m鲁/min)
Static Pressure : 0.880 in H2O (219.2 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 45.0 dB(A)
Power (Watts) : -
RPM : 6500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.062 lb (28.12g)
0
609 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : B5020
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 51mm L x 50mm H
Width : 20.00mm
Air Flow : 6.0 CFM (0.168m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 29.0 dB(A)
Power (Watts) : -
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : 0.049 lb (22.23g)
0
1766 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group

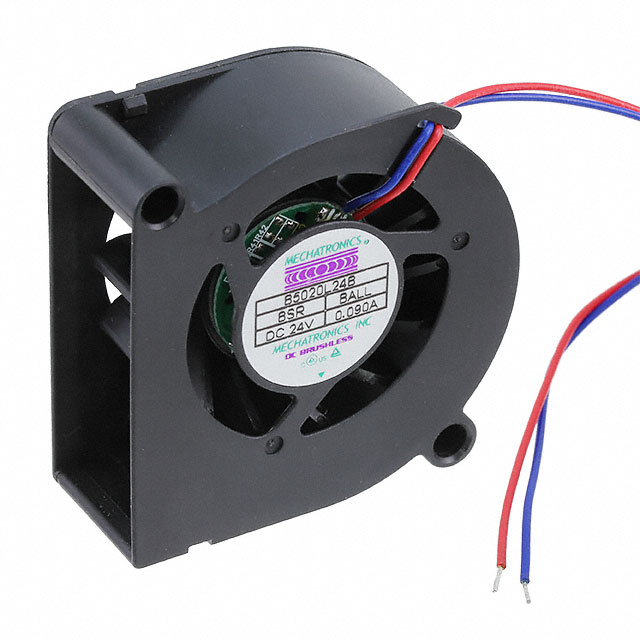

Series : B5020
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square/Rounded - 51mm L x 50mm H
Width : 20.00mm
Air Flow : 6.0 CFM (0.168m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 29.0 dB(A)
Power (Watts) : -
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : 0.049 lb (22.23g)
0
407 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : B5020
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square/Rounded - 51mm L x 50mm H
Width : 20.00mm
Air Flow : 6.0 CFM (0.168m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 29.0 dB(A)
Power (Watts) : -
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : 0.049 lb (22.23g)
0
7 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : B6012
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 60mm L x 60mm H
Width : 12.00mm
Air Flow : 5.0 CFM (0.140m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Sleeve
Fan Type : Blower
Features : -
Noise : 34.0 dB(A)
Power (Watts) : -
RPM : 3600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : 0.057 lb (25.85g)
0
167 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : B6012
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square/Rounded - 60mm L x 60mm H
Width : 12.00mm
Air Flow : 5.0 CFM (0.140m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Sleeve
Fan Type : Blower
Features : -
Noise : 34.0 dB(A)
Power (Watts) : -
RPM : 3600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : 0.057 lb (25.85g)
0
277 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group

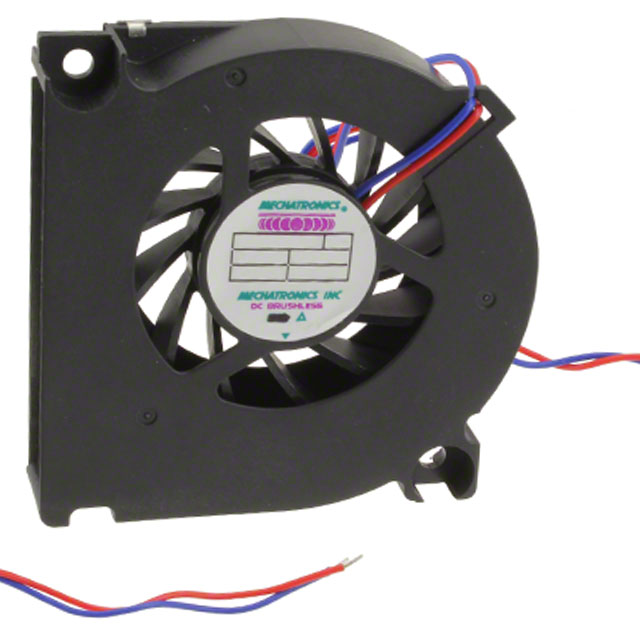

Series : B6025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 8.5 CFM (0.238m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 40.0 dB(A)
Power (Watts) : -
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : 0.098 lb (44.45g)
0
50 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group

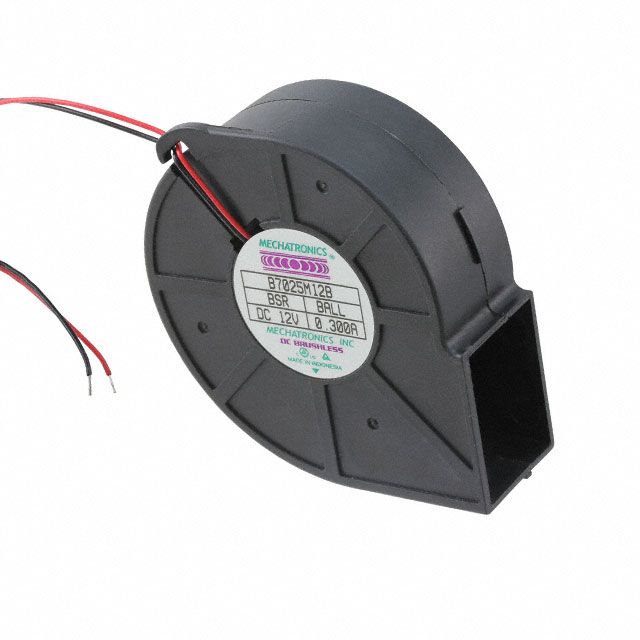

Series : B7025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 69mm L x 66mm H
Width : 25.00mm
Air Flow : 7.8 CFM (0.218m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 35.0 dB(A)
Power (Watts) : -
RPM : 2600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : 0.121 lb (54.88g)
0
81 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group

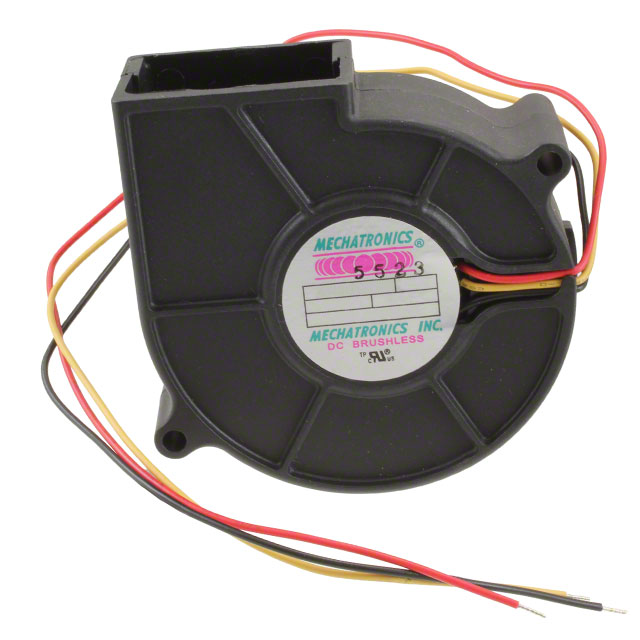

Series : B7530
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 76mm L x 76mm H
Width : 30.00mm
Air Flow : 13.5 CFM (0.378m鲁/min)
Static Pressure : 0.710 in H2O (176.9 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 45.0 dB(A)
Power (Watts) : -
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.192 lb (87.08g)
0
88 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group

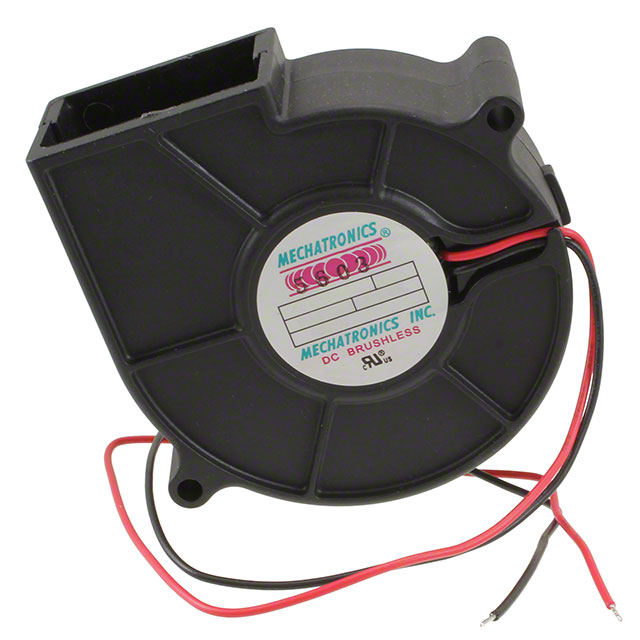

Series : B7530
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square/Rounded - 76mm L x 76mm H
Width : 30.00mm
Air Flow : 13.5 CFM (0.378m鲁/min)
Static Pressure : 0.710 in H2O (176.9 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 45.0 dB(A)
Power (Watts) : -
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.192 lb (87.08g)
0
158 in stock
