Mallory Sonalert Products
- Headquartered in a new 22,000 square foot facility in Indianapolis, Indiana, Mallory Sonalert Products, Inc. is a leader in the manufacture and development of Sonalert® electronic audible signal products. The company has made its trademarked Sonalert line for over thirty years. In addition to sonalert products, Mallory also distributes a full range of audible signal devices including transducers, indicators, sirens, buzzers and related hardware to a broad range of customers in industrial, military and consumer electronic markets.
Part Number
Manufacturer
Description
Unit Price
In Stock
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSE
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 20 ~ 28V
Frequency : 3.35kHz
Technology : Piezo
Operating Mode : Ringer, 3 Tone
Duration : -
Sound Pressure Level (SPL) : 75dB @ 20V, 30cm
Current - Supply : 50mA
Port Location : Top
Operating Temperature : -40°C ~ 65°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" L x 0.906" W (23.00mm x 23.00mm)
Height - Seated (Max) : 0.535" (13.60mm)
0
100 in stock
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSE
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 20 ~ 28V
Frequency : 3.95kHz
Technology : Piezo
Operating Mode : Whooping
Duration : 5 SPS
Sound Pressure Level (SPL) : 75dB @ 20V, 30cm
Current - Supply : 50mA
Port Location : Top
Operating Temperature : -40°C ~ 65°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" L x 0.906" W (23.00mm x 23.00mm)
Height - Seated (Max) : 0.535" (13.60mm)
0
100 in stock
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSE
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 20 ~ 28V
Frequency : 3.95kHz
Technology : Piezo
Operating Mode : Whooping
Duration : 5 SPS
Sound Pressure Level (SPL) : 75dB @ 20V, 30cm
Current - Supply : 50mA
Port Location : Top
Operating Temperature : -40°C ~ 65°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" L x 0.906" W (23.00mm x 23.00mm)
Height - Seated (Max) : 0.535" (13.60mm)
0
100 in stock
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSE
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 20 ~ 28V
Frequency : 3.95kHz
Technology : Piezo
Operating Mode : Whooping
Duration : 1 SPS
Sound Pressure Level (SPL) : 75dB @ 20V, 30cm
Current - Supply : 50mA
Port Location : Top
Operating Temperature : -40°C ~ 65°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" L x 0.906" W (23.00mm x 23.00mm)
Height - Seated (Max) : 0.535" (13.60mm)
0
100 in stock
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSE
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 20 ~ 28V
Frequency : 3.95kHz
Technology : Piezo
Operating Mode : Whooping
Duration : 1 SPS
Sound Pressure Level (SPL) : 75dB @ 20V, 30cm
Current - Supply : 50mA
Port Location : Top
Operating Temperature : -40°C ~ 65°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" L x 0.906" W (23.00mm x 23.00mm)
Height - Seated (Max) : 0.535" (13.60mm)
0
100 in stock
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : -
Series : *
Part Status : Active
Driver Circuitry : -
Input Type : -
Voltage - Rated : -
Voltage Range : -
Frequency : -
Technology : -
Operating Mode : -
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : -
Port Location : -
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : -
Termination : -
Size / Dimension : -
Height - Seated (Max) : -
0
100 in stock

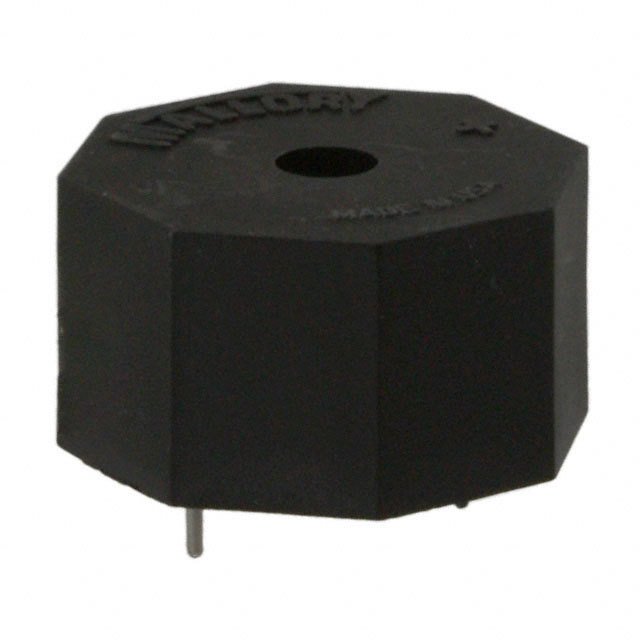

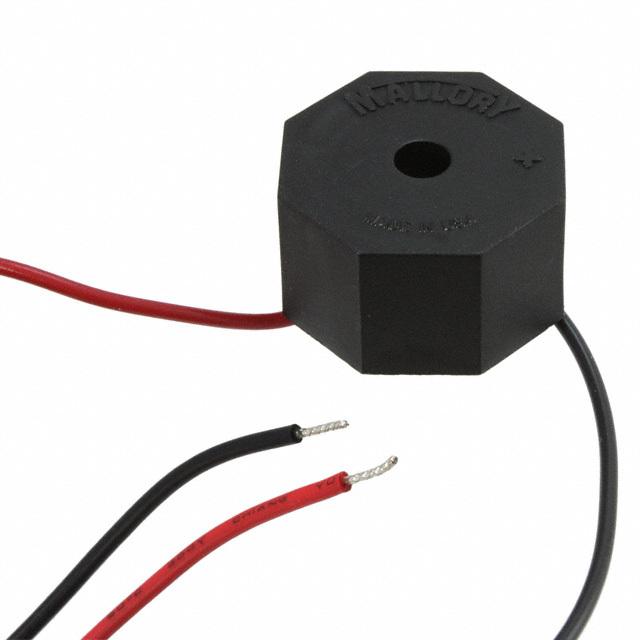

Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSO
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 2 ~ 6V
Frequency : 3.5kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 90dB @ 2V, 30cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 65°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Custom
Termination : Wire Leads
Size / Dimension : 0.906" L x 0.906" W (23.00mm x 23.00mm)
Height - Seated (Max) : 0.535" (13.60mm)
0
100 in stock
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSO
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 2 ~ 6V
Frequency : 3.5kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 90dB @ 2V, 30cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 65°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" L x 0.906" W (23.00mm x 23.00mm)
Height - Seated (Max) : 0.535" (13.60mm)
0
2137 in stock

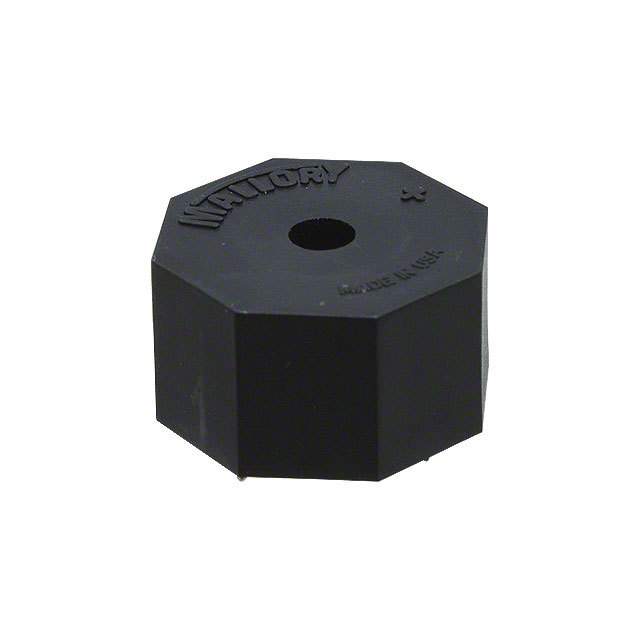

Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSO
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 3 ~ 20V
Frequency : 3.5kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 73dB @ 3V, 30cm
Current - Supply : 3 ~ 16mA
Port Location : Top
Operating Temperature : -20°C ~ 65°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" L x 0.906" W (23.00mm x 23.00mm)
Height - Seated (Max) : 0.535" (13.60mm)
0
100 in stock

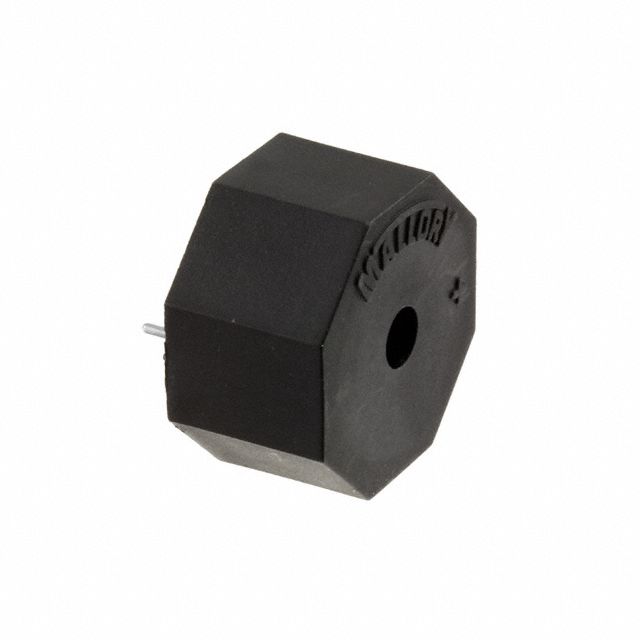

Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSO
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 3 ~ 20V
Frequency : 3.5kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 73dB @ 3V, 30cm
Current - Supply : 3 ~ 16mA
Port Location : Top
Operating Temperature : -20°C ~ 65°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" L x 0.906" W (23.00mm x 23.00mm)
Height - Seated (Max) : 0.535" (13.60mm)
0
100 in stock

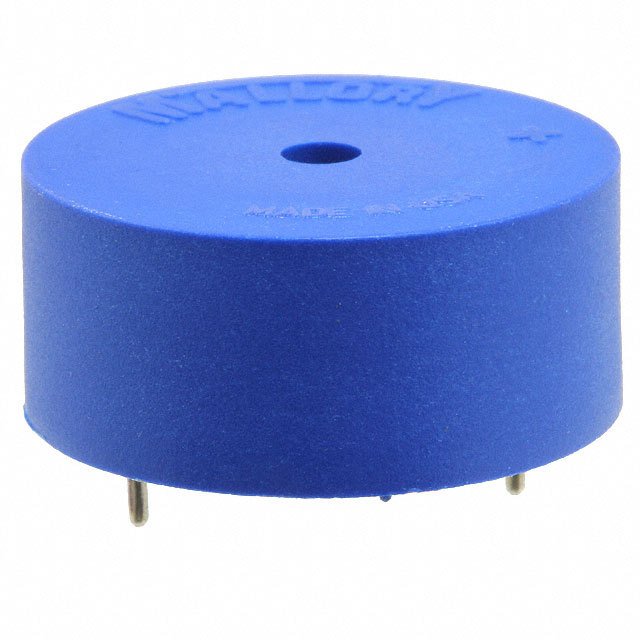

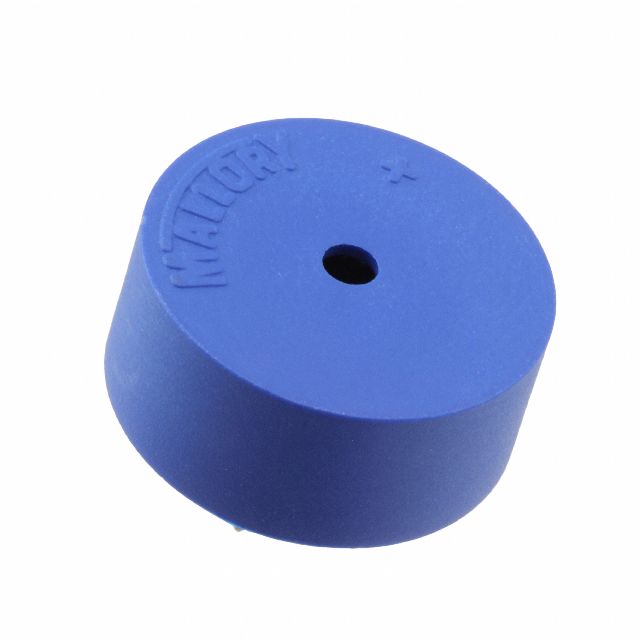

Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSR
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 2 ~ 5V
Frequency : 3.9kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : 0.5 ~ 2.5 PPS
Sound Pressure Level (SPL) : 85dB @ 2V, 30cm
Current - Supply : 10mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
0
9 in stock
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSR
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 2 ~ 5V
Frequency : 3.9kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : 0.5 ~ 2.5 PPS
Sound Pressure Level (SPL) : 85dB @ 2V, 30cm
Current - Supply : 10mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
0
12 in stock
