Luminus Devices, Inc.

- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.

Part Number
Manufacturer
Description
Unit Price
In Stock
Picture of CHM-9-27-90-36-AC00-F2-3

CHM-9-27-90-36-AC00-F2-3 CHM-9-27-90-36-AC00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1020 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 81 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CHM-9-27-90-36-XH00-F2-3

CHM-9-27-90-36-XH00-F2-3 CHM-9-27-90-36-XH00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1945 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 75 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 2.24mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
171 in stock
Picture of CHM-9-27-95-36-AC00-F2-3

CHM-9-27-95-36-AC00-F2-3 CHM-9-27-95-36-AC00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 965 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 77 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock

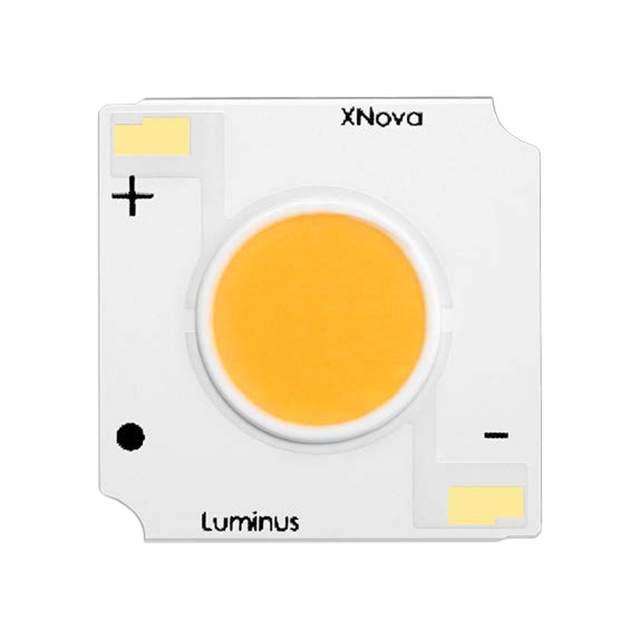

Picture of CHM-9-27-95-36-XH00-F2-3

CHM-9-27-95-36-XH00-F2-3 CHM-9-27-95-36-XH00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1730 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 67 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 95
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CHM-9-30-80-18-AC00-F2-3

CHM-9-30-80-18-AC00-F2-3 CHM-9-30-80-18-AC00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : -
Color : -
CCT (K) : -
Wavelength : -
Configuration : -
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : -
Height : -
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock
Picture of CHM-9-30-80-36-AC00-F2-3

CHM-9-30-80-36-AC00-F2-3 CHM-9-30-80-36-AC00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1380 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 110 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CHM-9-30-80-36-AC02-F2-3

CHM-9-30-80-36-AC02-F2-3 CHM-9-30-80-36-AC02-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : Sensus™
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1310 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 104 lm/W
Current - Max : 550mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CHM-9-30-80-36-XH00-F2-3

CHM-9-30-80-36-XH00-F2-3 CHM-9-30-80-36-XH00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2435 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 94 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CHM-9-30-80-36-XH02-F2-3

CHM-9-30-80-36-XH02-F2-3 CHM-9-30-80-36-XH02-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : Sensus™
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2460 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 95 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CHM-9-30-90-18-AC10-F3-3

CHM-9-30-90-18-AC10-F3-3 CHM-9-30-90-18-AC10-F3-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9 Gen3
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1500 lm (Typ)
Current - Test : 720mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 17V
Lumens/Watt @ Current - Test : 123 lm/W
Current - Max : 1.44A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.60mm Diameter
Lens Type : Flat
0
1284 in stock
Picture of CHM-9-30-90-36-AC00-F2-3

CHM-9-30-90-36-AC00-F2-3 CHM-9-30-90-36-AC00-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CHM-9
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1170 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 93 lm/W
Current - Max : 720mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
Picture of CHM-9-30-90-36-AC02-F2-3

CHM-9-30-90-36-AC02-F2-3 CHM-9-30-90-36-AC02-F2-3

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : Sensus™
Part Status : Not For New Designs
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1110 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 88 lm/W
Current - Max : 550mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.37mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
100 in stock
