Luminus Devices, Inc.
- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.
Part Number
Manufacturer
Description
Unit Price
In Stock

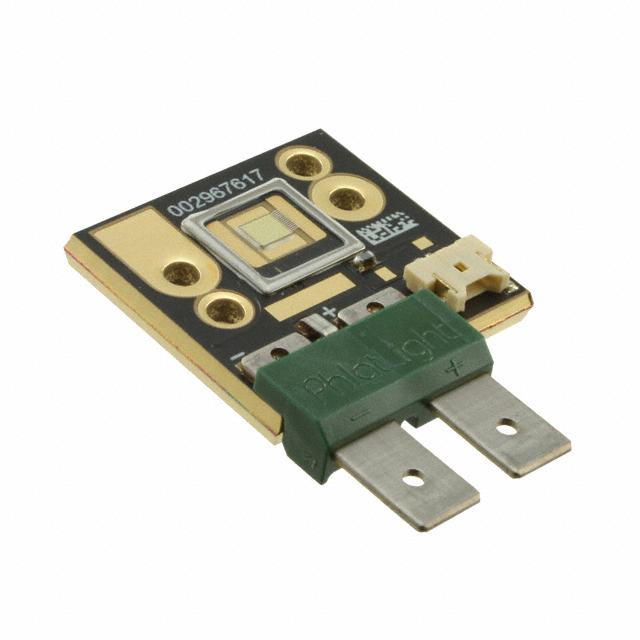

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CBT-90
Part Status : Active
Type : LED Module
Color : Green
CCT (K) : -
Wavelength : 525nm (510nm ~ 540nm)
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1750 lm (1500 lm ~ 2000 lm)
Current - Test : 13.5A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 4.5V
Lumens/Watt @ Current - Test : 29 lm/W
Current - Max : 27A
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 26.75mm W
Height : 4.08mm
Light Emitting Surface (LES) : 3.00mm L x 3.00mm W
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CBT-90
Part Status : Active
Type : LED Module
Color : Green
CCT (K) : -
Wavelength : 528nm (520nm ~ 535nm)
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1750 lm (1500 lm ~ 2000 lm)
Current - Test : 13.5A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 4.5V
Lumens/Watt @ Current - Test : 29 lm/W
Current - Max : 27A
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 26.75mm W
Height : 4.08mm
Light Emitting Surface (LES) : 3.00mm L x 3.00mm W
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : CBT-90
Part Status : Active
Type : LED Module
Color : Green
CCT (K) : -
Wavelength : 528nm (520nm ~ 535nm)
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2150 lm (2000 lm ~ 2300 lm)
Current - Test : 13.5A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 4.5V
Lumens/Watt @ Current - Test : 35 lm/W
Current - Max : 27A
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 26.75mm W
Height : 4.08mm
Light Emitting Surface (LES) : 3.00mm L x 3.00mm W
Lens Type : Flat
0
61 in stock

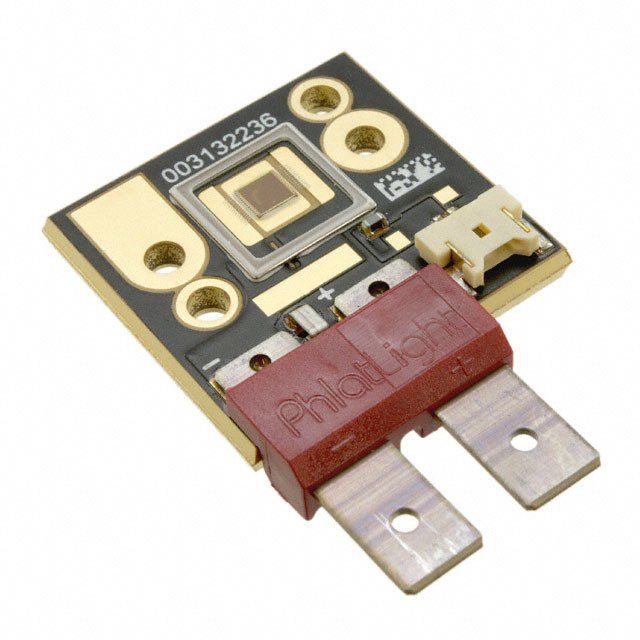

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-90
Part Status : Obsolete
Type : LED Module
Color : Red
CCT (K) : -
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 900 lm (Typ)
Current - Test : 13.5A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : 27 lm/W
Current - Max : 18A
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 26.75mm W
Height : 4.08mm
Light Emitting Surface (LES) : 3.00mm L x 3.00mm W
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-90
Part Status : Obsolete
Type : LED Module
Color : Red
CCT (K) : -
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 900 lm (Typ)
Current - Test : 13.5A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : 27 lm/W
Current - Max : 18A
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 26.75mm W
Height : 4.08mm
Light Emitting Surface (LES) : 3.00mm L x 3.00mm W
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-90
Part Status : Obsolete
Type : LED Module
Color : Red
CCT (K) : -
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 900 lm (Typ)
Current - Test : 13.5A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : 27 lm/W
Current - Max : 18A
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 26.75mm W
Height : 4.08mm
Light Emitting Surface (LES) : 3.00mm L x 3.00mm W
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-90
Part Status : Obsolete
Type : LED Module
Color : Red
CCT (K) : -
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 900 lm (Typ)
Current - Test : 13.5A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : 27 lm/W
Current - Max : 18A
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 26.75mm W
Height : 4.08mm
Light Emitting Surface (LES) : 3.00mm L x 3.00mm W
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-90
Part Status : Obsolete
Type : LED Module
Color : Red
CCT (K) : -
Wavelength : 628nm
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 13.5A
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : -
Current - Max : 18A
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 26.75mm W
Height : 4.08mm
Light Emitting Surface (LES) : 3.00mm L x 3.00mm W
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-90
Part Status : Obsolete
Type : LED Module
Color : Red
CCT (K) : -
Wavelength : 628nm
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 13.5A
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : -
Current - Max : 18A
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 26.75mm W
Height : 4.08mm
Light Emitting Surface (LES) : 3.00mm L x 3.00mm W
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-90
Part Status : Obsolete
Type : LED Module
Color : Red
CCT (K) : -
Wavelength : 613nm
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 13.5A
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : -
Current - Max : 18A
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 26.75mm W
Height : 4.08mm
Light Emitting Surface (LES) : 3.00mm L x 3.00mm W
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-90
Part Status : Obsolete
Type : LED Module
Color : Red
CCT (K) : -
Wavelength : 628nm
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 13.5A
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : -
Current - Max : 18A
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 26.75mm W
Height : 4.08mm
Light Emitting Surface (LES) : 3.00mm L x 3.00mm W
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-90
Part Status : Obsolete
Type : LED Module
Color : Red
CCT (K) : -
Wavelength : 613nm
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 13.5A
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : -
Current - Max : 18A
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 26.75mm W
Height : 4.08mm
Light Emitting Surface (LES) : 3.00mm L x 3.00mm W
Lens Type : Flat
0
100 in stock
