Lumileds

- Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation, quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is making the world safer, better and more beautiful—with light.

Part Number
Manufacturer
Description
Unit Price
In Stock

LXK8-PW40-0016 LXK8-PW40-0016

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON K
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 1875 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 42V
Lumens/Watt @ Current - Test : 128 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 100°
Features : -
Size / Dimension : 24.20mm Diameter
Height : 3.42mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

LXK8-PW40-0016A LXK8-PW40-0016A

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON K
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1860 lm (1680 lm ~ 2010 lm)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 42V
Lumens/Watt @ Current - Test : 127 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 100°
Features : -
Size / Dimension : 24.35mm L x 24.45mm W
Height : 3.42mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
216 in stock

LXK8-PW40-0024 LXK8-PW40-0024

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON K
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 2860 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 63V
Lumens/Watt @ Current - Test : 130 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 100°
Features : -
Size / Dimension : 30.00mm Diameter
Height : 3.42mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

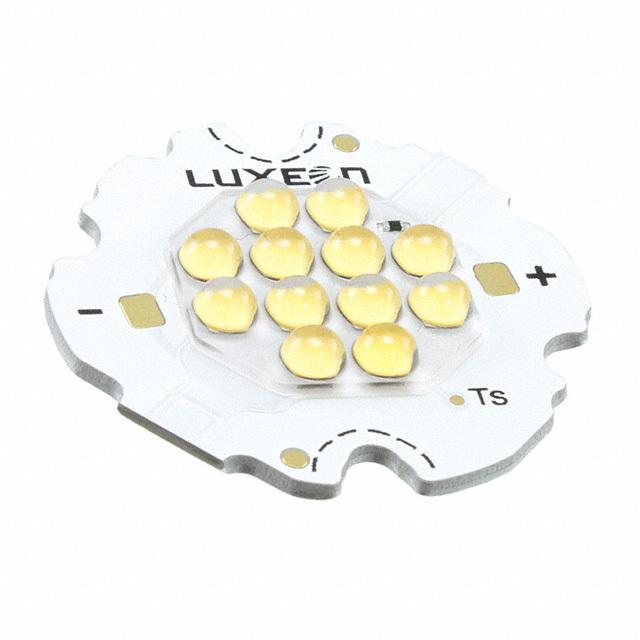

LXK8-PW40-0024A LXK8-PW40-0024A

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON K
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 2660 lm (2530 lm ~ 3030 lm)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 63V
Lumens/Watt @ Current - Test : 121 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 100°
Features : -
Size / Dimension : 30.00mm L x 30.00mm W
Height : 3.42mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
181 in stock

LXK8-PW40-0206 LXK8-PW40-0206

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON K
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 660 lm (625 lm ~ 750 lm)
Current - Test : 175mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 31.5V
Lumens/Watt @ Current - Test : 120 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 100°
Features : -
Size / Dimension : 21.65mm L x 21.75mm W
Height : 3.42mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

LXK8-PW40-0403 LXK8-PW40-0403

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON K
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 330 lm (310 lm ~ 370 lm)
Current - Test : 87.5mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 31.5V
Lumens/Watt @ Current - Test : 120 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 100°
Features : -
Size / Dimension : 17.67mm L x 17.67mm W
Height : 3.42mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

LXK8-PW40-0404 LXK8-PW40-0404

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON K
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 430 lm (410 lm ~ 490 lm)
Current - Test : 87.5mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 42V
Lumens/Watt @ Current - Test : 117 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 100°
Features : -
Size / Dimension : 17.67mm L x 17.67mm W
Height : 3.42mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

LXK8-PW50-00012 LXK8-PW50-00012

Lumileds
Manufacturer : Lumileds
Packaging : -
Series : *
Part Status : Obsolete
Type : -
Color : -
CCT (K) : -
Wavelength : -
Configuration : -
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : -
Height : -
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock

LXK8-PW50-00016 LXK8-PW50-00016

Lumileds
Manufacturer : Lumileds
Packaging : -
Series : *
Part Status : Obsolete
Type : -
Color : -
CCT (K) : -
Wavelength : -
Configuration : -
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : -
Height : -
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock

LXK8-PW50-0004 LXK8-PW50-0004

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON K
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 463 lm (440 lm ~ 530 lm)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 10.5V
Lumens/Watt @ Current - Test : 126 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 100°
Features : -
Size / Dimension : 17.67mm L x 17.67mm W
Height : 3.42mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

LXK8-PW50-0008 LXK8-PW50-0008

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON K
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 933 lm (890 lm ~ 1070 lm)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 21V
Lumens/Watt @ Current - Test : 127 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 100°
Features : -
Size / Dimension : 21.75mm L x 21.75mm W
Height : 3.42mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

LXK8-PW50-0016 LXK8-PW50-0016

Lumileds
Manufacturer : Lumileds
Packaging : Tray
Series : LUXEON K
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1850 lm (1760 lm ~ 2110 lm)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 42V
Lumens/Watt @ Current - Test : 126 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 100°
Features : -
Size / Dimension : 24.35mm L x 24.45mm W
Height : 3.42mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
