Lumex, Inc.
- Lumex, Inc. for 30 years, Lumex has been a global leader in the optoelectronics industry, with the broadest range of high efficiency, high performance LEDs and LCDs in the industry. With thousands of standard products and a focus on semi-custom and custom designs, Lumex is a valuable resource for quality and innovation. Lumex's optical range encompasses a wide spectrum including UV, visible and infrared wavelengths. Lumex's team of Technical Design Specialists are experts in collaboratively developing effective, smart solutions from the most complex design dilemmas.
Lumex has a global footprint with the worldwide headquarters outside Chicago and the Asian headquarters in Taiwan. With manufacturing capabilities in the United States, China, Taiwan and Thailand, Lumex is able to support over 23 end markets with more than 80,000 customers both directly and through our distribution channel partners. Over the last 30 years, the name Lumex has become synonymous with quality and performance around the world.
Part Number
Manufacturer
Description
Unit Price
In Stock

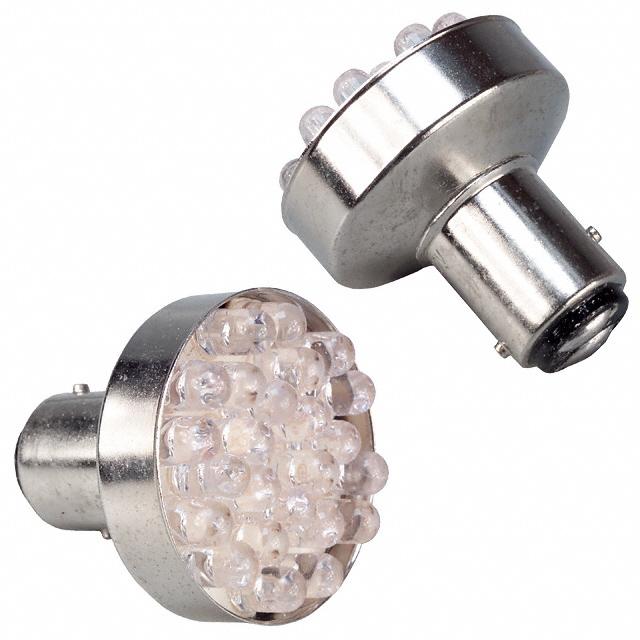

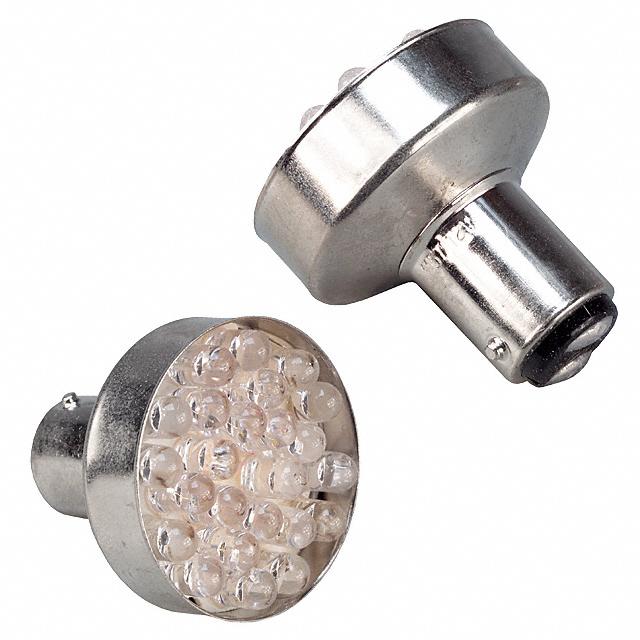

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : Poly-Leds™
Part Status : Obsolete
Can Replace Lamps : 1157
Size / Dimension : 1.333" Dia x 1.496" H (33.85mm x 38.00mm)
Wavelength : 525nm
Voltage - Forward (Vf) (Typ) : 12V
Base Type : Bayonet (BA15D)
Color : Green (x 24)
Millicandela Rating : 183000mcd
Configuration : 24 Round
Applications : Incandescent Replacements, Indicator Lights
0
100 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : Poly-Leds™
Part Status : Active
Can Replace Lamps : 1157
Size / Dimension : 1.333" Dia x 1.496" H (33.85mm x 38.00mm)
Wavelength : 590nm
Voltage - Forward (Vf) (Typ) : 12V
Base Type : Bayonet (BA15D)
Color : Yellow (x 24)
Millicandela Rating : 106200mcd
Configuration : 24 Round
Applications : Incandescent Replacements, Indicator Lights
0
100 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : Poly-Leds™
Part Status : Active
Can Replace Lamps : 1157
Size / Dimension : 1.333" Dia x 1.496" H (33.85mm x 38.00mm)
Wavelength : 626nm
Voltage - Forward (Vf) (Typ) : 12V
Base Type : Bayonet (BA15D)
Color : Red (x 24)
Millicandela Rating : 102400mcd
Configuration : 24 Round
Applications : Incandescent Replacements, Indicator Lights
0
100 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : Poly-Leds™
Part Status : Obsolete
Can Replace Lamps : 3157 LED
Size / Dimension : 1.043" Dia x 1.772" H (26.50mm x 45.00mm)
Wavelength : 525nm
Voltage - Forward (Vf) (Typ) : 12V
Base Type : Wedge
Color : Green (x 12)
Millicandela Rating : 4000mcd, 12000mcd
Configuration : 12 (5mm D)
Applications : Incandescent Replacements, Indicator Lights
0
100 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : Poly-Leds™
Part Status : Obsolete
Can Replace Lamps : 3157 LED
Size / Dimension : 1.043" Dia x 1.772" H (26.50mm x 45.00mm)
Wavelength : 590nm
Voltage - Forward (Vf) (Typ) : 12V
Base Type : Wedge
Color : Yellow (x 12)
Millicandela Rating : 2800mcd, 8300mcd
Configuration : 12 (5mm D)
Applications : Incandescent Replacements, Indicator Lights
0
100 in stock

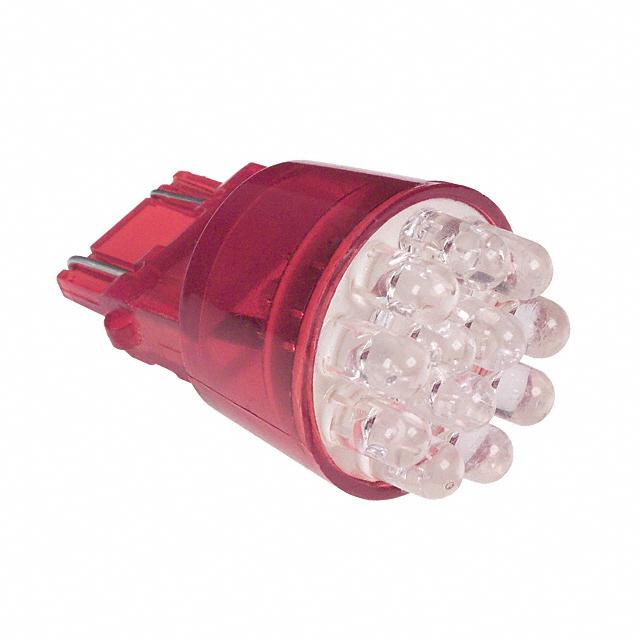

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : Poly-Leds™
Part Status : Obsolete
Can Replace Lamps : 3157 LED
Size / Dimension : 1.043" Dia x 1.772" H (26.50mm x 45.00mm)
Wavelength : 626nm
Voltage - Forward (Vf) (Typ) : 12V
Base Type : Wedge
Color : Red (x 12)
Millicandela Rating : 2700mcd, 8000mcd
Configuration : 12 (5mm D)
Applications : Incandescent Replacements, Indicator Lights
0
100 in stock

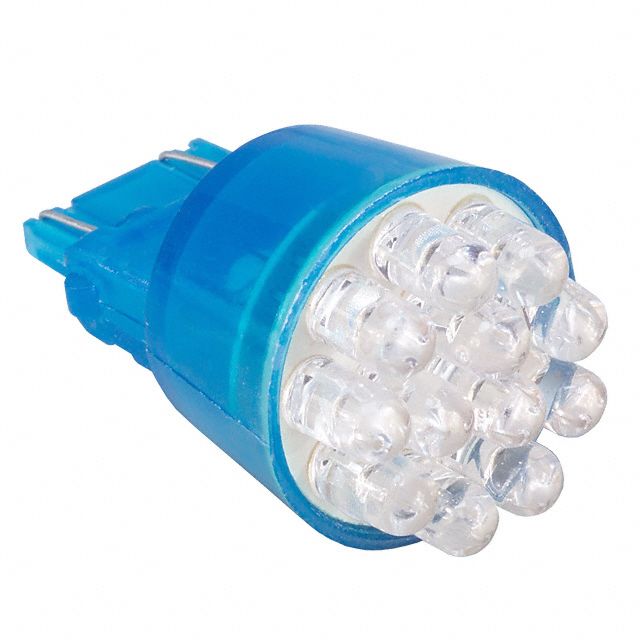

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : Poly-Leds™
Part Status : Obsolete
Can Replace Lamps : 3157 LED
Size / Dimension : 1.043" Dia x 1.772" H (26.50mm x 45.00mm)
Wavelength : 470nm
Voltage - Forward (Vf) (Typ) : 12V
Base Type : Wedge
Color : Blue (x 12)
Millicandela Rating : 2800mcd, 8300mcd
Configuration : 12 (5mm D)
Applications : Incandescent Replacements, Indicator Lights
0
100 in stock

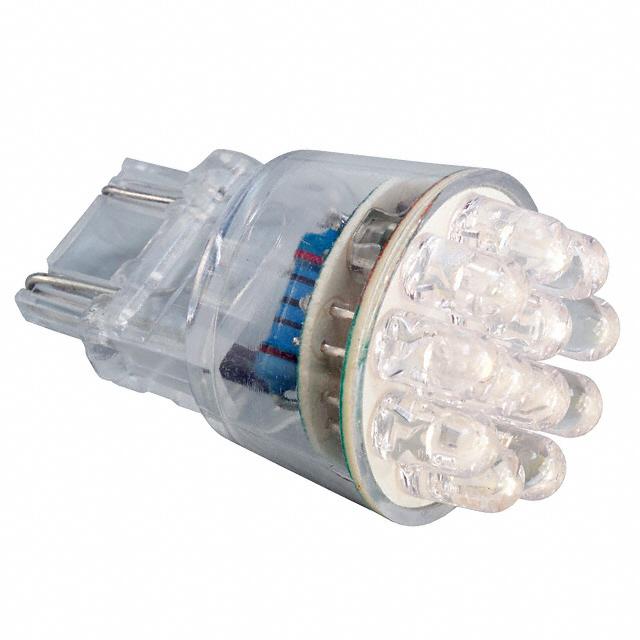

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : Poly-Leds™
Part Status : Obsolete
Can Replace Lamps : 3157 LED
Size / Dimension : 1.043" Dia x 1.772" H (26.50mm x 45.00mm)
Wavelength : -
Voltage - Forward (Vf) (Typ) : 12V
Base Type : Wedge
Color : White (x 12)
Millicandela Rating : 2750mcd, 8200mcd
Configuration : 12 (5mm D)
Applications : Incandescent Replacements, Indicator Lights
0
100 in stock

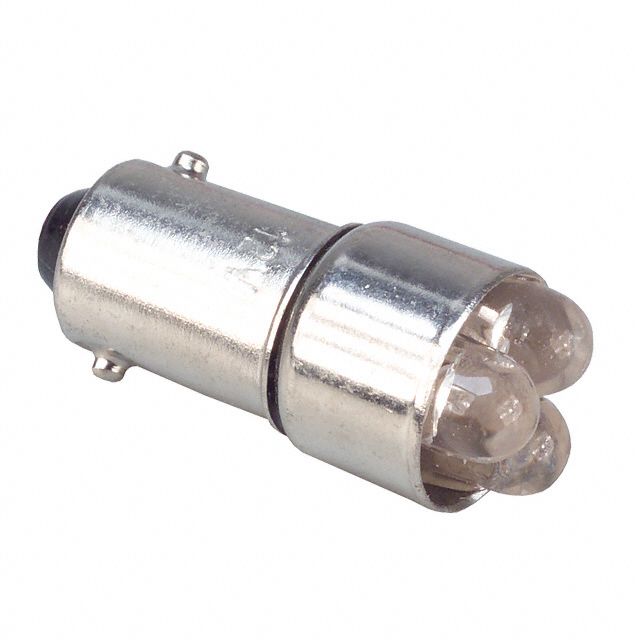

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : Poly-Leds™
Part Status : Active
Can Replace Lamps : Multiple Miniature Bayonet Lamps
Size / Dimension : 0.433" Dia x 1.063" H (11.00mm x 27.00mm)
Wavelength : 525nm
Voltage - Forward (Vf) (Typ) : 12V
Base Type : Miniature Bayonet (BA9S)
Color : Green (x 3)
Millicandela Rating : 23000mcd
Configuration : 3 Round
Applications : Incandescent Replacements, Indicator Lights
0
100 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : Poly-Leds™
Part Status : Active
Can Replace Lamps : Multiple Miniature Bayonet Lamps
Size / Dimension : 0.433" Dia x 1.063" H (11.00mm x 27.00mm)
Wavelength : 590nm
Voltage - Forward (Vf) (Typ) : 12V
Base Type : Miniature Bayonet (BA9S)
Color : Yellow (x 3)
Millicandela Rating : 13200mcd
Configuration : 3 Round
Applications : Incandescent Replacements, Indicator Lights
0
100 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : Poly-Leds™
Part Status : Active
Can Replace Lamps : Multiple Miniature Bayonet Lamps
Size / Dimension : 0.433" Dia x 1.063" H (11.00mm x 27.00mm)
Wavelength : 626nm
Voltage - Forward (Vf) (Typ) : 12V
Base Type : Miniature Bayonet (BA9S)
Color : Red (x 3)
Millicandela Rating : 12800mcd
Configuration : 3 Round
Applications : Incandescent Replacements, Indicator Lights
0
100 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : Poly-Leds™
Part Status : Active
Can Replace Lamps : -
Size / Dimension : 0.531" Dia x 1.175" H (13.50mm x 29.85mm)
Wavelength : 525nm
Voltage - Forward (Vf) (Typ) : 12V
Base Type : Miniature Screw (E10)
Color : Green (x 4)
Millicandela Rating : 30500mcd
Configuration : 4 Round
Applications : Incandescent Replacements, Indicator Lights
0
100 in stock
