LEM
- LEM (Liaisons Electroniques et Mecaniques) is an international group and the world leader in current and voltage sensing. LEM manufactures Hall effect, cost effective, isolated current and voltage transducers used in a wide range of power electronics applications such as: Uninterruptible Power Supplies, Switch-Mode Power Supplies, converters, motor drives, battery monitoring, for the industrial, automotive and railroad markets.
The current and voltage transducers measure DC, AC and complex waveform signals and provide galvanic isolation. They are all designed and manufactured according to the most demanding standards, in world class manufacturing facilities in America, Europe and Japan.
Part Number
Manufacturer
Description
Unit Price
In Stock

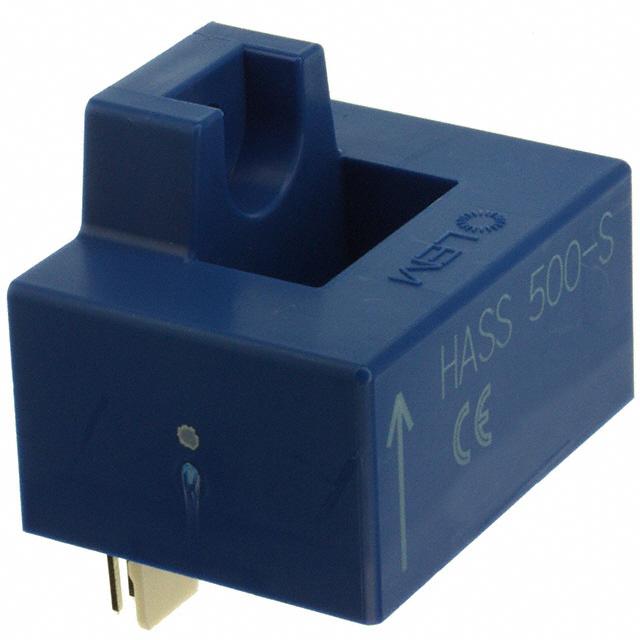

LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Tray
Series : HASS
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 500A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : -
Frequency : DC ~ 50kHz
Linearity : ±0.5%
Accuracy : ±1%
Voltage - Supply : 5V
Response Time : 3µs
Current - Supply (Max) : 19mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
629 in stock

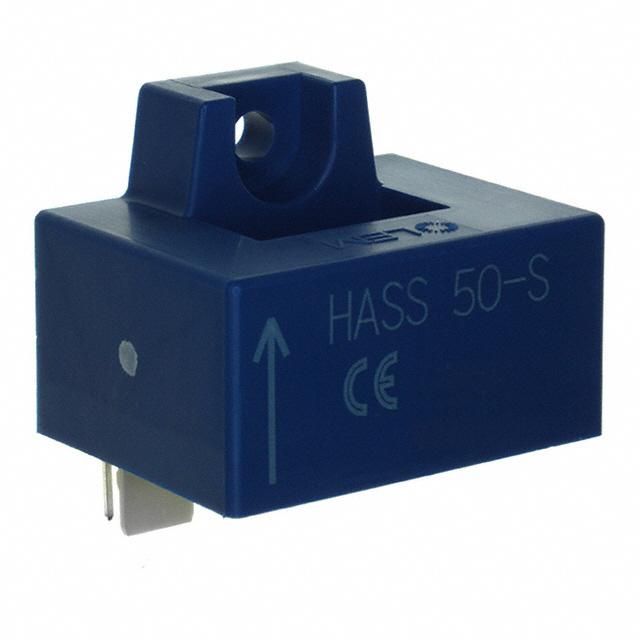

LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Tray
Series : HASS
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 50A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : -
Frequency : DC ~ 50kHz
Linearity : ±0.5%
Accuracy : ±1%
Voltage - Supply : 5V
Response Time : 3µs
Current - Supply (Max) : 19mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
564 in stock

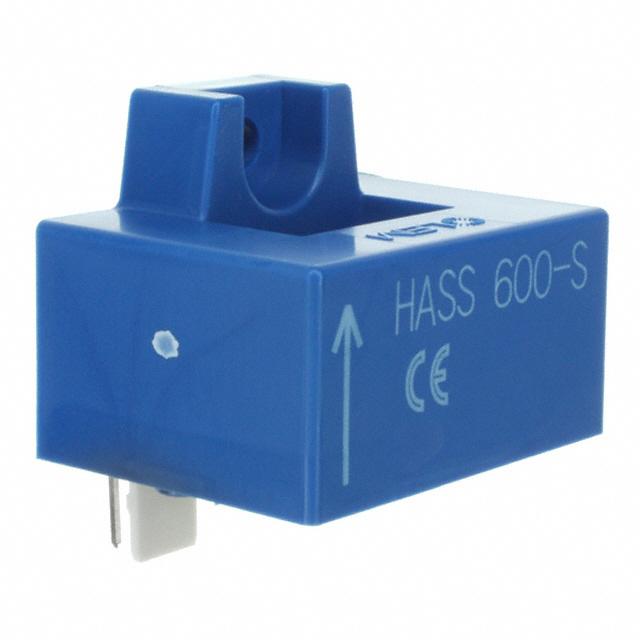

LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Tray
Series : HASS
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 600A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : -
Frequency : DC ~ 50kHz
Linearity : ±0.5%
Accuracy : ±1%
Voltage - Supply : 5V
Response Time : 3µs
Current - Supply (Max) : 19mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
99 in stock
LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Bulk
Series : HAW
Part Status : Obsolete
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 3A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : -
Frequency : DC ~ 50kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : ±15V
Response Time : 3µs
Current - Supply (Max) : 18mA
Operating Temperature : -10°C ~ 75°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : 8-DIP Module
0
100 in stock
LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Bulk
Series : HAW
Part Status : Obsolete
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 7.5A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : -
Frequency : DC ~ 50kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : ±15V
Response Time : 3µs
Current - Supply (Max) : 18mA
Operating Temperature : -10°C ~ 75°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : 8-DIP Module
0
100 in stock
LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Bulk
Series : HAW
Part Status : Obsolete
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 15A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : -
Frequency : DC ~ 50kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : ±15V
Response Time : 3µs
Current - Supply (Max) : 18mA
Operating Temperature : -10°C ~ 75°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : 8-DIP Module
0
100 in stock

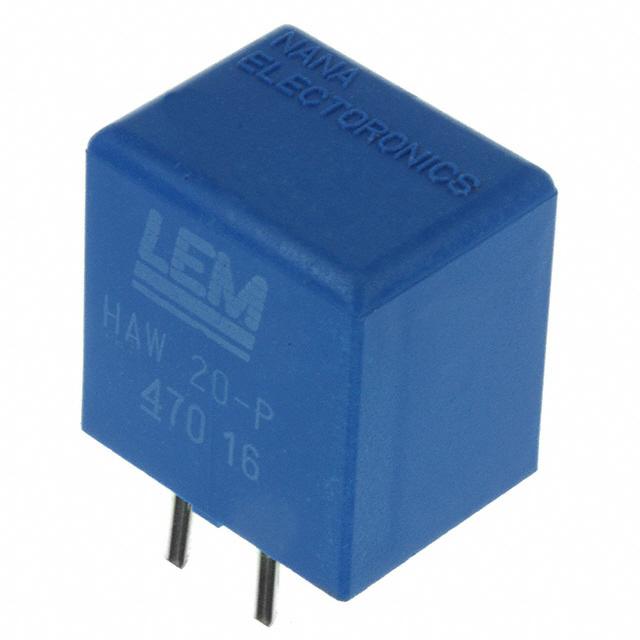

LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Bulk
Series : HAW
Part Status : Obsolete
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 20A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : -
Frequency : DC ~ 50kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : ±15V
Response Time : 3µs
Current - Supply (Max) : 18mA
Operating Temperature : -10°C ~ 75°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : 8-DIP Module
0
100 in stock
LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Bulk
Series : HAX
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 1000A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : -
Frequency : DC ~ 25kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : ±15V
Response Time : 5µs
Current - Supply (Max) : 20mA
Operating Temperature : -25°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Panel Mount
Package / Case : Module
0
100 in stock

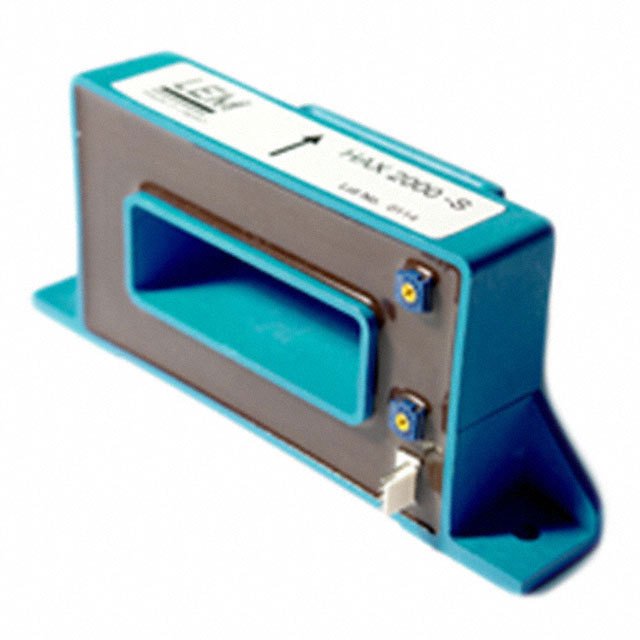

LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Bulk
Series : HAX
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 2000A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : -
Frequency : DC ~ 25kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : ±15V
Response Time : 5µs
Current - Supply (Max) : 20mA
Operating Temperature : -25°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Chassis Mount
Package / Case : Module
0
100 in stock
LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Bulk
Series : HAXC
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 2000A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : -
Frequency : DC ~ 25kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : ±15V
Response Time : 5µs
Current - Supply (Max) : 20mA
Operating Temperature : -25°C ~ 85°C
Polarization : Bidirectional
Mounting Type : -
Package / Case : -
0
100 in stock

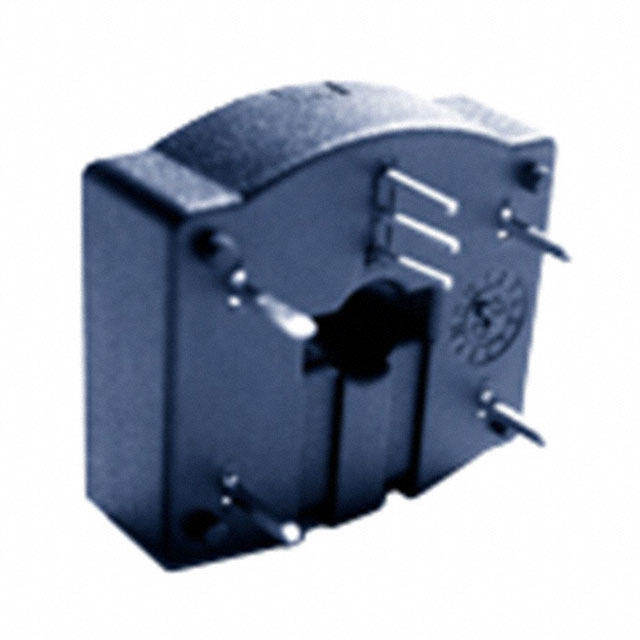

LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Bulk
Series : HC2F
Part Status : Discontinued at
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 100A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 20mV/A
Frequency : 20kHz
Linearity : ±0.2%
Accuracy : -
Voltage - Supply : 4.75 V ~ 5.25 V
Response Time : 15µs
Current - Supply (Max) : 20mA
Operating Temperature : -40°C ~ 125°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
100 in stock

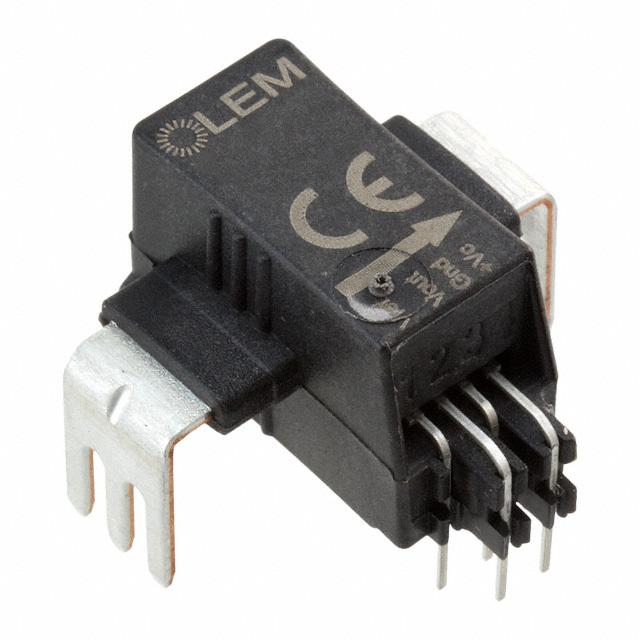

LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Tray
Series : HLSR-P
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 10A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 80mV/A
Frequency : 400kHz
Linearity : ±0.5%
Accuracy : ±1%
Voltage - Supply : 5V
Response Time : 2.5µs
Current - Supply (Max) : 25mA
Operating Temperature : -40°C ~ 105°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
283 in stock
