LED Engin

- LED Engin, an OSRAM business based in California’s Silicon Valley, develops, manufactures, and sells advanced LED emitters, optics and light engines to create uncompromised lighting experiences for a wide range of entertainment, architectural, general lighting and specialty applications. LuxiGenTM multi-die emitter and secondary lens combinations reliably deliver industry-leading flux density, upwards of 5000 quality lumens to a target, in a wide spectrum of colors including whites, tunable whites, multi-color and UV LEDs in a unique patented compact ceramic package. The small size, yet remarkably powerful beam output and superior in-source color mixing, allows for a previously unobtainable freedom of design wherever high-flux density, directional light is required.

Part Number
Manufacturer
Description
Unit Price
In Stock

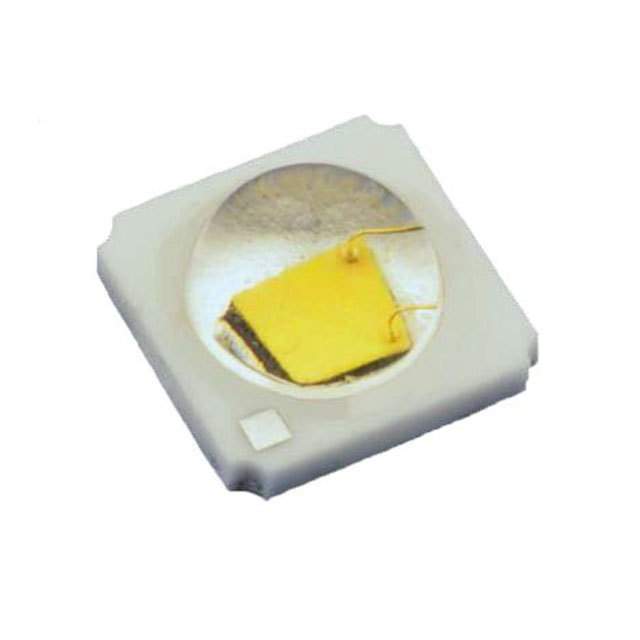

LZ1-10CW02-0055 LZ1-10CW02-0055

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : LZ1
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 5500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 227 lm (182 lm ~ 285 lm)
Current - Test : 1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 63 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : 85°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 4.50mm
Light Emitting Surface (LES) : 3.20mm
Lens Type : Domed
0
703 in stock

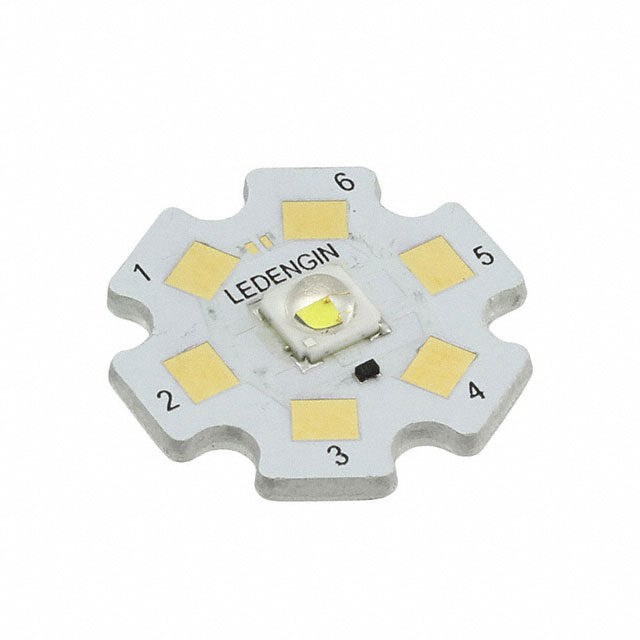

LZ1-10CW02-0065 LZ1-10CW02-0065

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 227 lm (182 lm ~ 285 lm)
Current - Test : 1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 63 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : 85°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 4.50mm
Light Emitting Surface (LES) : 3.20mm
Lens Type : Domed
0
1168 in stock

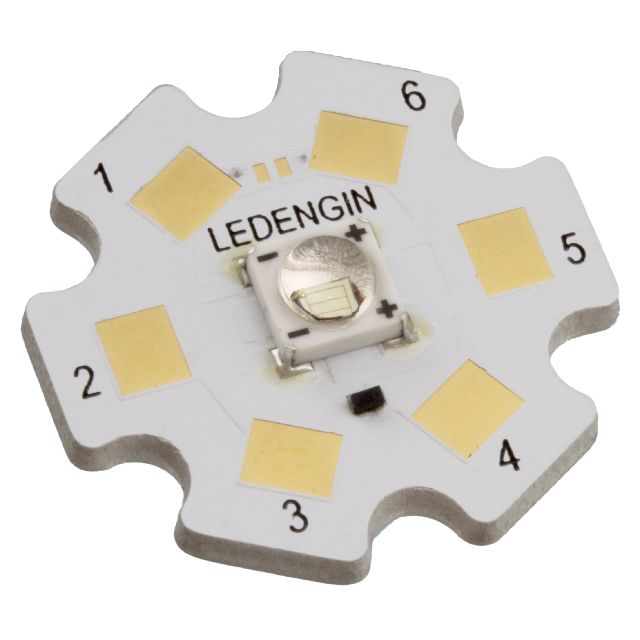

LZ1-10G100-0000 LZ1-10G100-0000

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : LZ1
Part Status : Obsolete
Type : LED Module
Color : Green
CCT (K) : -
Wavelength : 525nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 200 lm (145 lm ~ 285 lm)
Current - Test : 1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.7V
Lumens/Watt @ Current - Test : 53 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : -
Viewing Angle : 80°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 4.50mm
Light Emitting Surface (LES) : 3.20mm
Lens Type : Domed
0
100 in stock

LZ1-10G100-0G23 LZ1-10G100-0G23

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : Green
CCT (K) : -
Wavelength : 525nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 215 lm (145 lm ~ 285 lm)
Current - Test : 1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.75V
Lumens/Watt @ Current - Test : 57 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : -
Viewing Angle : 80°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 4.50mm
Light Emitting Surface (LES) : 3.20mm
Lens Type : Domed
0
100 in stock

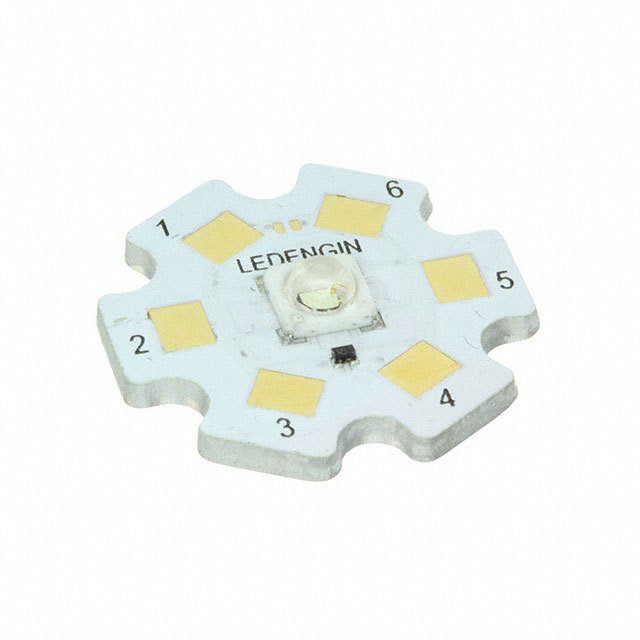

LZ1-10G102-0000 LZ1-10G102-0000

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Active
Type : LED Module
Color : Green
CCT (K) : -
Wavelength : 525nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 164 lm (145 lm ~ 182 lm)
Current - Test : 1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 4.5V
Lumens/Watt @ Current - Test : 36 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : -
Viewing Angle : 80°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 4.50mm
Light Emitting Surface (LES) : 3.20mm
Lens Type : Domed
0
447 in stock

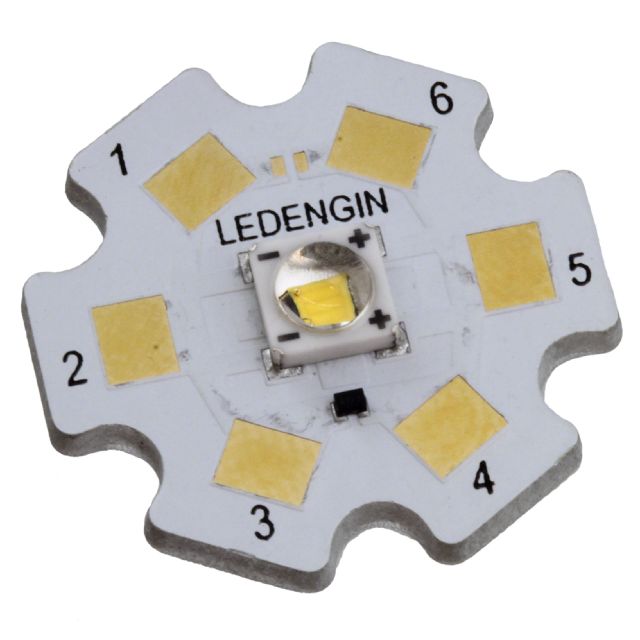

LZ1-10NW00-0040 LZ1-10NW00-0040

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tray
Series : LZ1
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 216 lm (146 lm ~ 285 lm)
Current - Test : 1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 60 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 82 (Typ)
Viewing Angle : 85°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 4.50mm
Light Emitting Surface (LES) : 3.20mm
Lens Type : Domed
0
100 in stock

LZ1-10NW00-P000 LZ1-10NW00-P000

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : LZ1
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 234 lm (182 lm ~ 285 lm)
Current - Test : 1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 65 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 82 (Typ)
Viewing Angle : 85°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 4.50mm
Light Emitting Surface (LES) : 3.20mm
Lens Type : Domed
0
100 in stock

LZ1-10NW00-P040 LZ1-10NW00-P040

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : LZ1
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 234 lm (182 lm ~ 285 lm)
Current - Test : 1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 65 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 82 (Typ)
Viewing Angle : 85°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 4.50mm
Light Emitting Surface (LES) : 3.20mm
Lens Type : Domed
0
100 in stock

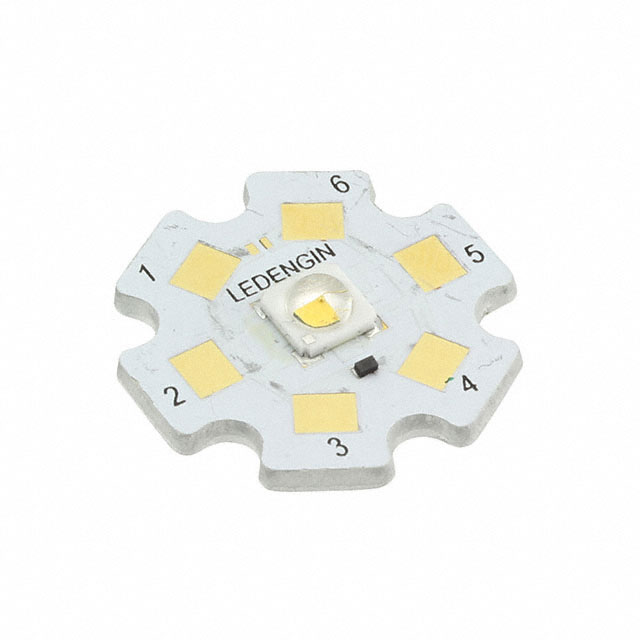

LZ1-10NW02-0040 LZ1-10NW02-0040

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 164 lm (146 lm ~ 182 lm)
Current - Test : 1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 46 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 82 (Typ)
Viewing Angle : 85°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 4.50mm
Light Emitting Surface (LES) : 3.20mm
Lens Type : Domed
0
100 in stock

LZ1-10NW02-P040 LZ1-10NW02-P040

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : LZ1
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 232 lm (182 lm ~ 282 lm)
Current - Test : 1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 64 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 82 (Typ)
Viewing Angle : 85°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 4.50mm
Light Emitting Surface (LES) : 3.20mm
Lens Type : Domed
0
100 in stock

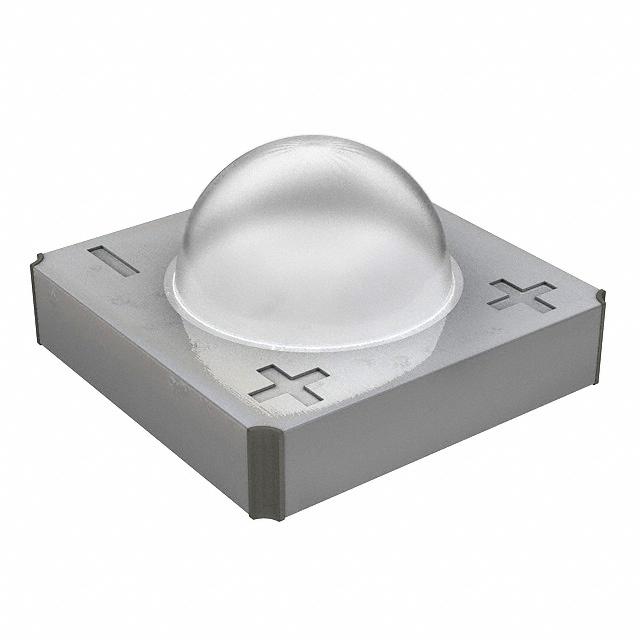

LZ1-10R100-0000 LZ1-10R100-0000

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : LZ1
Part Status : Obsolete
Type : LED Module
Color : Red
CCT (K) : -
Wavelength : 623nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 160 lm (117 lm ~ 228 lm)
Current - Test : 1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 2.6V
Lumens/Watt @ Current - Test : 62 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : -
Viewing Angle : 76°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 4.50mm
Light Emitting Surface (LES) : 3.20mm
Lens Type : Domed
0
100 in stock

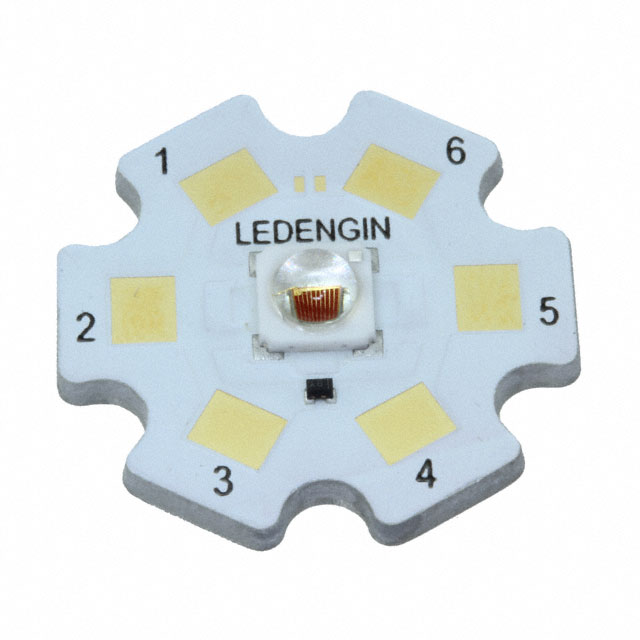

LZ1-10R102-0000 LZ1-10R102-0000

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Active
Type : LED Module
Color : Red
CCT (K) : -
Wavelength : 623nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 132 lm (117 lm ~ 146 lm)
Current - Test : 1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 2.6V
Lumens/Watt @ Current - Test : 51 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : -
Viewing Angle : 76°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 4.50mm
Light Emitting Surface (LES) : 3.20mm
Lens Type : Domed
0
465 in stock
