LED Engin
- LED Engin, an OSRAM business based in California’s Silicon Valley, develops, manufactures, and sells advanced LED emitters, optics and light engines to create uncompromised lighting experiences for a wide range of entertainment, architectural, general lighting and specialty applications. LuxiGenTM multi-die emitter and secondary lens combinations reliably deliver industry-leading flux density, upwards of 5000 quality lumens to a target, in a wide spectrum of colors including whites, tunable whites, multi-color and UV LEDs in a unique patented compact ceramic package. The small size, yet remarkably powerful beam output and superior in-source color mixing, allows for a previously unobtainable freedom of design wherever high-flux density, directional light is required.
Part Number
Manufacturer
Description
Unit Price
In Stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tray
Series : LZC
Part Status : Active
Type : LED Module
Color : Violet
CCT (K) : -
Wavelength : 408nm (405nm ~ 410nm)
Configuration : Starboard
Flux @ Current/Temperature - Test : -
Current - Test : 2 x 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 22V
Lumens/Watt @ Current - Test : -
Current - Max : 1A
CRI (Color Rendering Index) : -
Viewing Angle : 115°
Features : -
Size / Dimension : 28.28mm Diameter
Height : 7.10mm
Light Emitting Surface (LES) : 8.20mm Diameter
Lens Type : Domed
0
16 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1603 lm (1085 lm ~ 2120 lm)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 42V
Lumens/Watt @ Current - Test : 55 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 85 (Typ)
Viewing Angle : 110°
Features : -
Size / Dimension : 28.28mm Diameter
Height : 7.10mm
Light Emitting Surface (LES) : 8.20mm Diameter
Lens Type : Domed
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1603 lm (1085 lm ~ 2120 lm)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 42V
Lumens/Watt @ Current - Test : 55 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 85 (Typ)
Viewing Angle : 110°
Features : -
Size / Dimension : 28.28mm Diameter
Height : 7.10mm
Light Emitting Surface (LES) : 8.20mm Diameter
Lens Type : Domed
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1603 lm (1085 lm ~ 2120 lm)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 42V
Lumens/Watt @ Current - Test : 55 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 85 (Typ)
Viewing Angle : 110°
Features : -
Size / Dimension : 28.28mm Diameter
Height : 7.10mm
Light Emitting Surface (LES) : 8.20mm Diameter
Lens Type : Domed
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1603 lm (1085 lm ~ 2120 lm)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 42V
Lumens/Watt @ Current - Test : 55 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 85 (Typ)
Viewing Angle : 110°
Features : -
Size / Dimension : 28.28mm Diameter
Height : 7.10mm
Light Emitting Surface (LES) : 8.20mm Diameter
Lens Type : Domed
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1603 lm (1085 lm ~ 2120 lm)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 42V
Lumens/Watt @ Current - Test : 55 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 85 (Typ)
Viewing Angle : 110°
Features : -
Size / Dimension : 28.28mm Diameter
Height : 7.10mm
Light Emitting Surface (LES) : 8.20mm Diameter
Lens Type : Domed
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1603 lm (1085 lm ~ 2120 lm)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 42V
Lumens/Watt @ Current - Test : 55 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 85 (Typ)
Viewing Angle : 110°
Features : -
Size / Dimension : 28.28mm Diameter
Height : 7.10mm
Light Emitting Surface (LES) : 8.20mm Diameter
Lens Type : Domed
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1603 lm (1085 lm ~ 2120 lm)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 42V
Lumens/Watt @ Current - Test : 55 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 85 (Typ)
Viewing Angle : 110°
Features : -
Size / Dimension : 28.28mm Diameter
Height : 7.10mm
Light Emitting Surface (LES) : 8.20mm Diameter
Lens Type : Domed
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1603 lm (1085 lm ~ 2120 lm)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 42V
Lumens/Watt @ Current - Test : 55 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 85 (Typ)
Viewing Angle : 110°
Features : -
Size / Dimension : 28.28mm Diameter
Height : 7.10mm
Light Emitting Surface (LES) : 8.20mm Diameter
Lens Type : Domed
0
100 in stock

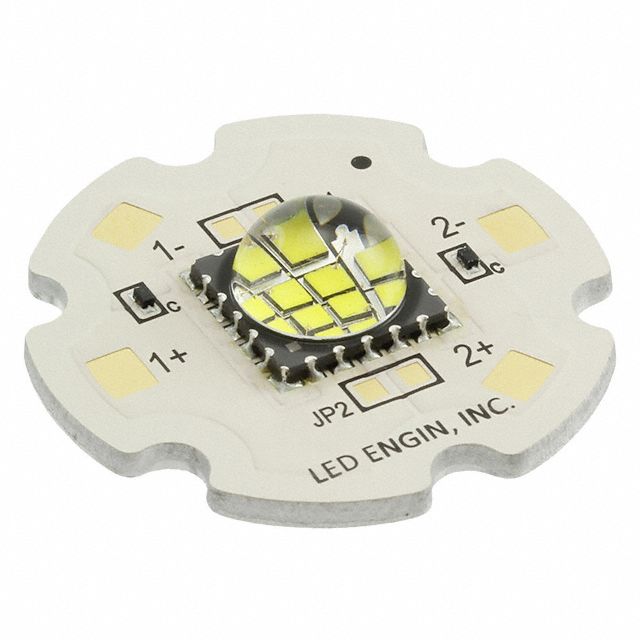

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tray
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1900 lm (1357 lm ~ 2350 lm)
Current - Test : 2 x 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18.9V
Lumens/Watt @ Current - Test : 140 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 85 (Typ)
Viewing Angle : 110°
Features : -
Size / Dimension : 28.30mm Diameter
Height : 6.90mm
Light Emitting Surface (LES) : 8.20mm
Lens Type : Domed
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tray
Series : -
Part Status : Active
Color : Red, Green, Blue, Amber (RGBA)
Wavelength : 665nm Red, 730nm Red, 525nm Green, 400nm Blue, 450nm Blue, 590nm Amber
Current - Test : 700mA Red, 700mA Green, 700mA Blue, 700mA Amber
Voltage - Forward (Vf) (Typ) : 2.25V Red, 2.65V Red, 4.2V Green, 3.3V Blue, 2.45V Amber
Lumens/Watt @ Current - Test : -
Current - Max : -
Flux @ Current/Temperature - Test : -
Temperature - Test : -
Viewing Angle : -
Mounting Type : Surface Mount
Package / Case : 3535 (9090 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.354" L x 0.354" W (9.00mm x 9.00mm)
Height - Seated (Max) : 0.220" (5.60mm)
0
50 in stock

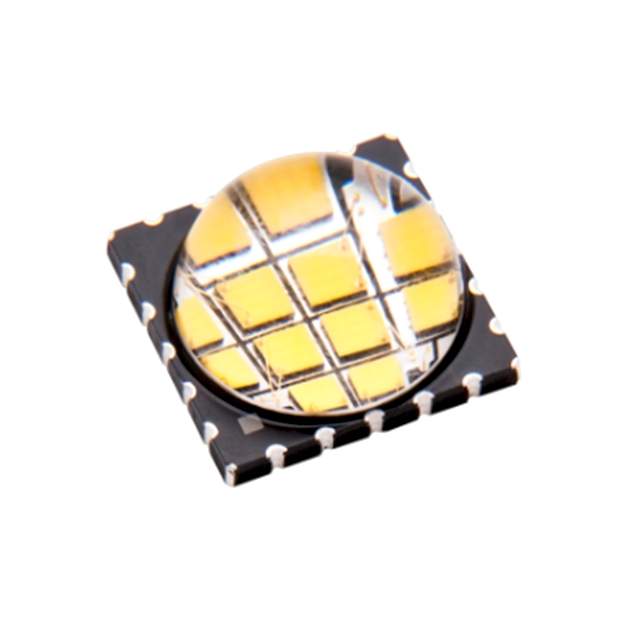

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Cool
CCT (K) : 5600K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 3900 lm (3200 lm ~ 4600 lm)
Current - Test : 4 x 700mA
Voltage - Forward (Vf) (Typ) : 21V
Lumens/Watt @ Current - Test : 66 lm/W
CRI (Color Rendering Index) : 75 (Typ)
Current - Max : 1.2A
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 24-SMD, No Lead Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.260" (6.60mm)
0
100 in stock
