Johanson Technology
- Johanson Technology was formed to specifically focus on RF, microwave and optical markets. With a highly experienced design team, we produce superior high frequency ceramic solutions through optimization of ceramics, inks and RF circuit designs. Our focus on high frequency has enabled JTI to provide products with exceptional high frequency performance. We have received certification to the ISO9001-2000 standard.
Johanson Technology provides high frequency ceramic solutions for Cellular, WLAN, Bluetooth, WiMax, WiFi, UWB, RF/Microwave, Millimeter Wave, and Fiber Optic applications, as well as custom high frequency ceramic solutions. We offer a broad range of standard products including: Multilayer Capacitors, Single Layer Capacitors, RF Inductors, RF Wire-wound Inductors, Chip Antennas, Baluns, Balanced Filters, Band Pass Filters, High Pass Filter, Low Pass Filters, Couplers, and Diplexers.
Part Number
Manufacturer
Description
Unit Price
In Stock
Johanson Technology
Manufacturer : Johanson Technology Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Multilayer
Material - Core : Ceramic
Inductance : 100nH
Tolerance : ±5%
Current Rating : 300mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.2 Ohm Max
Q @ Freq : 12 @ 100MHz
Frequency - Self Resonant : 750MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric)
Supplier Device Package : 0603 (1608 Metric)
Size / Dimension : 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) : 0.037" (0.95mm)
0
27456 in stock
Johanson Technology
Manufacturer : Johanson Technology Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Multilayer
Material - Core : Ceramic
Inductance : 120nH
Tolerance : ±5%
Current Rating : 300mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.3 Ohm Max
Q @ Freq : 8 @ 50MHz
Frequency - Self Resonant : 700MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 50MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric)
Supplier Device Package : 0603 (1608 Metric)
Size / Dimension : 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) : 0.037" (0.95mm)
0
34269 in stock
Johanson Technology
Manufacturer : Johanson Technology Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Multilayer
Material - Core : Ceramic
Inductance : 150nH
Tolerance : ±5%
Current Rating : 300mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.4 Ohm Max
Q @ Freq : 8 @ 50MHz
Frequency - Self Resonant : 650MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 50MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric)
Supplier Device Package : 0603 (1608 Metric)
Size / Dimension : 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) : 0.037" (0.95mm)
0
420 in stock
Johanson Technology
Manufacturer : Johanson Technology Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Multilayer
Material - Core : Ceramic
Inductance : 180nH
Tolerance : ±5%
Current Rating : 300mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.5 Ohm Max
Q @ Freq : 8 @ 50MHz
Frequency - Self Resonant : 550MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 50MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric)
Supplier Device Package : 0603 (1608 Metric)
Size / Dimension : 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) : 0.037" (0.95mm)
0
5279 in stock
Johanson Technology
Manufacturer : Johanson Technology Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Multilayer
Material - Core : Ceramic
Inductance : 220nH
Tolerance : ±5%
Current Rating : 300mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.7 Ohm Max
Q @ Freq : 8 @ 50MHz
Frequency - Self Resonant : 450MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 50MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric)
Supplier Device Package : 0603 (1608 Metric)
Size / Dimension : 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) : 0.037" (0.95mm)
0
170527 in stock

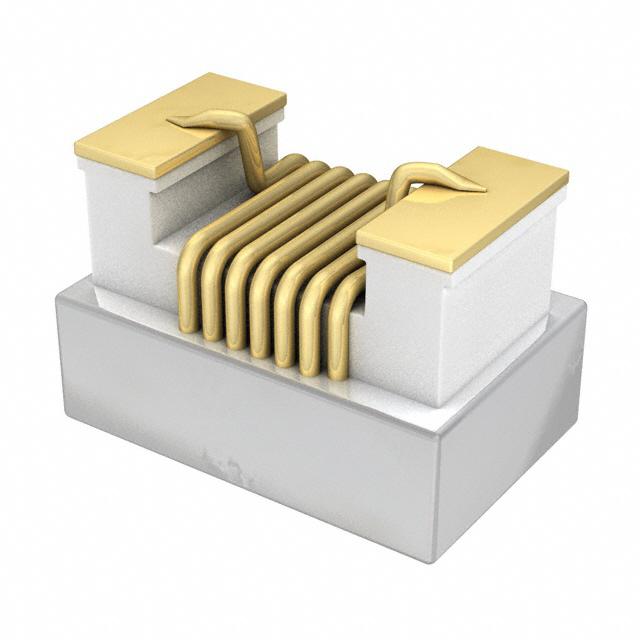

Johanson Technology
Manufacturer : Johanson Technology Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Wirewound
Material - Core : Ceramic
Inductance : 2nH
Tolerance : ±0.2nH
Current Rating : 700mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 80 mOhm Max
Q @ Freq : 16 @ 250MHz
Frequency - Self Resonant : 6.9GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric)
Supplier Device Package : 0603 (1608 Metric)
Size / Dimension : 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) : 0.037" (0.94mm)
0
2127 in stock
Johanson Technology
Manufacturer : Johanson Technology Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Wirewound
Material - Core : Ceramic
Inductance : 6.8nH
Tolerance : ±5%
Current Rating : 700mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 110 mOhm Max
Q @ Freq : 30 @ 250MHz
Frequency - Self Resonant : 4.6GHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric)
Supplier Device Package : 0603 (1608 Metric)
Size / Dimension : 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) : 0.037" (0.95mm)
0
18338 in stock

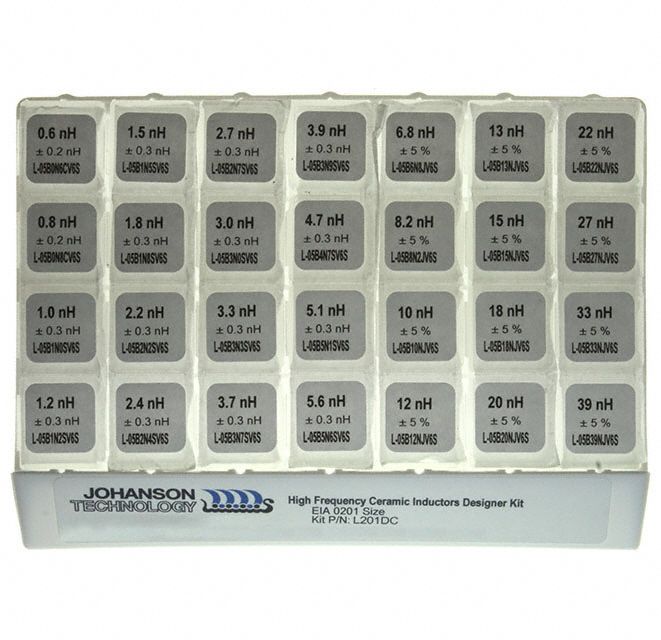

Johanson Technology
Manufacturer : Johanson Technology Inc.
Packaging : Plastic Box with Bin Guide
Series : -
Part Status : Active
Kit Type : Fixed
Style : Wirewound
Material - Core : Ceramic
Quantity : 1400 Pieces (28 Values - 50 Each)
Inductance Range : 600pH ~ 39nH
Mounting Type : Surface Mount
Packages Included : 0201 (0603 Metric)
Features : -
Shielding : -
0
16 in stock

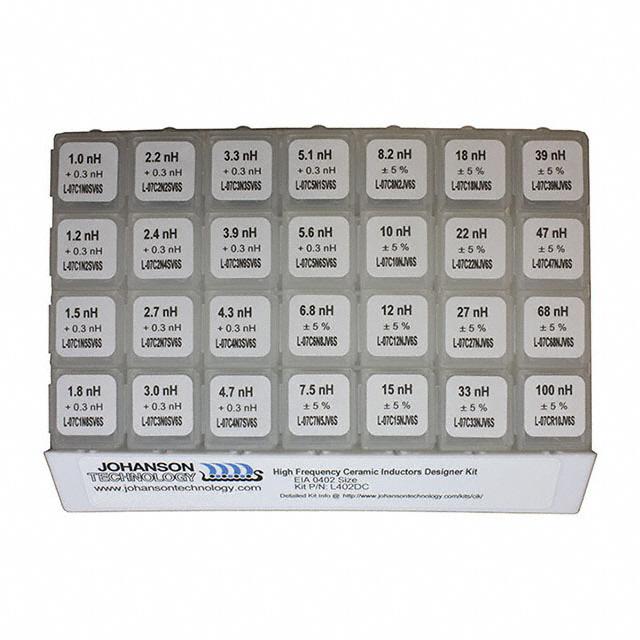

Johanson Technology
Manufacturer : Johanson Technology Inc.
Packaging : -
Series : -
Part Status : Active
Kit Type : Fixed
Style : Wirewound
Material - Core : Ceramic
Quantity : 1400 Pieces (28 Values - 50 Each)
Inductance Range : 1nH ~ 100nH
Mounting Type : Surface Mount
Packages Included : 0402 (1005 Metric)
Features : -
Shielding : -
0
137 in stock

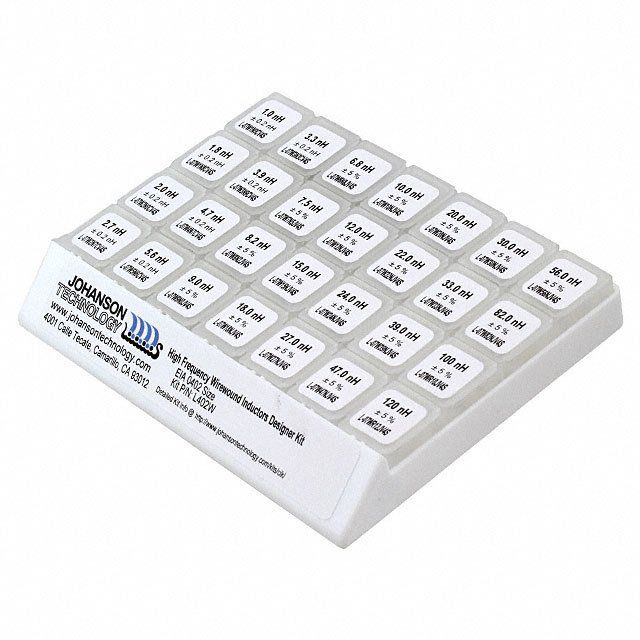

Johanson Technology
Manufacturer : Johanson Technology Inc.
Packaging : -
Series : -
Part Status : Active
Kit Type : Fixed
Style : Wirewound
Material - Core : Ceramic
Quantity : 560 Pieces (28 Values - 20 Each)
Inductance Range : 1nH ~ 120nH
Mounting Type : Surface Mount
Packages Included : 0402 (1005 Metric)
Features : -
Shielding : -
0
46 in stock

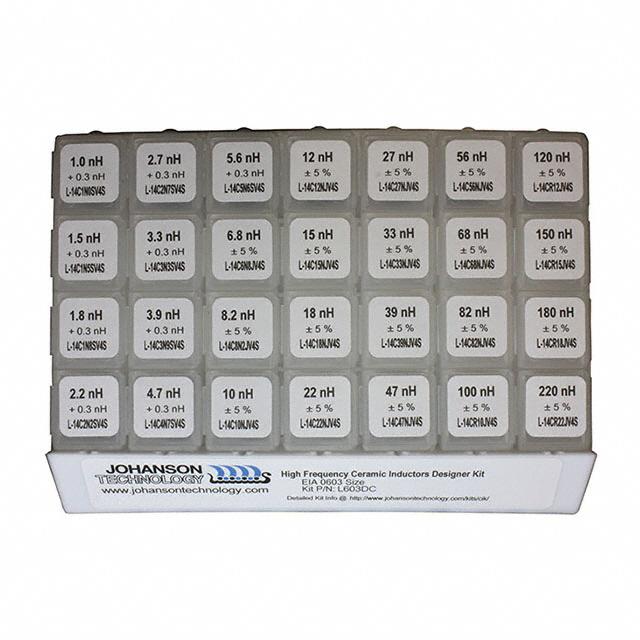

Johanson Technology
Manufacturer : Johanson Technology Inc.
Packaging : -
Series : -
Part Status : Active
Kit Type : Fixed
Style : Wirewound
Material - Core : Ceramic
Quantity : 1400 Pieces (28 Values - 50 Each)
Inductance Range : 1nH ~ 220nH
Mounting Type : Surface Mount
Packages Included : 0603 (1608 Metric)
Features : -
Shielding : -
0
43 in stock
Johanson Technology
Manufacturer : Johanson Technology Inc.
Packaging : -
Series : -
Part Status : Active
Kit Type : Fixed
Style : Wirewound
Material - Core : Ceramic
Quantity : 560 Pieces (28 Values - 20 Each)
Inductance Range : 1.6nH ~ 330nH
Mounting Type : Surface Mount
Packages Included : 0603 (1608 Metric)
Features : -
Shielding : -
0
17 in stock
