Jinlong Machinery & Electronics Co. Ltd.
- Established in 1993, Jinlong Machinery is one of the world’s largest manufacturers of micro vibration motors. Our product range includes cylindrical ERM, coin type and linear vibration motors (LRA’s). Our products are used in a wide range of applications that require user notifications, haptic feedback or therapeutic effects. Our team of applications engineers is ready to assist you with applications assistance as well as custom configurations.
Headquartered in Whenzhou, China, Jinlong Machinery is a large publicly held company listed on the Shenzhen stock exchange (300032:CH). Sales offices are located in New York City as well as Asia. Our primary manufacturing sites are located in Shenzhen, HuaBei, ChongQing, and Whenzhou. All factories are certified to ISO 9001:2008 quality standards. All products are compliant with RoHS and REACH directives, and are free of conflict minerals.
Part Number
Manufacturer
Description
Unit Price
In Stock

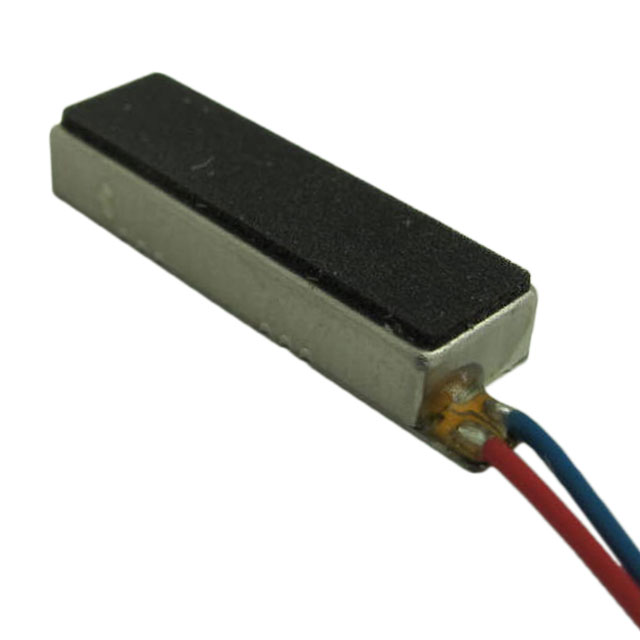

Jinlong Machinery & Electronics Co. Ltd.
Manufacturer : Jinlong Machinery & Electronics, Inc.
Series : -
Part Status : Active
Type : AC Motor
Function : Vibration, LRA
Motor Type : -
Voltage - Rated : 2VAC
RPM : -
Torque - Rated (oz-in / mNm) : -
Power - Rated : 230mW
Encoder Type : -
Size / Dimension : Rectangular - 0.236" x 0.748" (6.00mm x 19.00mm)
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -20°C ~ 70°C
0
1981 in stock
Jinlong Machinery & Electronics Co. Ltd.
Manufacturer : Jinlong Machinery & Electronics, Inc.
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : -
Voltage - Rated : 3VDC
RPM : 19768 RPM
Torque - Rated (oz-in / mNm) : 0.003 / 0.023
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.158" Dia (4.00mm)
Diameter - Shaft : 0.028" (0.70mm)
Length - Shaft and Bearing : 0.165" (4.20mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
281 in stock
Jinlong Machinery & Electronics Co. Ltd.
Manufacturer : Jinlong Machinery & Electronics, Inc.
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : -
Voltage - Rated : 1.3VDC
RPM : 15808 RPM
Torque - Rated (oz-in / mNm) : 0.002 / 0.014
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.158" Dia (4.00mm)
Diameter - Shaft : 0.028" (0.70mm)
Length - Shaft and Bearing : 0.177" (4.50mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
266 in stock
Jinlong Machinery & Electronics Co. Ltd.
Manufacturer : Jinlong Machinery & Electronics, Inc.
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : -
Voltage - Rated : 3VDC
RPM : 18799 RPM
Torque - Rated (oz-in / mNm) : 0.003 / 0.022
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.158" Dia (4.00mm)
Diameter - Shaft : 0.028" (0.70mm)
Length - Shaft and Bearing : 0.150" (3.80mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
304 in stock
Jinlong Machinery & Electronics Co. Ltd.
Manufacturer : Jinlong Machinery & Electronics, Inc.
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : -
Voltage - Rated : 3VDC
RPM : 14363 RPM
Torque - Rated (oz-in / mNm) : 0.001 / 0.009
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.158" Dia (4.00mm)
Diameter - Shaft : 0.024" (0.60mm)
Length - Shaft and Bearing : 0.157" (4.00mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
366 in stock
Jinlong Machinery & Electronics Co. Ltd.
Manufacturer : Jinlong Machinery & Electronics, Inc.
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : -
Voltage - Rated : 3VDC
RPM : 25595 RPM
Torque - Rated (oz-in / mNm) : 0.002 / 0.014
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.158" Dia (4.00mm)
Diameter - Shaft : 0.024" (0.60mm)
Length - Shaft and Bearing : 0.157" (4.00mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -20°C ~ 60°C
0
363 in stock
Jinlong Machinery & Electronics Co. Ltd.
Manufacturer : Jinlong Machinery & Electronics, Inc.
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : -
Voltage - Rated : 3VDC
RPM : 24927 RPM
Torque - Rated (oz-in / mNm) : 0.002 / 0.014
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.158" Dia (4.00mm)
Diameter - Shaft : 0.024" (0.60mm)
Length - Shaft and Bearing : 0.157" (4.00mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -20°C ~ 60°C
0
364 in stock
Jinlong Machinery & Electronics Co. Ltd.
Manufacturer : Jinlong Machinery & Electronics, Inc.
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : -
Voltage - Rated : 1.3VDC
RPM : 10832 RPM
Torque - Rated (oz-in / mNm) : 0.004 / 0.03
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.236" Dia (6.00mm)
Diameter - Shaft : 0.031" (0.80mm)
Length - Shaft and Bearing : 0.157" (4.00mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -20°C ~ 60°C
0
385 in stock
Jinlong Machinery & Electronics Co. Ltd.
Manufacturer : Jinlong Machinery & Electronics, Inc.
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : -
Voltage - Rated : 3VDC
RPM : 13392 RPM
Torque - Rated (oz-in / mNm) : 0.006 / 0.039
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.236" Dia (6.00mm)
Diameter - Shaft : 0.031" (0.80mm)
Length - Shaft and Bearing : 0.146" (3.70mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -20°C ~ 60°C
0
363 in stock
Jinlong Machinery & Electronics Co. Ltd.
Manufacturer : Jinlong Machinery & Electronics, Inc.
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : -
Voltage - Rated : 3VDC
RPM : 15647 RPM
Torque - Rated (oz-in / mNm) : 0.053 / 0.375
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.276" Dia (7.00mm)
Diameter - Shaft : 0.039" (1.00mm)
Length - Shaft and Bearing : 0.154" (3.90mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -20°C ~ 60°C
0
592 in stock

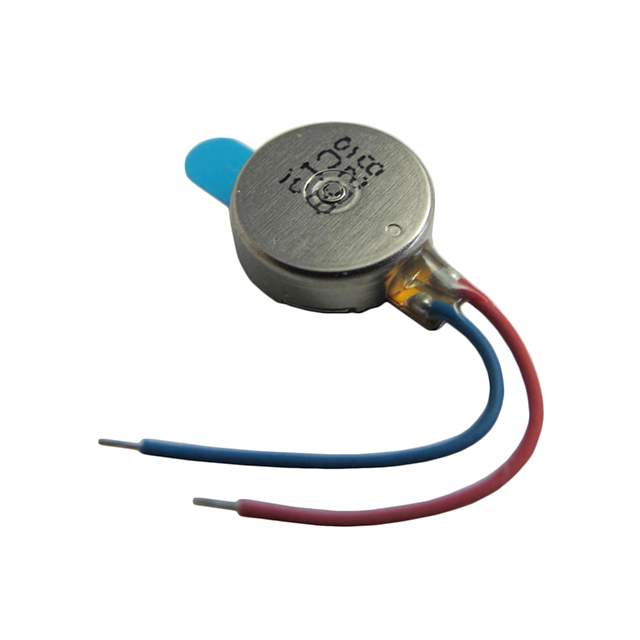

Jinlong Machinery & Electronics Co. Ltd.
Manufacturer : Jinlong Machinery & Electronics, Inc.
Series : -
Part Status : Obsolete
Type : DC Motor
Function : Vibration, ERM
Motor Type : Brushless DC (BLDC)
Voltage - Rated : 3VDC
RPM : 15000 RPM
Torque - Rated (oz-in / mNm) : -
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.236" Dia (6.00mm)
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -20°C ~ 60°C
0
19 in stock

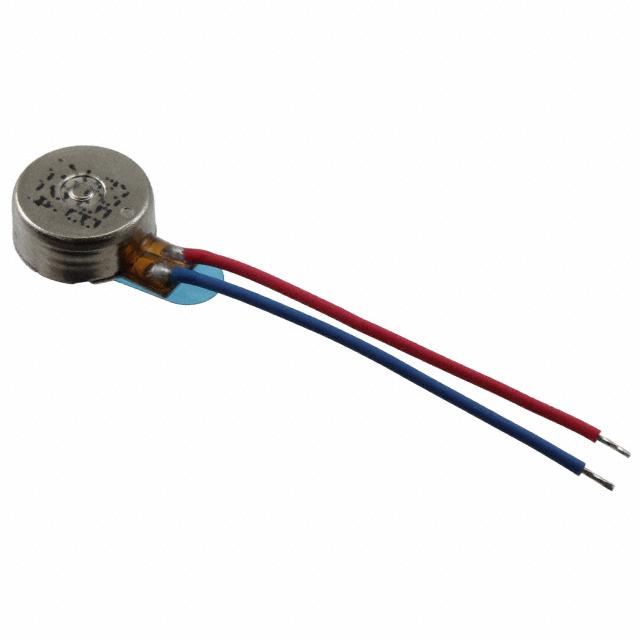

Jinlong Machinery & Electronics Co. Ltd.
Manufacturer : Jinlong Machinery & Electronics, Inc.
Series : -
Part Status : Obsolete
Type : DC Motor
Function : Vibration, ERM
Motor Type : Brushless DC (BLDC)
Voltage - Rated : 3VDC
RPM : 15000 RPM
Torque - Rated (oz-in / mNm) : -
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.315" Dia (8.00mm)
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -20°C ~ 60°C
0
100 in stock
