Isocom

- Isocom Components is a leading manufacturer of high performance infrared optoelectronic devices specialising in optocouplers and optoswitches. Since the business was established over 25 years ago Isocom has consistently delivered in excess of there customer's expectations to become one of the most respected brands in the worldwide optoelectronic industry.Expert knowledge and flexible manufacturing processes result in the shortest production lead times in the world for many parts. Product quality and superior customer service is unrivalled and is endorsed by many long-standing customers.

Isocom Components is your natural alternative to all popular commercial optocoupler industry standard types including many no longer supplied by other manufacturers. In addition, they carry out special parametric selections to meet customer's specific circuit design requirements. Parts are available approved to the leading recognized industry standards and all devices are available in various lead forms and in tape and reel packaging if required.

Part Number
Manufacturer
Description
Unit Price
In Stock

ISP60SMT ISP60SMT

Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ISP
Part Status : Active
Mounting Type : Surface Mount
Circuit : SPST-NO (1 Form A)
Output Type : AC, DC
Voltage - Input : 1.18VDC
Voltage - Load : 0V ~ 600V
Load Current : 50mA
On-State Resistance (Max) : 70 Ohms
Termination Style : Gull Wing
Package / Case : 4-SMD (0.300", 7.62mm)
Supplier Device Package : 4-SMD
0
100 in stock

ISP814X ISP814X

Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 20% @ 1mA
Current Transfer Ratio (Max) : 300% @ 1mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 35V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
478 in stock

ISP814XSM ISP814XSM

Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 20% @ 1mA
Current Transfer Ratio (Max) : 300% @ 1mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 35V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
0
1880 in stock

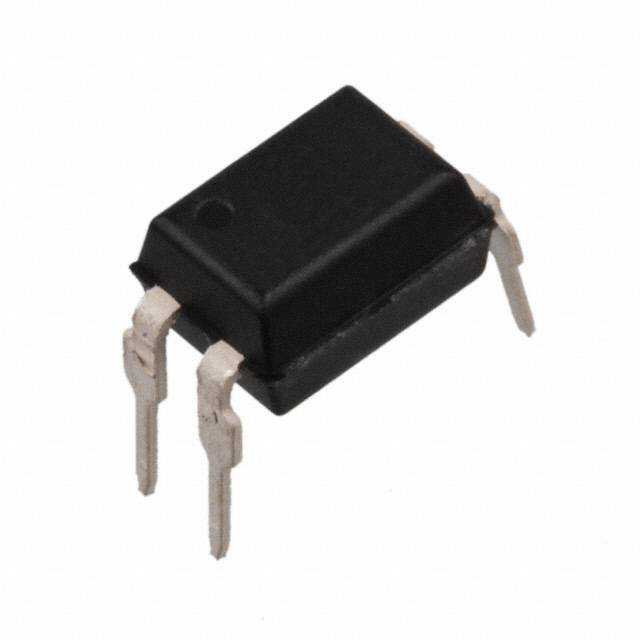

ISP815X ISP815X

Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 60% @ 1mA
Current Transfer Ratio (Max) : 7500% @ 1mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 60µs, 53µs
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 35V
Current - Output / Channel : 80mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 1V
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : -
0
2905 in stock

ISP817AX ISP817AX

Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 160% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : -
0
1750 in stock

ISP817AXSM ISP817AXSM

Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 160% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : -
0
3989 in stock

ISP817AXSMT/R ISP817AXSMT/R

Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 160% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : -
0
8722 in stock

ISP817BX ISP817BX

Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 130% @ 5mA
Current Transfer Ratio (Max) : 260% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : -
0
2792 in stock

ISP817BXSM ISP817BXSM

Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 130% @ 5mA
Current Transfer Ratio (Max) : 260% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : -
0
3736 in stock

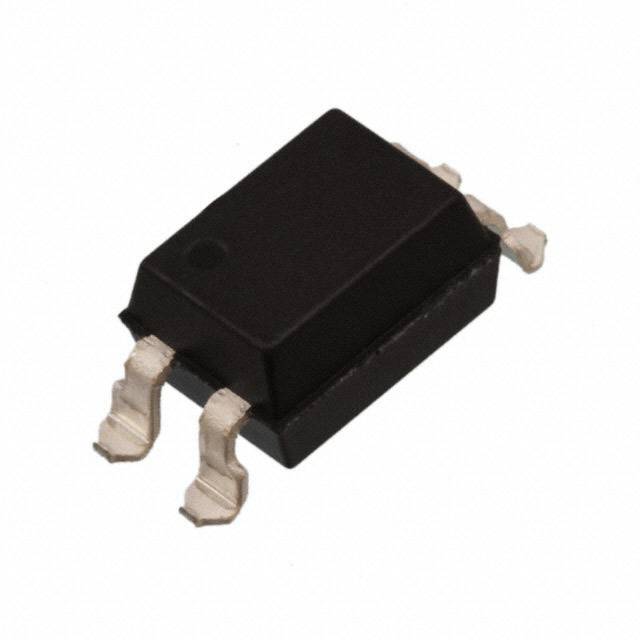

ISP817BXSMT/R ISP817BXSMT/R

Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 130% @ 5mA
Current Transfer Ratio (Max) : 260% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : -
0
11763 in stock

ISP817CX ISP817CX

Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : -
0
3488 in stock

ISP817CXSM ISP817CXSM

Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : -
0
3996 in stock
