Illinois Capacitor
- Illinois Capacitor is a leading manufacturer of miniature capacitors for electronics, lighting, energy and other markets. These products include: aluminum electrolytic, metalized film, power film, supercapacitors (ultra capacitors) and other types. IC is one of the world’s most experienced capacitor manufacturers, well known for its benchmark quality, guaranteed delivery and responsive engineering support.
Part Number
Manufacturer
Description
Unit Price
In Stock
Illinois Capacitor

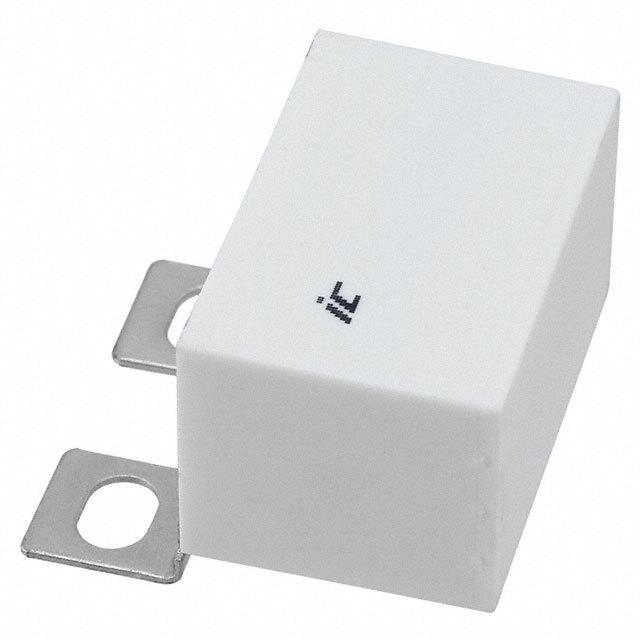

Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PMB
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 450V
Voltage Rating - DC : 850V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 2.7 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.673" L x 0.965" W (42.50mm x 24.50mm)
Height - Seated (Max) : 1.083" (27.50mm)
Termination : Screw Terminals
Lead Spacing : 0.433" (11.00mm)
Applications : DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings : -
Features : -
0
72 in stock
Illinois Capacitor

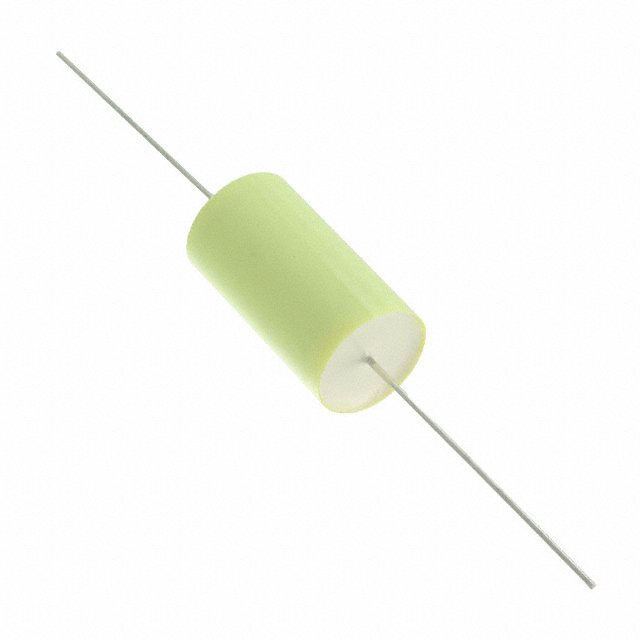

Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PPA
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 550V
Voltage Rating - DC : 1200V (1.2kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 3.4 mOhms
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 1.260" Dia x 1.811" L (32.00mm x 46.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings : -
Features : -
0
56 in stock
Illinois Capacitor

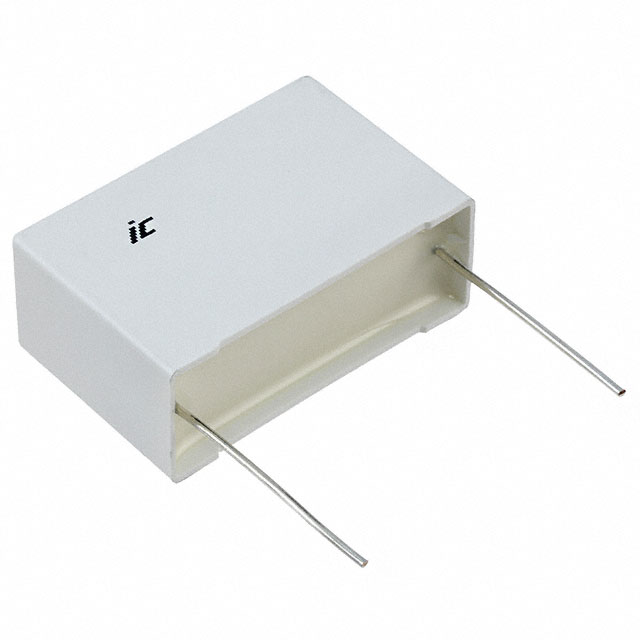

Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PPB
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 600V
Voltage Rating - DC : 1000V (1kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.673" L x 1.102" W (42.50mm x 28.00mm)
Height - Seated (Max) : 1.457" (37.00mm)
Termination : PC Pins
Lead Spacing : 1.476" (37.50mm)
Applications : Commutation; High Pulse, DV/DT; Snubber
Ratings : -
Features : -
0
2805 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : DCN
Part Status : Active
Capacitance : 10F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 80 mOhm
Lifetime @ Temp. : 1000 Hrs @ 60°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 1.260" (32.00mm)
Operating Temperature : -40°C ~ 60°C
0
1264 in stock
Illinois Capacitor

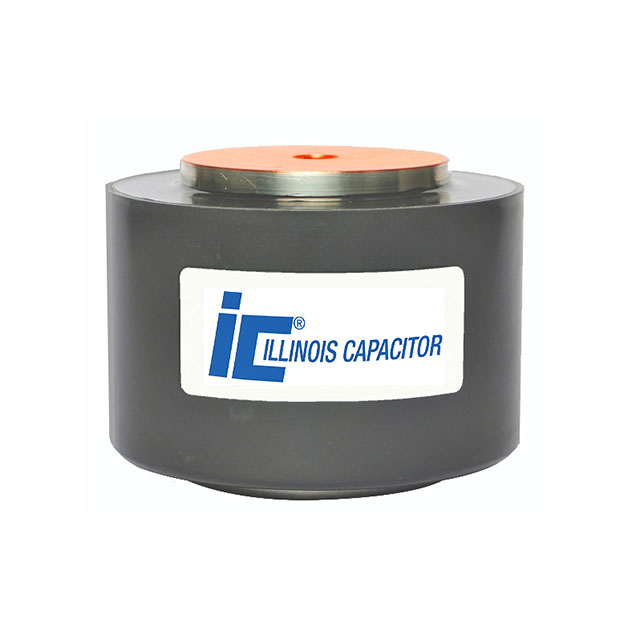

Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : HC5
Part Status : Active
Capacitance : 10µF
Tolerance : ±10%
Voltage Rating - AC : 700V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : 600 µOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Axial, Can - Screw Terminals
Size / Dimension : 3.740" Dia (95.00mm)
Height - Seated (Max) : 2.819" (71.60mm)
Termination : Threaded, Female
Lead Spacing : -
Applications : Conduction Cooled; High Pulse, DV/DT
Ratings : -
Features : -
0
1 in stock
Illinois Capacitor

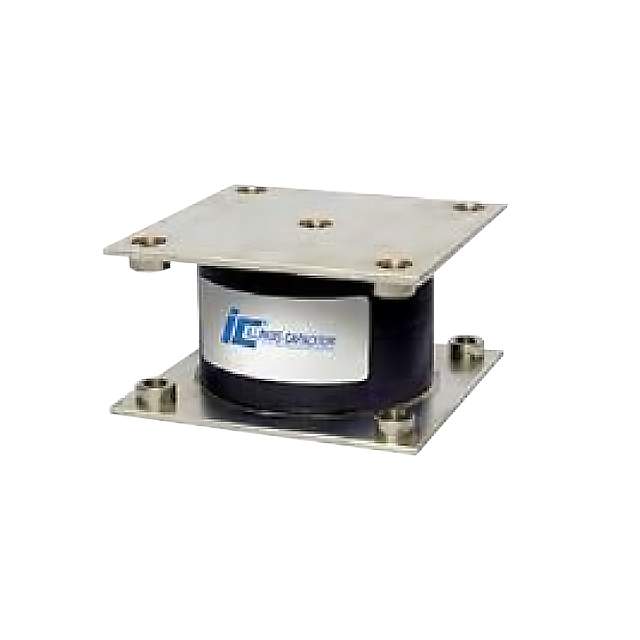

Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : LC5
Part Status : Active
Capacitance : 10µF
Tolerance : ±10%
Voltage Rating - AC : 700V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : 600 µOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Nonstandard
Size / Dimension : 3.937" L x 3.937" W (100.00mm x 100.00mm)
Height - Seated (Max) : 2.146" (54.50mm)
Termination : Threaded, Female
Lead Spacing : -
Applications : Conduction Cooled; High Pulse, DV/DT
Ratings : -
Features : -
0
11 in stock
Illinois Capacitor

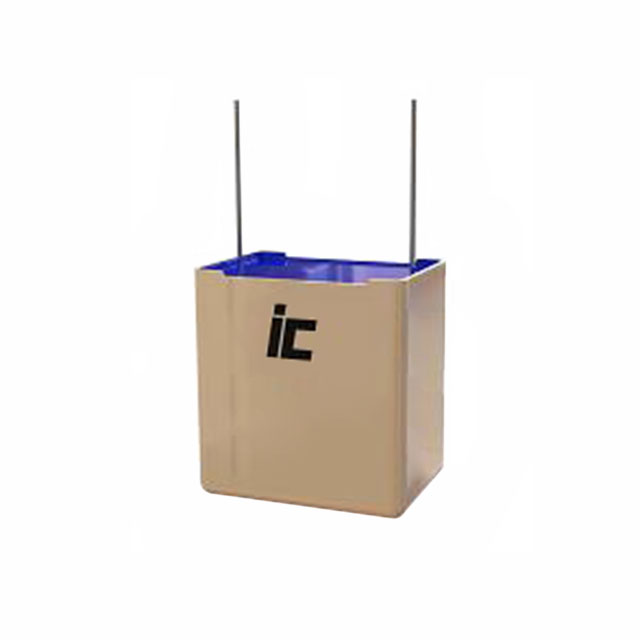

Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MAB
Part Status : Active
Capacitance : 10µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 500V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.673" L x 0.866" W (42.50mm x 22.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Termination : PC Pins
Lead Spacing : 1.476" (37.50mm)
Applications : Motor Run
Ratings : -
Features : -
0
484 in stock
Illinois Capacitor

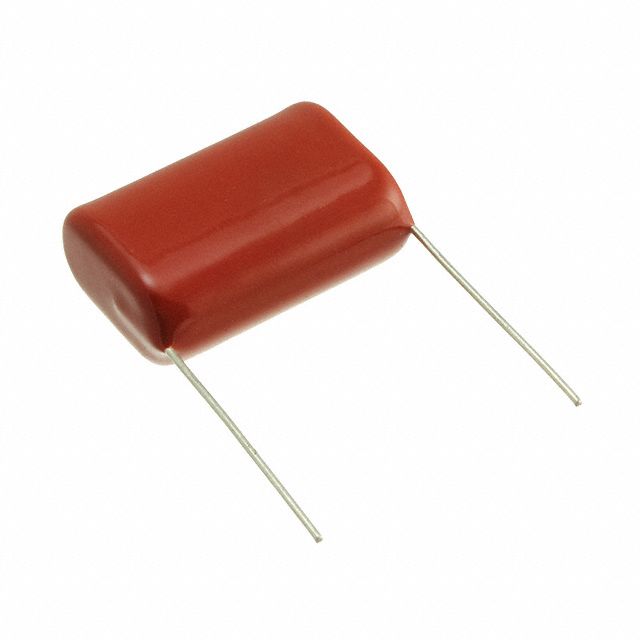

Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 10µF
Tolerance : ±10%
Voltage Rating - AC : 63V
Voltage Rating - DC : 100V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.024" L x 0.453" W (26.00mm x 11.50mm)
Height - Seated (Max) : 0.827" (21.00mm)
Termination : PC Pins
Lead Spacing : 0.886" (22.50mm)
Applications : General Purpose
Ratings : -
Features : -
0
1899 in stock
Illinois Capacitor

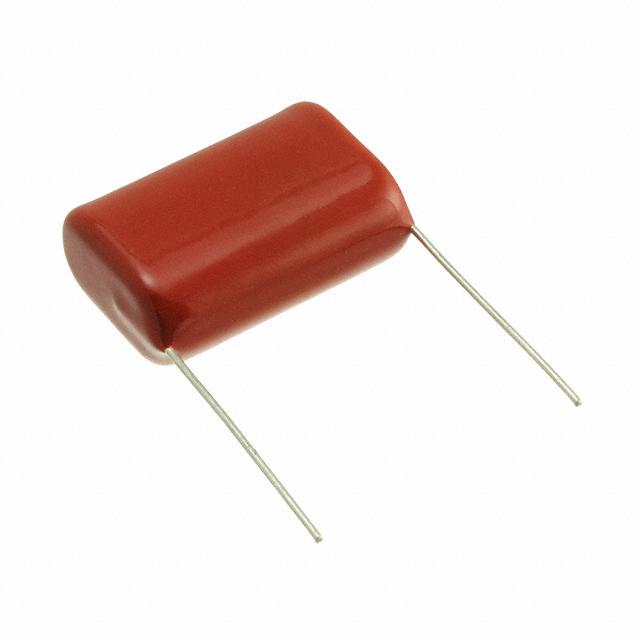

Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 10µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.220" L x 0.650" W (31.00mm x 16.50mm)
Height - Seated (Max) : 1.043" (26.50mm)
Termination : PC Pins
Lead Spacing : 1.083" (27.50mm)
Applications : General Purpose
Ratings : -
Features : -
0
233 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 10µF
Tolerance : ±10%
Voltage Rating - AC : 30V
Voltage Rating - DC : 50V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 177 mOhms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.531" Dia x 0.807" L (13.50mm x 20.50mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
773 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 10µF
Tolerance : ±10%
Voltage Rating - AC : -
Voltage Rating - DC : 63V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 177 mOhms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.551" Dia x 1.339" L (14.00mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
192 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 10µF
Tolerance : ±10%
Voltage Rating - AC : 63V
Voltage Rating - DC : 100V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 177 mOhms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.709" Dia x 1.339" L (18.00mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
523 in stock
