Illinois Capacitor
- Illinois Capacitor is a leading manufacturer of miniature capacitors for electronics, lighting, energy and other markets. These products include: aluminum electrolytic, metalized film, power film, supercapacitors (ultra capacitors) and other types. IC is one of the world’s most experienced capacitor manufacturers, well known for its benchmark quality, guaranteed delivery and responsive engineering support.
Part Number
Manufacturer
Description
Unit Price
In Stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 10000pF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 141.471 Ohms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.197" Dia x 0.453" L (5.00mm x 11.50mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
1865 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 10000pF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 630V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 141.471 Ohms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.236" Dia x 0.551" L (6.00mm x 14.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
7285 in stock

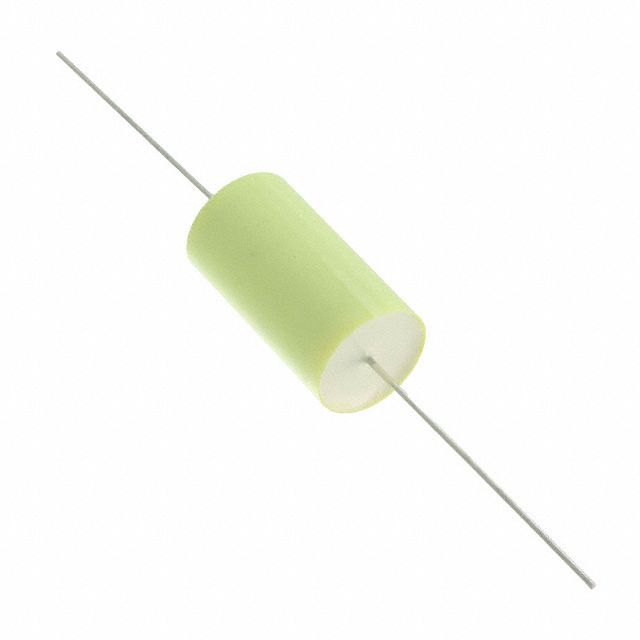

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PPA
Part Status : Active
Capacitance : 10000pF
Tolerance : ±10%
Voltage Rating - AC : 750V
Voltage Rating - DC : 3000V (3kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 54.5 mOhms
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.472" Dia x 1.339" L (12.00mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings : -
Features : -
0
426 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PPB
Part Status : Active
Capacitance : 10000pF
Tolerance : ±10%
Voltage Rating - AC : 650V
Voltage Rating - DC : 1600V (1.6kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.043" L x 0.236" W (26.50mm x 6.00mm)
Height - Seated (Max) : 0.591" (15.00mm)
Termination : PC Pins
Lead Spacing : 0.886" (22.50mm)
Applications : Commutation; High Pulse, DV/DT; Snubber
Ratings : -
Features : -
0
3623 in stock

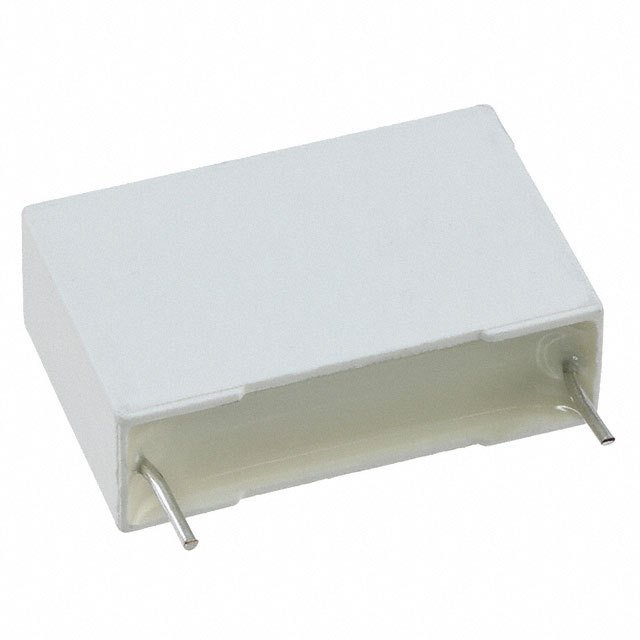

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PPB
Part Status : Active
Capacitance : 10000pF
Tolerance : ±10%
Voltage Rating - AC : 400V
Voltage Rating - DC : 630V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.709" L x 0.197" W (18.00mm x 5.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : Commutation; High Pulse, DV/DT; Snubber
Ratings : -
Features : -
0
41 in stock

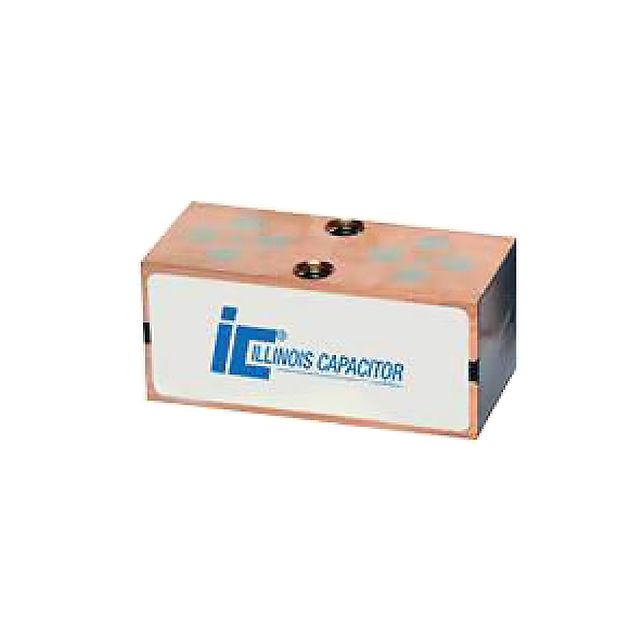

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : HC1
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±10%
Voltage Rating - AC : 1000V (1kV)
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : 1.5 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Nonstandard
Size / Dimension : 2.677" L x 1.181" W (68.00mm x 30.00mm)
Height - Seated (Max) : 1.193" (30.30mm)
Termination : Threaded, Female
Lead Spacing : -
Applications : Conduction Cooled; High Pulse, DV/DT
Ratings : -
Features : -
0
10 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : -
Series : *
Part Status : Active
Capacitance : -
Tolerance : -
Voltage Rating - AC : -
Voltage Rating - DC : -
Dielectric Material : -
ESR (Equivalent Series Resistance) : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Size / Dimension : -
Height - Seated (Max) : -
Termination : -
Lead Spacing : -
Applications : -
Ratings : -
Features : -
0
20 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : HC2
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±10%
Voltage Rating - AC : 1000V (1kV)
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : 1.2 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Nonstandard
Size / Dimension : 2.677" L x 1.181" W (68.00mm x 30.00mm)
Height - Seated (Max) : 1.193" (30.30mm)
Termination : Threaded, Female
Lead Spacing : -
Applications : Conduction Cooled; High Pulse, DV/DT
Ratings : -
Features : -
0
9 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : -
Series : *
Part Status : Active
Capacitance : -
Tolerance : -
Voltage Rating - AC : -
Voltage Rating - DC : -
Dielectric Material : -
ESR (Equivalent Series Resistance) : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Size / Dimension : -
Height - Seated (Max) : -
Termination : -
Lead Spacing : -
Applications : -
Ratings : -
Features : -
0
20 in stock

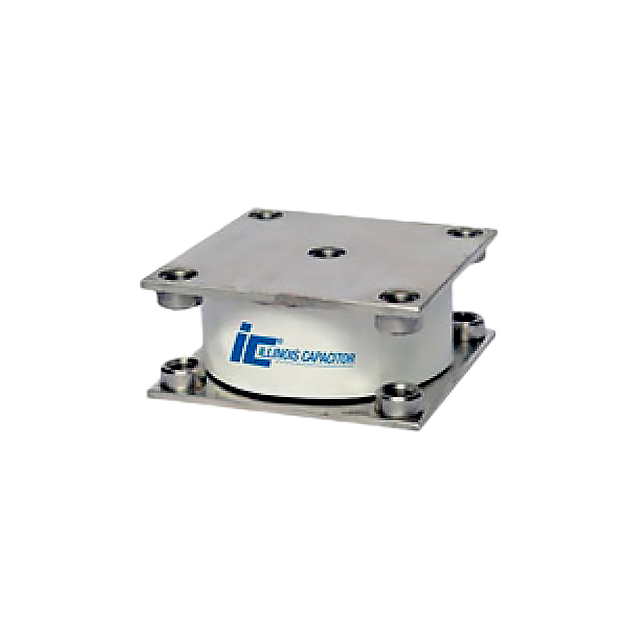

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : LC3
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±10%
Voltage Rating - AC : 1000V (1kV)
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : 1.2 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 1.969" L x 1.969" W (50.00mm x 50.00mm)
Height - Seated (Max) : 1.339" (34.00mm)
Termination : Solder Pads
Lead Spacing : -
Applications : Conduction Cooled; High Pulse, DV/DT
Ratings : -
Features : -
0
9 in stock

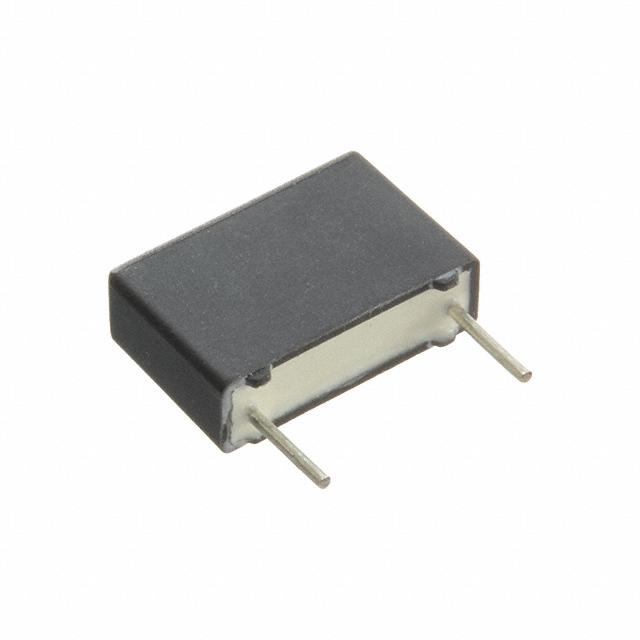

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MKP
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±10%
Voltage Rating - AC : 310V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 110°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.709" L x 0.197" W (18.00mm x 5.00mm)
Height - Seated (Max) : 0.445" (11.30mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : EMI, RFI Suppression
Ratings : X2
Features : -
0
88286 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MKP
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±10%
Voltage Rating - AC : 310V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 110°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.512" L x 0.197" W (13.00mm x 5.00mm)
Height - Seated (Max) : 0.445" (11.30mm)
Termination : PC Pins
Lead Spacing : 0.394" (10.00mm)
Applications : EMI, RFI Suppression
Ratings : X2
Features : -
0
25253 in stock
