Harwin
- Harwin is a manufacturer of high reliability, industry standard, and application-specific interconnect devices.
We command wide-ranging, global capabilities to satisfy customer needs on a local level. A network of distributors coupled with offices and manufacturing facilities in Europe, USA and Asia provides us a global reach and comprehensive understanding of the latest technologies. With more than 50 years history of successfully manufacturing electronic components Harwin has an active portfolio of over 20k highly reliable interconnects and PCB hardware items.
Part Number
Manufacturer
Description
Unit Price
In Stock

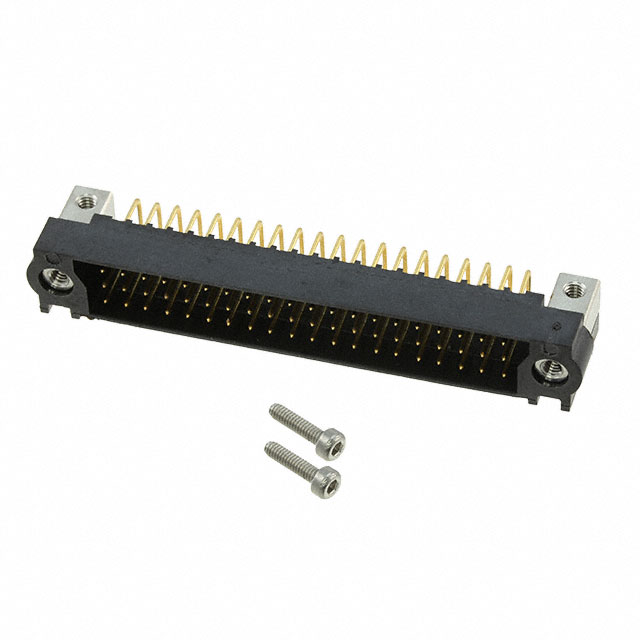

M83-LML3M7N60-0000-000
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 60
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.157" (4.00mm)
Overall Contact Length : -
Insulation Height : 0.303" (7.70mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A per Contact
Voltage Rating : 800V
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 60
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.157" (4.00mm)
Overall Contact Length : -
Insulation Height : 0.303" (7.70mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A per Contact
Voltage Rating : 800V
0
55 in stock
M83-LML3M7N96-0000-000
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 96
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.157" (4.00mm)
Overall Contact Length : -
Insulation Height : 0.303" (7.70mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A per Contact
Voltage Rating : 800V
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 96
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.157" (4.00mm)
Overall Contact Length : -
Insulation Height : 0.303" (7.70mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A per Contact
Voltage Rating : 800V
0
100 in stock

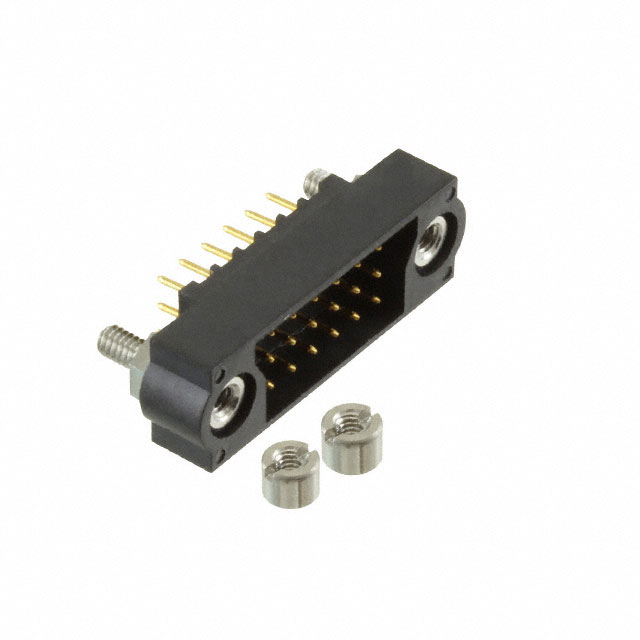

M83-LMT1M2N18-0000-000
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 18
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A per Contact
Voltage Rating : 120V
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 18
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A per Contact
Voltage Rating : 120V
0
78 in stock

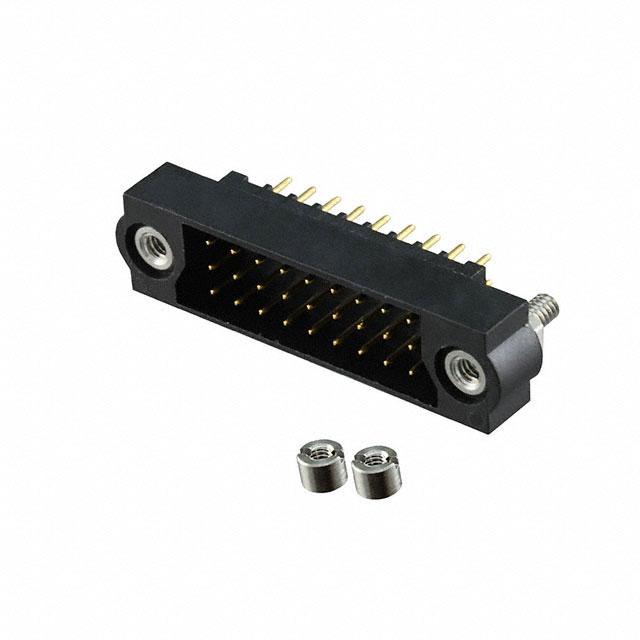

M83-LMT1M2N27-0000-000
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 27
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A per Contact
Voltage Rating : 120V
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 27
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A per Contact
Voltage Rating : 120V
0
357 in stock
M83-LMT1M2N36-0000-000
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 36
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A per Contact
Voltage Rating : 120V
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 36
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A per Contact
Voltage Rating : 120V
0
19 in stock

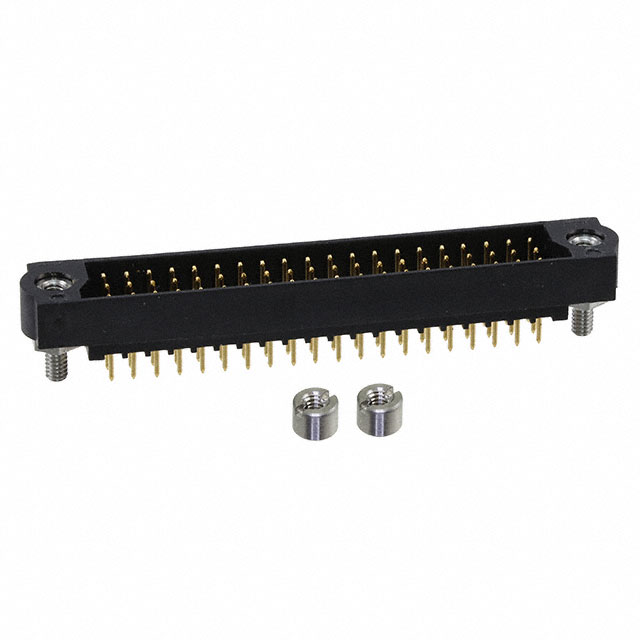

M83-LMT1M2N60-0000-000
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 60
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A per Contact
Voltage Rating : 120V
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 60
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A per Contact
Voltage Rating : 120V
0
232 in stock

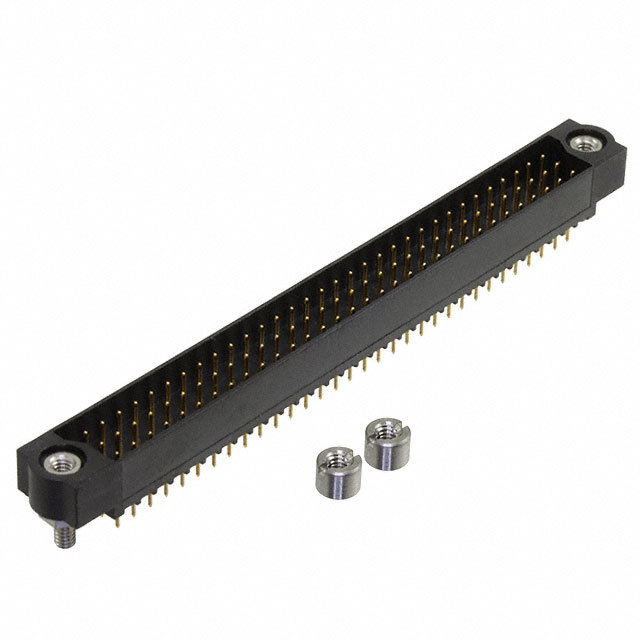

M83-LMT1M2N96-0000-000
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 96
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A per Contact
Voltage Rating : 120V
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 96
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.240" (6.10mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A per Contact
Voltage Rating : 120V
0
78 in stock
M83-LMT2M3N60-0000-000
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 60
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.173" (4.40mm)
Overall Contact Length : -
Insulation Height : 0.238" (6.05mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A per Contact
Voltage Rating : 120V
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 60
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.173" (4.40mm)
Overall Contact Length : -
Insulation Height : 0.238" (6.05mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A per Contact
Voltage Rating : 120V
0
65 in stock
M90-6010845
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : HotShoe
Part Status : Obsolete
Connector Type : Piston
Number of Contacts : 8
Pitch : 0.098" (2.50mm)
Number of Rows : 2
Row Spacing : 0.098" (2.50mm)
Mounting Type : Panel Mount, Flange; Through Hole
Material : Brass
Contact Finish : Gold
Contact Finish Thickness : -
Packaging : Bulk
Series : HotShoe
Part Status : Obsolete
Connector Type : Piston
Number of Contacts : 8
Pitch : 0.098" (2.50mm)
Number of Rows : 2
Row Spacing : 0.098" (2.50mm)
Mounting Type : Panel Mount, Flange; Through Hole
Material : Brass
Contact Finish : Gold
Contact Finish Thickness : -
0
100 in stock
M90-6011245
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : HotShoe
Part Status : Obsolete
Connector Type : Piston
Number of Contacts : 12
Pitch : 0.098" (2.50mm)
Number of Rows : 2
Row Spacing : 0.098" (2.50mm)
Mounting Type : Panel Mount, Flange; Through Hole
Material : Brass
Contact Finish : Gold
Contact Finish Thickness : -
Packaging : Bulk
Series : HotShoe
Part Status : Obsolete
Connector Type : Piston
Number of Contacts : 12
Pitch : 0.098" (2.50mm)
Number of Rows : 2
Row Spacing : 0.098" (2.50mm)
Mounting Type : Panel Mount, Flange; Through Hole
Material : Brass
Contact Finish : Gold
Contact Finish Thickness : -
0
100 in stock
M90-6011645
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : HotShoe
Part Status : Obsolete
Connector Type : Piston
Number of Contacts : 16
Pitch : 0.098" (2.50mm)
Number of Rows : 2
Row Spacing : 0.098" (2.50mm)
Mounting Type : Panel Mount, Flange; Through Hole
Material : Brass
Contact Finish : Gold
Contact Finish Thickness : -
Packaging : Bulk
Series : HotShoe
Part Status : Obsolete
Connector Type : Piston
Number of Contacts : 16
Pitch : 0.098" (2.50mm)
Number of Rows : 2
Row Spacing : 0.098" (2.50mm)
Mounting Type : Panel Mount, Flange; Through Hole
Material : Brass
Contact Finish : Gold
Contact Finish Thickness : -
0
100 in stock
M90-6020845
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : HotShoe
Part Status : Obsolete
Connector Type : Piston
Number of Contacts : 8
Pitch : 0.098" (2.50mm)
Number of Rows : 2
Row Spacing : 0.098" (2.50mm)
Mounting Type : Panel Mount, Flange; Through Hole
Material : Brass
Contact Finish : Gold
Contact Finish Thickness : -
Packaging : Tray
Series : HotShoe
Part Status : Obsolete
Connector Type : Piston
Number of Contacts : 8
Pitch : 0.098" (2.50mm)
Number of Rows : 2
Row Spacing : 0.098" (2.50mm)
Mounting Type : Panel Mount, Flange; Through Hole
Material : Brass
Contact Finish : Gold
Contact Finish Thickness : -
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
