Harwin
- Harwin is a manufacturer of high reliability, industry standard, and application-specific interconnect devices.
We command wide-ranging, global capabilities to satisfy customer needs on a local level. A network of distributors coupled with offices and manufacturing facilities in Europe, USA and Asia provides us a global reach and comprehensive understanding of the latest technologies. With more than 50 years history of successfully manufacturing electronic components Harwin has an active portfolio of over 20k highly reliable interconnects and PCB hardware items.
Part Number
Manufacturer
Description
Unit Price
In Stock

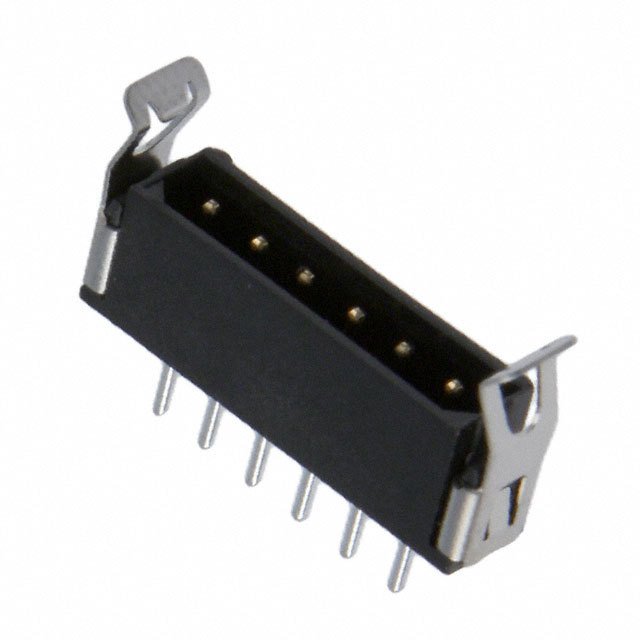

M80-8820642
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Plug
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Plug
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
431 in stock

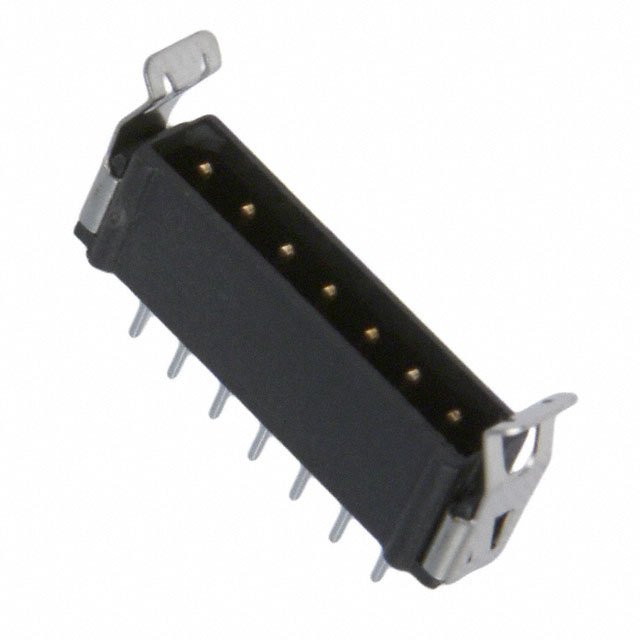

M80-8820742
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Plug
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 7
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Plug
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 7
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
223 in stock

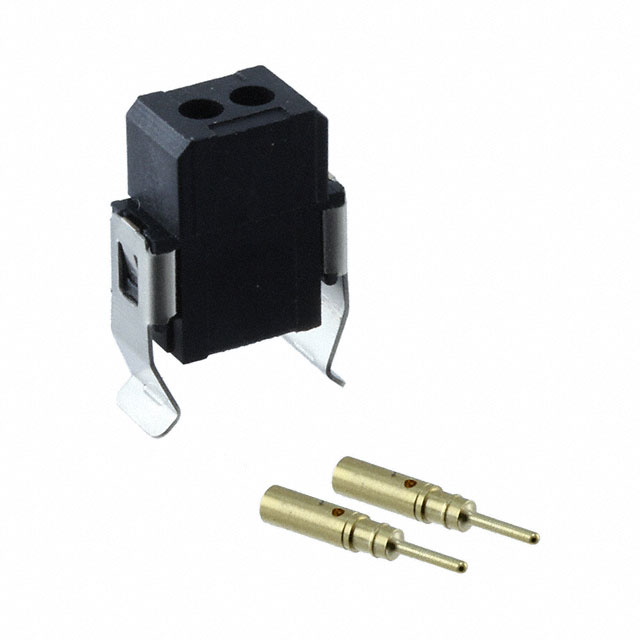

M80-8830205
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : Datamate L-Tek
Part Status : Obsolete
Connector Type : Plug
Contact Type : Male Pin
Number of Positions : 2
Pitch : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Free Hanging (In-Line)
Fastening Type : Friction Lock
Cable Termination : Crimp
Wire Type : Discrete
Wire Gauge : 24-28 AWG
Features : -
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Color : -
Packaging : Bulk
Series : Datamate L-Tek
Part Status : Obsolete
Connector Type : Plug
Contact Type : Male Pin
Number of Positions : 2
Pitch : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Free Hanging (In-Line)
Fastening Type : Friction Lock
Cable Termination : Crimp
Wire Type : Discrete
Wire Gauge : 24-28 AWG
Features : -
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Color : -
0
940 in stock

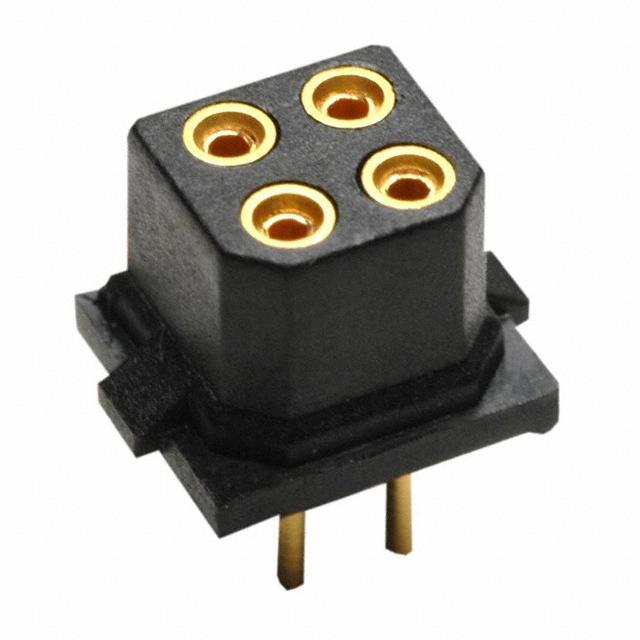

M80-8870405
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
341 in stock

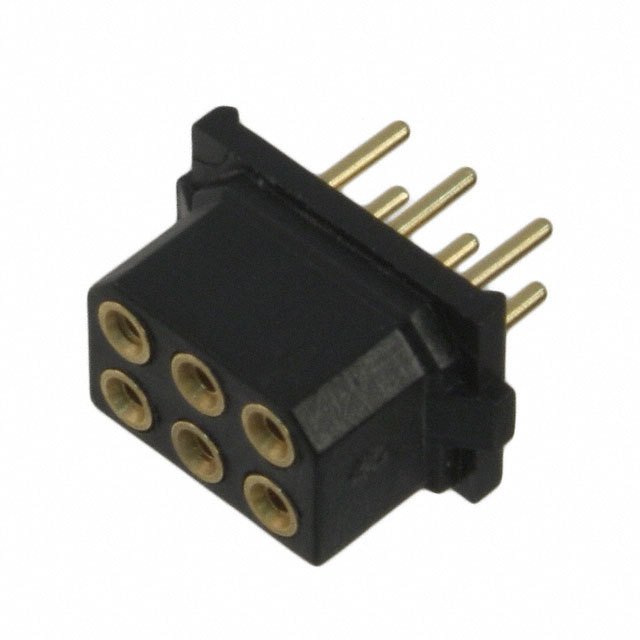

M80-8870601
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
102 in stock
M80-8870605
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
668 in stock

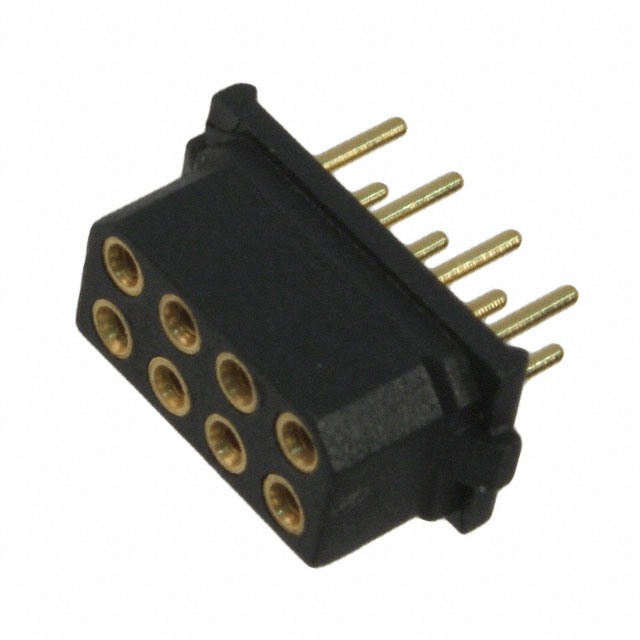

M80-8870805
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
105 in stock

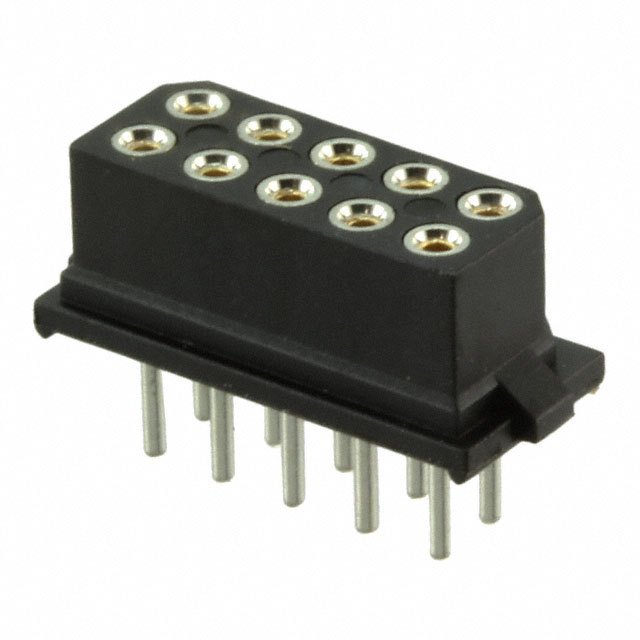

M80-8871001
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
167 in stock

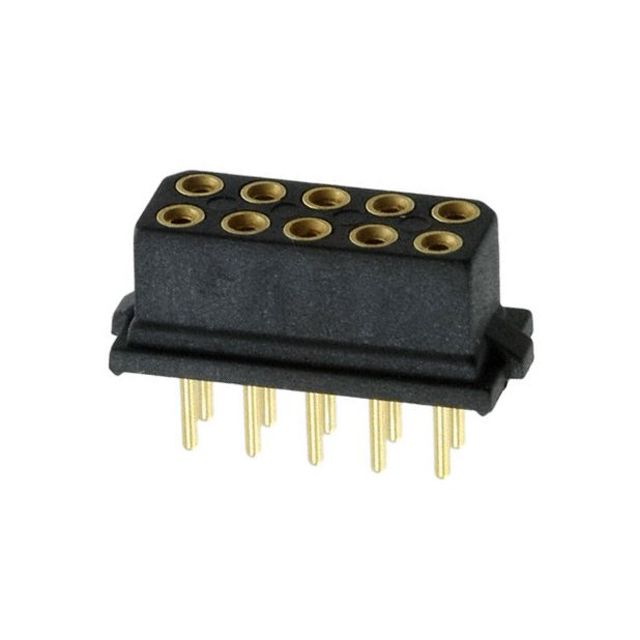

M80-8871005
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
175 in stock

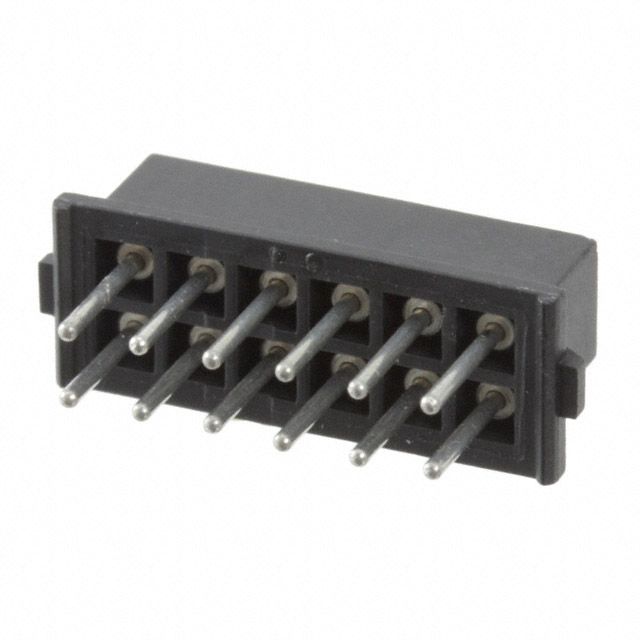

M80-8871201
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
100 in stock

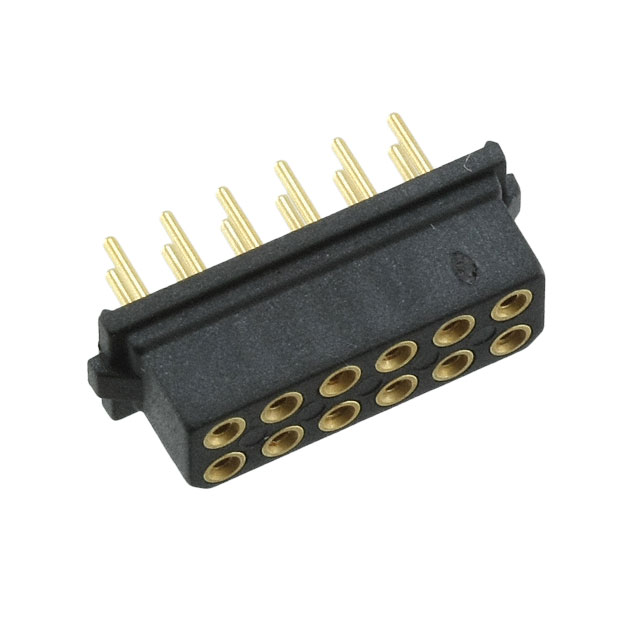

M80-8871205
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
823 in stock

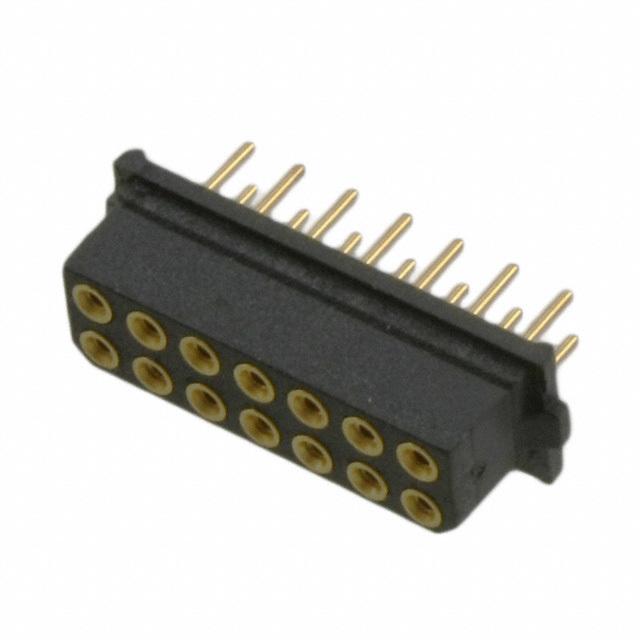

M80-8871405
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.85mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
98 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
