Harwin
- Harwin is a manufacturer of high reliability, industry standard, and application-specific interconnect devices.
We command wide-ranging, global capabilities to satisfy customer needs on a local level. A network of distributors coupled with offices and manufacturing facilities in Europe, USA and Asia provides us a global reach and comprehensive understanding of the latest technologies. With more than 50 years history of successfully manufacturing electronic components Harwin has an active portfolio of over 20k highly reliable interconnects and PCB hardware items.
Part Number
Manufacturer
Description
Unit Price
In Stock

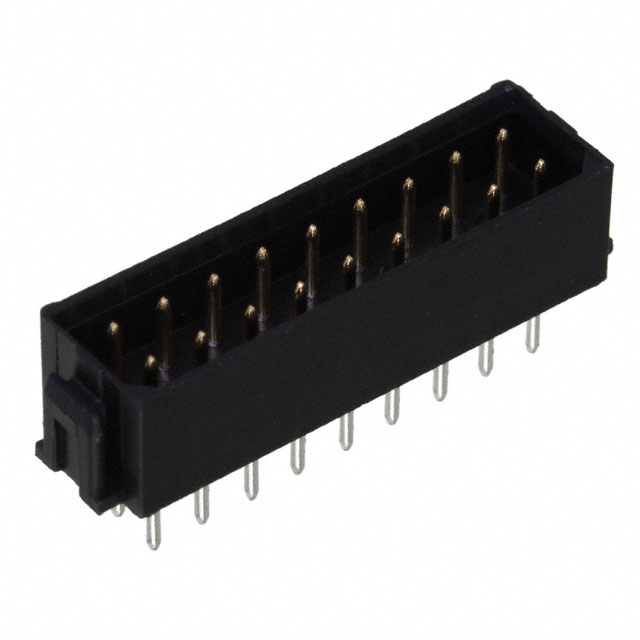

M80-8691822
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Plug
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 18
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Plug
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 18
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
132 in stock
M80-8692022
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Plug
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Plug
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
420 in stock

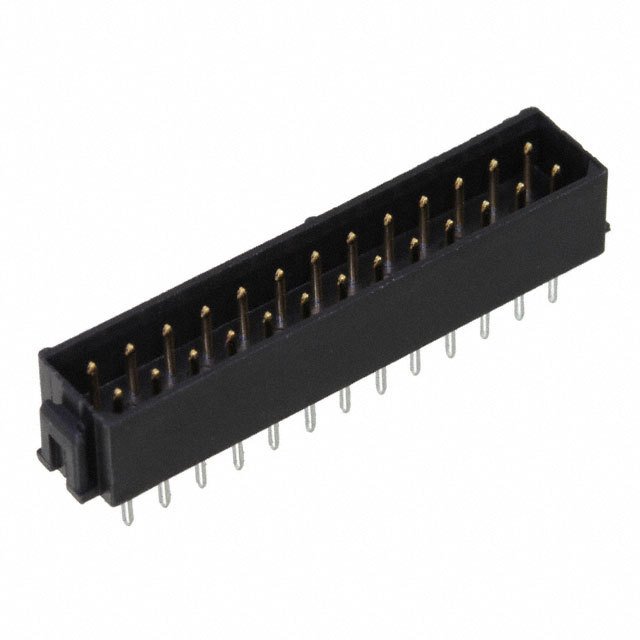

M80-8692622
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Plug
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 26
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Plug
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 26
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
86 in stock
M80-8693422
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Plug
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 34
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Plug
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 34
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
1865 in stock

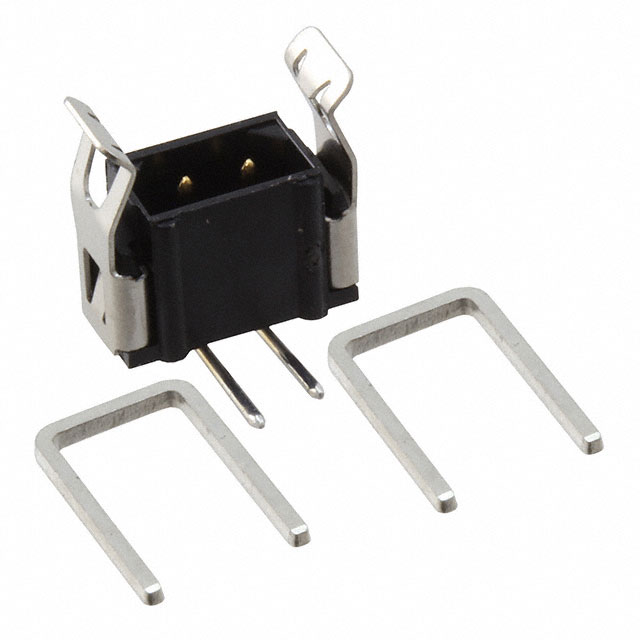

M80-8760222
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.156" (3.96mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Strain Relief Clips
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.156" (3.96mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Strain Relief Clips
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
0
1336 in stock

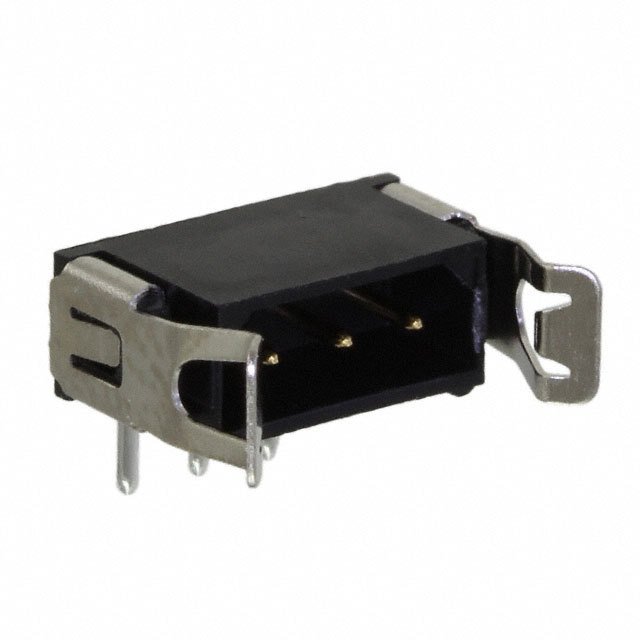

M80-8760322
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.156" (3.96mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Strain Relief Clips
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.156" (3.96mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Strain Relief Clips
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
0
536 in stock
M80-8760422
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.156" (3.96mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Strain Relief Clips
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.156" (3.96mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Strain Relief Clips
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
0
163 in stock
M80-8760522
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 5
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.156" (3.96mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Strain Relief Clips
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 5
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.156" (3.96mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Strain Relief Clips
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
0
258 in stock
M80-8760622
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.156" (3.96mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Strain Relief Clips
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.156" (3.96mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Strain Relief Clips
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
0
173 in stock
M80-8770222
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
759 in stock
M80-8770322
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
512 in stock
M80-8770422
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
235 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
