Harwin
- Harwin is a manufacturer of high reliability, industry standard, and application-specific interconnect devices.
We command wide-ranging, global capabilities to satisfy customer needs on a local level. A network of distributors coupled with offices and manufacturing facilities in Europe, USA and Asia provides us a global reach and comprehensive understanding of the latest technologies. With more than 50 years history of successfully manufacturing electronic components Harwin has an active portfolio of over 20k highly reliable interconnects and PCB hardware items.
Part Number
Manufacturer
Description
Unit Price
In Stock

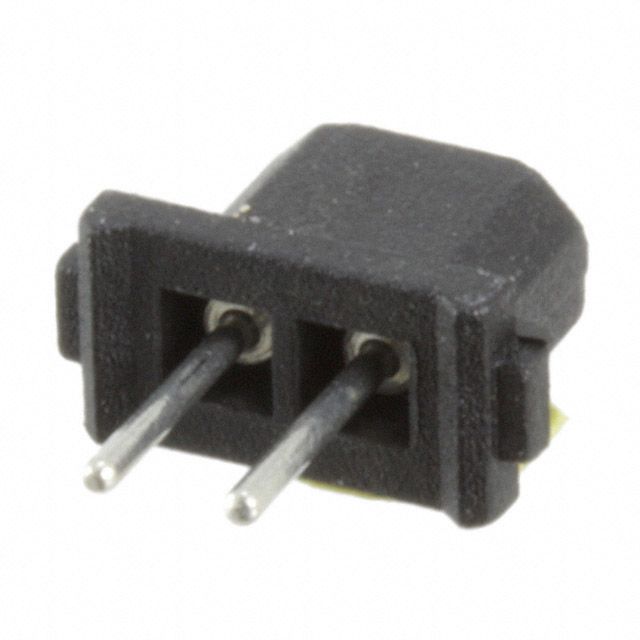

M80-8400242
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
114 in stock

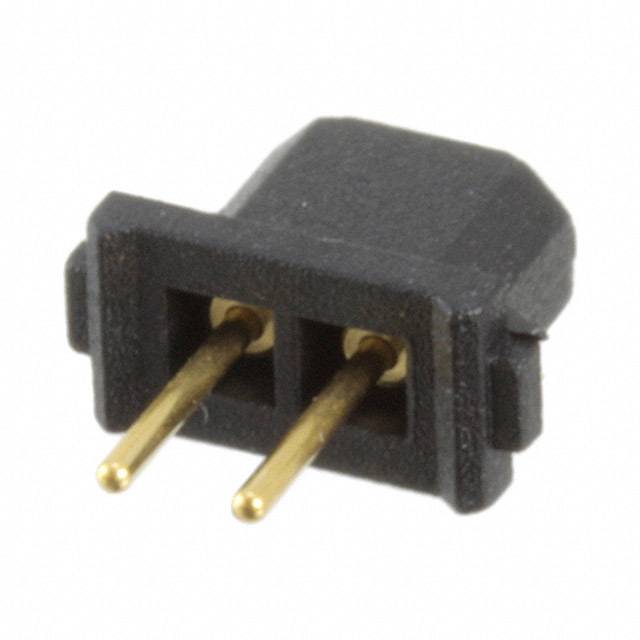

M80-8400245
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
507 in stock

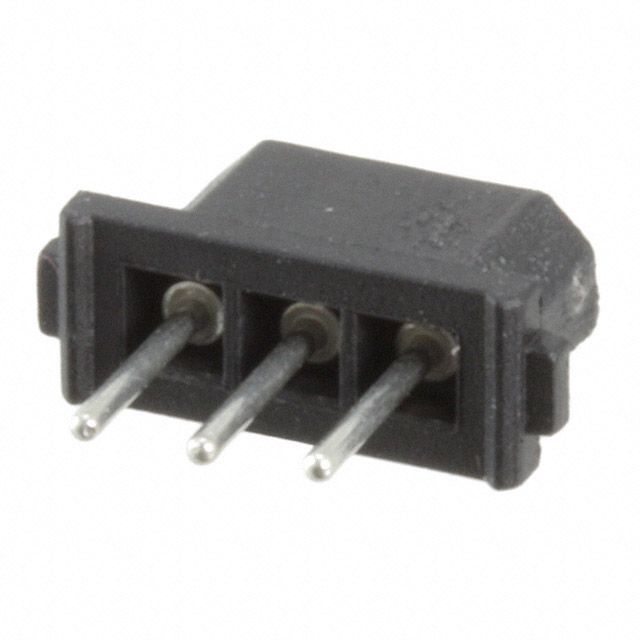

M80-8400342
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
230 in stock

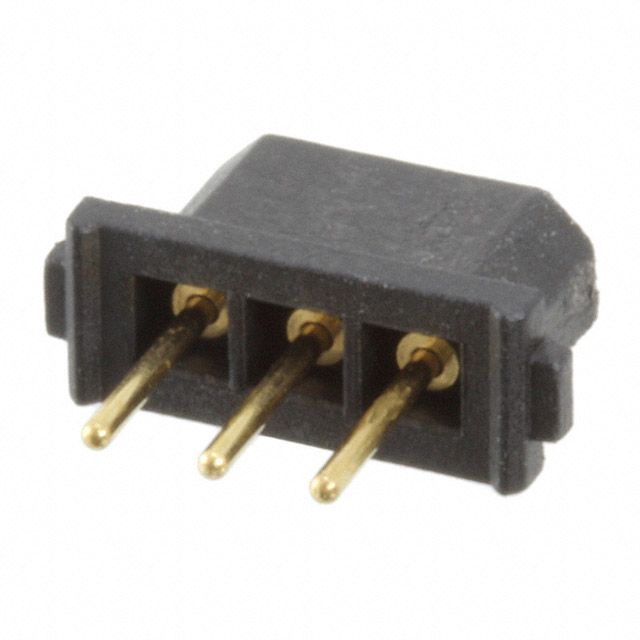

M80-8400345
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
364 in stock
M80-8400442
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
244 in stock

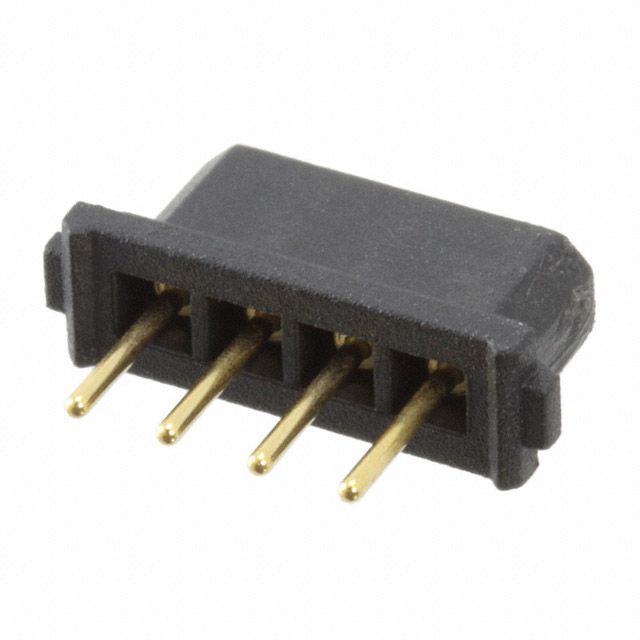

M80-8400445
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
336 in stock

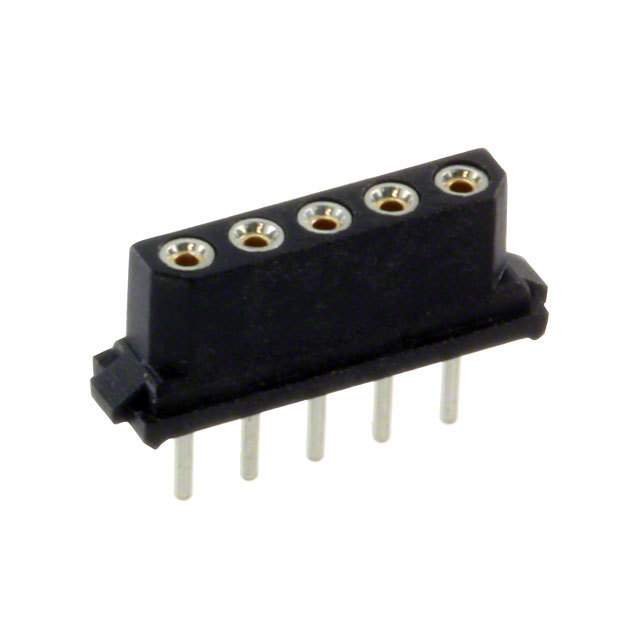

M80-8400542
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 5
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 5
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
618 in stock
M80-8400545
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 5
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 5
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
173 in stock

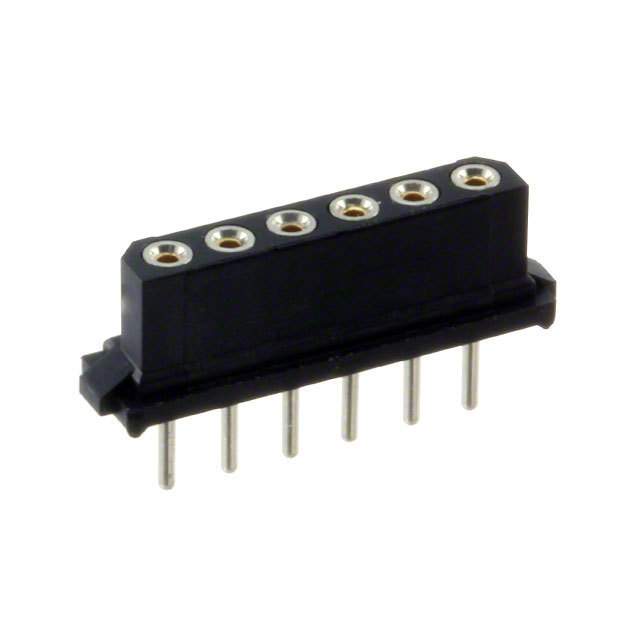

M80-8400642
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
268 in stock

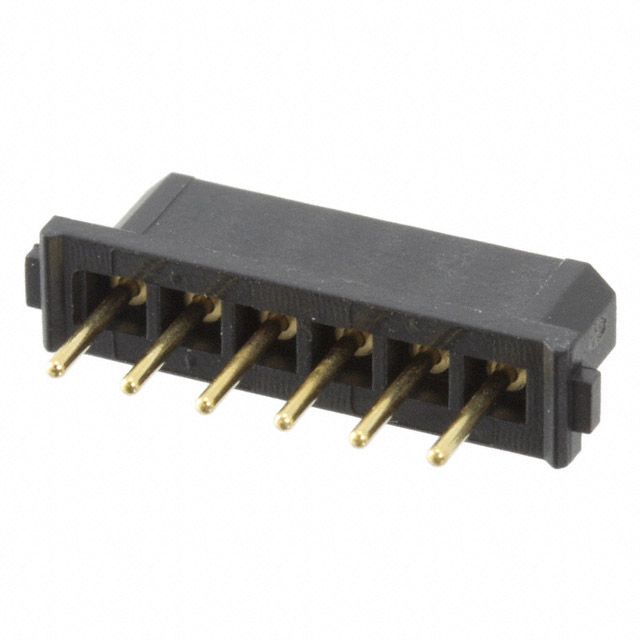

M80-8400645
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
1 in stock

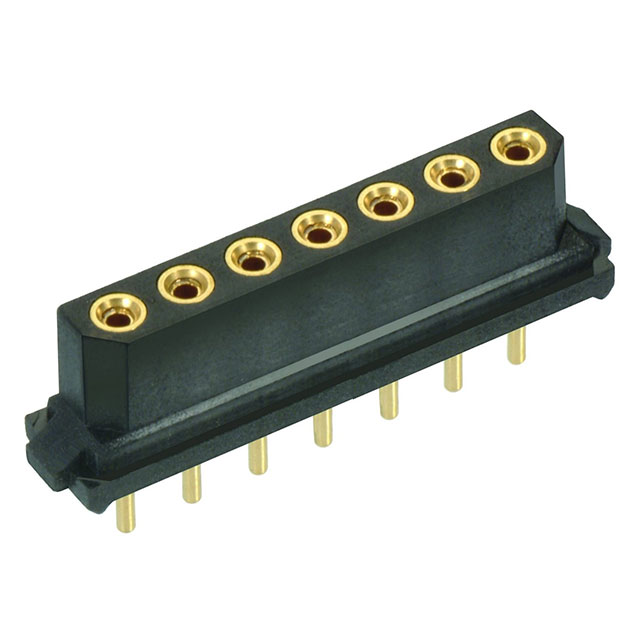

M80-8400745
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 7
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 7
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
100 in stock

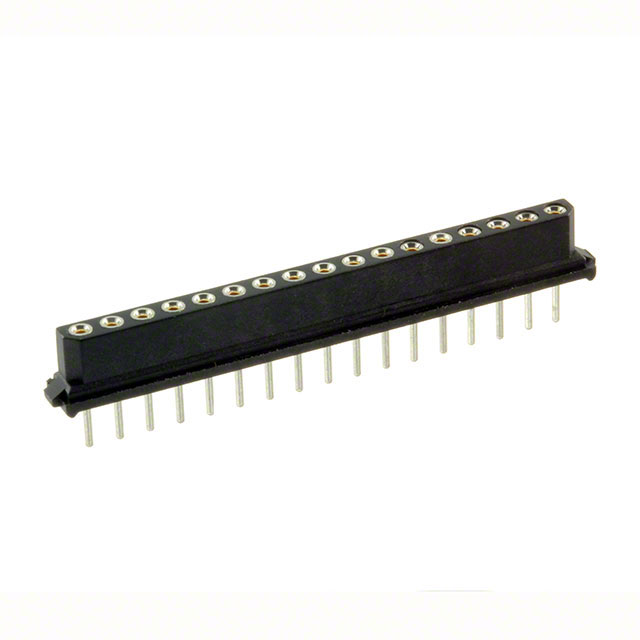

M80-8401742
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 17
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
Packaging : Tube
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 17
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.202" (5.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 7.23mm, 7.83mm
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 800V
0
92 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
