Harwin
- Harwin is a manufacturer of high reliability, industry standard, and application-specific interconnect devices.
We command wide-ranging, global capabilities to satisfy customer needs on a local level. A network of distributors coupled with offices and manufacturing facilities in Europe, USA and Asia provides us a global reach and comprehensive understanding of the latest technologies. With more than 50 years history of successfully manufacturing electronic components Harwin has an active portfolio of over 20k highly reliable interconnects and PCB hardware items.
Part Number
Manufacturer
Description
Unit Price
In Stock

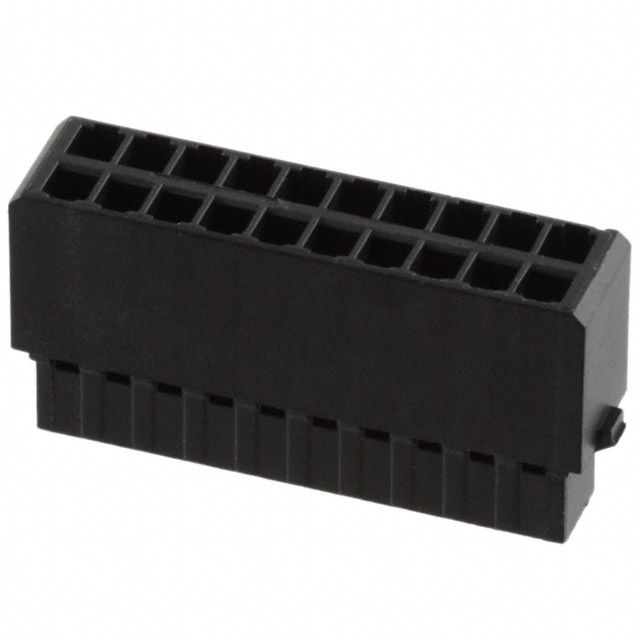

M80-6912098
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : Datamate Trio-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 20
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : Latch Lock
Color : Black
Features : -
Packaging : Bulk
Series : Datamate Trio-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 20
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : Latch Lock
Color : Black
Features : -
0
425 in stock
M80-7002742
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 27
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.244" (6.20mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 27
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.244" (6.20mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
0
101 in stock

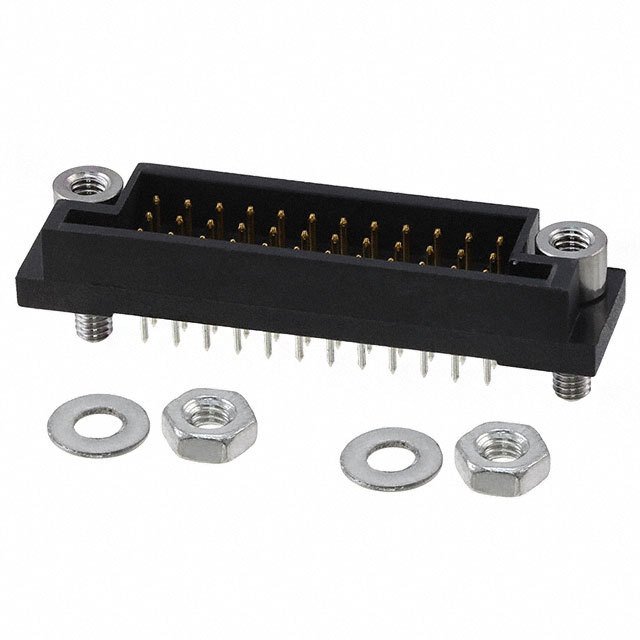

M80-7003622
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 36
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.244" (6.20mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 36
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.244" (6.20mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin-Lead
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
0
8 in stock

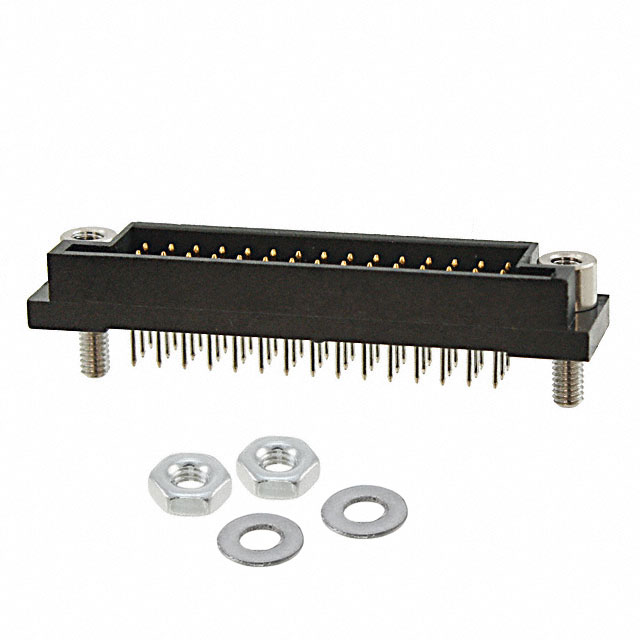

M80-7004542
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 45
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.244" (6.20mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 45
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.244" (6.20mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
0
100 in stock

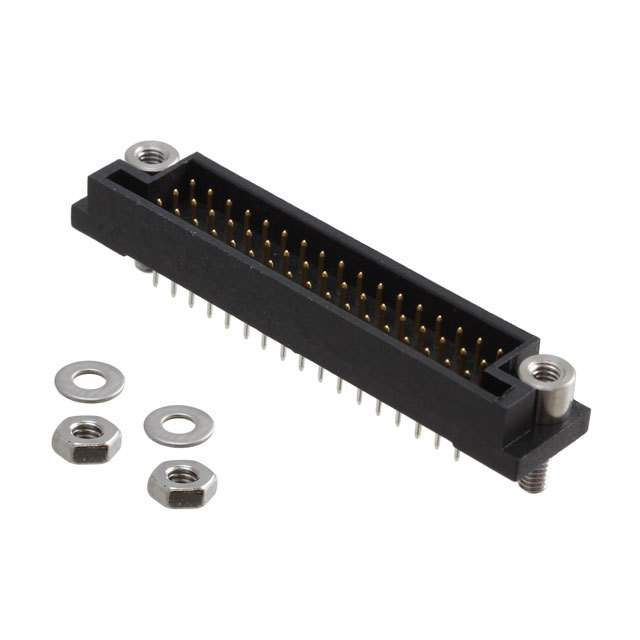

M80-7005142
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 51
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.244" (6.20mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 51
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.244" (6.20mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
0
29 in stock

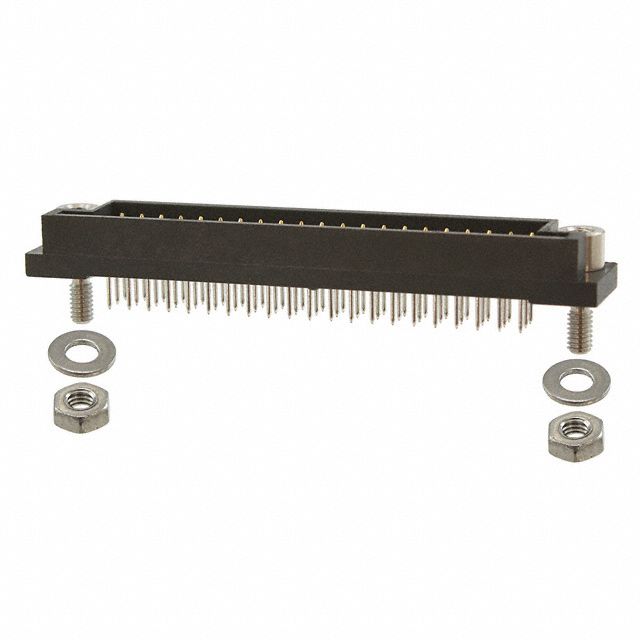

M80-7006342
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 63
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.244" (6.20mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 63
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.244" (6.20mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
0
27 in stock
M80-7044505
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 45
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Screw Lock
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.247" (6.28mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Jackscrews, Mating Flange, Mounting Flange
Current Rating : -
Voltage Rating : -
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 45
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Screw Lock
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.247" (6.28mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Jackscrews, Mating Flange, Mounting Flange
Current Rating : -
Voltage Rating : -
0
24 in stock
M80-7046305
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 63
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Screw Lock
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.247" (6.28mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Jackscrews, Mating Flange, Mounting Flange
Current Rating : -
Voltage Rating : -
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 63
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 3
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Screw Lock
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.247" (6.28mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Jackscrews, Mating Flange, Mounting Flange
Current Rating : -
Voltage Rating : -
0
36 in stock
M80-7053605
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 36
Pitch : 0.079" (2.00mm)
Number of Rows : 3
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : Crimp
Wire Type : Discrete
Wire Gauge : 24-28 AWG
Features : Jackscrews
Contact Finish : Gold
Contact Finish Thickness : 11.8µin (0.30µm)
Color : -
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 36
Pitch : 0.079" (2.00mm)
Number of Rows : 3
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : Crimp
Wire Type : Discrete
Wire Gauge : 24-28 AWG
Features : Jackscrews
Contact Finish : Gold
Contact Finish Thickness : 11.8µin (0.30µm)
Color : -
0
24 in stock
M80-7054505
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 45
Pitch : 0.079" (2.00mm)
Number of Rows : 3
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : Crimp
Wire Type : Discrete
Wire Gauge : 24-28 AWG
Features : Jackscrews
Contact Finish : Gold
Contact Finish Thickness : 11.8µin (0.30µm)
Color : -
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 45
Pitch : 0.079" (2.00mm)
Number of Rows : 3
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : Crimp
Wire Type : Discrete
Wire Gauge : 24-28 AWG
Features : Jackscrews
Contact Finish : Gold
Contact Finish Thickness : 11.8µin (0.30µm)
Color : -
0
57 in stock
M80-7056305
Harwin
Manufacturer : Harwin Inc.
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 63
Pitch : 0.079" (2.00mm)
Number of Rows : 3
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : Crimp
Wire Type : Discrete
Wire Gauge : 24-28 AWG
Features : Jackscrews
Contact Finish : Gold
Contact Finish Thickness : 11.8µin (0.30µm)
Color : -
Packaging : Tray
Series : Datamate J-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 63
Pitch : 0.079" (2.00mm)
Number of Rows : 3
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : Crimp
Wire Type : Discrete
Wire Gauge : 24-28 AWG
Features : Jackscrews
Contact Finish : Gold
Contact Finish Thickness : 11.8µin (0.30µm)
Color : -
0
44 in stock
M80-7880405
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 4
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : Locking Ramp
Cable Termination : Crimp
Wire Type : Discrete
Wire Gauge : 28-32 AWG
Features : -
Contact Finish : Gold
Contact Finish Thickness : 11.8µin (0.30µm)
Color : Black
Packaging : Bulk
Series : Datamate L-Tek
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 4
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : Locking Ramp
Cable Termination : Crimp
Wire Type : Discrete
Wire Gauge : 28-32 AWG
Features : -
Contact Finish : Gold
Contact Finish Thickness : 11.8µin (0.30µm)
Color : Black
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
