Harwin
- Harwin is a manufacturer of high reliability, industry standard, and application-specific interconnect devices.
We command wide-ranging, global capabilities to satisfy customer needs on a local level. A network of distributors coupled with offices and manufacturing facilities in Europe, USA and Asia provides us a global reach and comprehensive understanding of the latest technologies. With more than 50 years history of successfully manufacturing electronic components Harwin has an active portfolio of over 20k highly reliable interconnects and PCB hardware items.
Part Number
Manufacturer
Description
Unit Price
In Stock

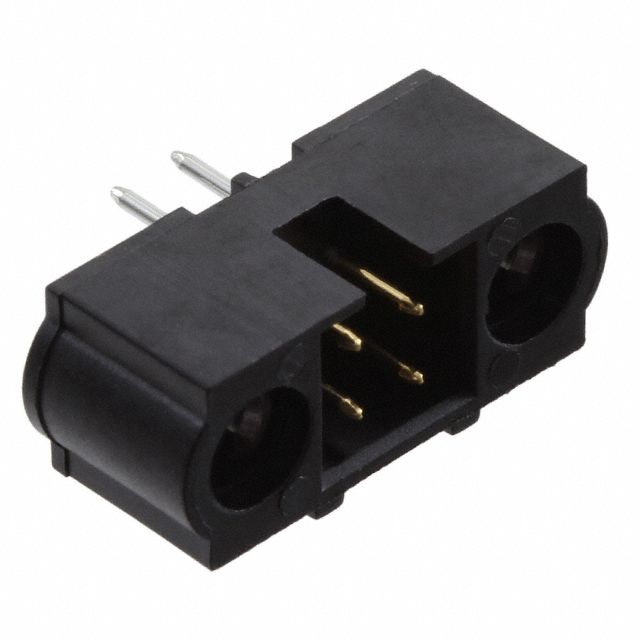

M80-5T10442MC
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 4
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Turn Lock
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 121°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 4
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Turn Lock
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 121°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
0
301 in stock

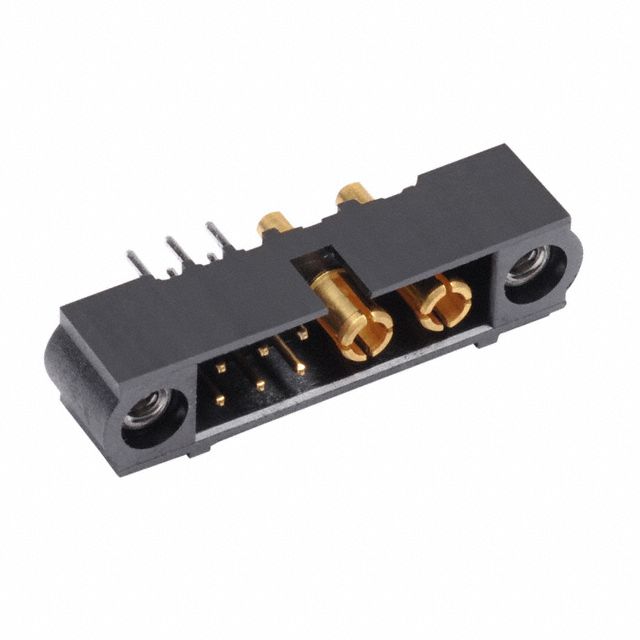

M80-5T10605M1-02-331-00-000
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate Mix-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 8 (6 + 2 Power)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : -
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : Datamate Mix-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 8 (6 + 2 Power)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : -
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
282 in stock

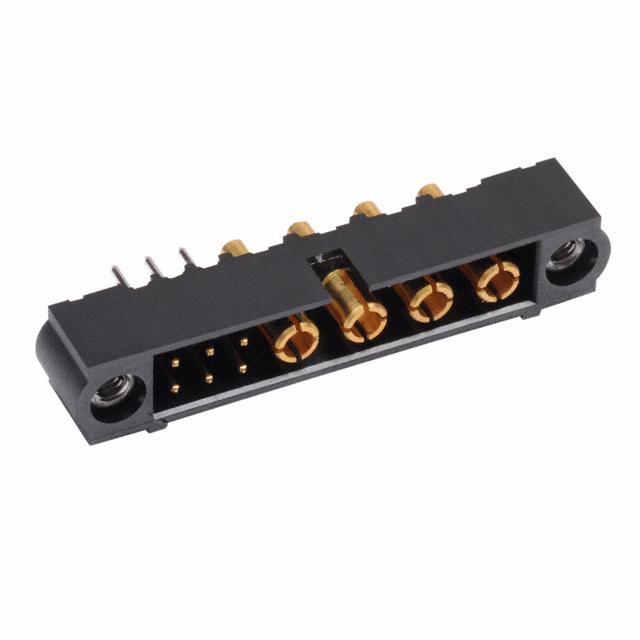

M80-5T10605M1-04-331-00-000
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate Mix-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 10 (6 + 4 Power)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : -
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : Datamate Mix-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 10 (6 + 4 Power)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : -
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
57 in stock

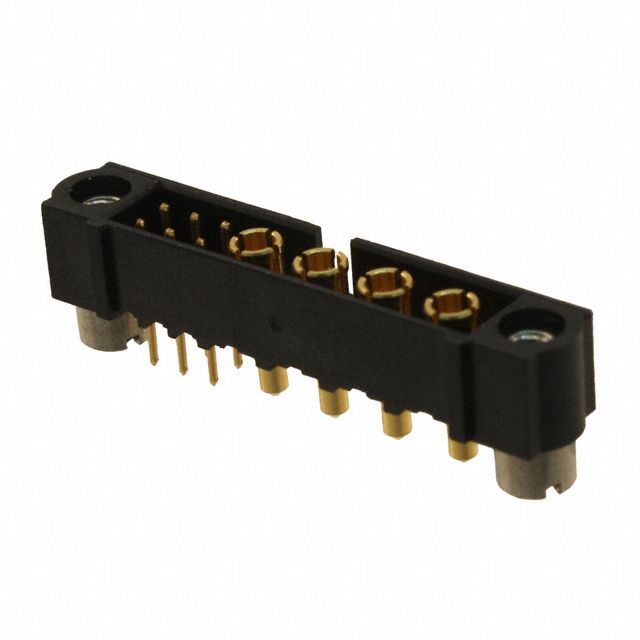

M80-5T10605M2-04-331-00-000
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate Mix-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 10 (6 + 4 Power)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : -
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : Datamate Mix-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 10 (6 + 4 Power)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : -
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
8 in stock

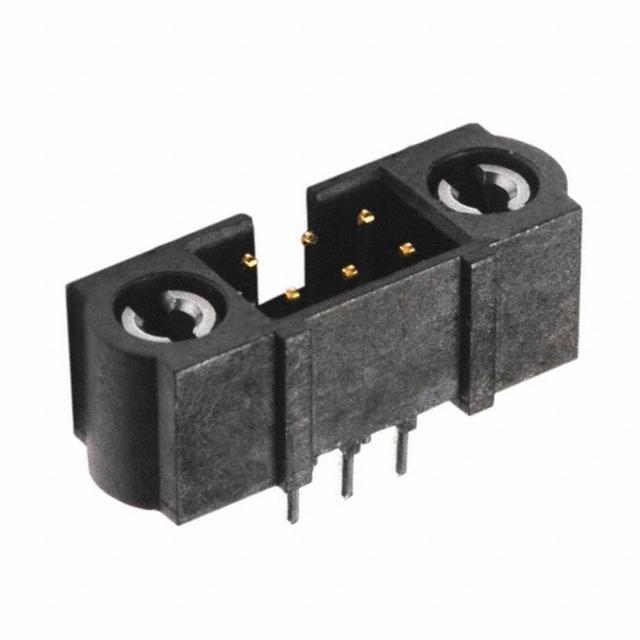

M80-5T10642MC
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Turn Lock
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 121°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Turn Lock
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 121°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
0
1 in stock

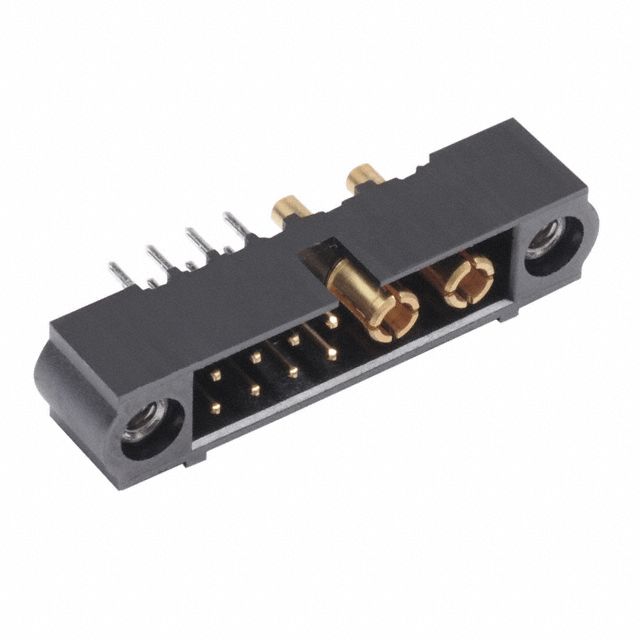

M80-5T10805M1-02-331-00-000
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate Mix-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 10 (8 + 2 Power)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : -
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : Datamate Mix-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 10 (8 + 2 Power)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : -
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
213 in stock
M80-5T10805M1-04-331-00-000
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate Mix-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 12 (8 + 4 Power)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : -
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : Datamate Mix-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 12 (8 + 4 Power)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : -
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
19 in stock

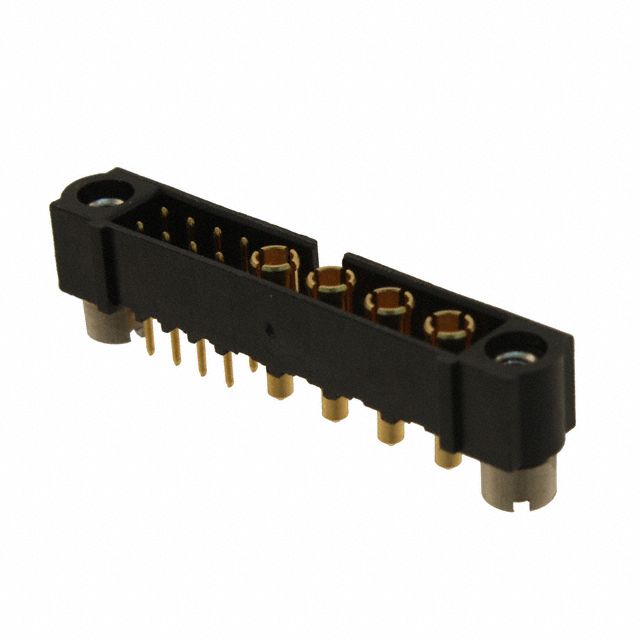

M80-5T10805M2-04-331-00-000
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate Mix-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 12 (8 + 4 Power)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : -
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : Datamate Mix-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 12 (8 + 4 Power)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : -
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
32 in stock

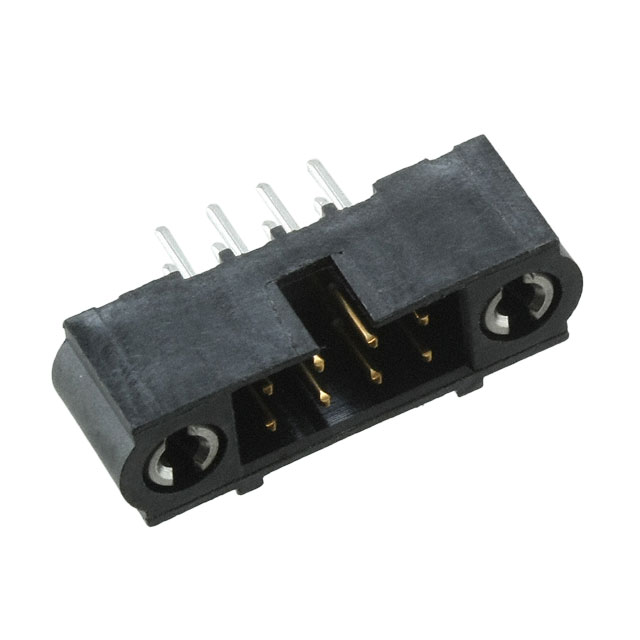

M80-5T10842MC
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 8
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Turn Lock
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 121°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 8
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Turn Lock
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 121°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
0
100 in stock

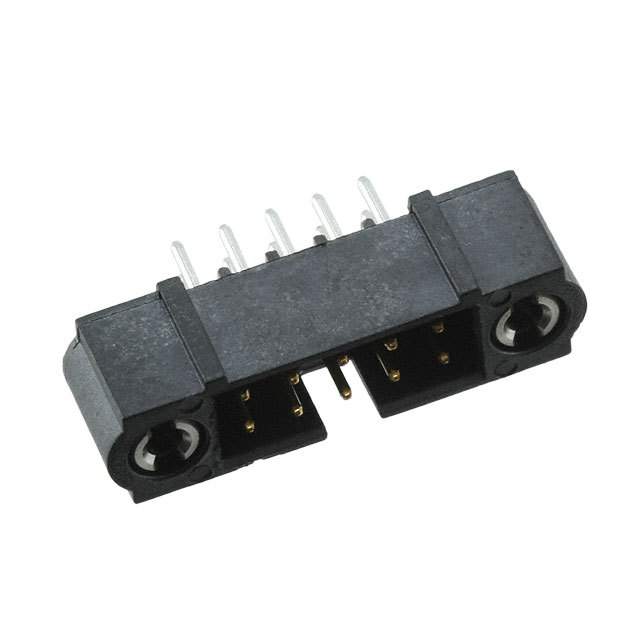

M80-5T11042MC
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Turn Lock
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 121°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Turn Lock
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 121°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 120V
0
296 in stock

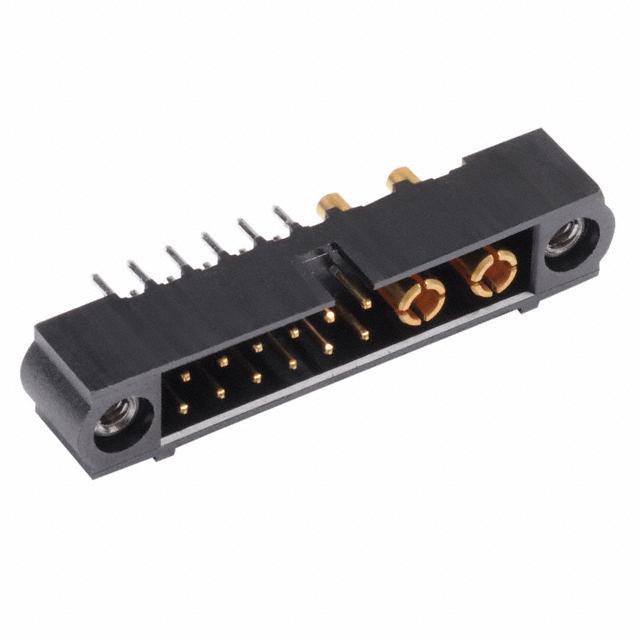

M80-5T11205M1-02-331-00-000
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate Mix-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 14 (12 + 2 Power)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : -
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : Datamate Mix-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 14 (12 + 2 Power)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : -
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
50 in stock

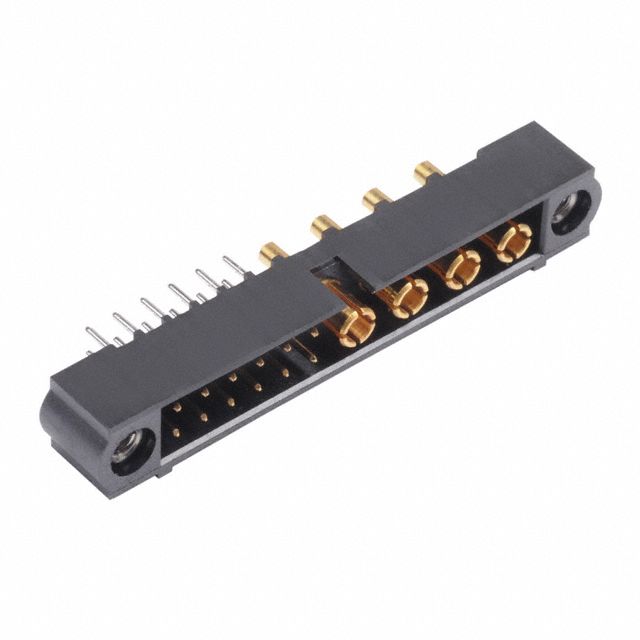

M80-5T11205M1-04-331-00-000
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate Mix-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 16 (12 + 4 Power)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : -
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : Datamate Mix-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 16 (12 + 4 Power)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.220" (5.60mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : -
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
4 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
