Harwin
- Harwin is a manufacturer of high reliability, industry standard, and application-specific interconnect devices.
We command wide-ranging, global capabilities to satisfy customer needs on a local level. A network of distributors coupled with offices and manufacturing facilities in Europe, USA and Asia provides us a global reach and comprehensive understanding of the latest technologies. With more than 50 years history of successfully manufacturing electronic components Harwin has an active portfolio of over 20k highly reliable interconnects and PCB hardware items.
Part Number
Manufacturer
Description
Unit Price
In Stock
M80-5404242
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 42
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 42
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
307 in stock

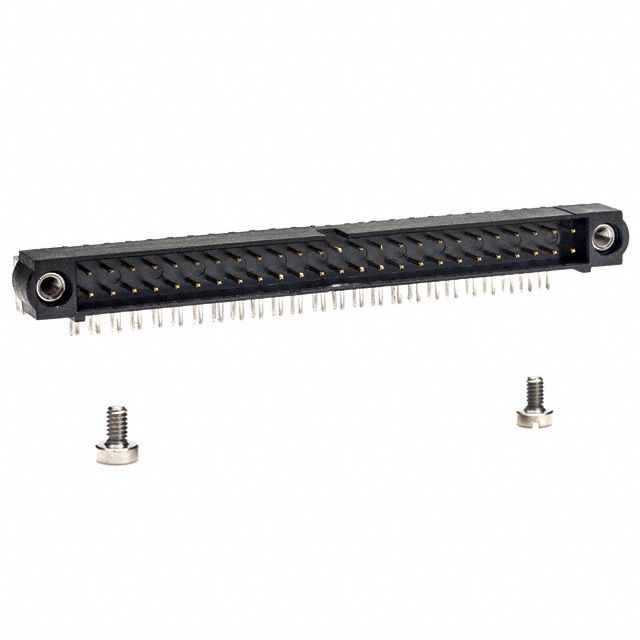

M80-5405042
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 50
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 50
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
29 in stock

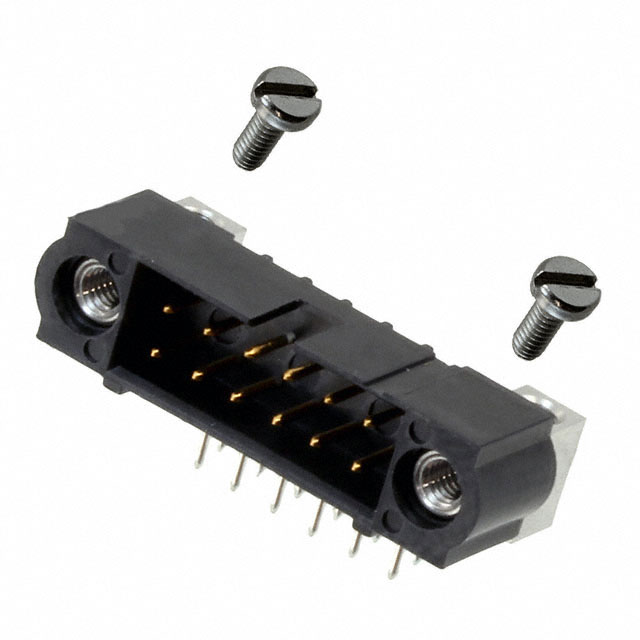

M80-5411242
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 12
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.177" (4.50mm)
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 12
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : 0.177" (4.50mm)
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
604 in stock

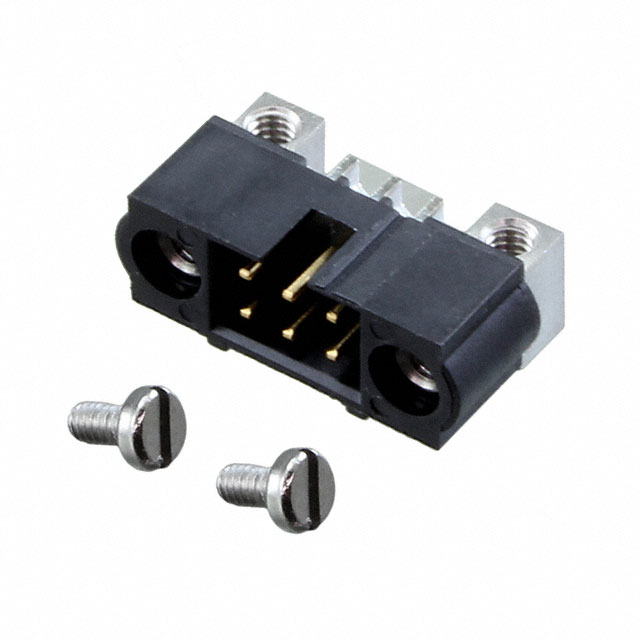

M80-5420642
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
5 in stock

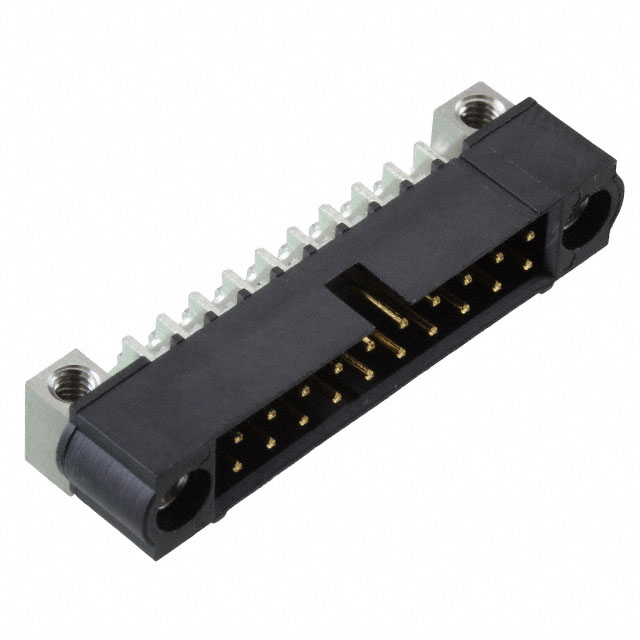

M80-5422042
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
42 in stock

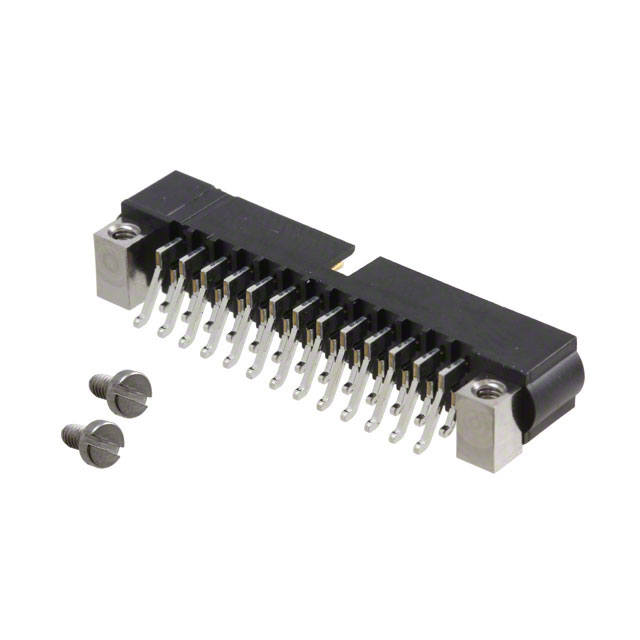

M80-5422642
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 26
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 26
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
409 in stock

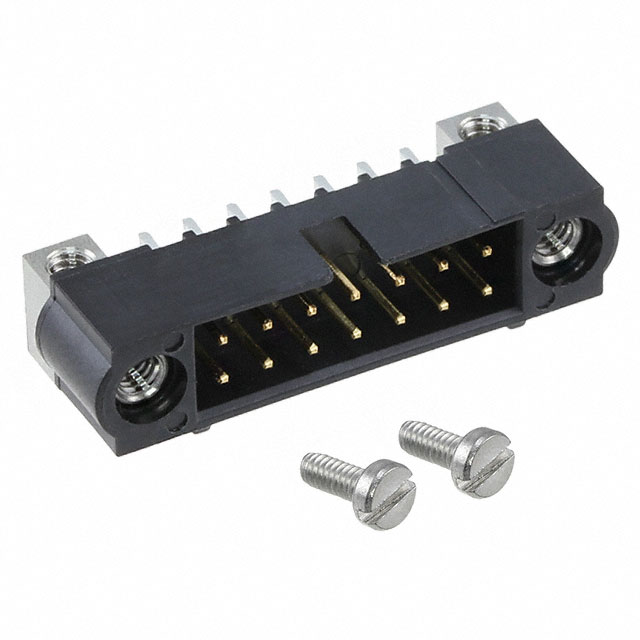

M80-5431442
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
196 in stock
M80-5432042
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
94 in stock
M80-5433442
Harwin
Manufacturer : Harwin Inc.
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 34
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
Packaging : Tube
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 34
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Threaded
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.218" (5.55mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 29.5µin (0.75µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2.2A
Voltage Rating : 800V
0
30 in stock

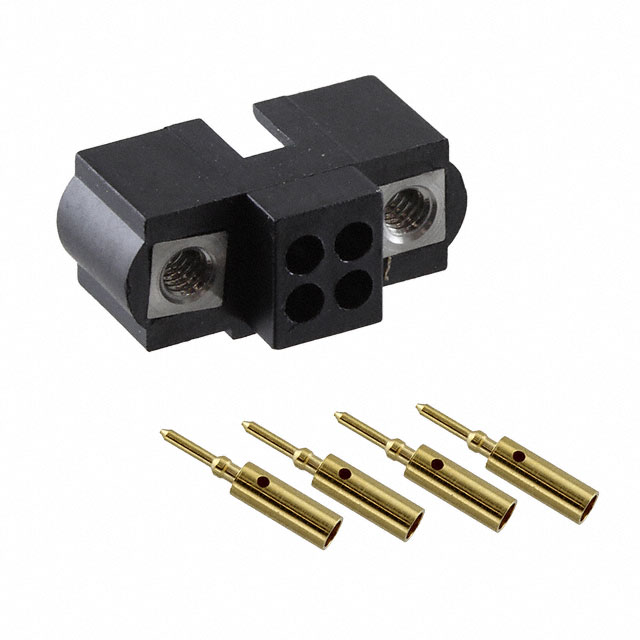

M80-5600405
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Number of Positions : 4
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : Crimp
Wire Type : Discrete
Wire Gauge : 22 AWG
Features : Jackscrews
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Color : Black
Packaging : Bulk
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Number of Positions : 4
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : Crimp
Wire Type : Discrete
Wire Gauge : 22 AWG
Features : Jackscrews
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Color : Black
0
173 in stock

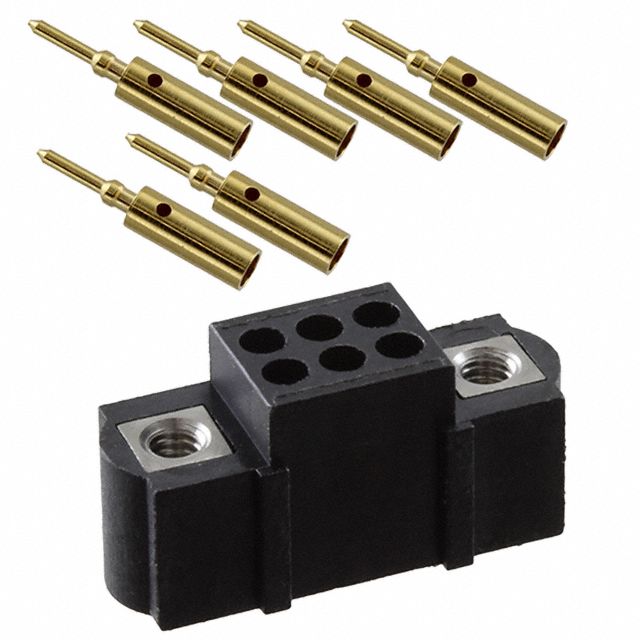

M80-5600605
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Number of Positions : 6
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : Crimp
Wire Type : Discrete
Wire Gauge : 22 AWG
Features : Jackscrew
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Color : Black
Packaging : Bulk
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Number of Positions : 6
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : Crimp
Wire Type : Discrete
Wire Gauge : 22 AWG
Features : Jackscrew
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Color : Black
0
130 in stock

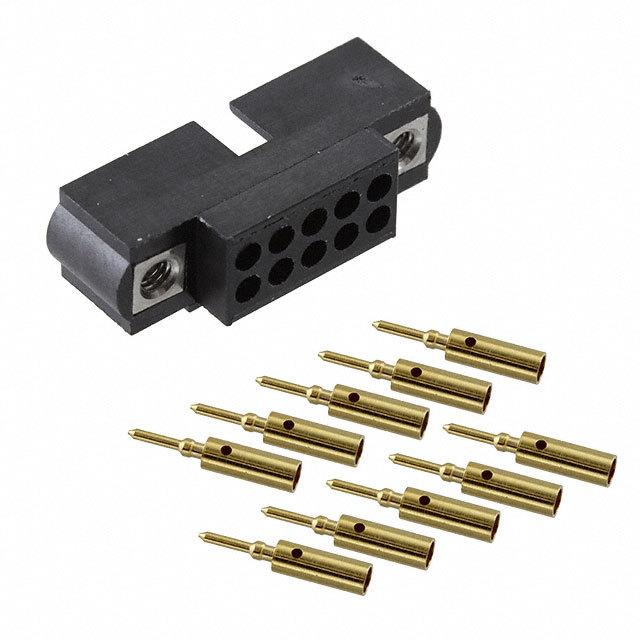

M80-5601005
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Number of Positions : 10
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : Crimp
Wire Type : Discrete
Wire Gauge : 22 AWG
Features : Jackscrews
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Color : Black
Packaging : Bulk
Series : Datamate J-Tek
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Number of Positions : 10
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : Crimp
Wire Type : Discrete
Wire Gauge : 22 AWG
Features : Jackscrews
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Color : Black
0
67 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
