Grayhill, Inc.
- Grayhill, Inc. is a leading manufacturer of electronic components including, optical and mechanical encoders, rotary switches, joysticks, surface mount and thru-hole DIP switches, rotary DIP switches, toggle switches, standard & custom keypads, custom operator interface front panels, I/O modules, and mounting racks.
Part Number
Manufacturer
Description
Unit Price
In Stock
96BB2-056-R
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Series : 96
Part Status : Active
Switch Type : Conductive Rubber
Number of Keys : 16
Matrix (Columns x Rows) : 4 x 4
Illumination : Non-Illuminated
Legend Type : Fixed
Key Type : Polymer
Output Type : Matrix
Legend : Telephone Format, A ~ D
Legend Color : White
Key Color : Black
Mounting Type : Panel Mount, Rear
Termination Style : Pin Header
Panel Cutout Dimensions : Rectangular - 68.58mm x 63.50mm
Operating Temperature : -30°C ~ 80°C
Ingress Protection : IP40
Illumination Voltage (Nominal) : -
Contact Rating @ Voltage : 0.005A @ 12VDC
Features : -
Series : 96
Part Status : Active
Switch Type : Conductive Rubber
Number of Keys : 16
Matrix (Columns x Rows) : 4 x 4
Illumination : Non-Illuminated
Legend Type : Fixed
Key Type : Polymer
Output Type : Matrix
Legend : Telephone Format, A ~ D
Legend Color : White
Key Color : Black
Mounting Type : Panel Mount, Rear
Termination Style : Pin Header
Panel Cutout Dimensions : Rectangular - 68.58mm x 63.50mm
Operating Temperature : -30°C ~ 80°C
Ingress Protection : IP40
Illumination Voltage (Nominal) : -
Contact Rating @ Voltage : 0.005A @ 12VDC
Features : -
0
64 in stock

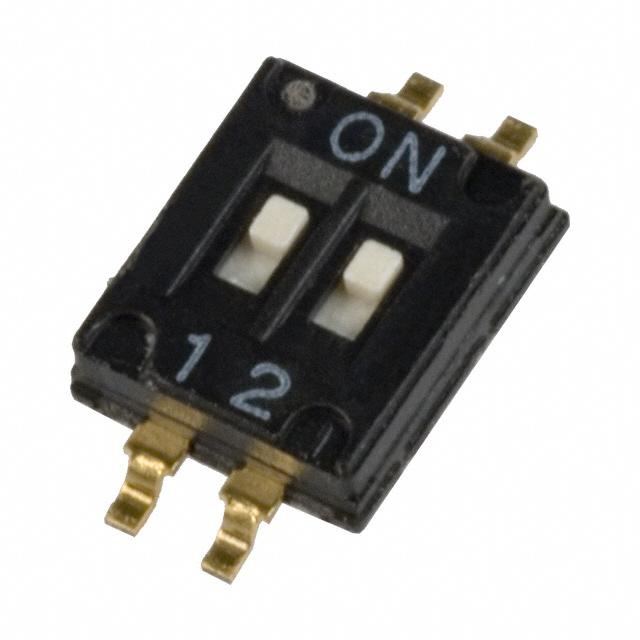

97C02ST
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 2
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.063" (1.60mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 2
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.063" (1.60mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
0
17736 in stock

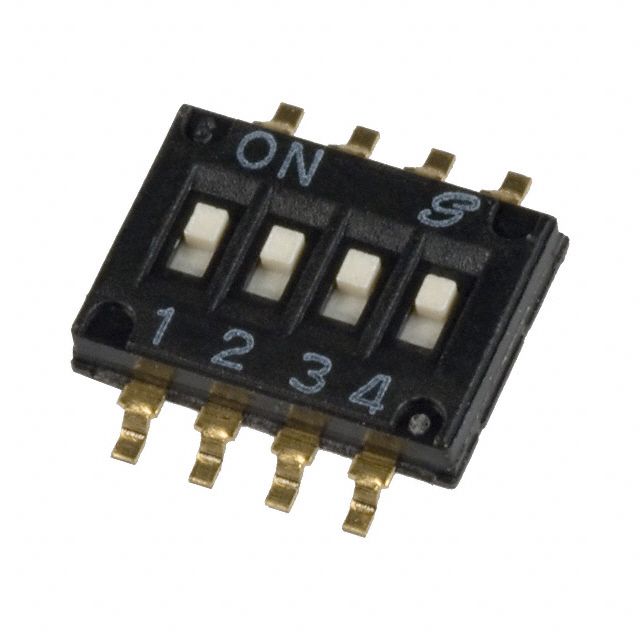

97C04SRT
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 4
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.063" (1.60mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 4
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.063" (1.60mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
0
3986 in stock
97C04ST
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 4
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.063" (1.60mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 4
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.063" (1.60mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
0
7219 in stock

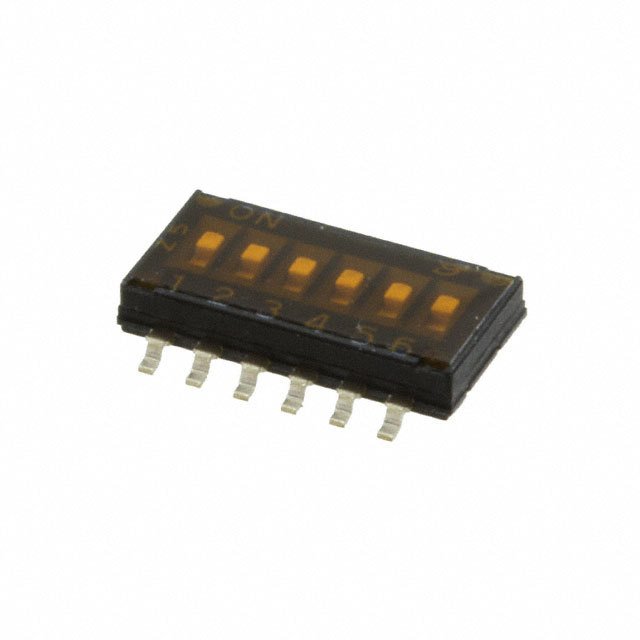

97C06SRT
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 6
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.063" (1.60mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 6
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.063" (1.60mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
0
7847 in stock

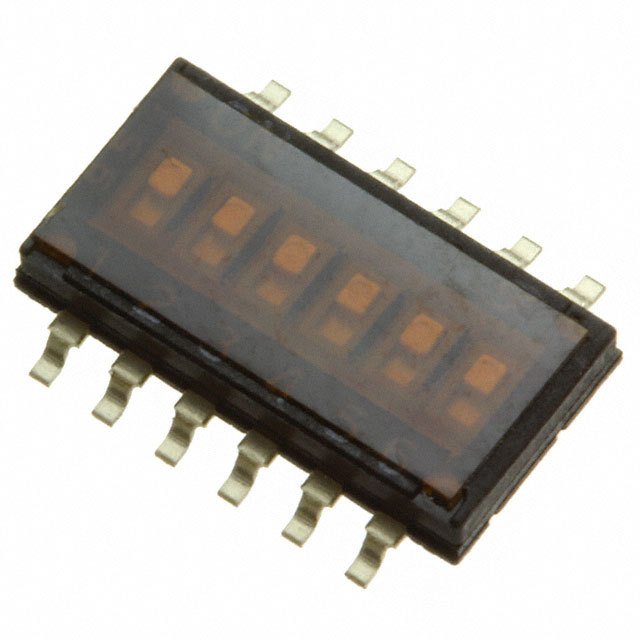

97C06ST
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 6
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.063" (1.60mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 6
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.063" (1.60mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
0
5668 in stock

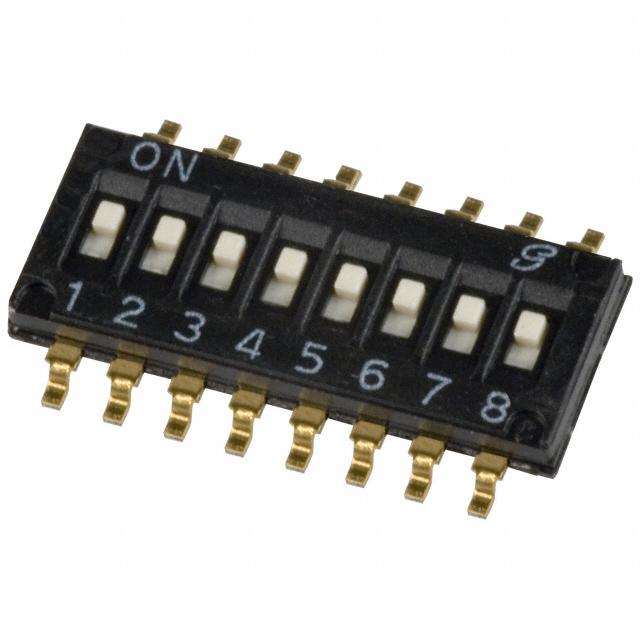

97C08SRT
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 8
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.063" (1.60mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 8
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.063" (1.60mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
0
141455 in stock
97C08ST
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 8
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.063" (1.60mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 8
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.063" (1.60mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
0
35605 in stock

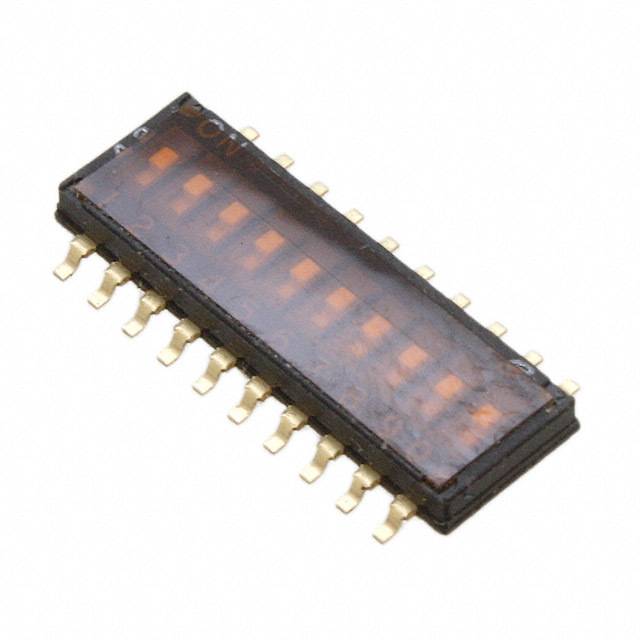

97C10ST
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 10
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.063" (1.60mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 10
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.063" (1.60mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
0
9108 in stock

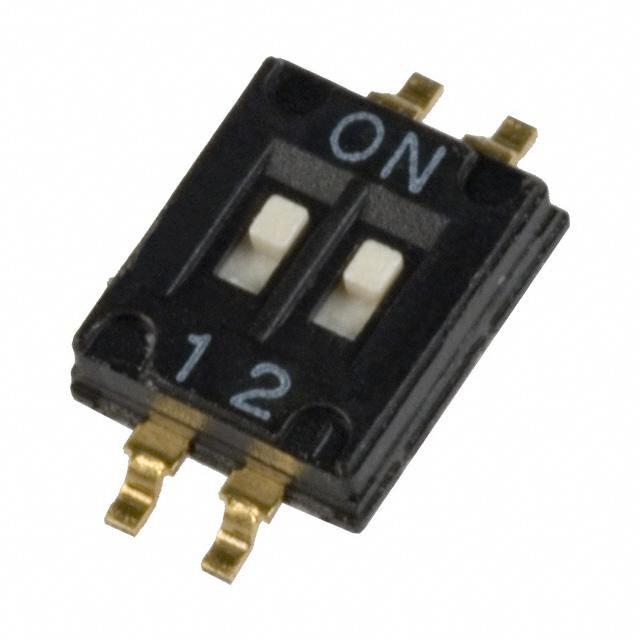

97R02ST
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 2
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.061" (1.55mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 2
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.061" (1.55mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
0
3581 in stock

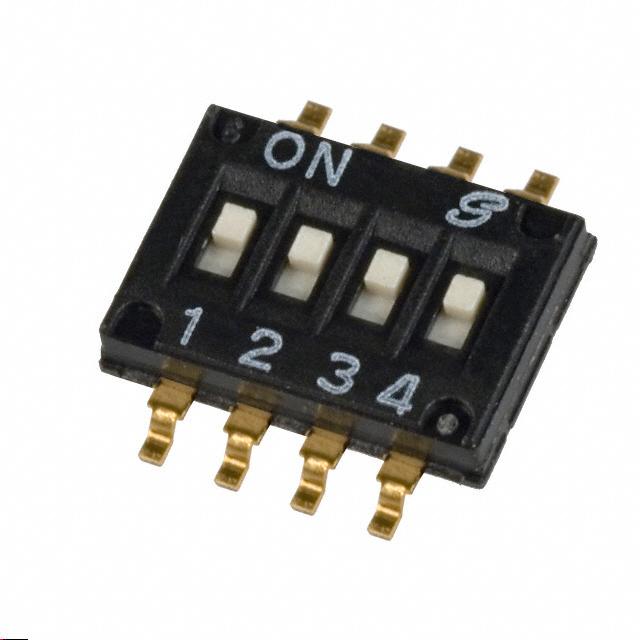

97R04ST
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 4
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.061" (1.55mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 4
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.061" (1.55mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
0
2813 in stock

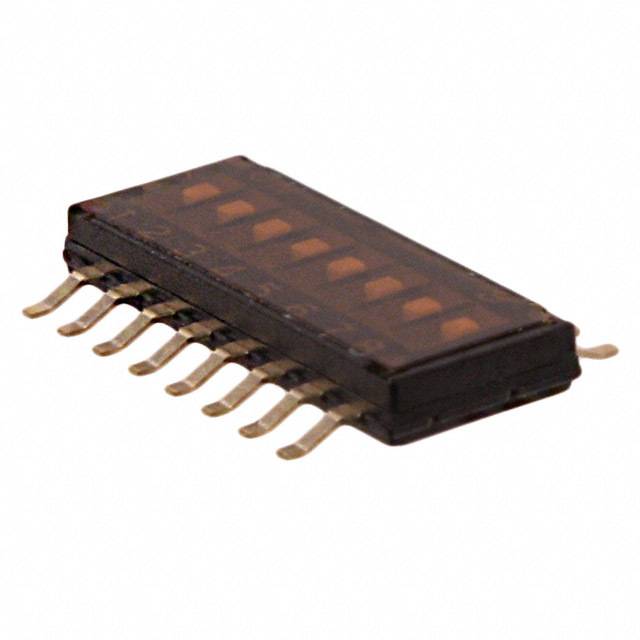

97R08SRT
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 8
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.061" (1.55mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 97
Part Status : Active
Circuit : SPST
Number of Positions : 8
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.061" (1.55mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
0
4337 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
