FERROXCUBE

- Building on their Philips Magnetic Components heritage, FERROXCUBE, offers customers the highest level of support in the development of their new innovative design. As a leading supplier in ferrite-ceramic technology, they offer a broad range of soft ferrite cores, accessories and EMI suppression products to support equipment manufacturers in their electromagnetic inference. They also offer extensive design-in support including application information and software to help designers optimize their new designs.

With a strong R&D team, they continue to develop lower power losses and higher saturation magnetic flux densities over a wide range of operating frequencies. Their aim is to support today’s digital electronic markets with products combining miniaturization with ever-greater functionality.


Part Number

Manufacturer

Description

Unit Price

In Stock

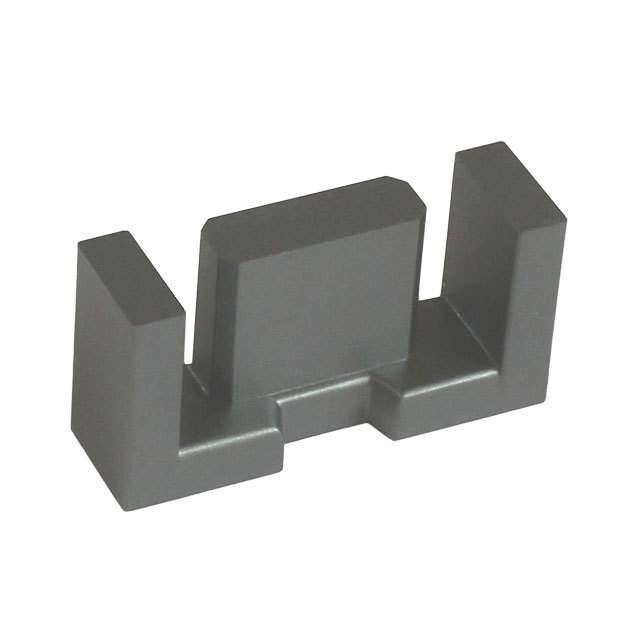

EFD12/6/3.5-3F46-S

FERROXCUBE

Manufacturer : Ferroxcube
Series : -
Part Status : Active
Core Type : EFD
Inductance Factor (Al) : -
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : 657
Initial Permeability (µi) : -
Material : 3F46
Core Factor (危I/A) mm1 : 2.5
Effective Length (le) mm : 28.5
Effective Area (Ae) mm² : 11.4
Minimum Core Cross Section (Amin) mm² : 10.7
Effective Magnetic Volume (Ve) mm鲁 : 325
Finish : Uncoated
Supplier Device Package : EFD 12 x 6 x 3.5
Height : 6.20mm
Length : 12.50mm
Width : 3.50mm
Diameter : -

570 in stock

EFD15/8/5-3F36-S

FERROXCUBE

Manufacturer : Ferroxcube
Series : -
Part Status : Active
Core Type : EFD
Inductance Factor (Al) : -
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : 1170
Initial Permeability (µi) : -
Material : 3F36
Core Factor (危I/A) mm1 : 2.27
Effective Length (le) mm : 34
Effective Area (Ae) mm² : 15
Minimum Core Cross Section (Amin) mm² : 12.2
Effective Magnetic Volume (Ve) mm鲁 : 510
Finish : Uncoated
Supplier Device Package : EFD 15 x 8 x 5
Height : 7.50mm
Length : 15.00mm
Width : 4.65mm
Diameter : -

493 in stock

EFD15/8/5-3F46-S

FERROXCUBE

Manufacturer : Ferroxcube
Series : -
Part Status : Active
Core Type : EFD
Inductance Factor (Al) : -
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : 667
Initial Permeability (µi) : -
Material : 3F46
Core Factor (危I/A) mm1 : 2.27
Effective Length (le) mm : 34
Effective Area (Ae) mm² : 15
Minimum Core Cross Section (Amin) mm² : 12.2
Effective Magnetic Volume (Ve) mm鲁 : 510
Finish : Uncoated
Supplier Device Package : EFD 15 x 8 x 5
Height : 7.50mm
Length : 15.00mm
Width : 4.65mm
Diameter : -

960 in stock

EFD20/10/7-3C96

FERROXCUBE

Manufacturer : Ferroxcube
Series : -
Part Status : Active
Core Type : EFD
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : 3C96
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Uncoated
Supplier Device Package : EFD 20 x 10 x 7
Height : 10.00mm
Length : 20.00mm
Width : 6.65mm
Diameter : -

5910 in stock

EFD20/10/7-3F36

FERROXCUBE

Manufacturer : Ferroxcube
Series : -
Part Status : Active
Core Type : EFD
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : 3F36
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Uncoated
Supplier Device Package : EFD 20 x 10 x 7
Height : 10.00mm
Length : 20.00mm
Width : 6.65mm
Diameter : -

695 in stock

EFD20/10/7-3F46

FERROXCUBE

Manufacturer : Ferroxcube
Series : -
Part Status : Active
Core Type : EFD
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : 3F46
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Uncoated
Supplier Device Package : EFD 20 x 10 x 7
Height : 10.00mm
Length : 20.00mm
Width : 6.65mm
Diameter : -

3608 in stock

EFD25/13/9-3C96

FERROXCUBE

Manufacturer : Ferroxcube
Series : -
Part Status : Active
Core Type : EFD
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : 3C96
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Uncoated
Supplier Device Package : EFD 25 x 13 x 9
Height : 12.50mm
Length : 25.00mm
Width : 9.10mm
Diameter : -

500 in stock

EFD25/13/9-3F36

FERROXCUBE

Manufacturer : Ferroxcube
Series : -
Part Status : Active
Core Type : EFD
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : 3F36
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Uncoated
Supplier Device Package : EFD 25 x 13 x 9
Height : 12.50mm
Length : 25.00mm
Width : 9.10mm
Diameter : -

1317 in stock

EFD25/13/9-3F46

FERROXCUBE

Manufacturer : Ferroxcube
Series : -
Part Status : Active
Core Type : EFD
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : 3F46
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Uncoated
Supplier Device Package : EFD 25 x 13 x 9
Height : 12.50mm
Length : 25.00mm
Width : 9.10mm
Diameter : -

1818 in stock

EFD30/15/9-3C96

FERROXCUBE

Manufacturer : Ferroxcube
Series : -
Part Status : Active
Core Type : EFD
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : 3C96
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Uncoated
Supplier Device Package : EFD 30 x 15 x 9
Height : 15.00mm
Length : 30.00mm
Width : 9.10mm
Diameter : -

1113 in stock

EFD30/15/9-3F36

FERROXCUBE

Manufacturer : Ferroxcube
Series : -
Part Status : Active
Core Type : EFD
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : 3F36
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Uncoated
Supplier Device Package : EFD 30 x 15 x 9
Height : 15.00mm
Length : 30.00mm
Width : 9.10mm
Diameter : -

1013 in stock

EFD30/15/9-3F46

FERROXCUBE

Manufacturer : Ferroxcube
Series : -
Part Status : Active
Core Type : EFD
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : 3F46
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Uncoated
Supplier Device Package : EFD 30 x 15 x 9
Height : 15.00mm
Length : 30.00mm
Width : 9.10mm
Diameter : -

572 in stock
