Everlight Electronics
- Everlight Electronics Co., Ltd. was founded in 1983 in Taipei, Taiwan. Playing a critical role in the formation of the global LED industry, the company is rapidly ascending to become a leading supplier due to its dedication to certification, R&D, production, quality, marketing and global customer service. Everlight provides a diverse product portfolio consisting of High Power LEDs, Lamps, SMD LEDs, LED Lighting Modules, Digital Displays, Optocouplers and Infrared Components for various applications. Today, Everlight is a global company with over 6,400 employees based in China, Hong Kong, Japan, Korea, Singapore, Malaysia, Germany, Sweden, U.S., and Canada.
Part Number
Manufacturer
Description
Unit Price
In Stock

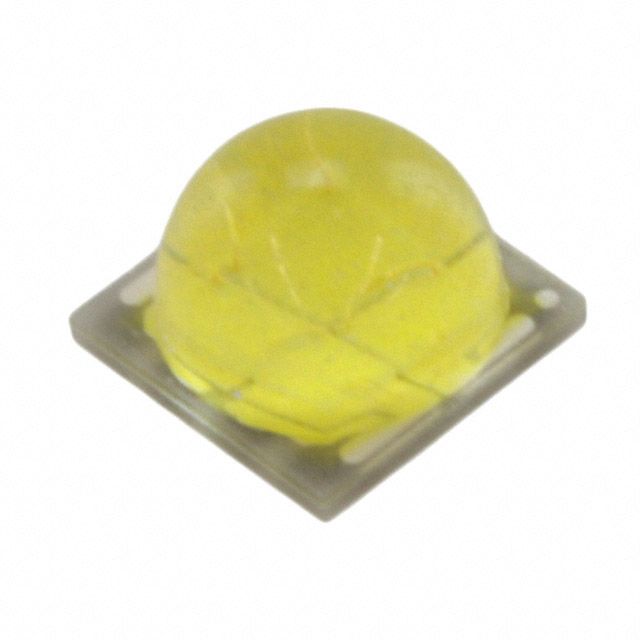

Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Yi
Part Status : Active
Color : White, Cool
CCT (K) : 6500K (6020K ~ 7050K)
Flux @ 85°C, Current - Test : 309 lm
Flux @ 25°C, Current - Test : 325 lm (325 lm ~ 350 lm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 7V
Lumens/Watt @ Current - Test : 66 lm/W
CRI (Color Rendering Index) : 70
Current - Max : 1A
Viewing Angle : 105°
Mounting Type : Surface Mount
Package / Case : 2424 (6060 Metric)
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.174" (4.43mm)
0
1082 in stock

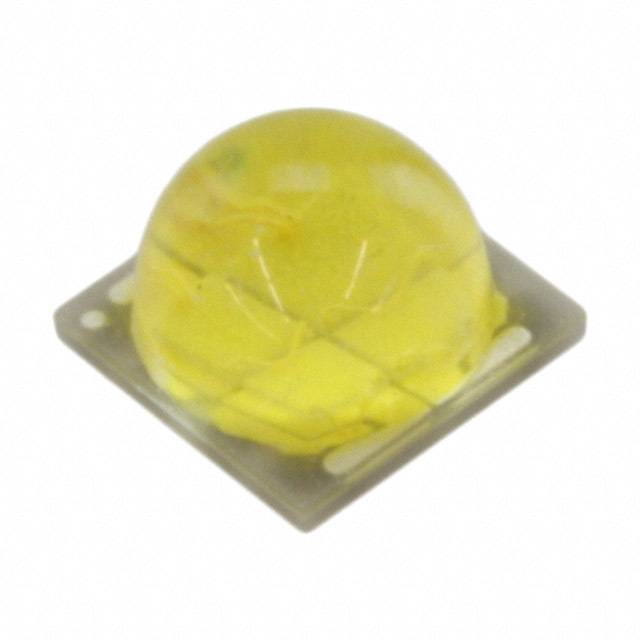

Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Yi
Part Status : Discontinued at
Color : White, Cool
CCT (K) : 5700K (5310K ~ 6020K)
Flux @ 85°C, Current - Test : 333 lm
Flux @ 25°C, Current - Test : 350 lm (350 lm ~ 375 lm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 7V
Lumens/Watt @ Current - Test : 71 lm/W
CRI (Color Rendering Index) : 70
Current - Max : 1A
Viewing Angle : 105°
Mounting Type : Surface Mount
Package / Case : 2424 (6060 Metric)
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.174" (4.43mm)
0
242 in stock

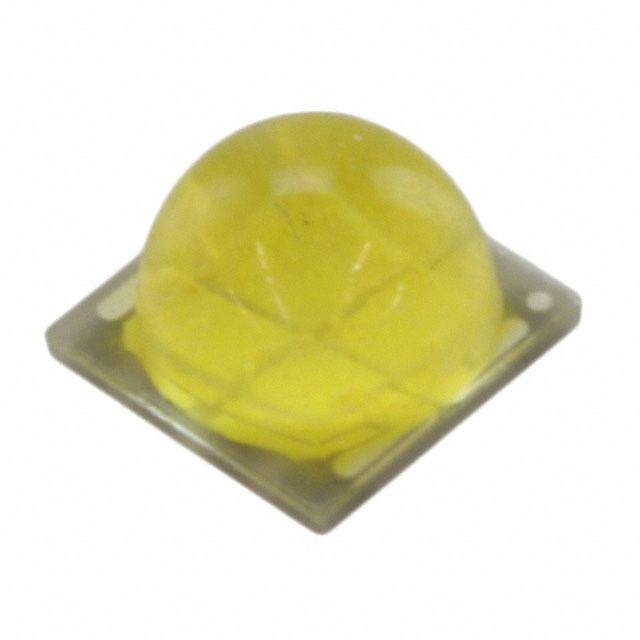

Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Yi
Part Status : Discontinued at
Color : White, Cool
CCT (K) : 6500K (6020K ~ 7050K)
Flux @ 85°C, Current - Test : 333 lm
Flux @ 25°C, Current - Test : 350 lm (350 lm ~ 375 lm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 7V
Lumens/Watt @ Current - Test : 71 lm/W
CRI (Color Rendering Index) : 70
Current - Max : 1A
Viewing Angle : 105°
Mounting Type : Surface Mount
Package / Case : 2424 (6060 Metric)
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.174" (4.43mm)
0
100 in stock
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Yi
Part Status : Discontinued at
Color : White, Cool
CCT (K) : 5700K (5310K ~ 6020K)
Flux @ 85°C, Current - Test : 356 lm
Flux @ 25°C, Current - Test : 375 lm (375 lm ~ 400 lm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 7V
Lumens/Watt @ Current - Test : 77 lm/W
CRI (Color Rendering Index) : 70
Current - Max : 1A
Viewing Angle : 105°
Mounting Type : Surface Mount
Package / Case : 2424 (6060 Metric)
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.174" (4.43mm)
0
186 in stock

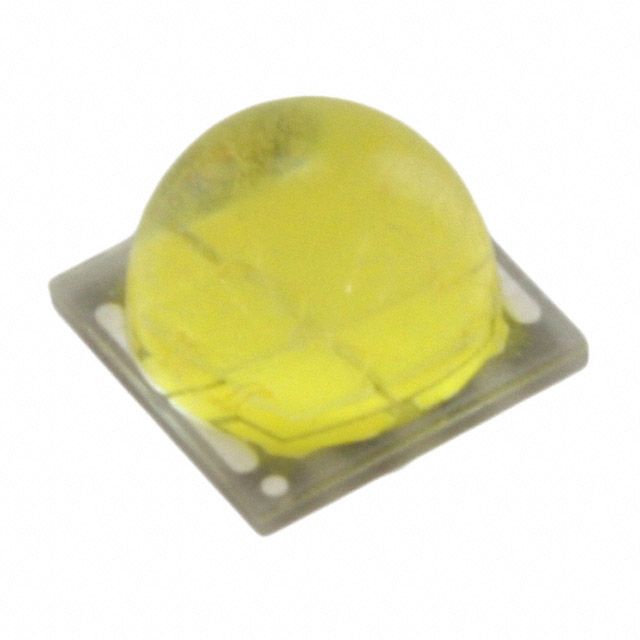

Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Yi
Part Status : Discontinued at
Color : White, Cool
CCT (K) : 6500K (6020K ~ 7050K)
Flux @ 85°C, Current - Test : 356 lm
Flux @ 25°C, Current - Test : 375 lm (375 lm ~ 400 lm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 7V
Lumens/Watt @ Current - Test : 77 lm/W
CRI (Color Rendering Index) : 70
Current - Max : 1A
Viewing Angle : 105°
Mounting Type : Surface Mount
Package / Case : 2424 (6060 Metric)
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.174" (4.43mm)
0
343 in stock
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : G62-127ET
Part Status : Active
Color : White, Warm
CCT (K) : 3500K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 30 lm (Typ)
Current - Test : 65mA
Voltage - Forward (Vf) (Typ) : 2.75V
Lumens/Watt @ Current - Test : 168 lm/W
CRI (Color Rendering Index) : 90
Current - Max : 180mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 2211 (5630 Metric)
Supplier Device Package : 2-PLCC
Size / Dimension : 0.220" L x 0.118" W (5.60mm x 3.00mm)
Height - Seated (Max) : 0.032" (0.80mm)
0
31717 in stock
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 1MHz
Propagation Delay tpLH / tpHL (Max) : 4µs, 4µs
Rise / Fall Time (Typ) : 100ns, 100ns
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Voltage - Supply : 3 V ~ 16 V
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SMD, Gull Wing
Supplier Device Package : 6-SMD
0
10433 in stock
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 1MHz
Propagation Delay tpLH / tpHL (Max) : 4µs, 4µs
Rise / Fall Time (Typ) : 100ns, 100ns
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Voltage - Supply : 3 V ~ 16 V
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SMD, Gull Wing
Supplier Device Package : 6-SMD
0
956 in stock

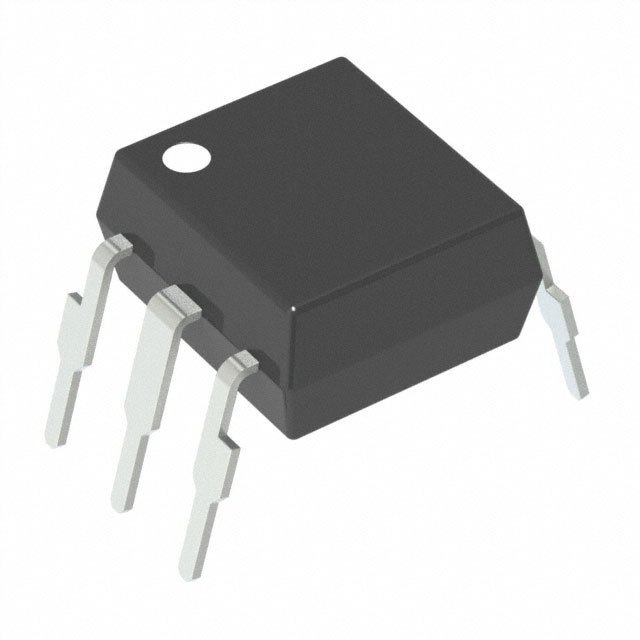

Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 1MHz
Propagation Delay tpLH / tpHL (Max) : 4µs, 4µs
Rise / Fall Time (Typ) : 100ns, 100ns
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Voltage - Supply : 3 V ~ 16 V
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
38 in stock
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 1MHz
Propagation Delay tpLH / tpHL (Max) : 4µs, 4µs
Rise / Fall Time (Typ) : 100ns, 100ns
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Voltage - Supply : 3 V ~ 16 V
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
111 in stock

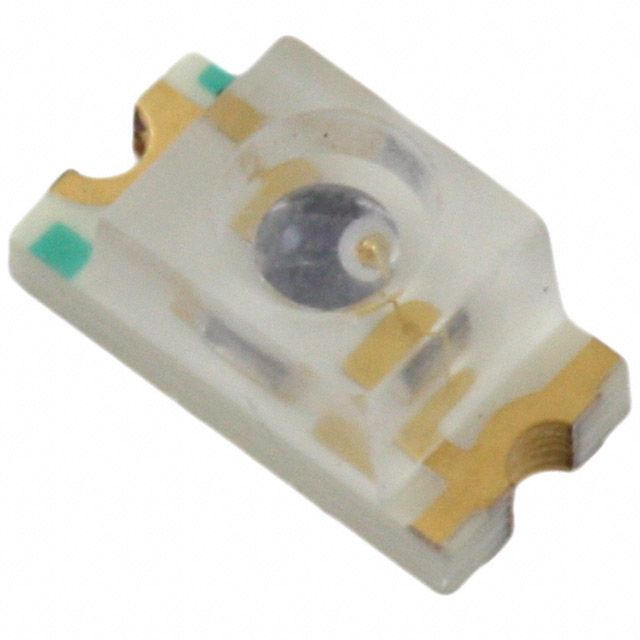

Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 65mA
Radiant Intensity (Ie) Min @ If : 1mW/sr @ 20mA
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.45V
Viewing Angle : 75°
Orientation : Top View
Operating Temperature : -25°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 1206 (3016 Metric)
0
1781 in stock

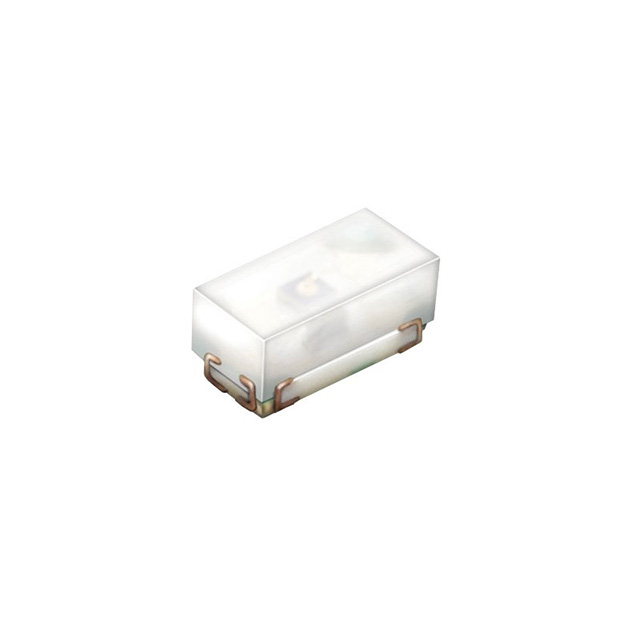

Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 65mA
Radiant Intensity (Ie) Min @ If : 0.50mW/sr @ 20mA
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.45V
Viewing Angle : 145°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
0
7608 in stock
.jpg "Show details for H11L1S(TA)")

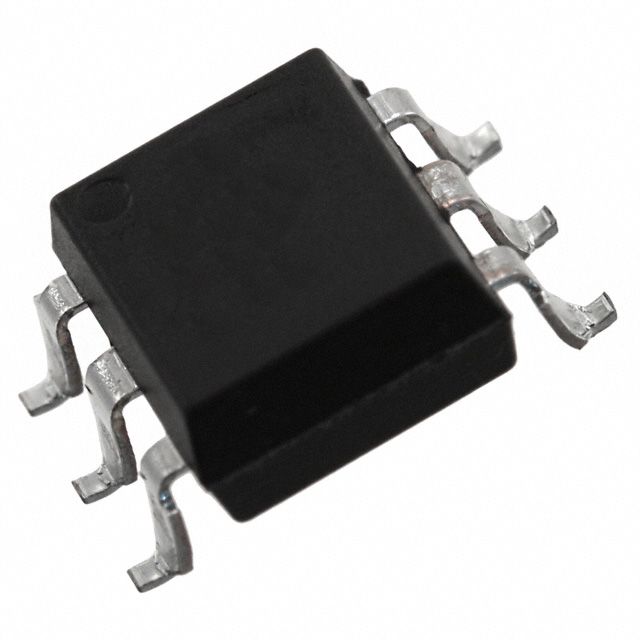

V.jpg "Show details for H11L1S1(TA)-V")
