Everlight Electronics
- Everlight Electronics Co., Ltd. was founded in 1983 in Taipei, Taiwan. Playing a critical role in the formation of the global LED industry, the company is rapidly ascending to become a leading supplier due to its dedication to certification, R&D, production, quality, marketing and global customer service. Everlight provides a diverse product portfolio consisting of High Power LEDs, Lamps, SMD LEDs, LED Lighting Modules, Digital Displays, Optocouplers and Infrared Components for various applications. Today, Everlight is a global company with over 6,400 employees based in China, Hong Kong, Japan, Korea, Singapore, Malaysia, Germany, Sweden, U.S., and Canada.
Part Number
Manufacturer
Description
Unit Price
In Stock
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Tape & Reel (TR)
Series : SHUEN
Part Status : Discontinued at
Color : Red
Wavelength : 660nm (645nm ~ 675nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.35V
Lumens/Watt @ Current - Test : -
Current - Max : 600mA
Flux @ Current/Temperature - Test : 313mW (275mW ~ 350mW)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1218 (3246 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.120" L x 0.177" W (3.05mm x 4.50mm)
Height - Seated (Max) : 0.085" (2.15mm)
0
100 in stock
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Tape & Reel (TR)
Series : SHUEN
Part Status : Discontinued at
Color : Blue
Wavelength : 453nm (445nm ~ 460nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.25V
Lumens/Watt @ Current - Test : -
Current - Max : 600mA
Flux @ Current/Temperature - Test : 313mW (275mW ~ 350mW)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1218 (3246 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.120" L x 0.177" W (3.05mm x 4.50mm)
Height - Seated (Max) : 0.085" (2.15mm)
0
100 in stock
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SHWO
Part Status : Discontinued at
Color : Blue
Wavelength : 465nm (460nm ~ 470nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.25V
Lumens/Watt @ Current - Test : 13 lm/W
Current - Max : 400mA
Flux @ Current/Temperature - Test : 15 lm (13 lm ~ 17 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.138" W (3.50mm x 3.50mm)
Height - Seated (Max) : 0.088" (2.23mm)
0
342 in stock
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Tape & Reel (TR)
Series : SHWO
Part Status : Discontinued at
Color : Blue
Wavelength : 465nm (460nm ~ 470nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.25V
Lumens/Watt @ Current - Test : 17 lm/W
Current - Max : 400mA
Flux @ Current/Temperature - Test : 19 lm (17 lm ~ 20 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.138" W (3.50mm x 3.50mm)
Height - Seated (Max) : 0.088" (2.23mm)
0
100 in stock
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SHWO
Part Status : Active
Color : Blue
Wavelength : 465nm (460nm ~ 470nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.25V
Lumens/Watt @ Current - Test : 17 lm/W
Current - Max : 400mA
Flux @ Current/Temperature - Test : 19 lm (17 lm ~ 20 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.138" W (3.50mm x 3.50mm)
Height - Seated (Max) : 0.088" (2.23mm)
0
587 in stock
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SHWO
Part Status : Discontinued at
Color : Blue
Wavelength : 463nm (455nm ~ 470nm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 3.55V
Lumens/Watt @ Current - Test : 9 lm/W
Current - Max : 750mA
Flux @ Current/Temperature - Test : 22 lm (20 lm ~ 23 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.138" W (3.50mm x 3.50mm)
Height - Seated (Max) : 0.088" (2.23mm)
0
255 in stock
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SHWO
Part Status : Discontinued at
Color : Blue
Wavelength : 463nm (455nm ~ 470nm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 3.55V
Lumens/Watt @ Current - Test : 10 lm/W
Current - Max : 750mA
Flux @ Current/Temperature - Test : 25 lm (23 lm ~ 27 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.138" W (3.50mm x 3.50mm)
Height - Seated (Max) : 0.088" (2.23mm)
0
350 in stock
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SHWO
Part Status : Discontinued at
Color : Orange
Wavelength : 615nm (610nm ~ 620nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.35V
Lumens/Watt @ Current - Test : 68 lm/W
Current - Max : 400mA
Flux @ Current/Temperature - Test : 56 lm (52 lm ~ 60 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.138" W (3.50mm x 3.50mm)
Height - Seated (Max) : 0.088" (2.23mm)
0
160 in stock
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SHWO
Part Status : Discontinued at
Color : Red
Wavelength : 625nm (620nm ~ 630nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.35V
Lumens/Watt @ Current - Test : 68 lm/W
Current - Max : 400mA
Flux @ Current/Temperature - Test : 56 lm (52 lm ~ 60 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.138" W (3.50mm x 3.50mm)
Height - Seated (Max) : 0.088" (2.23mm)
0
378 in stock
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SHWO
Part Status : Active
Color : Amber
Wavelength : 589nm (585nm ~ 593nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.35V
Lumens/Watt @ Current - Test : 68 lm/W
Current - Max : 400mA
Flux @ Current/Temperature - Test : 56 lm (52 lm ~ 60 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.138" W (3.50mm x 3.50mm)
Height - Seated (Max) : 0.088" (2.23mm)
0
1710 in stock
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SHWO
Part Status : Discontinued at

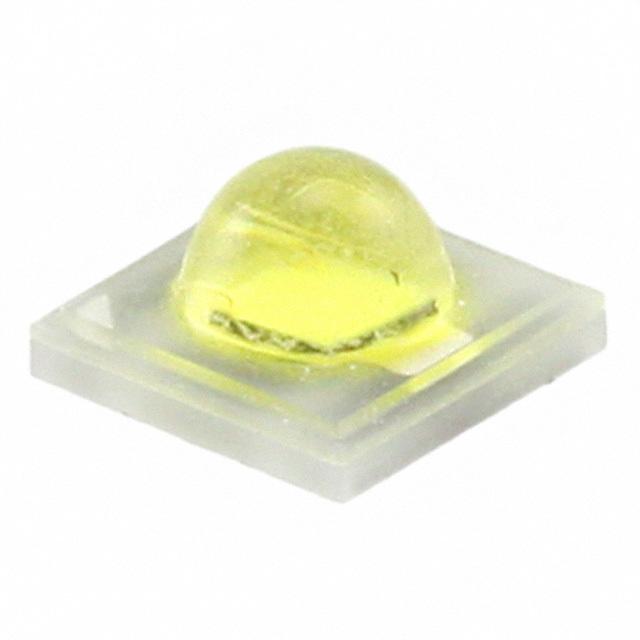

Color : White, Warm
CCT (K) : 2700K (2580K ~ 2870K)
Flux @ 85°C, Current - Test : 52 lm
Flux @ 25°C, Current - Test : 60 lm (60 lm ~ 70 lm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.25V
Lumens/Watt @ Current - Test : 53 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 600mA
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : -
Size / Dimension : 0.138" L x 0.138" W (3.50mm x 3.50mm)
Height - Seated (Max) : 0.084" (2.13mm)
0
100 in stock
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SHWO
Part Status : Discontinued at
Color : Orange
Wavelength : 615nm (610nm ~ 620nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.35V
Lumens/Watt @ Current - Test : 79 lm/W
Current - Max : 400mA
Flux @ Current/Temperature - Test : 65 lm (60 lm ~ 70 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.138" W (3.50mm x 3.50mm)
Height - Seated (Max) : 0.088" (2.23mm)
0
287 in stock
