E-Switch

- E-Switch, Inc. is a leading electromechanical switch supplier that offers one of the broadest switch lines available today. Product offerings continue to expand each year with new product introductions that cater to markets including; industrial, electronics, audio/visual, medical devices and equipment, fitness and wellness, computer peripheral, consumer, appliance and many others. Customer demand has prompted the addition of several new products, including new series of tact, snap-action; slide, sealed, illuminated and anti-vandal pushbutton switches; SMT pushbutton switches; and illuminated rocker switches. E-Switch has been delivering innovative and quality switches to the global market since 1979.

Headquartered in Minneapolis, Minnesota, E-Switch has local reps, engineers, and account managers on hand to provide specifying assistance and quick response to 3D drawing requests and other inquiries, along with a top-notch sample program that allows engineers to examine and qualify switches for end product applications.


Part Number

Manufacturer

Description

Unit Price

In Stock

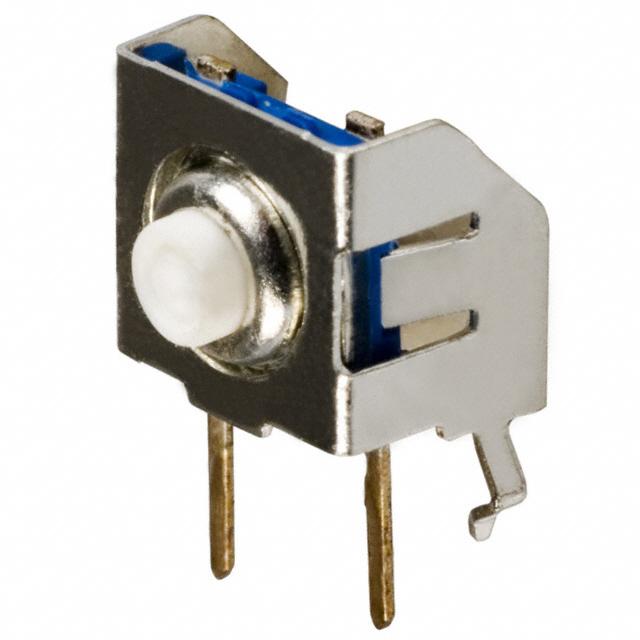

GSR6.34F130QP

E-Switch

Manufacturer : E-Switch
Packaging : Bulk
Series : GS
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 50VDC
Actuator Type : Standard
Mounting Type : Through Hole, Right Angle
Actuator Height off PCB, Vertical : -
Actuator Length, Right Angle : 6.34mm
Actuator Orientation : Side Actuated
Termination Style : PC Pin
Outline : 8.00mm x 8.00mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Operating Force : 130gf
Ingress Protection : -
Features : -
Operating Temperature : -40°C ~ 80°C

829 in stock

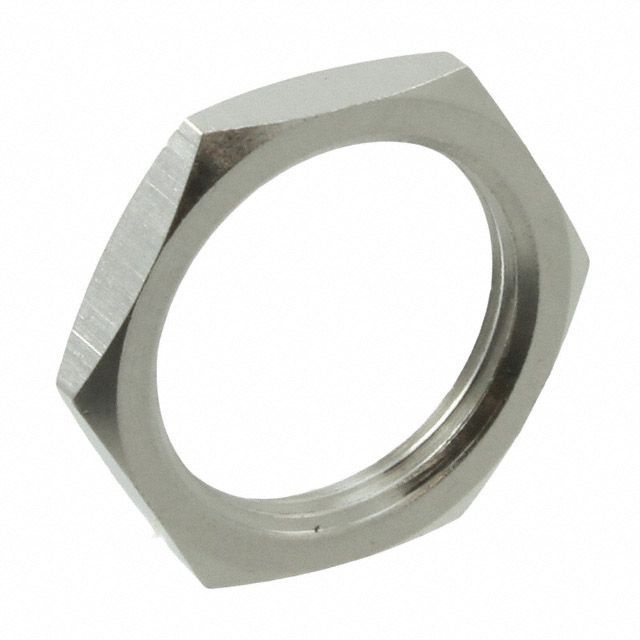

HDW211048UNSHEXNUT

E-Switch

Manufacturer : E-Switch
Series : 200
Part Status : Active
Accessory Type : Hex Nut
For Use With/Related Products : 200 Series

1500 in stock

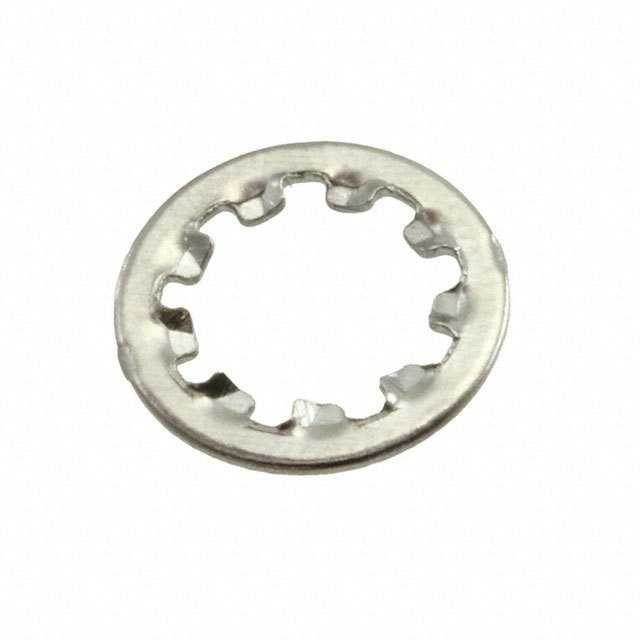

HDW22LOCKWASHERPLTD

E-Switch

Manufacturer : E-Switch
Series : 200
Part Status : Active
Accessory Type : Lockwasher
For Use With/Related Products : 200 Series

978 in stock

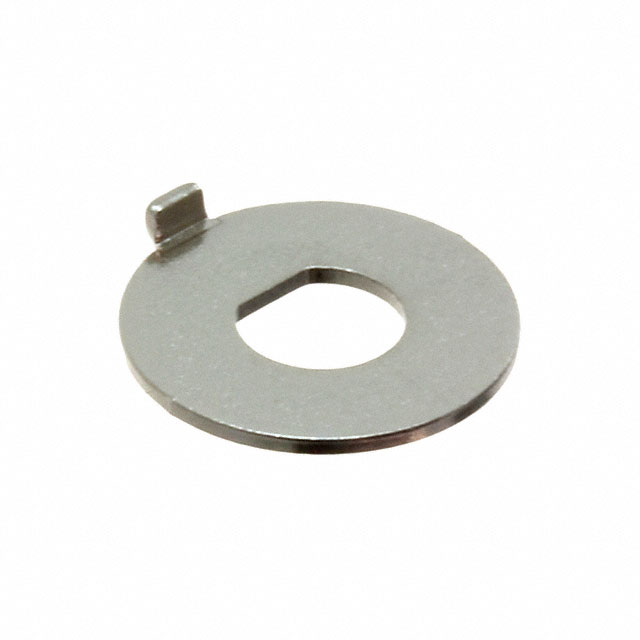

HDW23FLATLOCKINGRING

E-Switch

Manufacturer : E-Switch
Series : 200
Part Status : Active
Accessory Type : Locking Ring
For Use With/Related Products : 200 Series

1974 in stock

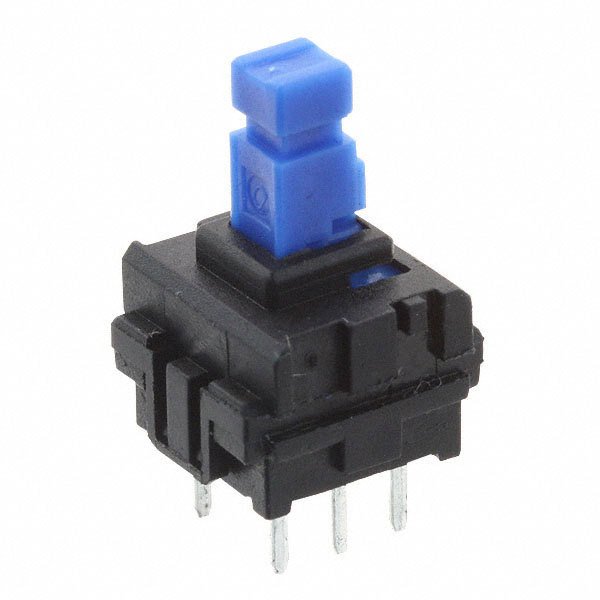

JN2UEENAGX

E-Switch

Manufacturer : E-Switch
Packaging : Bulk
Series : JN
Part Status : Active
Type : Standard
Circuit : DPDT
Switch Function : On-On
Current Rating : 100mA (DC)
Voltage Rating - AC : -
Voltage Rating - DC : 30V
Actuator Type : Plunger for Cap
Color - Actuator/Cap : Blue
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Mounting Type : Through Hole
Termination Style : PC Pin
Ingress Protection : -
Features : -
Panel Cutout Dimensions : -
Operating Temperature : -10°C ~ 60°C

5931 in stock

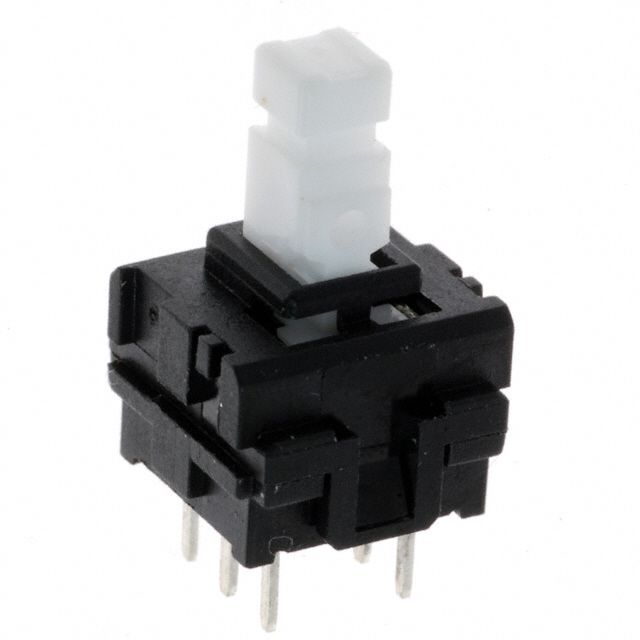

JN2UOANAGX

E-Switch

Manufacturer : E-Switch
Packaging : Bulk
Series : JN
Part Status : Active
Type : Standard
Circuit : DPDT
Switch Function : On-Mom
Current Rating : 100mA (DC)
Voltage Rating - AC : -
Voltage Rating - DC : 30V
Actuator Type : Plunger for Cap
Color - Actuator/Cap : White
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Mounting Type : Through Hole
Termination Style : PC Pin
Ingress Protection : -
Features : -
Panel Cutout Dimensions : -
Operating Temperature : -10°C ~ 60°C

2432 in stock

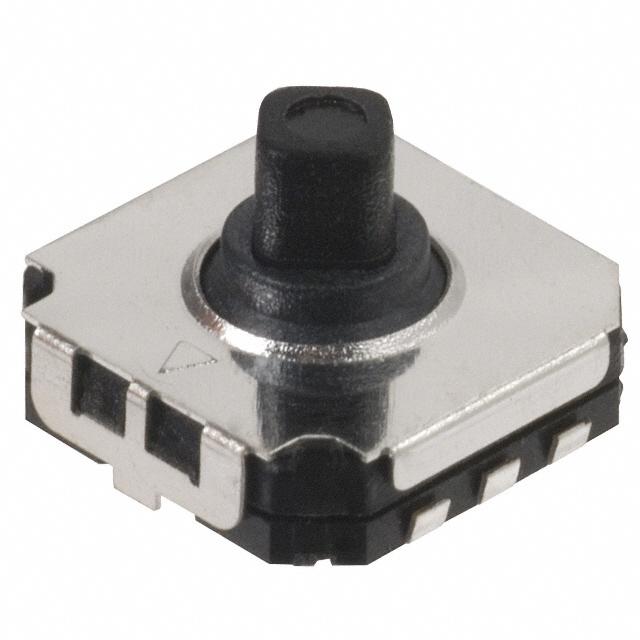

JS1200AAQ

E-Switch

Manufacturer : E-Switch
Series : JS1200
Part Status : Obsolete
Type : Navigation Switch, 2 - Axis
Actuator Type : Plunger for Cap
Switch Function : 4-Way Directional, Center Select
Functions, Extra : -
Output : Digital (Mechanical Switch)
Voltage - Supply : -
Current Rating : 20mA (DC)
Voltage Rating - AC : -
Voltage Rating - DC : 15V
Contact Material : -
Contact Finish : -
Mounting Type : Surface Mount
Termination Style : J Lead
Operating Temperature : -25°C ~ 70°C
Panel Cutout Dimensions : -
Ingress Protection : -
Features : -

100 in stock

JS1200ABQ

E-Switch

100 in stock

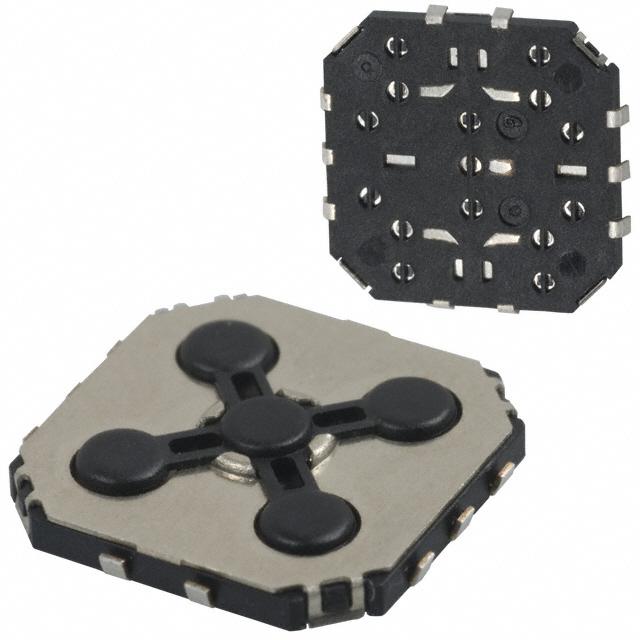

JS1300AQ

E-Switch

Manufacturer : E-Switch
Series : JS1300
Part Status : Discontinued at
Type : Navigation Switch, 2 - Axis
Actuator Type : Tactile (5 Button)
Switch Function : 4-Way Directional, Center Select
Functions, Extra : -
Output : Digital (Mechanical Switch)
Voltage - Supply : -
Current Rating : 50mA (DC)
Voltage Rating - AC : -
Voltage Rating - DC : 12V
Contact Material : -
Contact Finish : -
Mounting Type : Surface Mount
Termination Style : J Lead
Operating Temperature : -20°C ~ 70°C
Panel Cutout Dimensions : -
Ingress Protection : -
Features : -

100 in stock

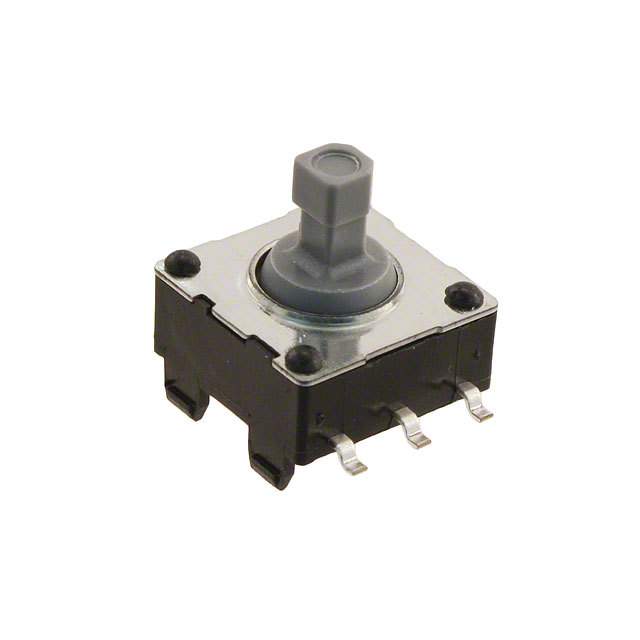

JS5208

E-Switch

Manufacturer : E-Switch
Series : JS5208
Part Status : Active
Type : Navigation Switch, 2 - Axis
Actuator Type : Plunger for Cap
Switch Function : 4-Way Directional, Center Select
Functions, Extra : -
Output : Digital (Mechanical Switch)
Voltage - Supply : -
Current Rating : 20mA (DC)
Voltage Rating - AC : -
Voltage Rating - DC : 15V
Contact Material : -
Contact Finish : -
Mounting Type : Surface Mount
Termination Style : Gull Wing
Operating Temperature : -20°C ~ 70°C
Panel Cutout Dimensions : -
Ingress Protection : -
Features : -

6698 in stock

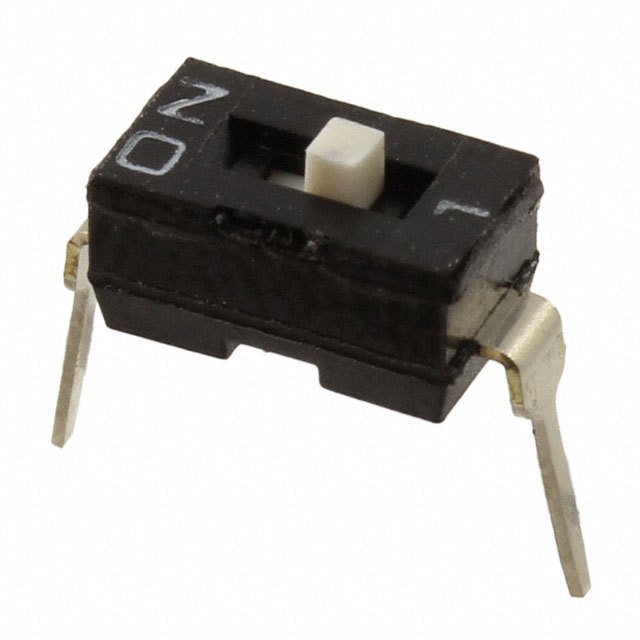

KAE01LAGT

E-Switch

Manufacturer : E-Switch
Packaging : Tube
Series : KAE
Part Status : Active
Circuit : SPST
Number of Positions : 1
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Copper
Contact Finish : Gold
Height Above Board : 0.169" (4.30mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : No
Features : -
Operating Temperature : -20°C ~ 85°C

7181 in stock

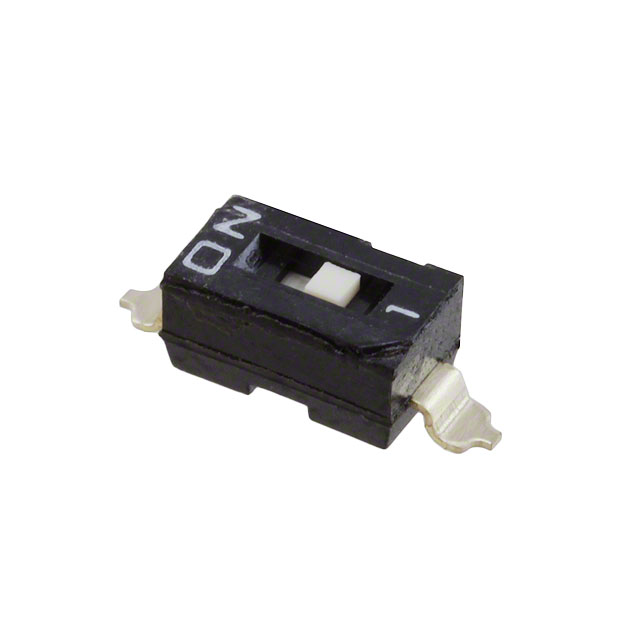

KAE01SGGT

E-Switch

Manufacturer : E-Switch
Packaging : Tube
Series : KAE
Part Status : Active
Circuit : SPST
Number of Positions : 1
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Copper
Contact Finish : Gold
Height Above Board : 0.148" (3.75mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.100" (2.54mm), Full
Washable : No
Features : -
Operating Temperature : -20°C ~ 85°C

3138 in stock
