Diodes Incorporated

- Diodes Incorporated is a leading global manufacturer and supplier of high-quality application specific standard products within the broad discrete, logic, analog and mixed-signal semiconductor markets. In November 2015, Pericom Semiconductor became a part of Diodes Incorporated strengthening its portfolio with serial high-speed switching, signal integrity, connectivity and timing solutions.


Part Number

Manufacturer

Description

Unit Price

In Stock

ZXTP05120HFFTA

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 120V
Vce Saturation (Max) @ Ib, Ic : 2V @ 2mA, 2A
Current - Collector Cutoff (Max) : 10µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 3000 @ 1A, 5V
Power - Max : 1.5W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F

16969 in stock

ZXTP07012EFFTA

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 12V
Vce Saturation (Max) @ Ib, Ic : 340mV @ 80mA, 4A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 500 @ 10mA, 2V
Power - Max : 1.5W
Frequency - Transition : 250MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F

46 in stock

ZXTP07040DFFTA

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 390mV @ 150mA, 3A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 1.5W
Frequency - Transition : 200MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F

100 in stock

ZXTP08400BFFTA

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 400V
Vce Saturation (Max) @ Ib, Ic : 190mV @ 40mA, 200mA
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 50mA, 5V
Power - Max : 1.5W
Frequency - Transition : 70MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F

7950 in stock

ZXTP19020CFFTA

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 135mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 200MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F

100 in stock

ZXTP19020DFFTA

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5.5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 175mV @ 550mA, 5.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 176MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F

22533 in stock

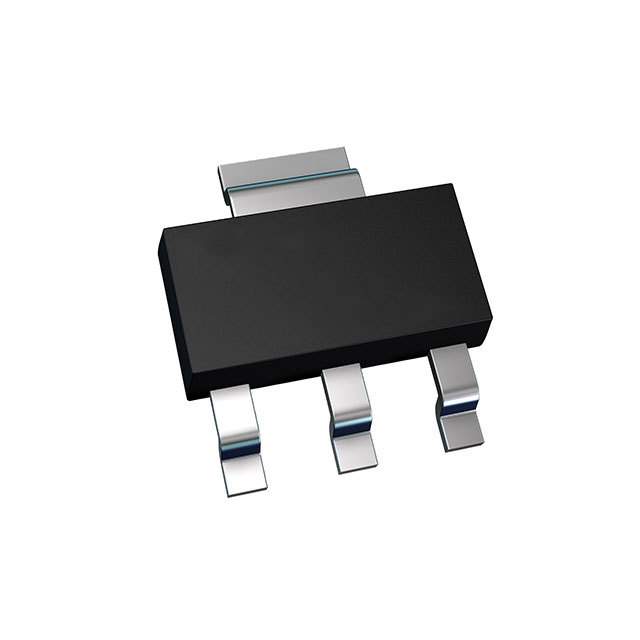

ZXTP19020DGTA

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 8A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 275mV @ 800mA, 8A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 2V
Power - Max : 3W
Frequency - Transition : 176MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223

2482 in stock

ZXTP19020DZTA

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 6A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 275mV @ 300mA, 6A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 2V
Power - Max : 2.4W
Frequency - Transition : 176MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3

2043 in stock

ZXTP19060CFFTA

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 270mV @ 400mA, 4A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 180MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F

100 in stock

ZXTP19060CGTA

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 3W
Frequency - Transition : 180MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223

823 in stock

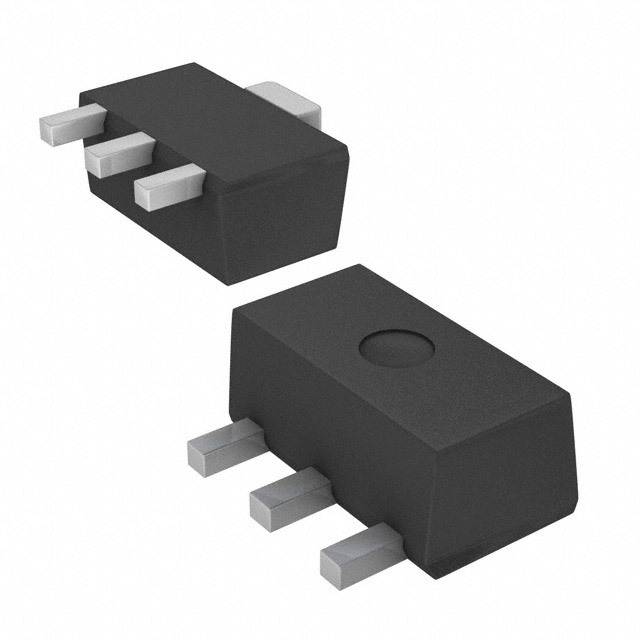

ZXTP19060CZTA

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4.5A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 410mV @ 450mA, 4.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 2.4W
Frequency - Transition : 180MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3

475 in stock

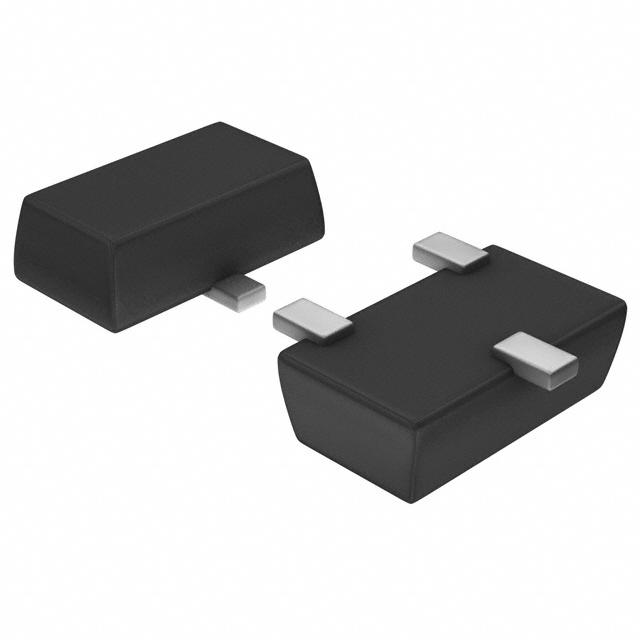

ZXTP19100CFFTA

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 275mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 142MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F

17068 in stock
