Diodes Incorporated
- Diodes Incorporated is a leading global manufacturer and supplier of high-quality application specific standard products within the broad discrete, logic, analog and mixed-signal semiconductor markets. In November 2015, Pericom Semiconductor became a part of Diodes Incorporated strengthening its portfolio with serial high-speed switching, signal integrity, connectivity and timing solutions.
Part Number
Manufacturer
Description
Unit Price
In Stock

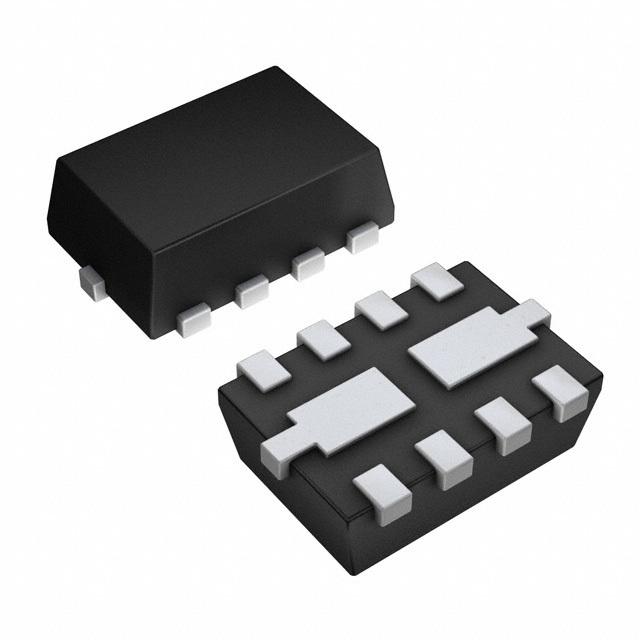

Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : NPN, PNP
Current - Collector (Ic) (Max) : 4.5A, 3.5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 270mV @ 125mA, 4.5A / 300mV @ 350mA, 3.5A
Current - Collector Cutoff (Max) : 25nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 2A, 2V / 150 @ 2A, 2V
Power - Max : 1.7W
Frequency - Transition : 140MHz, 180MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-VDFN Exposed Pad
Supplier Device Package : 8-MLP (3x2)
0
100 in stock
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 4.5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 270mV @ 125mA, 4.5A
Current - Collector Cutoff (Max) : 25nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 2A, 2V
Power - Max : 1.7W
Frequency - Transition : 140MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-VDFN Exposed Pad
Supplier Device Package : 8-MLP (3x2)
0
100 in stock

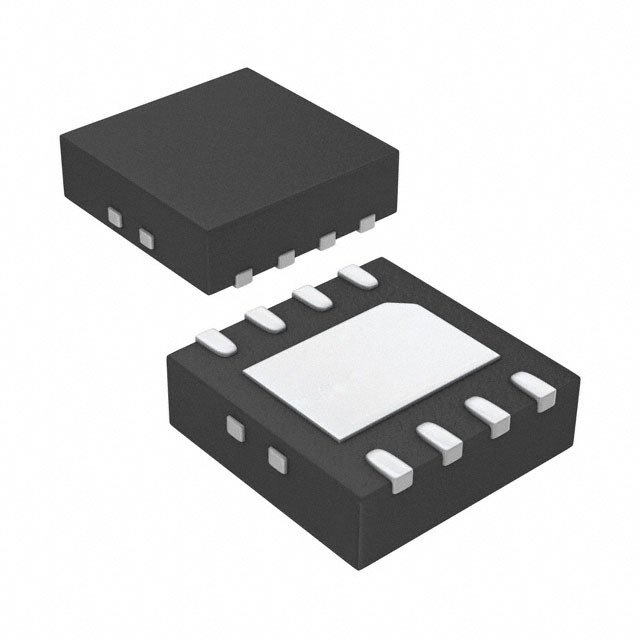

Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : NPN, PNP
Current - Collector (Ic) (Max) : 4A, 3A
Voltage - Collector Emitter Breakdown (Max) : 50V, 40V
Vce Saturation (Max) @ Ib, Ic : 320mV @ 200mA, 4A / 370mV @ 250mA, 2.5A
Current - Collector Cutoff (Max) : 25nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 2V / 60 @ 1.5A, 2V
Power - Max : 1W
Frequency - Transition : 165MHz, 190MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-VDFN Exposed Pad
Supplier Device Package : 8-MLP (3x2)
0
100 in stock
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 2 NPN (Dual)
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 320mV @ 200mA, 4A
Current - Collector Cutoff (Max) : 25nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 2V
Power - Max : 1.7W
Frequency - Transition : 165MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-VDFN Exposed Pad
Supplier Device Package : 8-MLP (3x2)
0
100 in stock
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : NPN, PNP
Current - Collector (Ic) (Max) : 3.5A, 2.5A
Voltage - Collector Emitter Breakdown (Max) : 80V, 70V
Vce Saturation (Max) @ Ib, Ic : 325mV @ 300mA, 3.5A / 260mV @ 200mA, 1.5A
Current - Collector Cutoff (Max) : 25nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 200mA, 2V / 40 @ 1.5A, 5V
Power - Max : 1W
Frequency - Transition : 160MHz, 180MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-VDFN Exposed Pad
Supplier Device Package : 8-MLP (3x2)
0
100 in stock

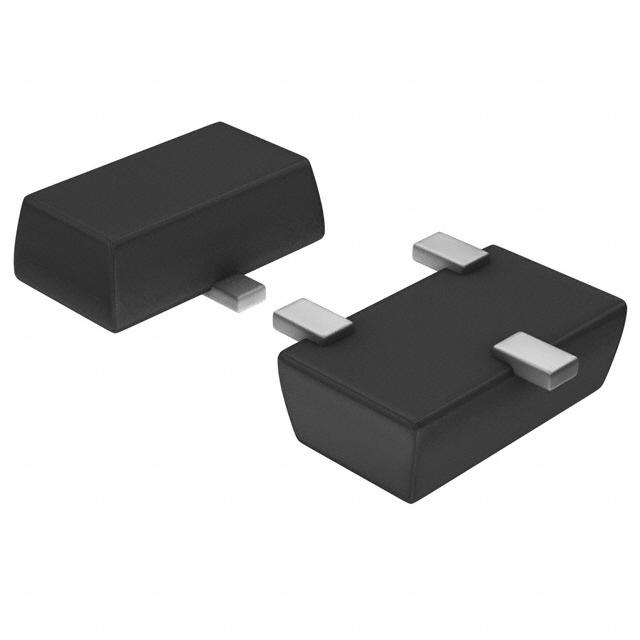

Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN - Darlington
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 120V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 5mA, 2A
Current - Collector Cutoff (Max) : 10µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 3000 @ 1A, 5V
Power - Max : 1.5W
Frequency - Transition : 120MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
60935 in stock

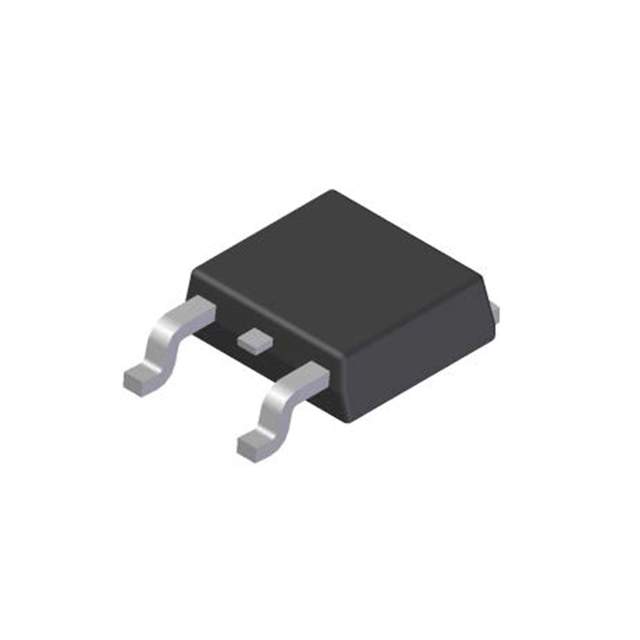

Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN - Darlington
Current - Collector (Ic) (Max) : 1.5A
Voltage - Collector Emitter Breakdown (Max) : 120V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 1mA, 1A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 1A, 5V
Power - Max : 1.5W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
0
2205 in stock

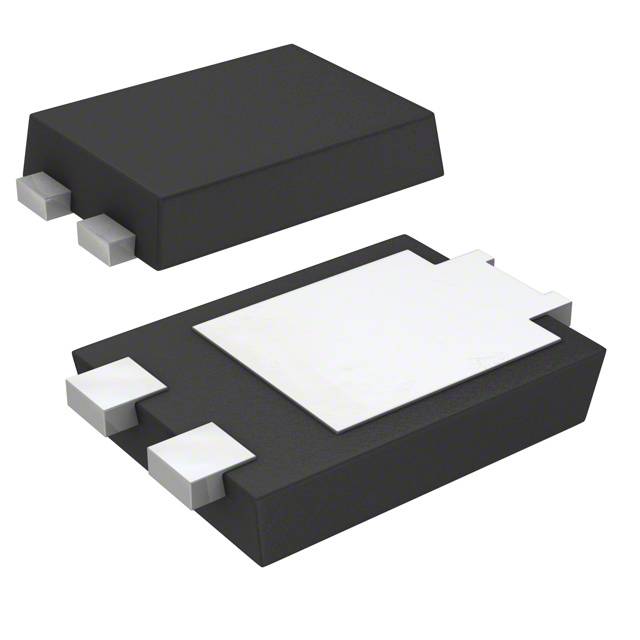

Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
Transistor Type : NPN - Darlington
Current - Collector (Ic) (Max) : 1.5A
Voltage - Collector Emitter Breakdown (Max) : 120V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 1mA, 1A
Current - Collector Cutoff (Max) : 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 1A, 5V
Power - Max : 3.2W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerDI™5
Supplier Device Package : PowerDI™5
0
1259 in stock
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 4.5A
Voltage - Collector Emitter Breakdown (Max) : 12V
Vce Saturation (Max) @ Ib, Ic : 320mV @ 45mA, 4.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 500 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 220MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
2068 in stock
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 45V
Vce Saturation (Max) @ Ib, Ic : 280mV @ 80mA, 4A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 500 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 190MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
13747 in stock
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 400V
Vce Saturation (Max) @ Ib, Ic : 175mV @ 100mA, 500mA
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 50mA, 5V
Power - Max : 1.5W
Frequency - Transition : 40MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
100 in stock
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 6.5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 190mV @ 180mA, 6.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 160MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
25 in stock
