Diodes Incorporated

- Diodes Incorporated is a leading global manufacturer and supplier of high-quality application specific standard products within the broad discrete, logic, analog and mixed-signal semiconductor markets. In November 2015, Pericom Semiconductor became a part of Diodes Incorporated strengthening its portfolio with serial high-speed switching, signal integrity, connectivity and timing solutions.


Part Number

Manufacturer

Description

Unit Price

In Stock

1N5817-B

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 20V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 750mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 20V
Capacitance @ Vr, F : 110pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -65°C ~ 125°C

154 in stock

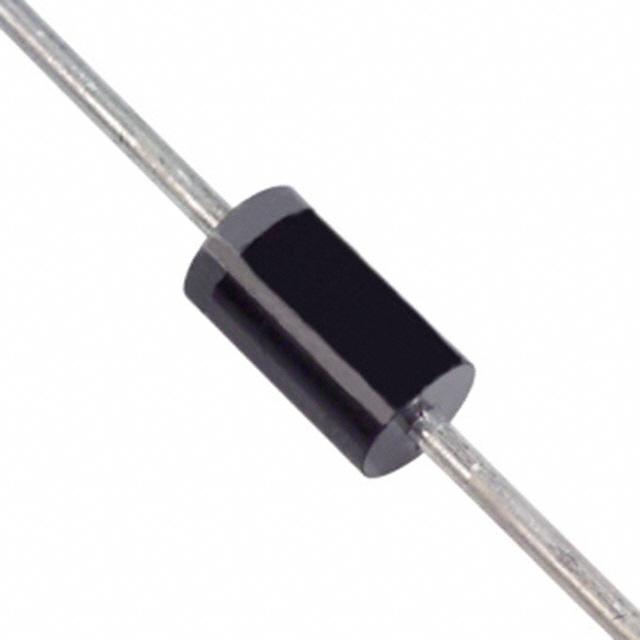

1N5817-T

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 20V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 450mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 20V
Capacitance @ Vr, F : 110pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -65°C ~ 125°C

51754 in stock

1N5818-T

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 30V
Capacitance @ Vr, F : 110pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -65°C ~ 125°C

66081 in stock

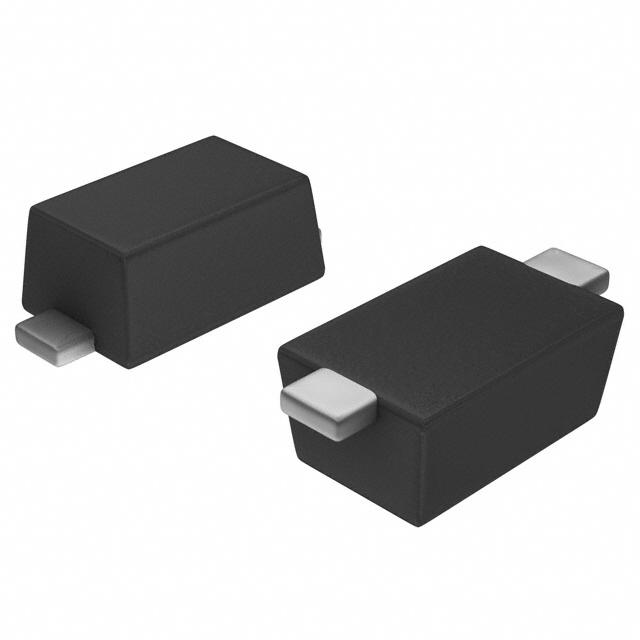

1N5819HW1-7-F

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SBR®
Part Status : Active
Diode Type : Super Barrier
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 510mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 15ns
Current - Reverse Leakage @ Vr : 500µA @ 40V
Capacitance @ Vr, F : 30pF @ 10V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123F
Supplier Device Package : SOD-123F
Operating Temperature - Junction : -55°C ~ 125°C

12650 in stock

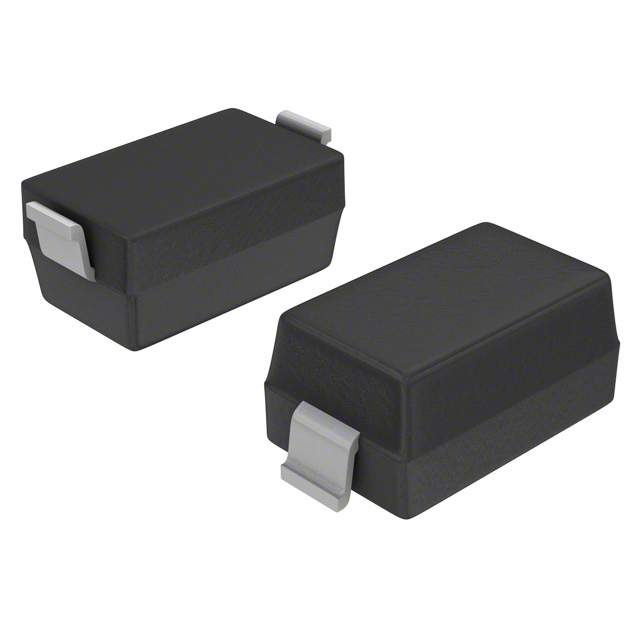

1N5819HW-7-F

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 450mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 40V
Capacitance @ Vr, F : 60pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123
Supplier Device Package : SOD-123
Operating Temperature - Junction : -65°C ~ 125°C

85907 in stock

1N5819-T

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 600mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 40V
Capacitance @ Vr, F : 110pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -65°C ~ 125°C

13718 in stock

1N6263W-7-F

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 15mA (DC)
Voltage - Forward (Vf) (Max) @ If : 1V @ 15mA
Speed : Small Signal =

1ns

200nA @ 50V

2.2pF @ 0V, 1MHz

Surface Mount

SOD-123

SOD-123

-55°C ~ 125°C
Reverse Recovery Time (trr) : 1ns
Current - Reverse Leakage @ Vr : 200nA @ 50V
Capacitance @ Vr, F : 2.2pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123
Supplier Device Package : SOD-123
Operating Temperature - Junction : -55°C ~ 125°C

100 in stock

1SMB5920B-13

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 6.2V
Tolerance : ±5%
Power - Max : 3W
Impedance (Max) (Zzt) : 2 Ohms
Current - Reverse Leakage @ Vr : 5µA @ 4V
Voltage - Forward (Vf) (Max) @ If : 1.5V @ 200mA
Operating Temperature : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB

22411 in stock

1SMB5921B-13

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 6.8V
Tolerance : ±5%
Power - Max : 3W
Impedance (Max) (Zzt) : 2.5 Ohms
Current - Reverse Leakage @ Vr : 5µA @ 5.2V
Voltage - Forward (Vf) (Max) @ If : 1.5V @ 200mA
Operating Temperature : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB

17015 in stock

1SMB5922B-13

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 7.5V
Tolerance : ±5%
Power - Max : 3W
Impedance (Max) (Zzt) : 3 Ohms
Current - Reverse Leakage @ Vr : 5µA @ 6V
Voltage - Forward (Vf) (Max) @ If : 1.5V @ 200mA
Operating Temperature : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB

4913 in stock

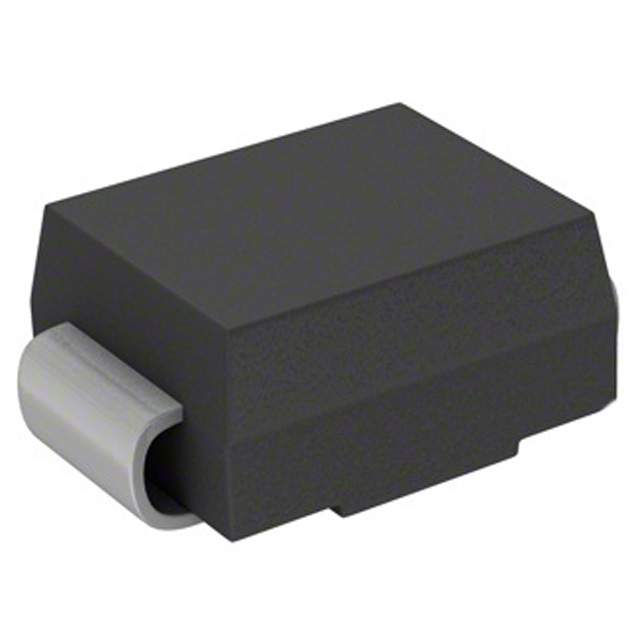

1SMB5923B-13

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 8.2V
Tolerance : ±5%
Power - Max : 3W
Impedance (Max) (Zzt) : 3.5 Ohms
Current - Reverse Leakage @ Vr : 5µA @ 6.5V
Voltage - Forward (Vf) (Max) @ If : 1.5V @ 200mA
Operating Temperature : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB

11898 in stock

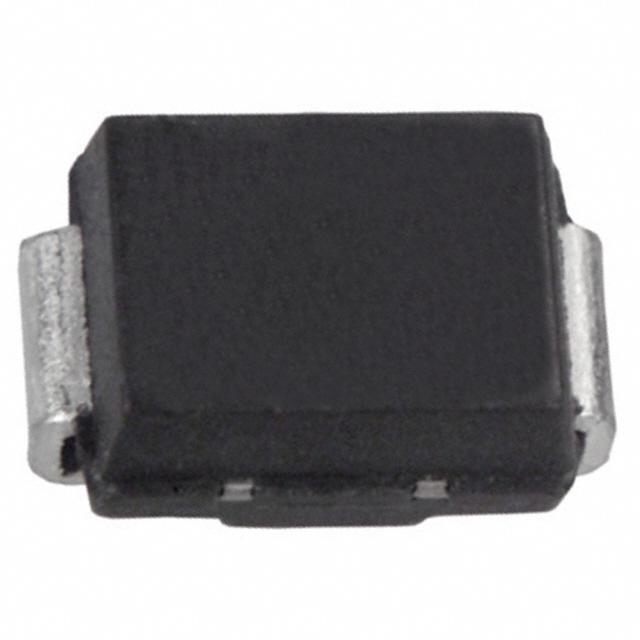

1SMB5924B-13

Diodes Incorporated

Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
Voltage - Zener (Nom) (Vz) : 9.1V
Tolerance : ±5%
Power - Max : 3W
Impedance (Max) (Zzt) : 4 Ohms
Current - Reverse Leakage @ Vr : 5µA @ 7V
Voltage - Forward (Vf) (Max) @ If : 1.5V @ 200mA
Operating Temperature : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB

358 in stock
