DFRobot
- DFRobot is a robotics and open source hardware provider that is dedicated to creating innovative, user-friendly products that foster a strong community of learning. It has a product catalog boasting over 1000 components and widgets including sensors, robotic platforms, communication modules and 3D printers.
Part Number
Manufacturer
Description
Unit Price
In Stock
FIT0486
DFRobot
Manufacturer : DFRobot
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 6VDC
RPM : 52 RPM
Torque - Rated (oz-in / mNm) : 27.78 / 196.13
Power - Rated : -
Encoder Type : Incremental
Size / Dimension : Rectangular - 0.394" x 0.472" (10.00mm x 12.00mm)
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.472" (12.00mm)
Termination Style : Connector
Features : -
Gear Reduction Ratio : 298
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 6VDC
RPM : 52 RPM
Torque - Rated (oz-in / mNm) : 27.78 / 196.13
Power - Rated : -
Encoder Type : Incremental
Size / Dimension : Rectangular - 0.394" x 0.472" (10.00mm x 12.00mm)
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.472" (12.00mm)
Termination Style : Connector
Features : -
Gear Reduction Ratio : 298
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
54 in stock

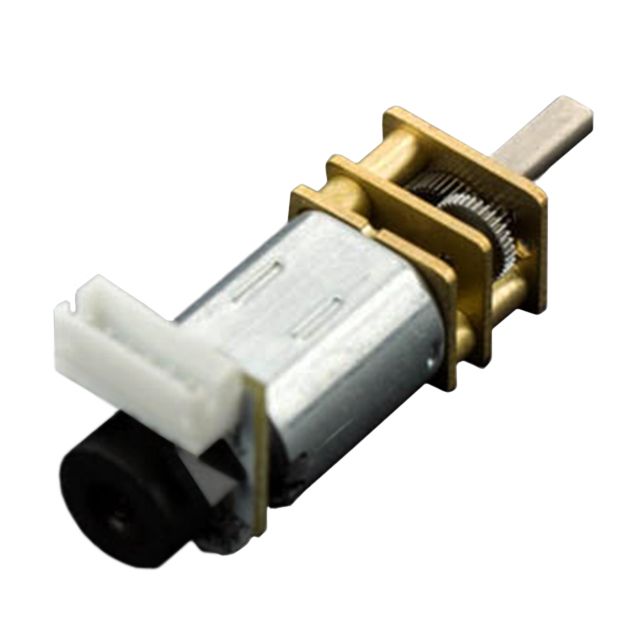

FIT0487
DFRobot
Manufacturer : DFRobot
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 6VDC
RPM : 41 RPM
Torque - Rated (oz-in / mNm) : 34.72 / 245.17
Power - Rated : -
Encoder Type : Incremental
Size / Dimension : Rectangular - 0.394" x 0.472" (10.00mm x 12.00mm)
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.472" (12.00mm)
Termination Style : Connector
Features : -
Gear Reduction Ratio : 380
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 6VDC
RPM : 41 RPM
Torque - Rated (oz-in / mNm) : 34.72 / 245.17
Power - Rated : -
Encoder Type : Incremental
Size / Dimension : Rectangular - 0.394" x 0.472" (10.00mm x 12.00mm)
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.472" (12.00mm)
Termination Style : Connector
Features : -
Gear Reduction Ratio : 380
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
97 in stock

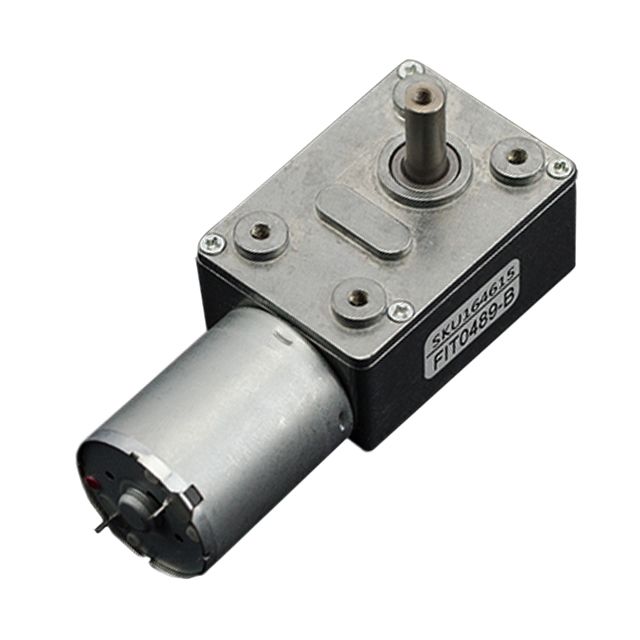

FIT0489-B
DFRobot
Manufacturer : DFRobot
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 6VDC
RPM : 40 RPM
Torque - Rated (oz-in / mNm) : 34.72 / 245.17
Power - Rated : -
Encoder Type : -
Size / Dimension : -
Diameter - Shaft : 0.236" (6.00mm)
Length - Shaft and Bearing : 0.728" (18.50mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 150
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 6VDC
RPM : 40 RPM
Torque - Rated (oz-in / mNm) : 34.72 / 245.17
Power - Rated : -
Encoder Type : -
Size / Dimension : -
Diameter - Shaft : 0.236" (6.00mm)
Length - Shaft and Bearing : 0.728" (18.50mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 150
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
15 in stock

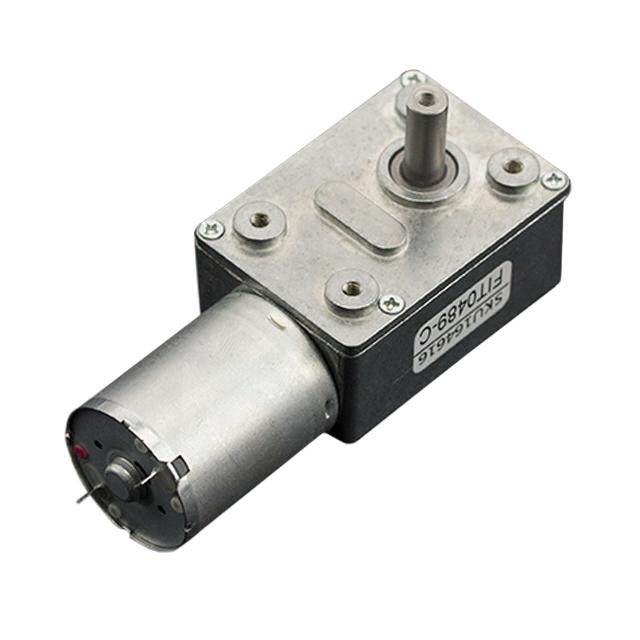

FIT0489-C
DFRobot
Manufacturer : DFRobot
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 12VDC
RPM : 160 RPM
Torque - Rated (oz-in / mNm) : 7.64 / 53.94
Power - Rated : 1.1W
Encoder Type : -
Size / Dimension : -
Diameter - Shaft : 0.236" (6.00mm)
Length - Shaft and Bearing : 0.728" (18.50mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 37.3
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 12VDC
RPM : 160 RPM
Torque - Rated (oz-in / mNm) : 7.64 / 53.94
Power - Rated : 1.1W
Encoder Type : -
Size / Dimension : -
Diameter - Shaft : 0.236" (6.00mm)
Length - Shaft and Bearing : 0.728" (18.50mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 37.3
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
24 in stock

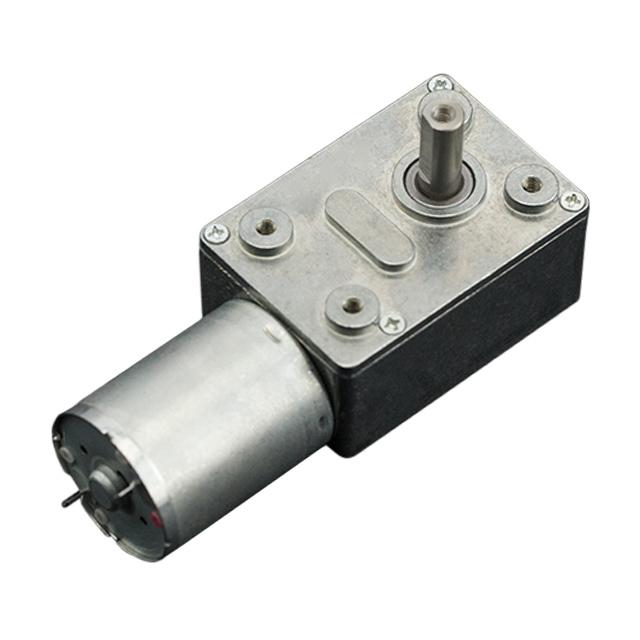

FIT0489-D
DFRobot
Manufacturer : DFRobot
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 12VDC
RPM : 40 RPM
Torque - Rated (oz-in / mNm) : 30.55 / 215.75
Power - Rated : 1.1W
Encoder Type : -
Size / Dimension : -
Diameter - Shaft : 0.236" (6.00mm)
Length - Shaft and Bearing : 0.728" (18.50mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 150
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 12VDC
RPM : 40 RPM
Torque - Rated (oz-in / mNm) : 30.55 / 215.75
Power - Rated : 1.1W
Encoder Type : -
Size / Dimension : -
Diameter - Shaft : 0.236" (6.00mm)
Length - Shaft and Bearing : 0.728" (18.50mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 150
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
21 in stock
FIT0491
DFRobot
Manufacturer : DFRobot
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 6VDC
RPM : 120 RPM
Torque - Rated (oz-in / mNm) : 4.17 / 29.42
Power - Rated : -
Encoder Type : -
Size / Dimension : Rectangular - 0.394" x 0.472" (10.00mm x 12.00mm)
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 100
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 6VDC
RPM : 120 RPM
Torque - Rated (oz-in / mNm) : 4.17 / 29.42
Power - Rated : -
Encoder Type : -
Size / Dimension : Rectangular - 0.394" x 0.472" (10.00mm x 12.00mm)
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 100
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
100 in stock

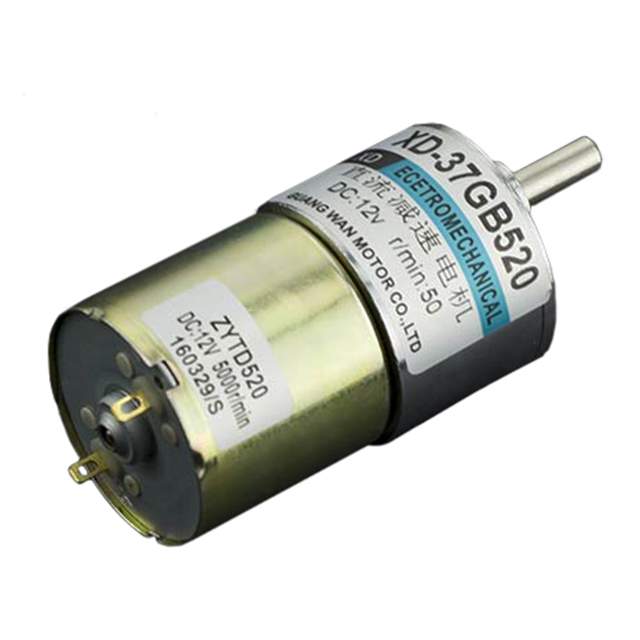

FIT0492-A
DFRobot
Manufacturer : DFRobot
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 12VDC
RPM : 50 RPM
Torque - Rated (oz-in / mNm) : 124.99 / 882.6
Power - Rated : 5W
Encoder Type : -
Size / Dimension : Round - 1.457" Dia (37.00mm)
Diameter - Shaft : 0.236" (6.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 100
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 12VDC
RPM : 50 RPM
Torque - Rated (oz-in / mNm) : 124.99 / 882.6
Power - Rated : 5W
Encoder Type : -
Size / Dimension : Round - 1.457" Dia (37.00mm)
Diameter - Shaft : 0.236" (6.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 100
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
112 in stock
FIT0492-B
DFRobot
Manufacturer : DFRobot
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 12VDC
RPM : 100 RPM
Torque - Rated (oz-in / mNm) : 97.21 / 686.47
Power - Rated : 5W
Encoder Type : -
Size / Dimension : Round - 1.457" Dia (37.00mm)
Diameter - Shaft : 0.236" (6.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 100
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 12VDC
RPM : 100 RPM
Torque - Rated (oz-in / mNm) : 97.21 / 686.47
Power - Rated : 5W
Encoder Type : -
Size / Dimension : Round - 1.457" Dia (37.00mm)
Diameter - Shaft : 0.236" (6.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 100
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
37 in stock
FIT0493
DFRobot
Manufacturer : DFRobot
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 12VDC
RPM : 350 RPM
Torque - Rated (oz-in / mNm) : -
Power - Rated : -
Encoder Type : Incremental
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.472" (12.00mm)
Mounting Hole Spacing : -
Termination Style : Connector
Features : -
Gear Reduction Ratio : 34
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 12VDC
RPM : 350 RPM
Torque - Rated (oz-in / mNm) : -
Power - Rated : -
Encoder Type : Incremental
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.472" (12.00mm)
Mounting Hole Spacing : -
Termination Style : Connector
Features : -
Gear Reduction Ratio : 34
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
30 in stock

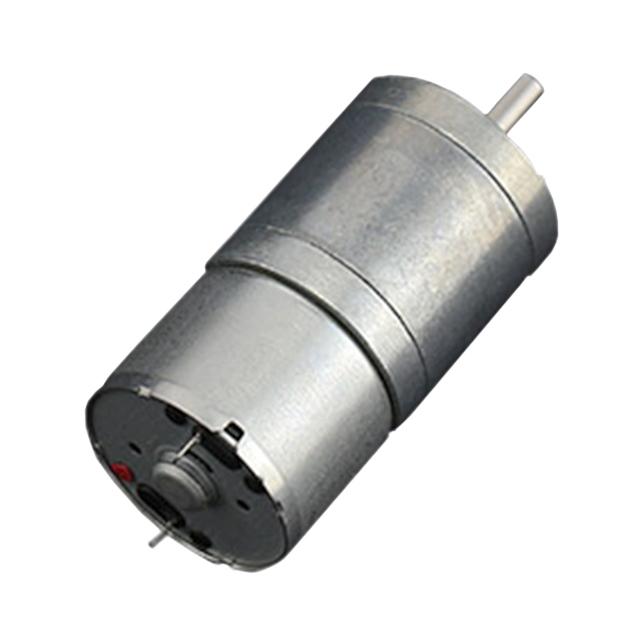

FIT0495-A
DFRobot
Manufacturer : DFRobot
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 6VDC
RPM : 15 RPM
Torque - Rated (oz-in / mNm) : -
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.984" Dia (25.00mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.472" (12.00mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 478
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -20°C ~ 60°C
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 6VDC
RPM : 15 RPM
Torque - Rated (oz-in / mNm) : -
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.984" Dia (25.00mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.472" (12.00mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 478
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -20°C ~ 60°C
0
335 in stock
FIT0495-B
DFRobot
Manufacturer : DFRobot
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 6VDC
RPM : 20 RPM
Torque - Rated (oz-in / mNm) : -
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.984" Dia (25.00mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.472" (12.00mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 362
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -20°C ~ 60°C
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 6VDC
RPM : 20 RPM
Torque - Rated (oz-in / mNm) : -
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.984" Dia (25.00mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.472" (12.00mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 362
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -20°C ~ 60°C
0
22 in stock
FIT0495-E
DFRobot
Manufacturer : DFRobot
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 6VDC
RPM : 73 RPM
Torque - Rated (oz-in / mNm) : -
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.984" Dia (25.00mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.472" (12.00mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 99
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -20°C ~ 60°C
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 6VDC
RPM : 73 RPM
Torque - Rated (oz-in / mNm) : -
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.984" Dia (25.00mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.472" (12.00mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 99
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -20°C ~ 60°C
0
19 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
