Delta Electronics
- Delta Group is the world's largest provider of switching power supplies and brushless fans, as well as a major source for power management solutions, components, visual displays, industrial automation, networking products, and renewable energy solutions. Established in 1971, Delta Group has sales offices worldwide and manufacturing plants in Taiwan, Thailand, China, Mexico and Europe. As a global leader in power electronics, Delta's mission is "To provide innovative, clean and efficient energy solutions for a better tomorrow." Delta is committed to environmental protection and has implemented green, lead-free production and recycling and waste management programs for many years.
Part Number
Manufacturer
Description
Unit Price
In Stock

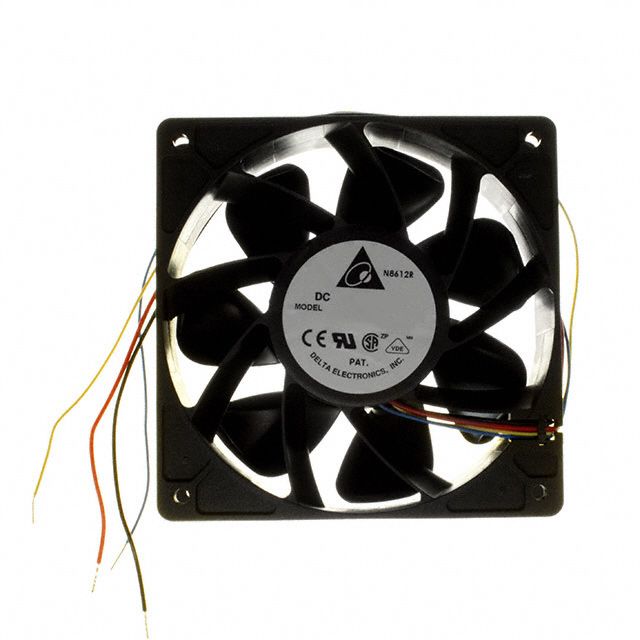

Delta Electronics
Manufacturer : Delta Electronics
Series : QFR
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 173.8 CFM (4.87m鲁/min)
Static Pressure : 0.844 in H2O (210.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 12.00W
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UL, VDE
Weight : 0.728 lb (330.22g)
0
100 in stock
Delta Electronics
Manufacturer : Delta Electronics
Series : QFR
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 210.4 CFM (5.89m鲁/min)
Static Pressure : 1.170 in H2O (291.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise : 64.0 dB(A)
Power (Watts) : 21.60W
RPM : 6000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, cURus, VDE
Weight : 0.728 lb (330.22g)
0
233 in stock

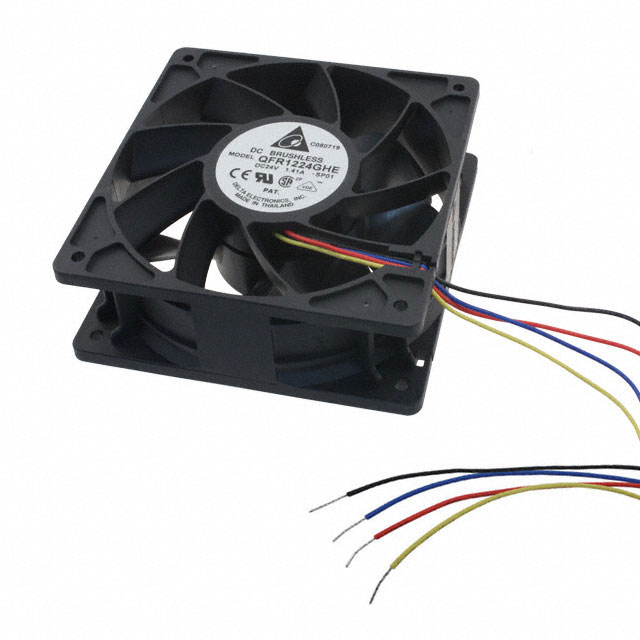

Delta Electronics
Manufacturer : Delta Electronics
Series : QFR
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 210.4 CFM (5.89m鲁/min)
Static Pressure : 1.170 in H2O (291.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 64.0 dB(A)
Power (Watts) : 22.50W
RPM : 6000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UL, VDE
Weight : 0.727 lb (329.76g)
0
474 in stock

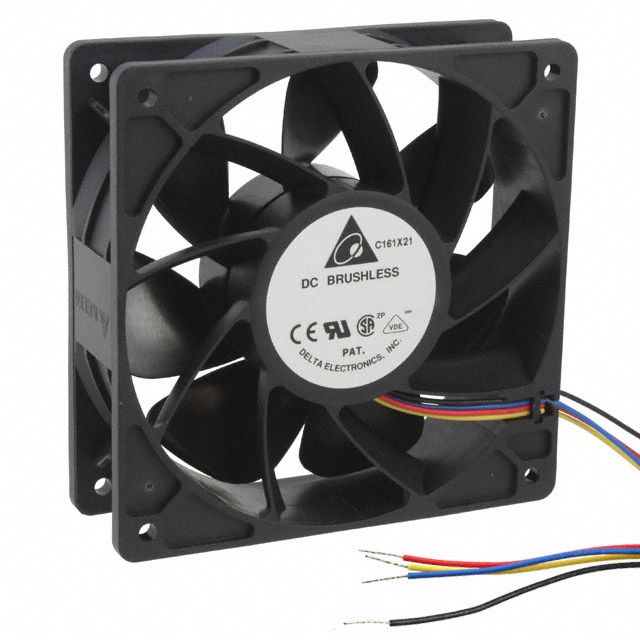

Delta Electronics
Manufacturer : Delta Electronics
Series : QFR
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 210.4 CFM (5.89m鲁/min)
Static Pressure : 1.170 in H2O (291.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 64.0 dB(A)
Power (Watts) : 24.00W
RPM : 6000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.727 lb (329.76g)
0
162 in stock

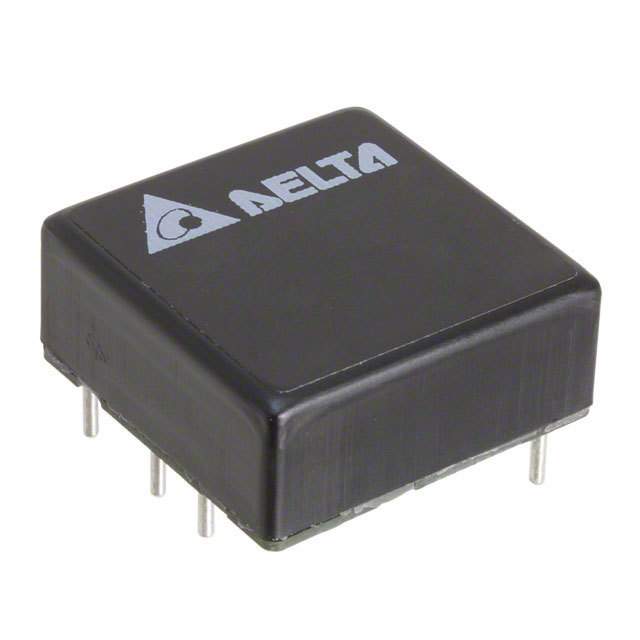

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : S24DE
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.25A, 1.25A
Power (Watts) : 30W
Voltage - Isolation : 1.6kV
Applications : ITE (Commercial)
Features : Remote On/Off, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 88%
Mounting Type : Through Hole
Package / Case : 6-DIP Module
Size / Dimension : 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Supplier Device Package : -
Control Features : Enable, Active Low
0
164 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : S24DE
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 420mA, 420mA
Power (Watts) : 10W
Voltage - Isolation : 1.6kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 85°C
Efficiency : 87%
Mounting Type : Through Hole
Package / Case : 6-DIP Module
Size / Dimension : 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Supplier Device Package : -
Control Features : -
0
293 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : S24DE
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 625mA, 625mA
Power (Watts) : 15W
Voltage - Isolation : 1.6kV
Applications : ITE (Commercial)
Features : Remote On/Off, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 87.5%
Mounting Type : Through Hole
Package / Case : 6-DIP Module
Size / Dimension : 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Supplier Device Package : -
Control Features : Enable, Active High
0
220 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : S24DE
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1A, 1A
Power (Watts) : 30W
Voltage - Isolation : 1.6kV
Applications : ITE (Commercial)
Features : Remote On/Off, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 88%
Mounting Type : Through Hole
Package / Case : 6-DIP Module
Size / Dimension : 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Supplier Device Package : -
Control Features : Enable, Active Low
0
296 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : S24DE
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1A, 1A
Power (Watts) : 30W
Voltage - Isolation : 1.6kV
Applications : ITE (Commercial)
Features : Remote On/Off, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 88%
Mounting Type : Through Hole
Package / Case : 6-DIP Module
Size / Dimension : 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Supplier Device Package : -
Control Features : Enable, Active High
0
601 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : S24DE
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 330mA, 330mA
Power (Watts) : 10W
Voltage - Isolation : 1.6kV
Applications : ITE (Commercial)
Features : Remote On/Off, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 87%
Mounting Type : Through Hole
Package / Case : 6-DIP Module
Size / Dimension : 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Supplier Device Package : -
Control Features : Enable, Active Low
0
21 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : S24DE
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 330mA, 330mA
Power (Watts) : 10W
Voltage - Isolation : 1.6kV
Applications : ITE (Commercial)
Features : Remote On/Off, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 87%
Mounting Type : Through Hole
Package / Case : 6-DIP Module
Size / Dimension : 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Supplier Device Package : -
Control Features : Enable, Active High
0
100 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : S24DE
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 500mA, 500mA
Power (Watts) : 15W
Voltage - Isolation : 1.6kV
Applications : ITE (Commercial)
Features : Remote On/Off, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 87.5%
Mounting Type : Through Hole
Package / Case : 6-DIP Module
Size / Dimension : 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Supplier Device Package : -
Control Features : Enable, Active Low
0
88 in stock
