Cornell Dubilier

- Cornell Dubilier is the source for capacitors that transform your applications to success stories. It excels with aluminum electrolytic, mica, motor run and AC and DC plastic film capacitors. Cornell Dubilier only makes capacitors and has been doing it for almost 100 years. The world leaders in welders, UPS systems, motors, drives, avionics, power and military electronics and medical lasers are prominently among its more than 33,000 customers.


Part Number

Manufacturer

Description

Unit Price

In Stock

MIN02-002DC510J-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : MIN02
Part Status : Active
Capacitance : 51pF
Tolerance : ±5%
Voltage - Rated : 300V
Dielectric Material : Mica
Operating Temperature : -55°C ~ 200°C
Mounting Type : Surface Mount
Package / Case : Nonstandard SMD
Lead Spacing : -
Features : RF, High Frequency
Size / Dimension : 0.218" L x 0.400" W (5.54mm x 10.16mm)
Height - Seated (Max) : -

600 in stock

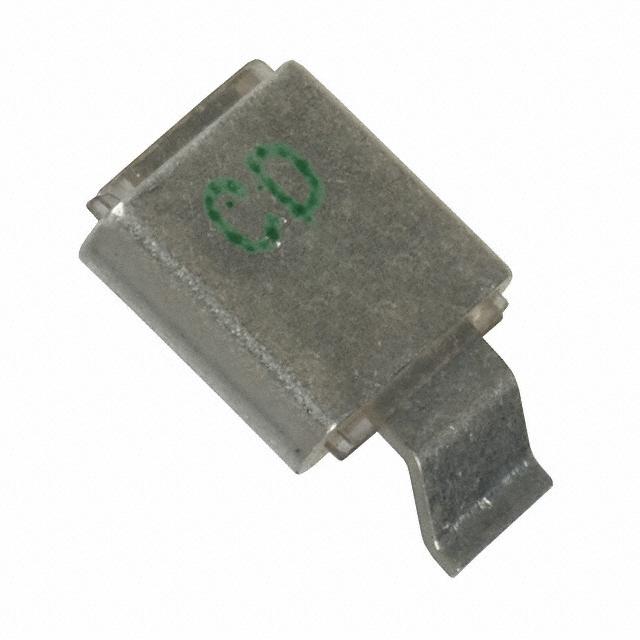

MIN02-002EC101J-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : MIN02
Part Status : Active
Capacitance : 100pF
Tolerance : ±5%
Voltage - Rated : 300V
Dielectric Material : Mica
Operating Temperature : -55°C ~ 200°C
Mounting Type : Surface Mount
Package / Case : Nonstandard SMD
Lead Spacing : -
Features : RF, High Frequency
Size / Dimension : 0.218" L x 0.400" W (5.54mm x 10.16mm)
Height - Seated (Max) : -

324 in stock

MIN02-002EC910J-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : MIN02
Part Status : Active
Capacitance : 91pF
Tolerance : ±5%
Voltage - Rated : 300V
Dielectric Material : Mica
Operating Temperature : -55°C ~ 200°C
Mounting Type : Surface Mount
Package / Case : Nonstandard SMD
Lead Spacing : -
Features : RF, High Frequency
Size / Dimension : 0.218" L x 0.400" W (5.54mm x 10.16mm)
Height - Seated (Max) : -

2562 in stock

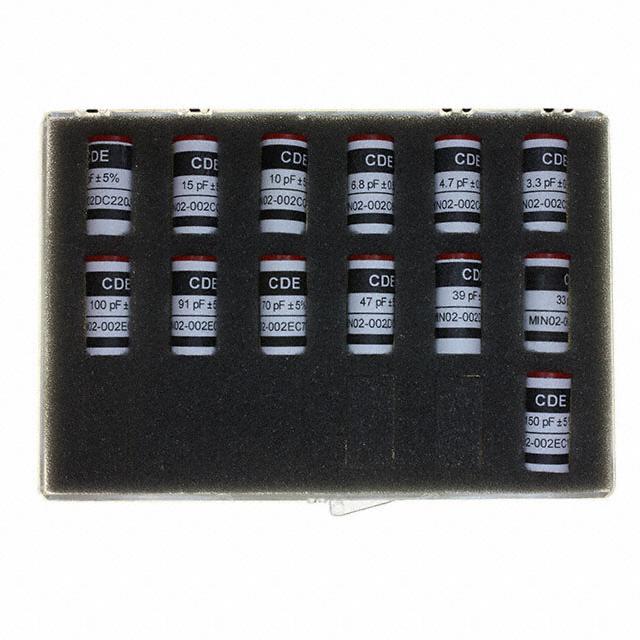

MIN300VKIT1

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Plastic Box with Bin Guide
Series : MIN02
Part Status : Active
Kit Type : Mica
Capacitance Range : 3.3pF ~ 150pF
Mounting Type : Surface Mount
Voltage - Rated : 300V
Tolerance : ±0.5pF, ±5%
Applications : RF, Microwave, High Frequency
Features : -
Quantity : 65 Pieces (13 Values - 5 Each)
Packages Included : Non-Standard SMD

4 in stock

MLP113M050EB0A

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tray
Series : MLP
Part Status : Active
Capacitance : 11000µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 36 mOhm
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -55°C ~ 85°C
Polarization : -
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : 1.000" (25.40mm)
Size / Dimension : 3.000" L x 1.750" W (76.20mm x 44.45mm)
Height - Seated (Max) : 0.500" (12.70mm)
Surface Mount Land Size : -
Mounting Type : Chassis Mount
Package / Case : FlatPack, Tabbed

358 in stock

MLP281M450EB0A

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : MLP
Part Status : Active
Capacitance : 280µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : 585 mOhm
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : -
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : 1.000" (25.40mm)
Size / Dimension : 3.000" L x 1.750" W (76.20mm x 44.45mm)
Height - Seated (Max) : 0.500" (12.70mm)
Surface Mount Land Size : -
Mounting Type : Chassis Mount
Package / Case : FlatPack, Tabbed

104 in stock

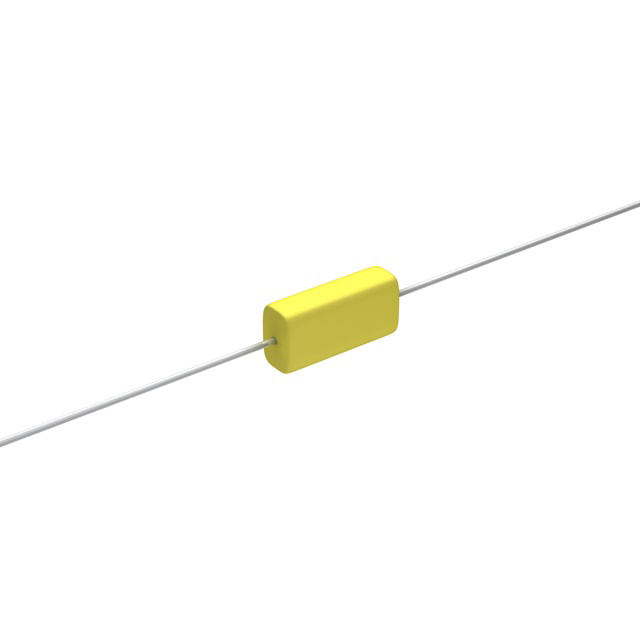

MMP2P1K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : MMP
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.335" W, 0.217" T x 0.669" L (8.50mm, 5.50mm x 17.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Long Life

280 in stock

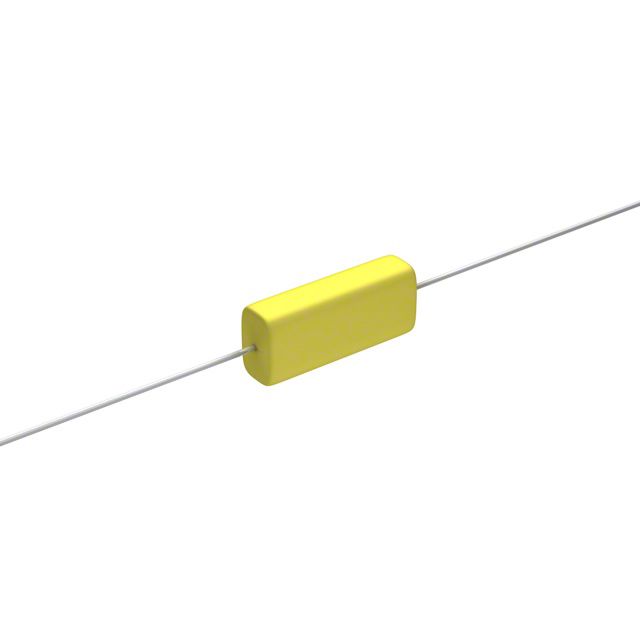

MMP2P47K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : MMP
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.433" W, 0.276" T x 0.984" L (11.00mm, 7.00mm x 25.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Long Life

544 in stock

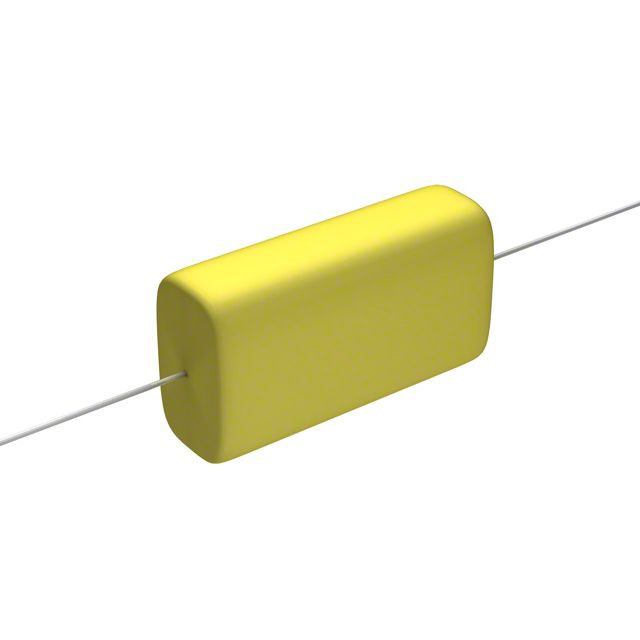

MMP2W10K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : MMP
Part Status : Active
Capacitance : 10µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 1.063" W, 0.630" T x 1.929" L (27.00mm, 16.00mm x 49.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Long Life

1842 in stock

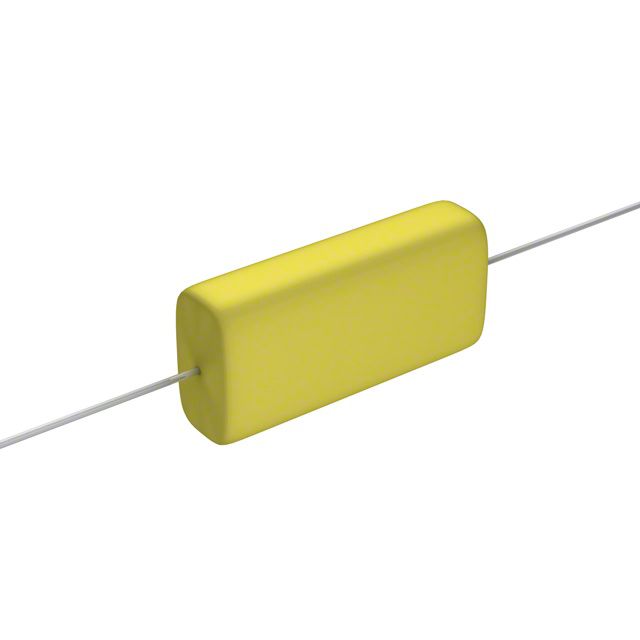

MMP2W1K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : MMP
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.531" W, 0.295" T x 1.102" L (13.50mm, 7.50mm x 28.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Long Life

100 in stock

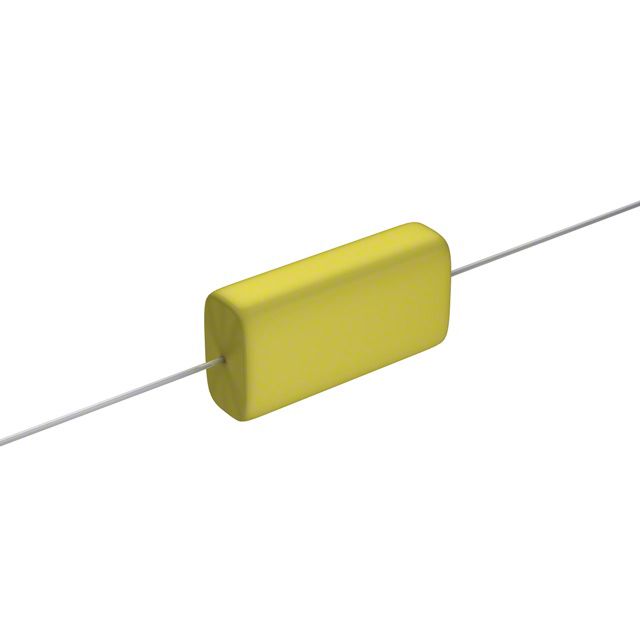

MMP2W2P2K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : MMP
Part Status : Active
Capacitance : 2.2µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.709" W, 0.394" T x 1.378" L (18.00mm, 10.00mm x 35.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Long Life

2418 in stock

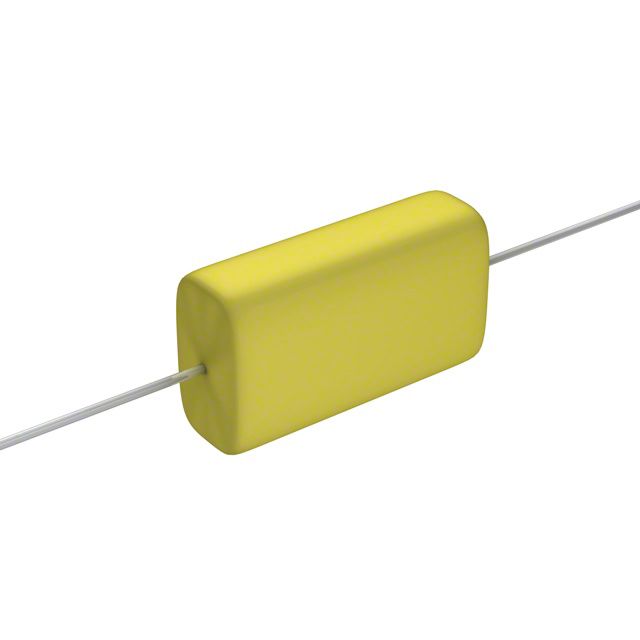

MMP4P47K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : MMP
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.610" W, 0.354" T x 1.063" L (15.50mm, 9.00mm x 27.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Long Life

145 in stock
