Cornell Dubilier

- Cornell Dubilier is the source for capacitors that transform your applications to success stories. It excels with aluminum electrolytic, mica, motor run and AC and DC plastic film capacitors. Cornell Dubilier only makes capacitors and has been doing it for almost 100 years. The world leaders in welders, UPS systems, motors, drives, avionics, power and military electronics and medical lasers are prominently among its more than 33,000 customers.


Part Number

Manufacturer

Description

Unit Price

In Stock

FCA1206C154M-H1

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FCA
Part Status : Active
Capacitance : 0.15µF
Tolerance : ±20%
Voltage Rating - AC : 12V
Voltage Rating - DC : 16V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : 0.039" (1.00mm)
Termination : Solder Pads
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR

5999 in stock

FCA1206C224M-H1

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FCA
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±20%
Voltage Rating - AC : 12V
Voltage Rating - DC : 16V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : 0.039" (1.00mm)
Termination : Solder Pads
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR

6234 in stock

FCA1206C334M-H2

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FCA
Part Status : Active
Capacitance : 0.33µF
Tolerance : ±20%
Voltage Rating - AC : 12V
Voltage Rating - DC : 16V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : 0.047" (1.20mm)
Termination : Solder Pads
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR

1806 in stock

FCA1206C474M-H3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FCA
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±20%
Voltage Rating - AC : 12V
Voltage Rating - DC : 16V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : 0.063" (1.60mm)
Termination : Solder Pads
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR

50209 in stock

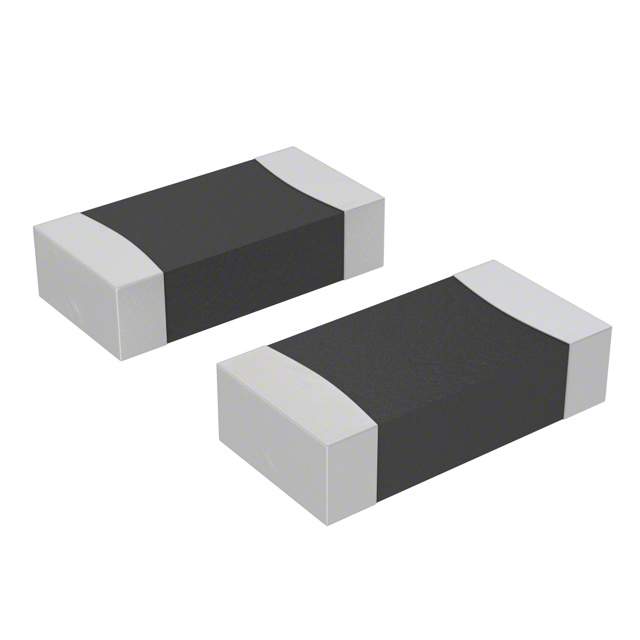

FCA1206C684M-H3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FCA
Part Status : Active
Capacitance : 0.68µF
Tolerance : ±20%
Voltage Rating - AC : 12V
Voltage Rating - DC : 16V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : 0.063" (1.60mm)
Termination : Solder Pads
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR

1860 in stock

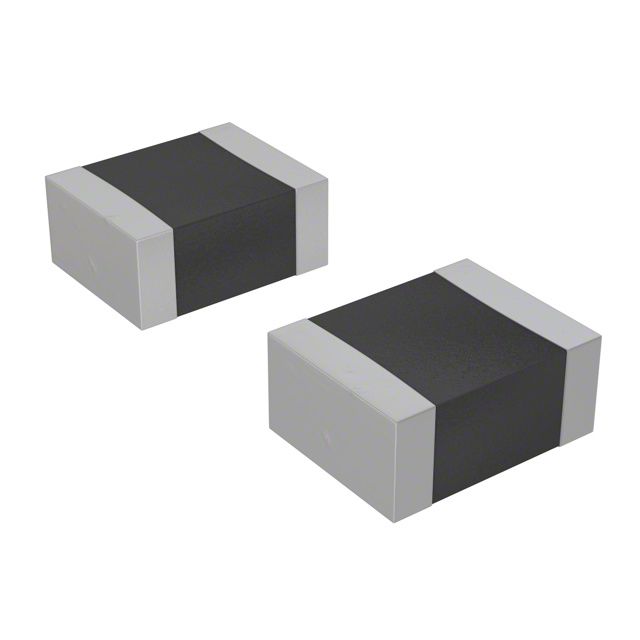

FCA1210C105M-G2

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FCA
Part Status : Active
Capacitance : 1µF
Tolerance : ±20%
Voltage Rating - AC : 12V
Voltage Rating - DC : 16V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.063" (1.60mm)
Termination : Solder Pads
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR

22010 in stock

FCA-KIT1

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : FCA
Part Status : Obsolete
Kit Type : Film
Capacitance Range : 0.1µF ~ 1µF
Mounting Type : Surface Mount
Voltage - Rated : 16V
Tolerance : ±20%
Applications : General Purpose
Features : -
Quantity : 168 Pieces (7 Values - 24 Each)
Packages Included : 0805, 1206, 1210 (2012, 3216, 3225 Metric)

100 in stock

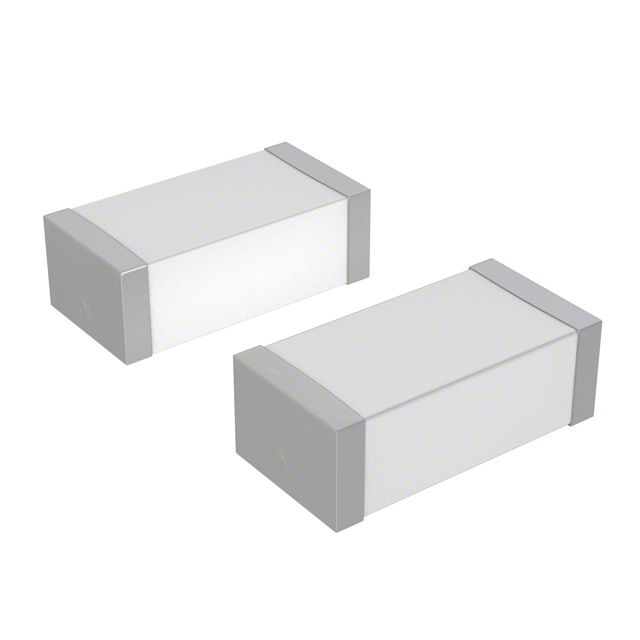

FCN1206A102J-H2

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FCN
Part Status : Active
Capacitance : 1000pF
Tolerance : ±5%
Voltage Rating - AC : 63V
Voltage Rating - DC : 100V
Dielectric Material : Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : 0.051" (1.30mm)
Termination : Solder Pads
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : -

3892 in stock

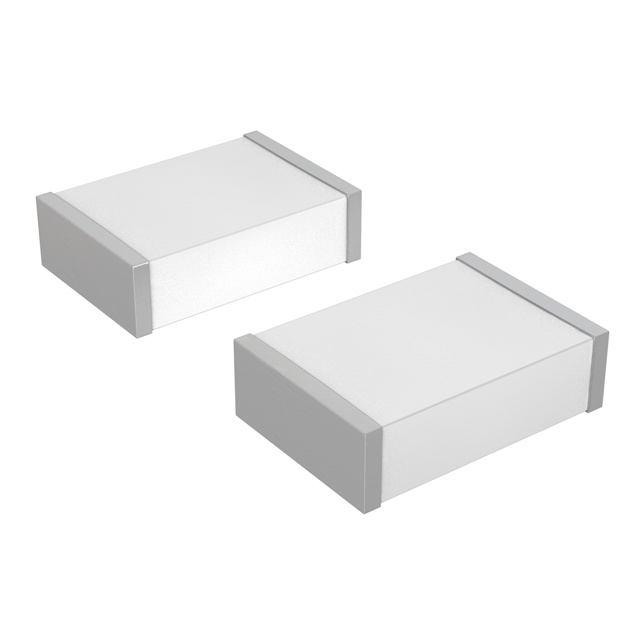

FCN1913A473K-E2

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FCN
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 63V
Voltage Rating - DC : 100V
Dielectric Material : Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 1913 (4833 Metric)
Size / Dimension : 0.189" L x 0.130" W (4.80mm x 3.30mm)
Height - Seated (Max) : 0.087" (2.20mm)
Termination : Solder Pads
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : -

1790 in stock

FCN1913G103J-E3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FCN
Part Status : Active
Capacitance : 10000pF
Tolerance : ±5%
Voltage Rating - AC : -
Voltage Rating - DC : 400V
Dielectric Material : Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 1913 (4833 Metric)
Size / Dimension : 0.189" L x 0.130" W (4.80mm x 3.30mm)
Height - Seated (Max) : 0.118" (3.00mm)
Termination : Solder Pads
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : -

922 in stock

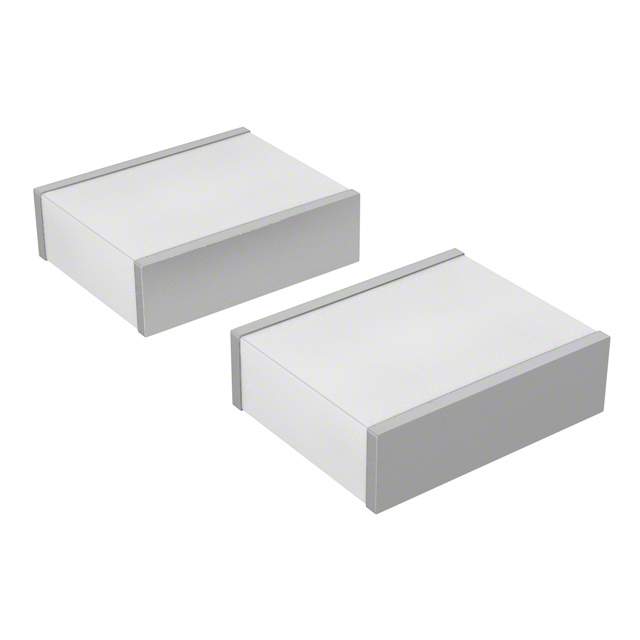

FCN2416A104K-D1

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FCN
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±10%
Voltage Rating - AC : 63V
Voltage Rating - DC : 100V
Dielectric Material : Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 2416 (6041 Metric)
Size / Dimension : 0.189" L x 0.236" W (4.80mm x 6.00mm)
Height - Seated (Max) : 0.083" (2.10mm)
Termination : Solder Pads
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : -

4628 in stock

FCN2416G123J-D2

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FCN
Part Status : Active
Capacitance : 0.012µF
Tolerance : ±5%
Voltage Rating - AC : -
Voltage Rating - DC : 400V
Dielectric Material : Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 2416 (6041 Metric)
Size / Dimension : 0.236" L x 0.161" W (6.00mm x 4.10mm)
Height - Seated (Max) : 0.087" (2.20mm)
Termination : Solder Pads
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : -

5660 in stock
