Part Number
Manufacturer
Description
Unit Price
In Stock

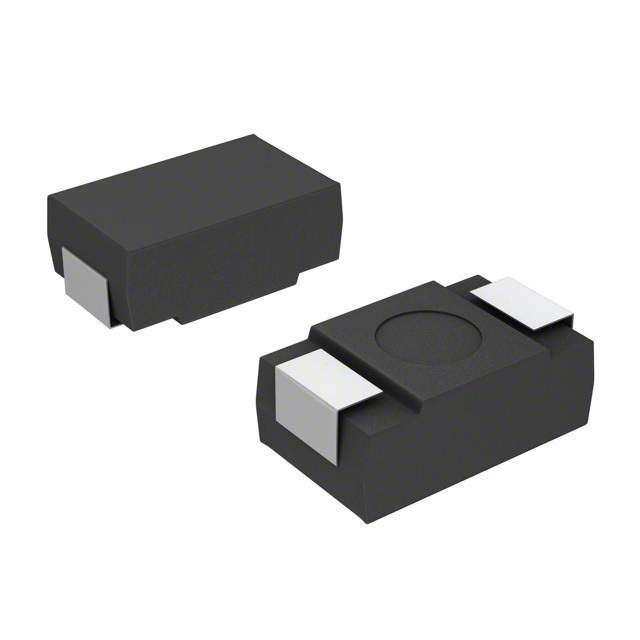

ESRH101M06B
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRH
Part Status : Obsolete
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Bulk
Alternate Packaging
Series : ESRH
Part Status : Obsolete
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRH101M06R
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRH101M08B
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRH
Part Status : Obsolete
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 8V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.161" (4.10mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Bulk
Alternate Packaging
Series : ESRH
Part Status : Obsolete
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 8V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.161" (4.10mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRH101M08R
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 8V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.161" (4.10mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 8V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.161" (4.10mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRH121M04B
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 120µF
Tolerance : ±20%
Voltage - Rated : 4V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Bulk
Alternate Packaging
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 120µF
Tolerance : ±20%
Voltage - Rated : 4V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRH121M04R
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 120µF
Tolerance : ±20%
Voltage - Rated : 4V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 120µF
Tolerance : ±20%
Voltage - Rated : 4V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRH151M06B
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRH
Part Status : Obsolete
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.161" (4.10mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Bulk
Alternate Packaging
Series : ESRH
Part Status : Obsolete
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.161" (4.10mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock

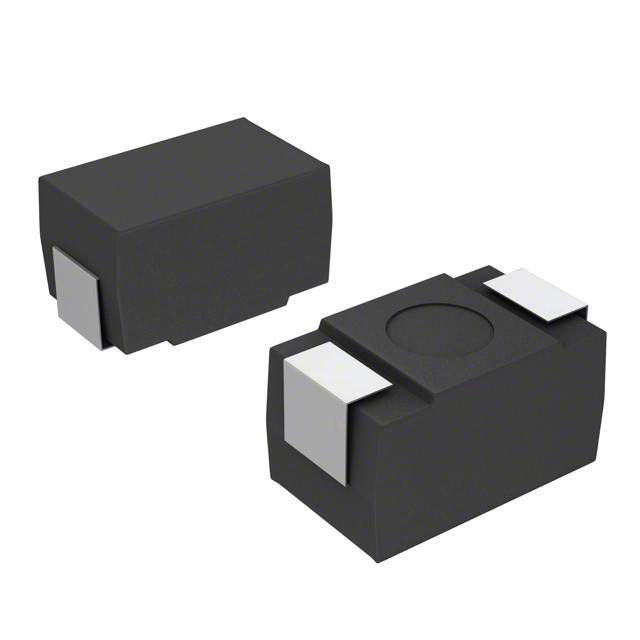

ESRH151M06R
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.161" (4.10mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.161" (4.10mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRH151M0EB
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Bulk
Alternate Packaging
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRH151M0ER
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRH181M02B
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Bulk
Alternate Packaging
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRH181M02R
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : ESRH
Part Status : Last Time Buy
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
