Nidec Copal Electronics

- Nidec Copal Electronics, founded in 1967 and a subsidiary of Nidec Corporation, is a global supplier to the telecommunications, computer, industrial, medical, and semiconductor equipment markets. Products designed and manufactured for these markets include trimmer and precision potentiometers, switches, optical encoders, and DC fans. Copal has also expanded its’ new product development activity into areas including silicon pressure sensors, polygon laser scanners, DC turbo fans, and thermal variable attenuators.

As part of Copal’s strategy to provide the market with one of the largest portfolios of industrial switch products from one supplier, Copal Electronics completed the acquisition of the Fujisoku Corporation in late 2007. This acquisition added panel mounted toggle, rocker, lever, pushbutton, and trigger switches to an extensive range of board level switch products already manufactured by Copal. Switch product development is a focus of the combined product group in meeting market requirements for standard and customized switching solutions.

Copal Electronics maintains global customer support capabilities through regional product and customer service offices located in Germany, China, Japan, Singapore, Korea, and the USA. Multiple product manufacturing facilities are located in Japan, China, and Vietnam.


Part Number

Manufacturer

Description

Unit Price

In Stock

Picture of SS-10-16NPE

SS-10-16NPE

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : SS-10
Part Status : Active
Circuit : SP6T
Number of Positions : 6
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.275" (6.99mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -25°C ~ 70°C

0

3430 in stock

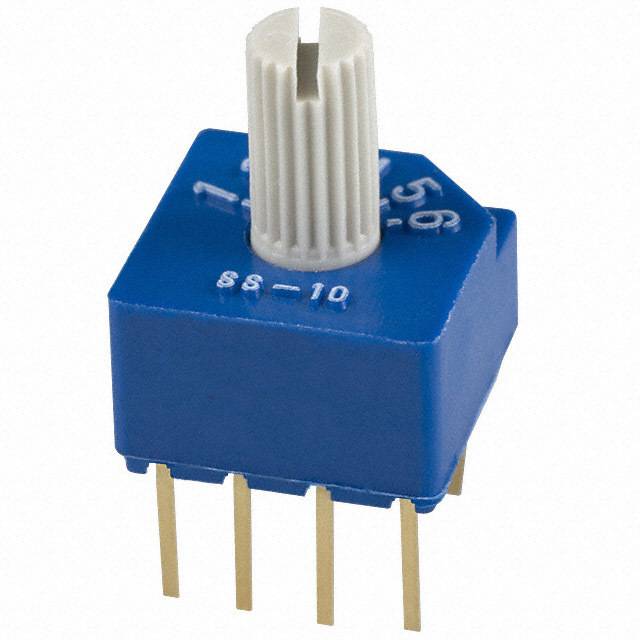

Picture of SS-10-16NP-LE

SS-10-16NP-LE

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : SS-10
Part Status : Active
Circuit : SP6T
Number of Positions : 6
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary with Shaft
Actuator Level : Raised
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.535" (13.59mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -25°C ~ 70°C

0

1948 in stock

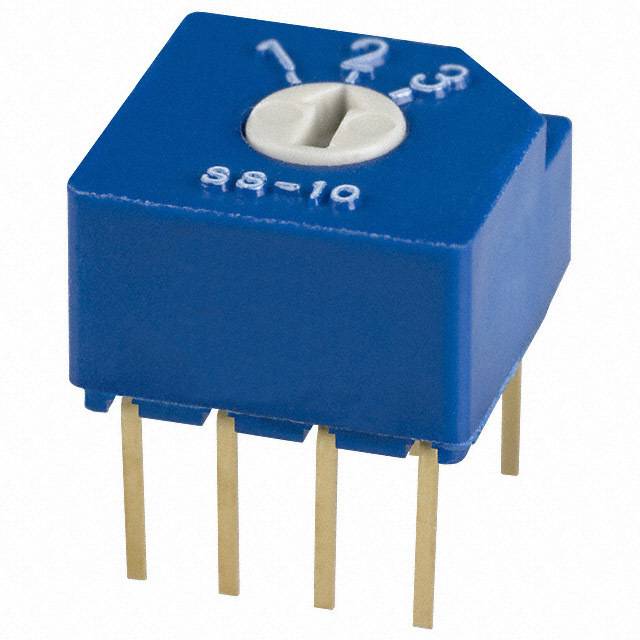

Picture of SS-10-23NPE

SS-10-23NPE

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : SS-10
Part Status : Active
Circuit : DP3T
Number of Positions : 3
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary for Tool
Actuator Level : Flush, Recessed
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.275" (6.99mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -25°C ~ 70°C

0

2225 in stock

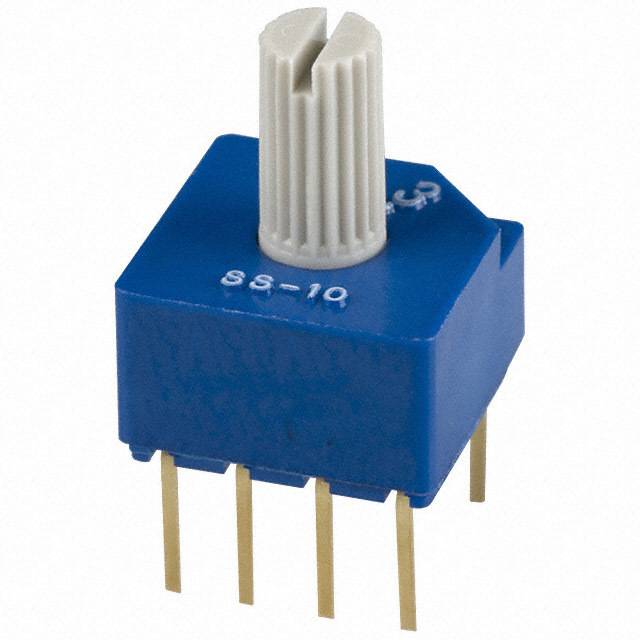

Picture of SS-10-23NP-LE

SS-10-23NP-LE

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Alternate Packaging
Series : SS-10
Part Status : Active
Circuit : DP3T
Number of Positions : 3
Current Rating : 100mA
Voltage Rating : 5VDC
Actuator Type : Rotary with Shaft
Actuator Level : Raised
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.535" (13.59mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : -
Operating Temperature : -25°C ~ 70°C

0

1523 in stock

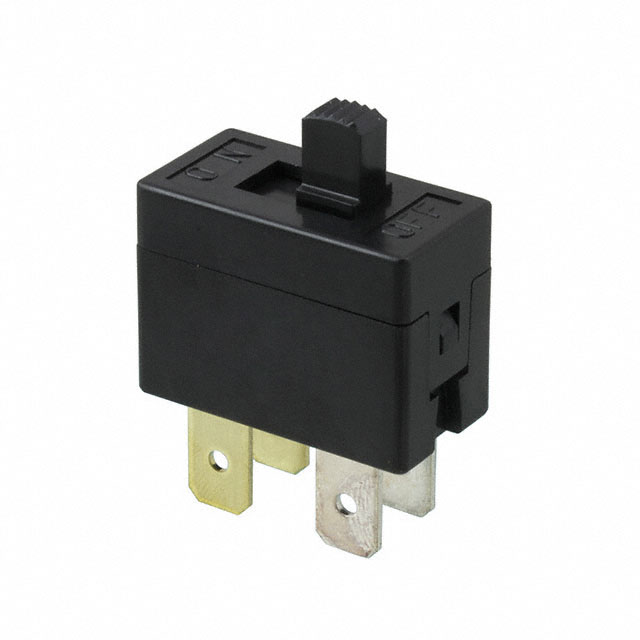

Picture of SS220K-23-Z

SS220K-23-Z

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : SS220K-23
Part Status : Active
Circuit : DPST
Contact Timing : Non-Shorting (BBM)
Switch Function : On-Off
Current Rating : 20A (AC)
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Actuator Type : Standard
Actuator Length : 8.00mm
Contact Material : -
Contact Finish : -
Mounting Type : -
Termination Style : Quick Connect - 0.250" (6.3mm)
Features : -
Operating Temperature : -10°C ~ 50°C

0

95 in stock

Picture of ST2TA101

ST2TA101

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ST2
Part Status : Active
Resistance : 100 Ohms
Power (Watts) : 0.1W, 1/10W
Tolerance : ±20%
Temperature Coefficient : ±150ppm/°C
Number of Turns : 1
Adjustment Type : Top Adjustment
Resistive Material : Cermet
Mounting Type : Surface Mount
Termination Style : J Lead
Size / Dimension : Square - 0.110" x 0.094" Face x 0.067" H (2.80mm x 2.40mm x 1.70mm)

0

1169 in stock

Picture of ST2TA102

ST2TA102

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ST2
Part Status : Active
Resistance : 1 kOhms
Power (Watts) : 0.1W, 1/10W
Tolerance : ±20%
Temperature Coefficient : ±150ppm/°C
Number of Turns : 1
Adjustment Type : Top Adjustment
Resistive Material : Cermet
Mounting Type : Surface Mount
Termination Style : J Lead
Size / Dimension : Square - 0.110" x 0.094" Face x 0.067" H (2.80mm x 2.40mm x 1.70mm)

0

719 in stock

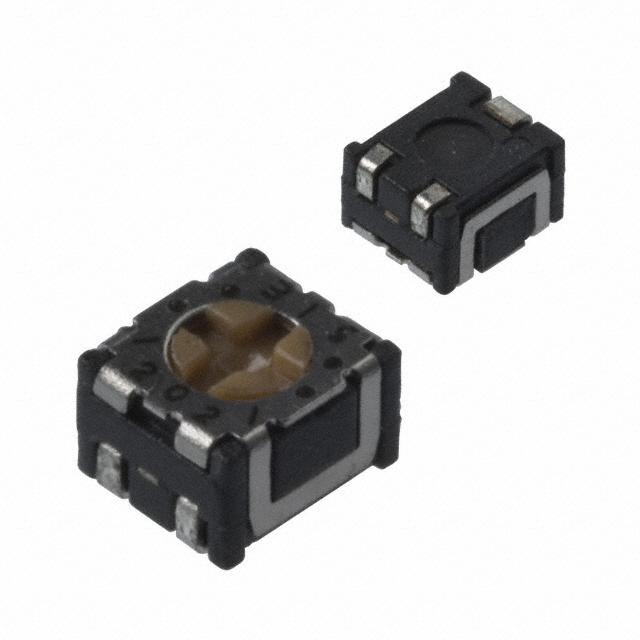

Picture of ST2TA103

ST2TA103

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ST2
Part Status : Active
Resistance : 10 kOhms
Power (Watts) : 0.1W, 1/10W
Tolerance : ±20%
Temperature Coefficient : ±150ppm/°C
Number of Turns : 1
Adjustment Type : Top Adjustment
Resistive Material : Cermet
Mounting Type : Surface Mount
Termination Style : J Lead
Size / Dimension : Square - 0.110" x 0.094" Face x 0.067" H (2.80mm x 2.40mm x 1.70mm)

0

489 in stock

Picture of ST2TA104

ST2TA104

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ST2
Part Status : Discontinued at
Resistance : 100 kOhms
Power (Watts) : 0.1W, 1/10W
Tolerance : ±20%
Temperature Coefficient : ±150ppm/°C
Number of Turns : 1
Adjustment Type : Top Adjustment
Resistive Material : Cermet
Mounting Type : Surface Mount
Termination Style : J Lead
Size / Dimension : Square - 0.110" x 0.094" Face x 0.067" H (2.80mm x 2.40mm x 1.70mm)

0

100 in stock

Picture of ST2TA501

ST2TA501

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ST2
Part Status : Discontinued at
Resistance : 500 Ohms
Power (Watts) : 0.1W, 1/10W
Tolerance : ±20%
Temperature Coefficient : ±150ppm/°C
Number of Turns : 1
Adjustment Type : Top Adjustment
Resistive Material : Cermet
Mounting Type : Surface Mount
Termination Style : J Lead
Size / Dimension : Square - 0.110" x 0.094" Face x 0.067" H (2.80mm x 2.40mm x 1.70mm)

0

100 in stock

Picture of ST2TA503

ST2TA503

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ST2
Part Status : Discontinued at
Resistance : 50 kOhms
Power (Watts) : 0.1W, 1/10W
Tolerance : ±20%
Temperature Coefficient : ±150ppm/°C
Number of Turns : 1
Adjustment Type : Top Adjustment
Resistive Material : Cermet
Mounting Type : Surface Mount
Termination Style : J Lead
Size / Dimension : Square - 0.110" x 0.094" Face x 0.067" H (2.80mm x 2.40mm x 1.70mm)

0

100 in stock

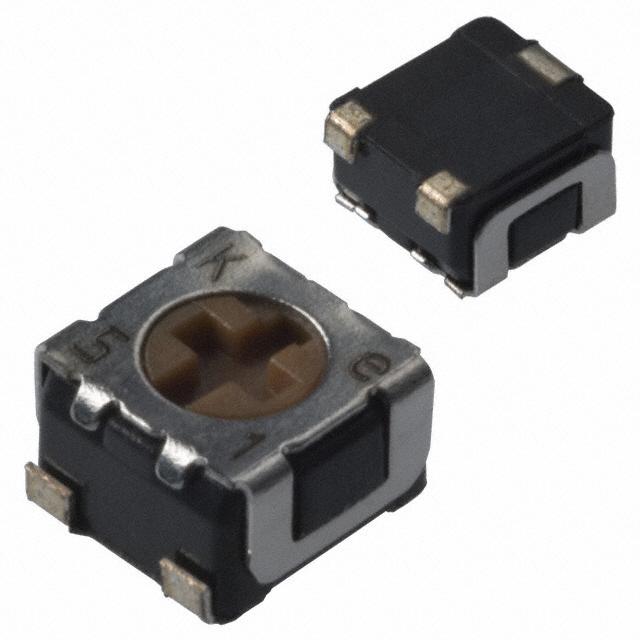

Picture of ST32ETA101

ST32ETA101

Copal Electronics (Nidec Copal Electronics)

Manufacturer : Nidec Copal Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ST-32
Part Status : Active
Resistance : 100 Ohms
Power (Watts) : 0.125W, 1/8W
Tolerance : ±20%
Temperature Coefficient : ±100ppm/°C
Number of Turns : 1
Adjustment Type : Top Adjustment
Resistive Material : Cermet
Mounting Type : Surface Mount
Termination Style : J Lead
Size / Dimension : Square - 0.134" L x 0.134" W x 0.079" H (3.40mm x 3.40mm x 2.00mm)

0

6908 in stock
