Nidec Copal Electronics
- Nidec Copal Electronics, founded in 1967 and a subsidiary of Nidec Corporation, is a global supplier to the telecommunications, computer, industrial, medical, and semiconductor equipment markets. Products designed and manufactured for these markets include trimmer and precision potentiometers, switches, optical encoders, and DC fans. Copal has also expanded its’ new product development activity into areas including silicon pressure sensors, polygon laser scanners, DC turbo fans, and thermal variable attenuators.
As part of Copal’s strategy to provide the market with one of the largest portfolios of industrial switch products from one supplier, Copal Electronics completed the acquisition of the Fujisoku Corporation in late 2007. This acquisition added panel mounted toggle, rocker, lever, pushbutton, and trigger switches to an extensive range of board level switch products already manufactured by Copal. Switch product development is a focus of the combined product group in meeting market requirements for standard and customized switching solutions.
Copal Electronics maintains global customer support capabilities through regional product and customer service offices located in Germany, China, Japan, Singapore, Korea, and the USA. Multiple product manufacturing facilities are located in Japan, China, and Vietnam.
Part Number
Manufacturer
Description
Unit Price
In Stock
Copal Electronics (Nidec Copal Electronics)
Manufacturer : Nidec Copal Electronics
Series : -
Part Status : Active

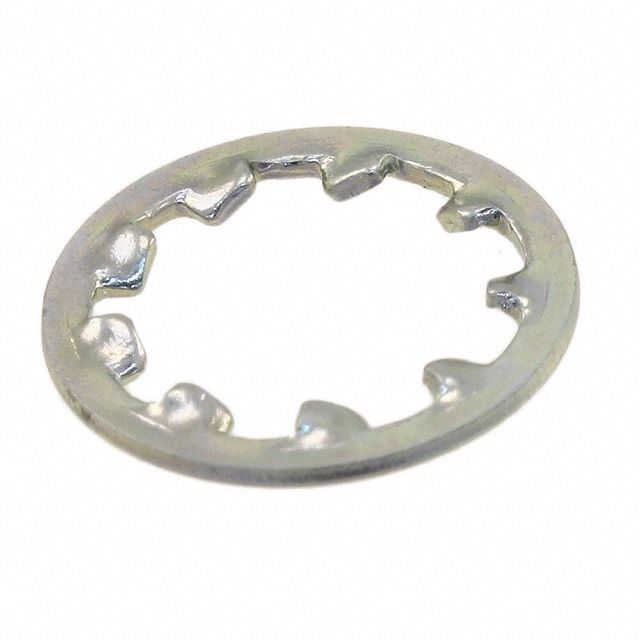

Accessory Type : Lockwasher
For Use With/Related Products : 8N, 8P and 8R-N Series
0
50 in stock
Copal Electronics (Nidec Copal Electronics)
Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : 8A
Part Status : Active
Circuit : SPDT
Switch Function : On-On
Current Rating : 25mA (DC)
Voltage Rating - AC : -
Voltage Rating - DC : 20V
Actuator Type : Standard Round
Actuator Length : 10.50mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Mounting Type : Panel Mount
Termination Style : Solder Lug
Panel Cutout Dimensions : Circular - 6.50mm Dia
Bushing Thread : 1/4-40
Ingress Protection : -
Features : Sealed - Flux Protection
Operating Temperature : -20°C ~ 85°C
0
877 in stock
Copal Electronics (Nidec Copal Electronics)
Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : 8A
Part Status : Active
Circuit : SPDT
Switch Function : On-On
Current Rating : 25mA (DC)
Voltage Rating - AC : -
Voltage Rating - DC : 20V
Actuator Type : Standard Round
Actuator Length : 10.50mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Mounting Type : Panel Mount
Termination Style : PC Pin
Panel Cutout Dimensions : Circular - 6.50mm Dia
Bushing Thread : 1/4-40
Ingress Protection : -
Features : Sealed - Flux Protection
Operating Temperature : -20°C ~ 85°C
0
146 in stock
Copal Electronics (Nidec Copal Electronics)
Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : 8A
Part Status : Active
Circuit : SPDT
Switch Function : On-On
Current Rating : 6A (AC), 4A (DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Standard Round
Actuator Length : 10.50mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Mounting Type : Panel Mount
Termination Style : PC Pin
Panel Cutout Dimensions : Circular - 6.50mm Dia
Bushing Thread : 1/4-40
Ingress Protection : -
Features : Sealed - Flux Protection
Operating Temperature : -20°C ~ 85°C
0
151 in stock
Copal Electronics (Nidec Copal Electronics)
Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : 8A
Part Status : Active
Circuit : SPDT
Switch Function : On-Off-On
Current Rating : 25mA (DC)
Voltage Rating - AC : -
Voltage Rating - DC : 20V
Actuator Type : Standard Round
Actuator Length : 10.50mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Mounting Type : Panel Mount
Termination Style : Solder Lug
Panel Cutout Dimensions : Circular - 6.50mm Dia
Bushing Thread : 1/4-40
Ingress Protection : -
Features : Sealed - Flux Protection
Operating Temperature : -20°C ~ 85°C
0
465 in stock
Copal Electronics (Nidec Copal Electronics)
Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : 8A
Part Status : Active
Circuit : SPDT
Switch Function : On-Off-On
Current Rating : 25mA (DC)
Voltage Rating - AC : -
Voltage Rating - DC : 20V
Actuator Type : Standard Round
Actuator Length : 10.50mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Mounting Type : Panel Mount
Termination Style : PC Pin
Panel Cutout Dimensions : Circular - 6.50mm Dia
Bushing Thread : 1/4-40
Ingress Protection : -
Features : Sealed - Flux Protection
Operating Temperature : -20°C ~ 85°C
0
122 in stock
Copal Electronics (Nidec Copal Electronics)
Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : 8A
Part Status : Active
Circuit : SPDT
Switch Function : On-Off-On
Current Rating : 6A (AC), 4A (DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Standard Round
Actuator Length : 10.50mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Mounting Type : Panel Mount
Termination Style : PC Pin
Panel Cutout Dimensions : Circular - 6.50mm Dia
Bushing Thread : 1/4-40
Ingress Protection : -
Features : Sealed - Flux Protection
Operating Temperature : -20°C ~ 85°C
0
462 in stock
Copal Electronics (Nidec Copal Electronics)
Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : 8A
Part Status : Active
Circuit : SPDT
Switch Function : Mom-Off-Mom
Current Rating : 6A (AC), 4A (DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Standard Round
Actuator Length : 10.50mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Mounting Type : Panel Mount
Termination Style : PC Pin
Panel Cutout Dimensions : Circular - 6.50mm Dia
Bushing Thread : 1/4-40
Ingress Protection : -
Features : Sealed - Flux Protection
Operating Temperature : -20°C ~ 85°C
0
246 in stock
Copal Electronics (Nidec Copal Electronics)
Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : 8A
Part Status : Active
Circuit : SPDT
Switch Function : On-Off-Mom
Current Rating : 6A (AC), 4A (DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Standard Round
Actuator Length : 10.50mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Mounting Type : Panel Mount
Termination Style : Solder Lug
Panel Cutout Dimensions : Circular - 6.50mm Dia
Bushing Thread : 1/4-40
Ingress Protection : -
Features : Sealed - Flux Protection
Operating Temperature : -20°C ~ 85°C
0
63 in stock
Copal Electronics (Nidec Copal Electronics)
Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : 8A
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 25mA (DC)
Voltage Rating - AC : -
Voltage Rating - DC : 20V
Actuator Type : Standard Round
Actuator Length : 10.50mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Mounting Type : Panel Mount
Termination Style : PC Pin
Panel Cutout Dimensions : Circular - 6.50mm Dia
Bushing Thread : 1/4-40
Ingress Protection : -
Features : Sealed - Flux Protection
Operating Temperature : -20°C ~ 85°C
0
152 in stock
Copal Electronics (Nidec Copal Electronics)
Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : 8A
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 6A (AC), 4A (DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Standard Round
Actuator Length : 10.50mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Mounting Type : Panel Mount
Termination Style : PC Pin
Panel Cutout Dimensions : Circular - 6.50mm Dia
Bushing Thread : 1/4-40
Ingress Protection : -
Features : Sealed - Flux Protection
Operating Temperature : -20°C ~ 85°C
0
1061 in stock
Copal Electronics (Nidec Copal Electronics)
Manufacturer : Nidec Copal Electronics
Packaging : Bulk
Series : 8A
Part Status : Active
Circuit : DPDT
Switch Function : On-On
Current Rating : 25mA (DC)
Voltage Rating - AC : -
Voltage Rating - DC : 20V
Actuator Type : Standard Round
Actuator Length : 10.50mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Mounting Type : Panel Mount
Termination Style : Solder Lug
Panel Cutout Dimensions : Circular - 6.50mm Dia
Bushing Thread : 1/4-40
Ingress Protection : -
Features : Sealed - Flux Protection
Operating Temperature : -20°C ~ 85°C
0
46 in stock
