Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 82V
Tolerance : ±5%
Power - Max : 5W
Impedance (Max) (Zzt) : 65 Ohms
Current - Reverse Leakage @ Vr : 500nA @ 62.2V
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 200mA
Operating Temperature : -55°C ~ 150°C
Mounting Type : Surface Mount

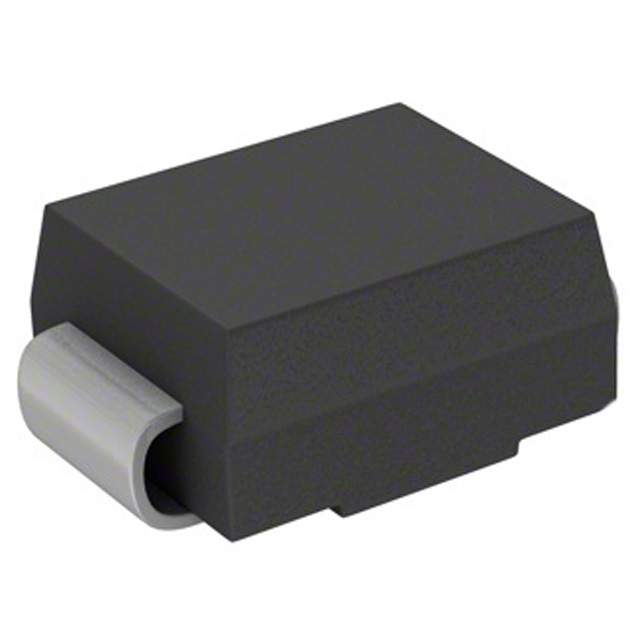

Package / Case : DO-214AA, SMB
Supplier Device Package : SMB (DO-214AA)
0
5826 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 91V
Tolerance : ±5%
Power - Max : 5W
Impedance (Max) (Zzt) : 75 Ohms
Current - Reverse Leakage @ Vr : 500nA @ 69.2V
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 200mA
Operating Temperature : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB (DO-214AA)
0
61 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 12V
Tolerance : ±5%
Power - Max : 150mW
Impedance (Max) (Zzt) : 20 Ohms
Current - Reverse Leakage @ Vr : 100nA @ 9V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 0503 (1308 Metric)
Supplier Device Package : 0503 (1308 Metric)
0
903 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 2V
Tolerance : ±5%
Power - Max : 150mW
Impedance (Max) (Zzt) : 100 Ohms
Current - Reverse Leakage @ Vr : 100µA @ 1V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 0503 (1308 Metric)
Supplier Device Package : 0503 (1308 Metric)
0
1303 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 2.2V
Tolerance : ±5%
Power - Max : 150mW
Impedance (Max) (Zzt) : 100 Ohms
Current - Reverse Leakage @ Vr : 100µA @ 1V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 0503 (1308 Metric)
Supplier Device Package : 0503 (1308 Metric)
0
1834 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 3.3V
Tolerance : ±5%
Power - Max : 150mW
Impedance (Max) (Zzt) : 95 Ohms
Current - Reverse Leakage @ Vr : 25µA @ 1V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 0503 (1308 Metric)
Supplier Device Package : 0503 (1308 Metric)
0
3234 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 3.6V
Tolerance : ±5%
Power - Max : 150mW
Impedance (Max) (Zzt) : 95 Ohms
Current - Reverse Leakage @ Vr : 15µA @ 1V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 0503 (1308 Metric)
Supplier Device Package : 0503 (1308 Metric)
0
11487 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 5.1V
Tolerance : ±5%
Power - Max : 150mW
Impedance (Max) (Zzt) : 60 Ohms
Current - Reverse Leakage @ Vr : 100nA @ 800mV
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 0503 (1308 Metric)
Supplier Device Package : 0503 (1308 Metric)
0
36138 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 15V
Tolerance : ±5%
Power - Max : 200mW
Impedance (Max) (Zzt) : 30 Ohms
Current - Reverse Leakage @ Vr : 100nA @ 11V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1005 (2512 Metric)
Supplier Device Package : 1005/SOD-323F
0
2251 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 2V
Tolerance : ±5%
Power - Max : 200mW
Impedance (Max) (Zzt) : 100 Ohms
Current - Reverse Leakage @ Vr : 100µA @ 1V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1005 (2512 Metric)
Supplier Device Package : 1005/SOD-323F
0
776 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 2.2V
Tolerance : ±5%
Power - Max : 200mW
Impedance (Max) (Zzt) : 100 Ohms
Current - Reverse Leakage @ Vr : 100µA @ 1V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1005 (2512 Metric)
Supplier Device Package : 1005/SOD-323F
0
3740 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 3.3V
Tolerance : ±5%
Power - Max : 200mW
Impedance (Max) (Zzt) : 95 Ohms
Current - Reverse Leakage @ Vr : 25µA @ 1V
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10mA
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1005 (2512 Metric)
Supplier Device Package : 1005/SOD-323F
0
5599 in stock
