Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 24V
Voltage - Breakdown (Min) : 26.7V
Voltage - Clamping (Max) @ Ipp : 38.9V
Current - Peak Pulse (10/1000µs) : 128.53A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole

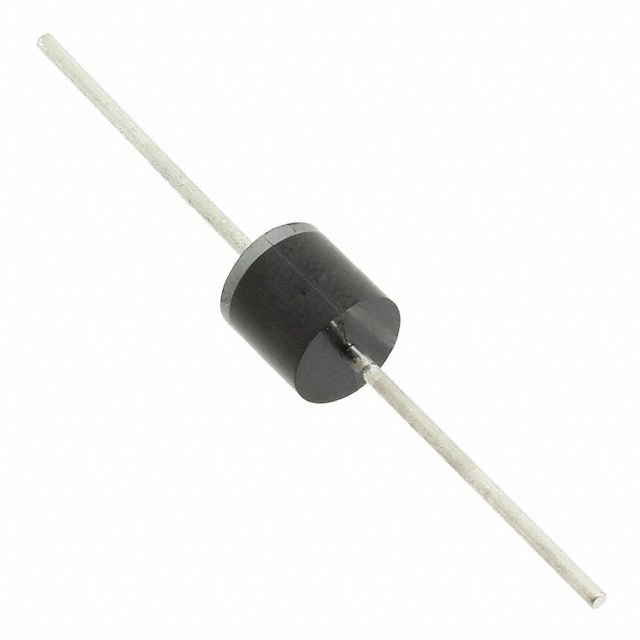

Package / Case : R6, Axial
Supplier Device Package : R-6
0
52 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 36V
Voltage - Breakdown (Min) : 40V
Voltage - Clamping (Max) @ Ipp : 58.1V
Current - Peak Pulse (10/1000µs) : 86.06A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : R6, Axial
Supplier Device Package : R-6
0
250 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 36V
Voltage - Breakdown (Min) : 40V
Voltage - Clamping (Max) @ Ipp : 58.1V
Current - Peak Pulse (10/1000µs) : 86.06A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : R6, Axial
Supplier Device Package : R-6
0
136 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 400V
Voltage - Breakdown (Min) : 447V
Voltage - Clamping (Max) @ Ipp : 648V
Current - Peak Pulse (10/1000µs) : 7.72A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : R6, Axial
Supplier Device Package : R-6
0
250 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 40V
Voltage - Breakdown (Min) : 44.4V
Voltage - Clamping (Max) @ Ipp : 64.5V
Current - Peak Pulse (10/1000µs) : 77.52A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : R6, Axial
Supplier Device Package : R-6
0
239 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 40V
Voltage - Breakdown (Min) : 44.4V
Voltage - Clamping (Max) @ Ipp : 64.5V
Current - Peak Pulse (10/1000µs) : 77.52A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : R6, Axial
Supplier Device Package : R-6
0
229 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Diode Type : Single Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 1kV
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount

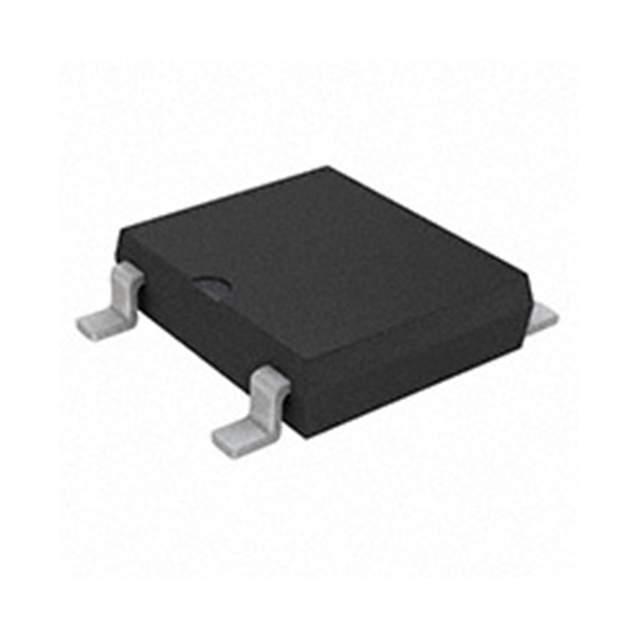

Package / Case : 4-SMD, Gull Wing
Supplier Device Package : ABS
0
100 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Single Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 1kV
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : ABS
0
5000 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Single Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : ABS
0
4990 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 850mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 100V
Capacitance @ Vr, F : 30pF @ 4V, 1MHz
Mounting Type : Surface Mount

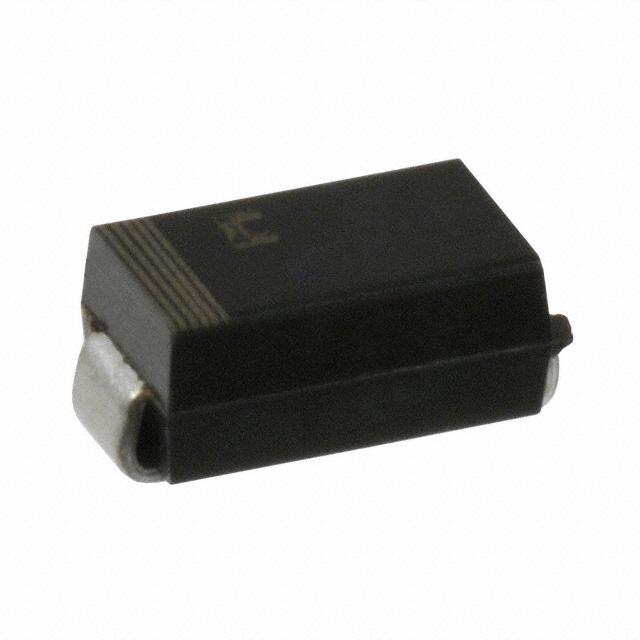

Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
Operating Temperature - Junction : -55°C ~ 150°C
0
4428 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 750mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Capacitance @ Vr, F : 120pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
Operating Temperature - Junction : -55°C ~ 150°C
0
4942 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 900mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 200V
Capacitance @ Vr, F : 25pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
Operating Temperature - Junction : -55°C ~ 150°C
0
4708 in stock
